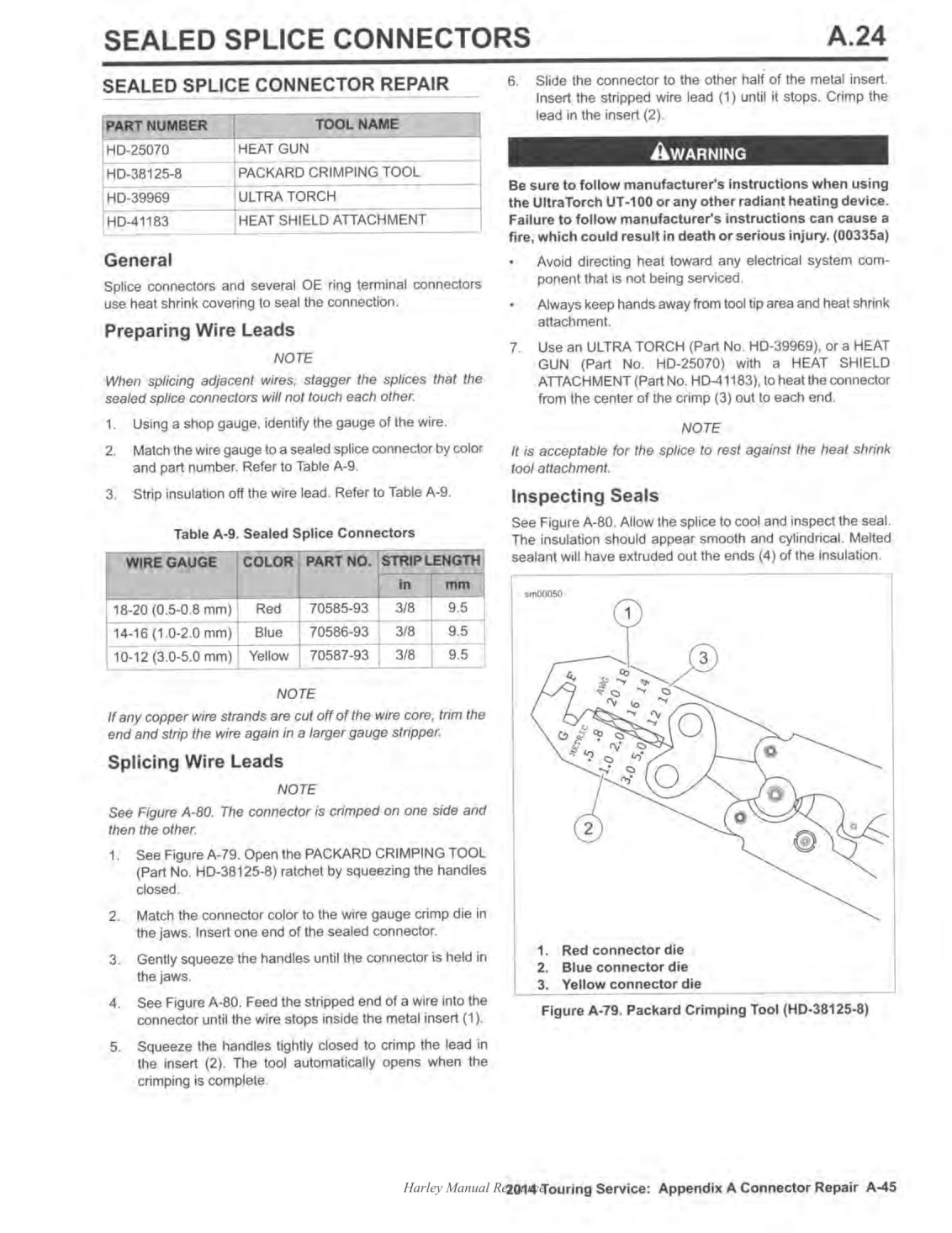

Harley Davidson 2014 Touring Models. Service Manual - page 35









































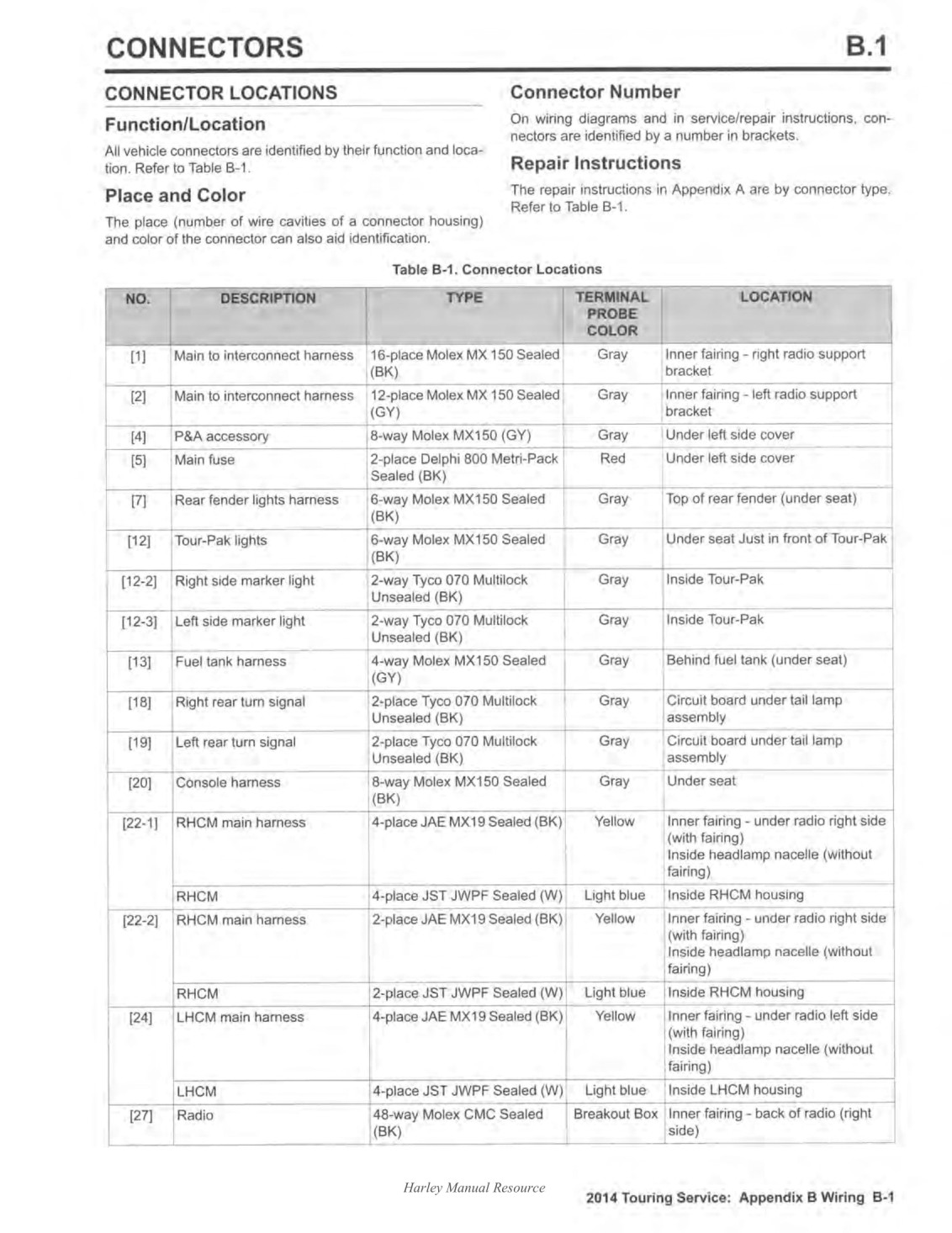

2014 TOURING WIRING DIAGRAMS

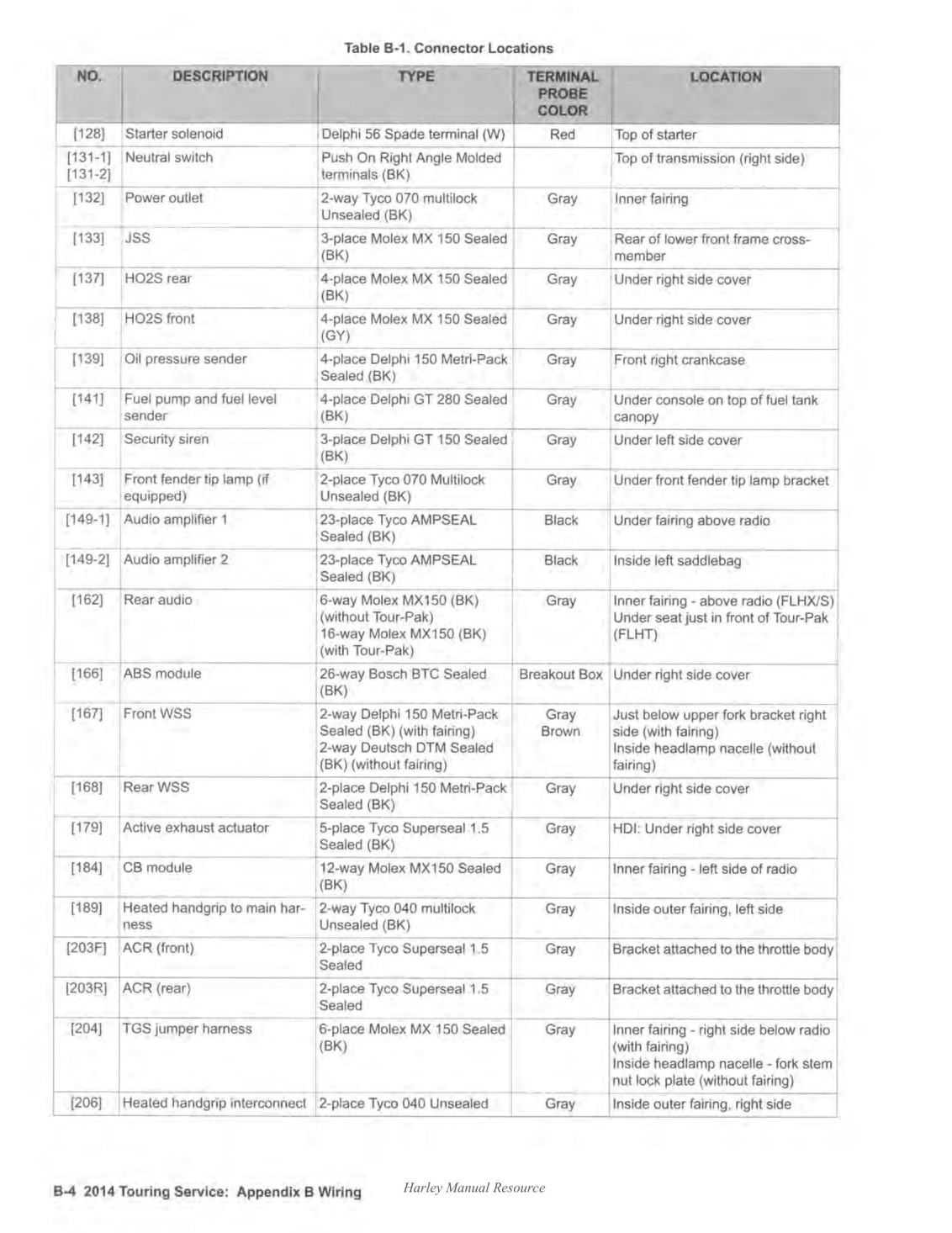

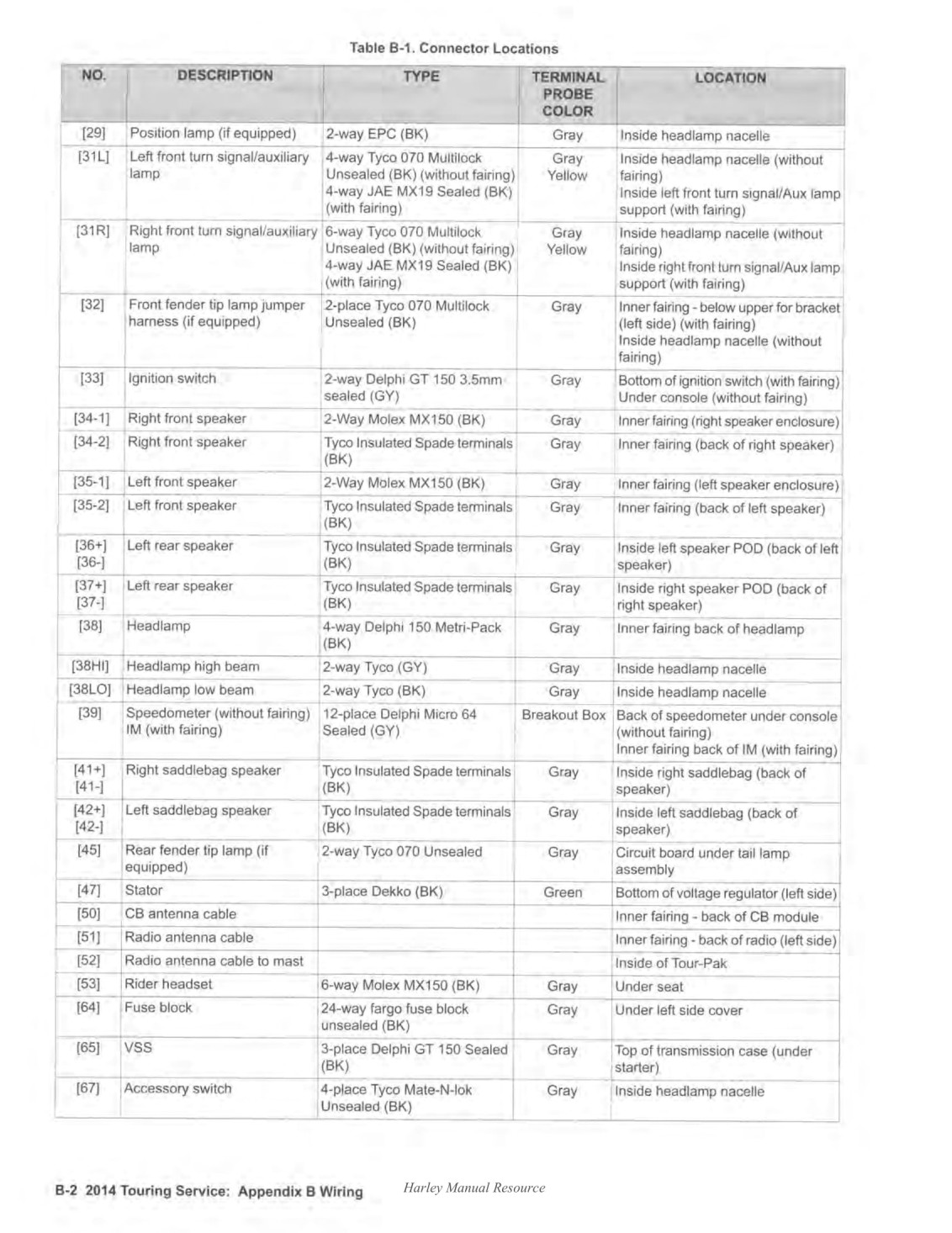

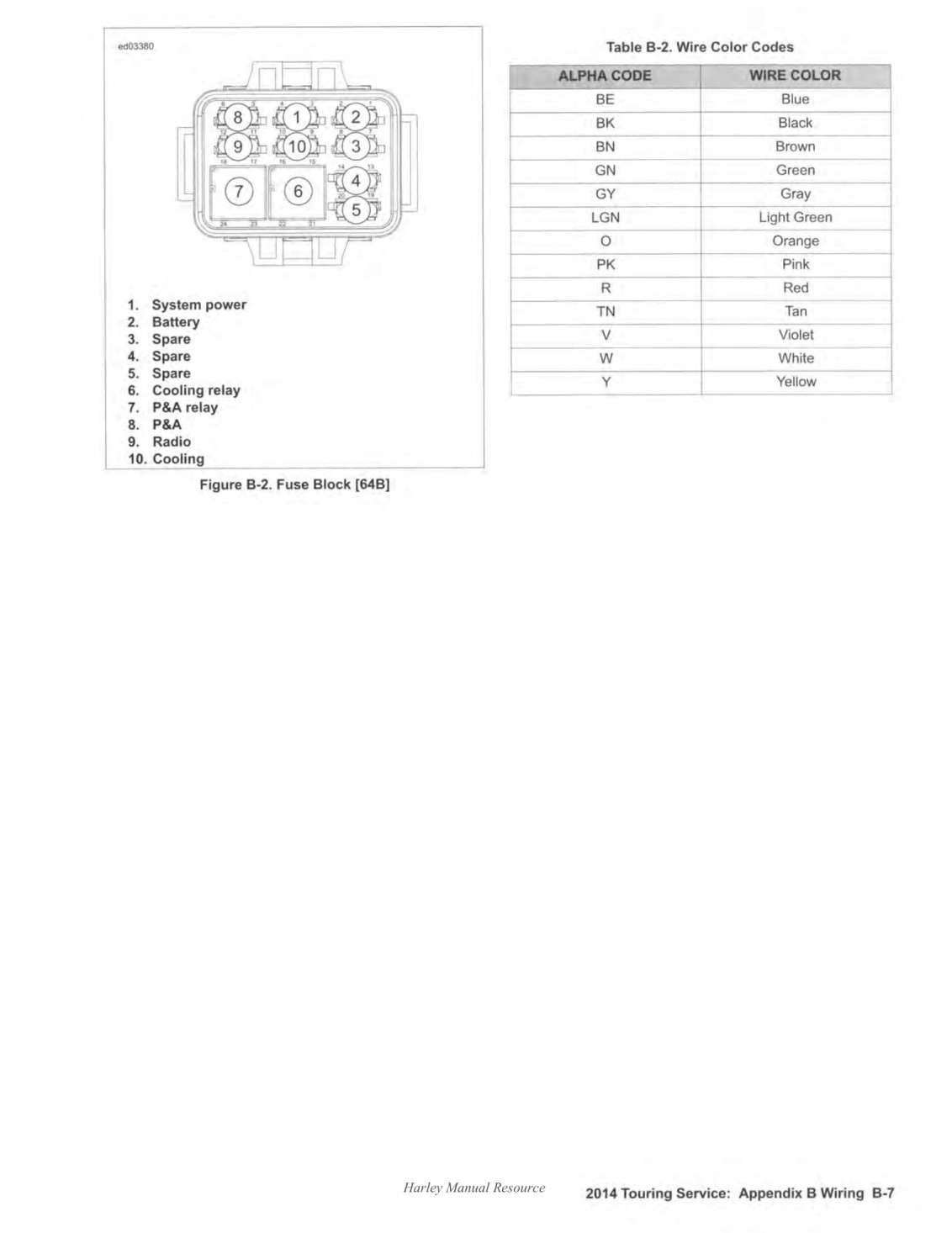

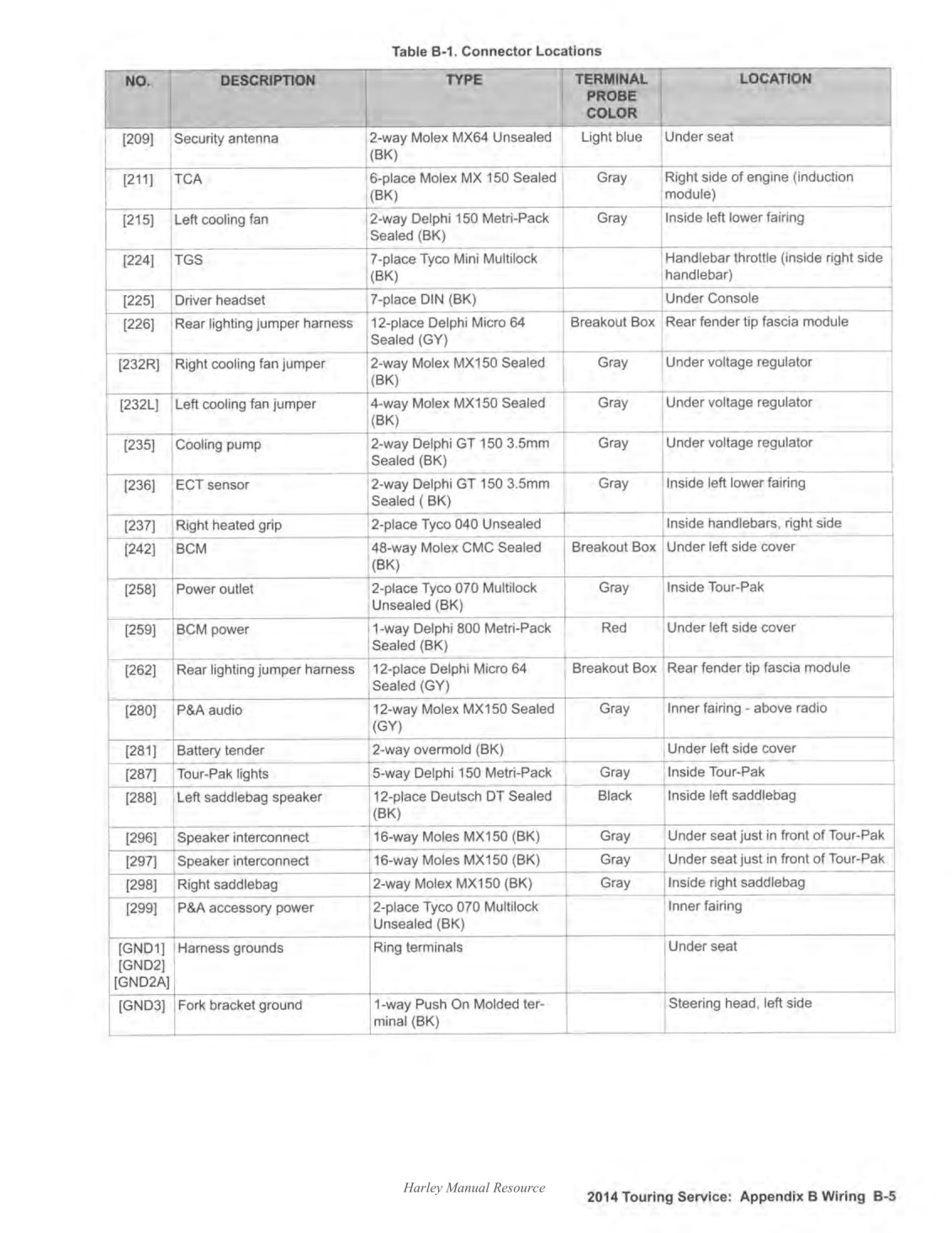

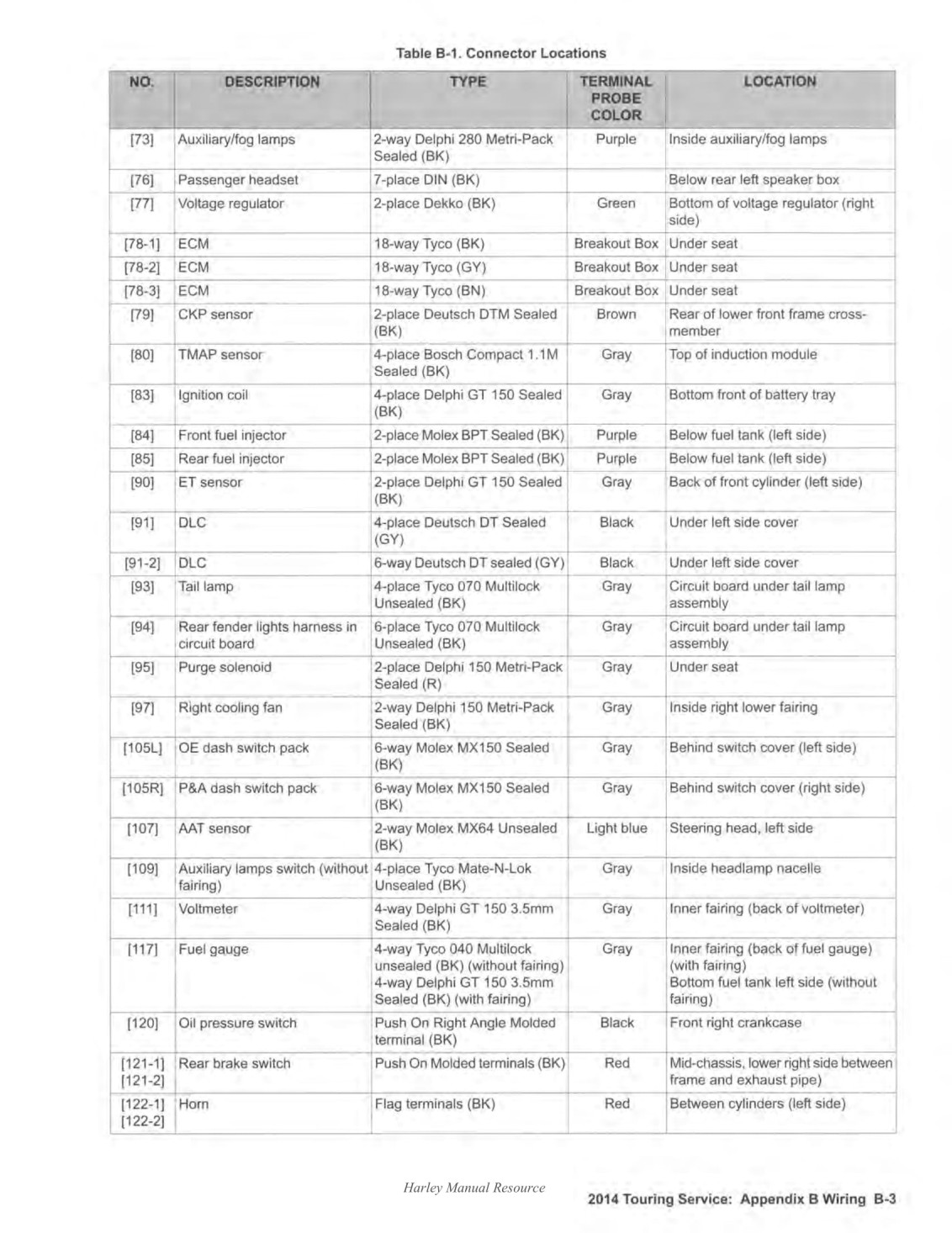

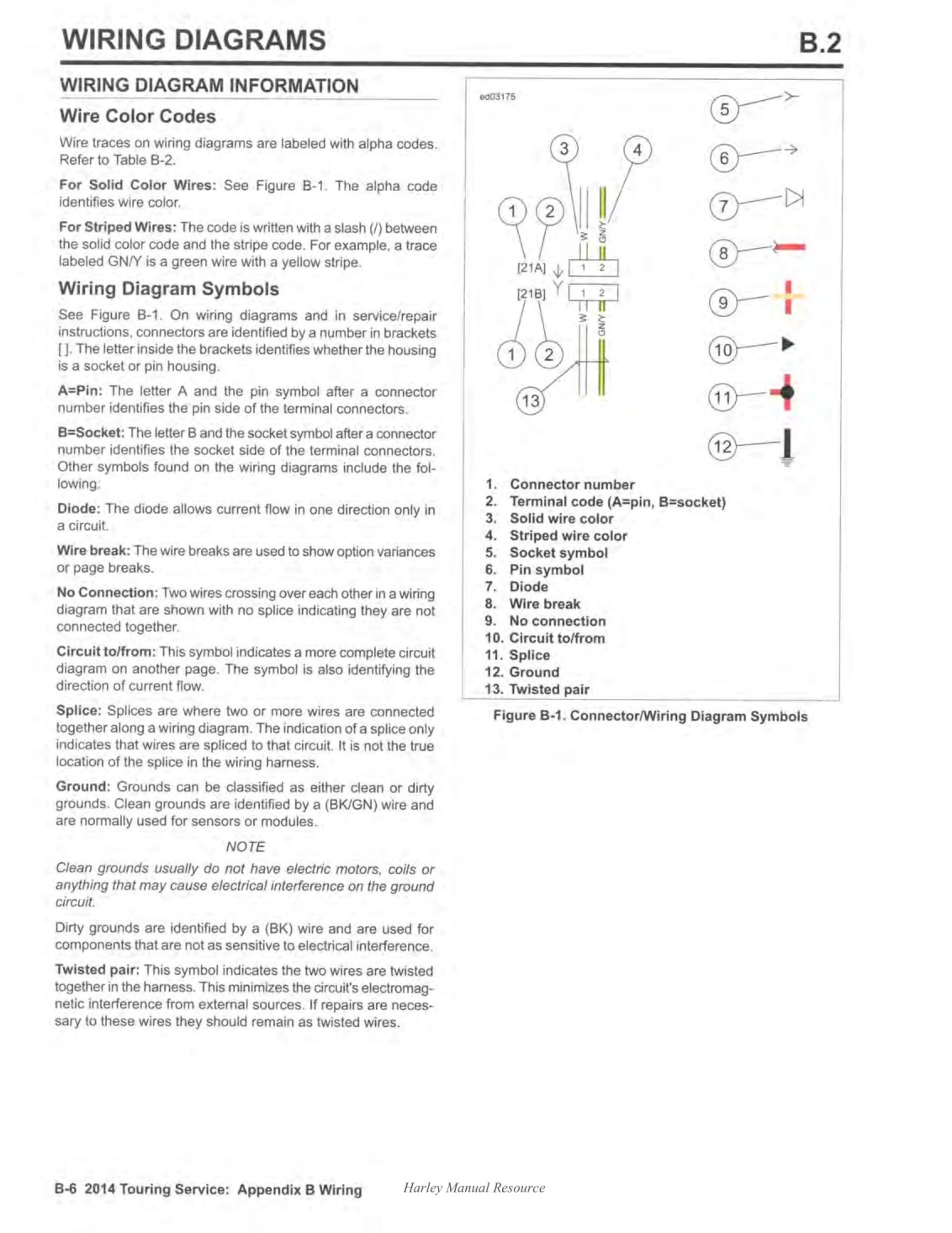

Wiring Diagram List
DIAGRAM LOCATION

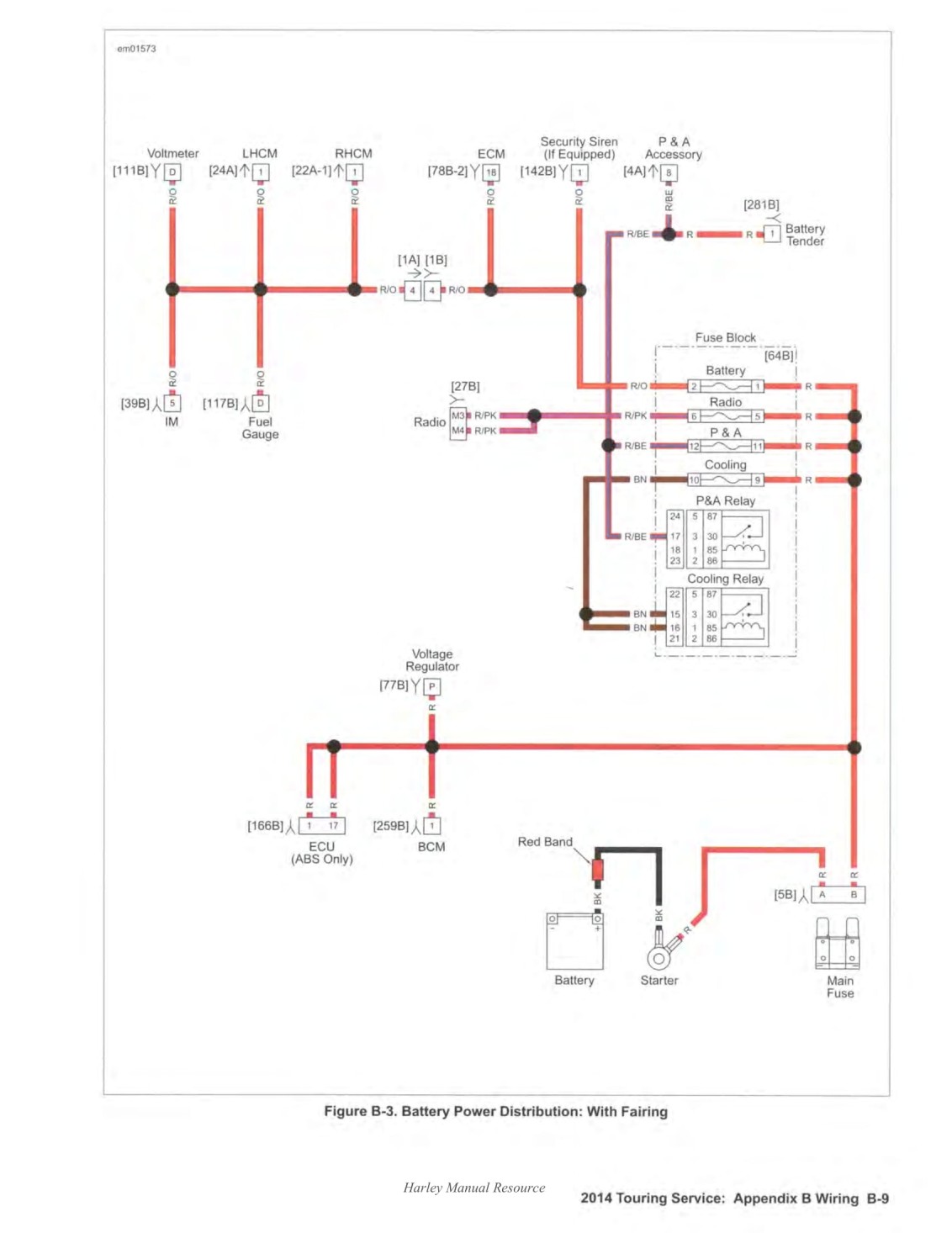

Battery Power Distribution: With Fairing Figure B-3

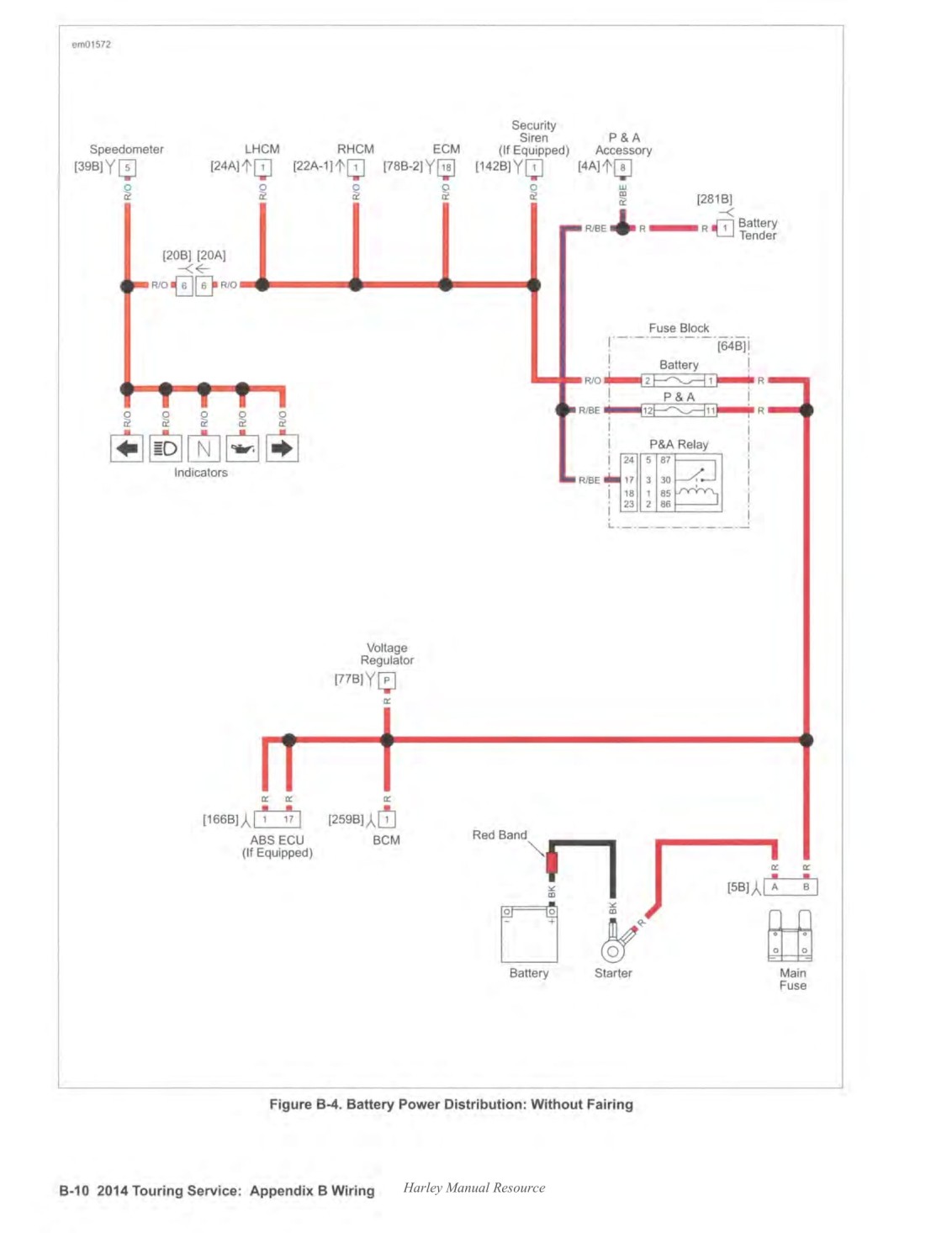

Battery Power Distribution: Without Fairing Figure B-4

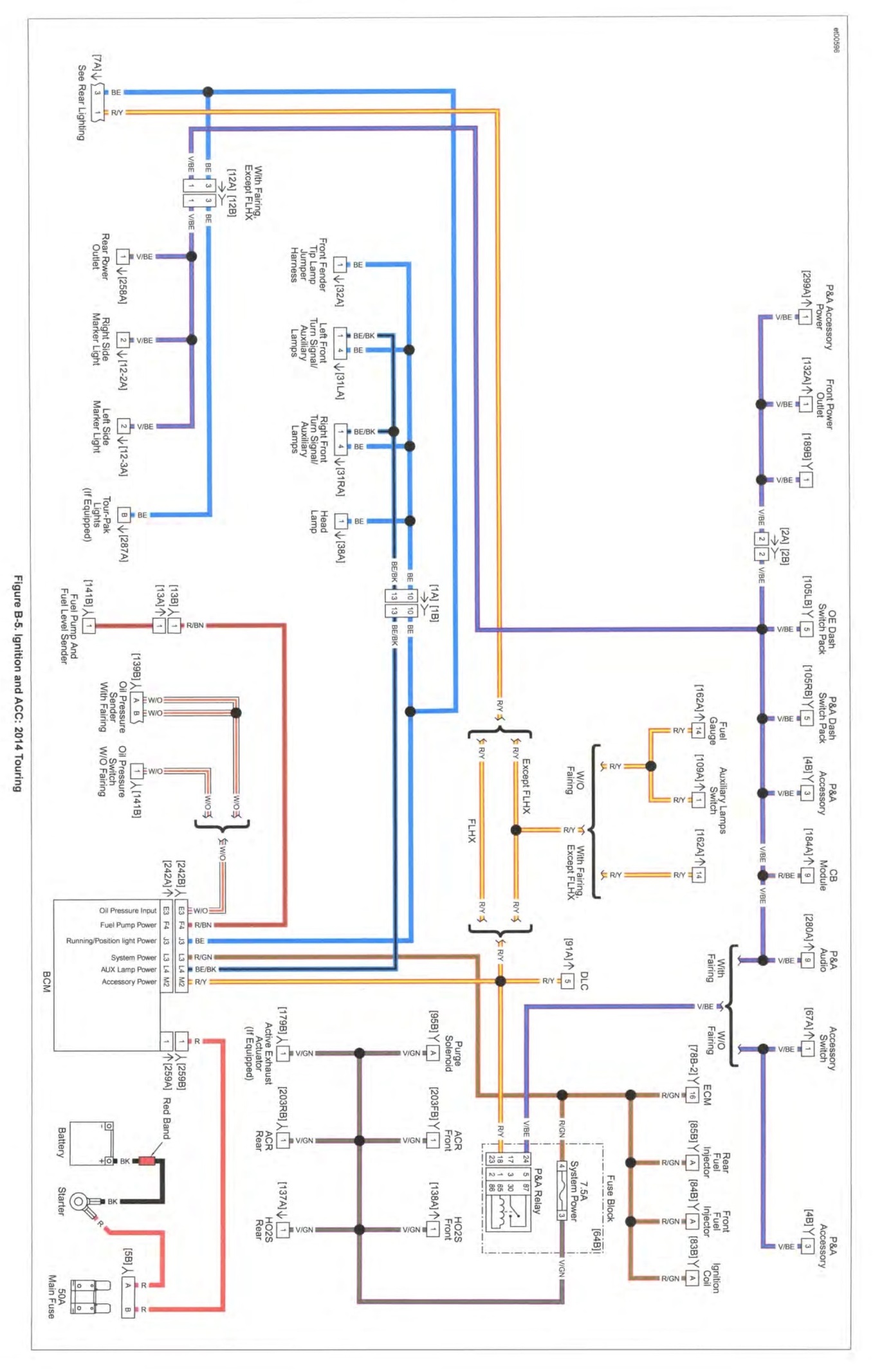

Ignition and ACC: 2014 Touring Figure B-5

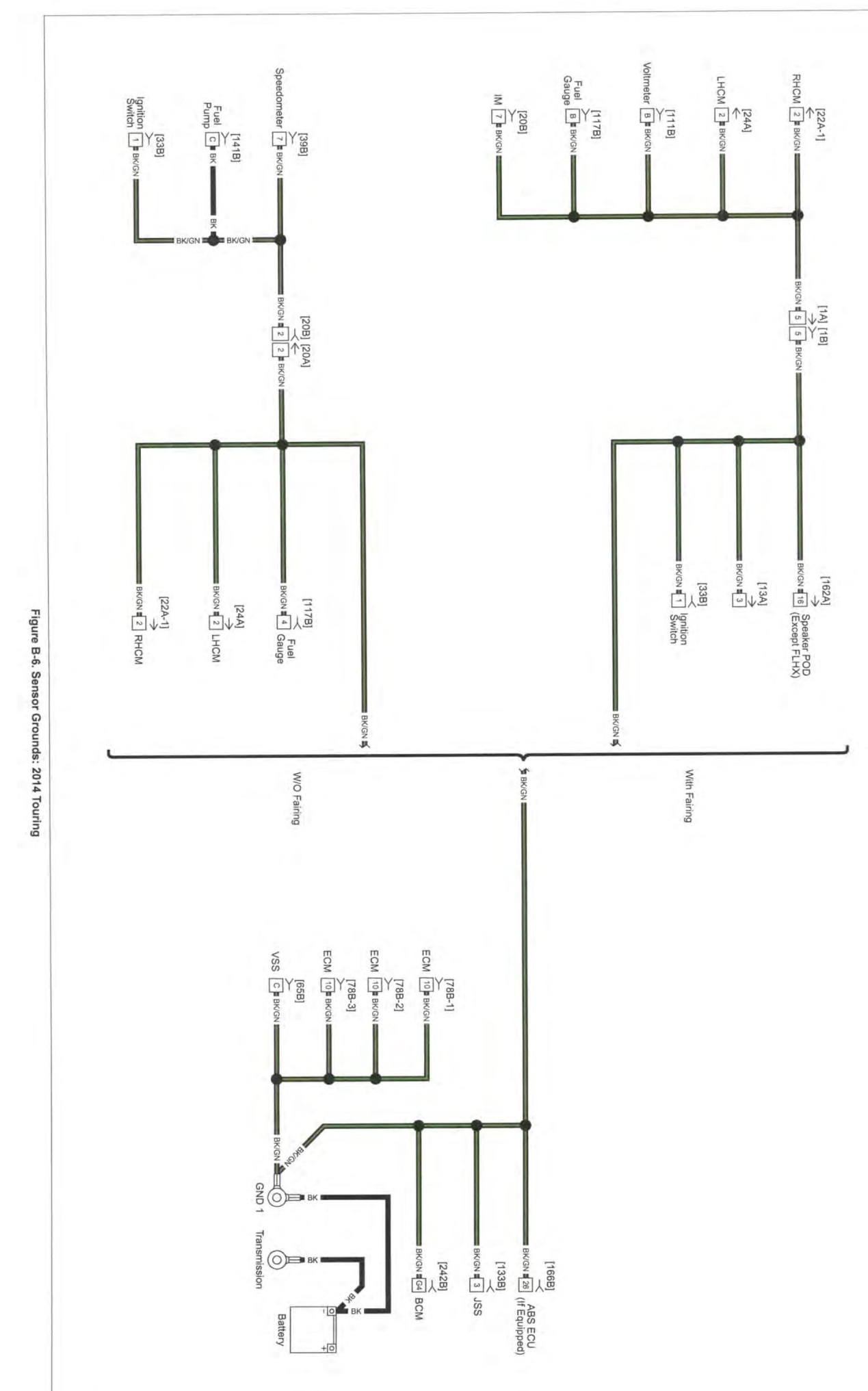

Sensor Grounds: 2014 Touring Figure B-6
Ground Circuit: 2014 Touring Figure B-7
Front Lighting and Hand Controls: 2014 Touring Figure B-8
Fairing Harness: 2014 Touring Figure B-9
Main Harness (1 of 3): 2014 Touring (With Fairing) Figure B-10
Main Harness (2 of 3): 2014 Touring (With Fairing) Figure B-11
Main Harness (3 of 3): 2014 Touring (With Fairing) Figure B-12
Main Harness (1 of 3): 2014 Touring (Without Fairing) Figure B-13
Main Harness (2 of 3): 2014 Touring (Without Fairing) Figure B-14
Main Harness (3 of 3): 2014 Touring (Without Fairing) Figure B-15
Rear Lighting: 2014 Touring Figure B-16
OE Radio: 2014 Touring (Except FLHX/S) Figure B-17
OE Radio: 2014 Touring (FLHX/S) Figure B-18
P&A Radio w/1 Amp: 2014 Touring Figure B-19
P&A Radio w/2 Amps (1 of 2): 2014 Touring Figure B-20
P&A Radio w/2 Amps (2 of 2): 2014 Touring Figure B-21
