Harley Davidson 1941-1978 Electra Glide FL/FLH, Super Glide FX/FXE/FXEF/FXS. Parts catalog - page 1

This Parts catalog has been prepared for your convenience when ordering parts for ELECTRA GLIDE models FL, FLH, FLHS and SUPER GLIDE Models FX, FXE, FXS. Wherever possible parts are shown in assembly breakdown sequence. Index numbers shown in the illustrations correspond to index numbers in parts lists. Consult the illustrations when ordering parts so you are sure to get just what you want. In most cases, only the latest parts are shown in the illustrations, however, parts lists cover some parts used as early as 1941.

Number in parenthesis following description of part is the quantity needed for complete assembly shown in illustration. If there is no number in parenthesis, only one is used.

Prices of all parts and accessories listed in this catalog are published separately in the latest RETAIL PRICELIST.

The following instructions should be followed very carefully when ordering parts:

• Specify the correct part number on each item. Check the "Used On" column of the parts list which shows the model on which the part fits. Whenever in doubt, refer to the Vehicle Identification Number stamped on the engine crankcase.

Two types of serial numbers are used:

1. 1969 and earlier: Serial number is located on the engine left crankcase. The first four or five digits represent the year and model — the same as shown in the "Used On" column in this catalog.

2. 1970 and later: Vehicle Identification Number (V. I. N.) is located on the engine right crankcase and is the same as the number located on the frame steering head.

The V. I.N. (vehicle identification number) for ELECTRA GLIDE and SUPER GLIDE models are as follows:

ALPHABETICAL INDEX

SEE PAGES 228 & 229 FOR PARTS USED ON FLHS MODEL ONLY

Page
23

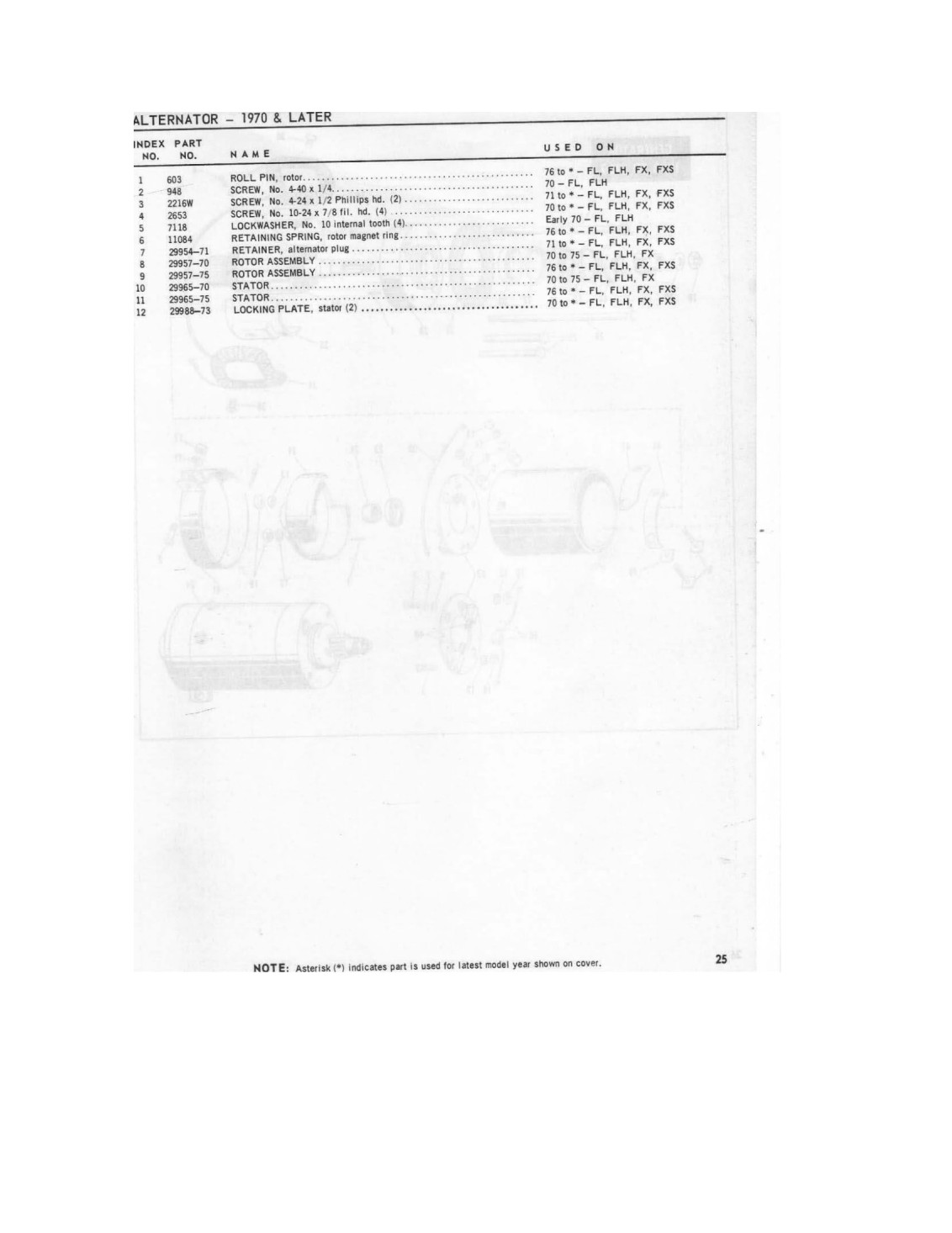

Alternator - 1970 & Later 25
Axle - Front .. .. 75, 77, 79, 80, 83
Axle - Rear 75, 77, 81, 85
215
167, 169
Brake - Front . 57 , 58 , 61, 63, 65, 67
Brake - Rear 69, 70, 73
Brake — Sidecar 219
Brake Caliper - Front - FX, FXS.. 63
Brake Control - Front 57, 61
Brake Control - Rear - FX, FXS .. 70
Brake Control - Rear - FL, FLH.. 69
Brake, Disc - Master Cylinder 57, 58, 65
Bumpers 226

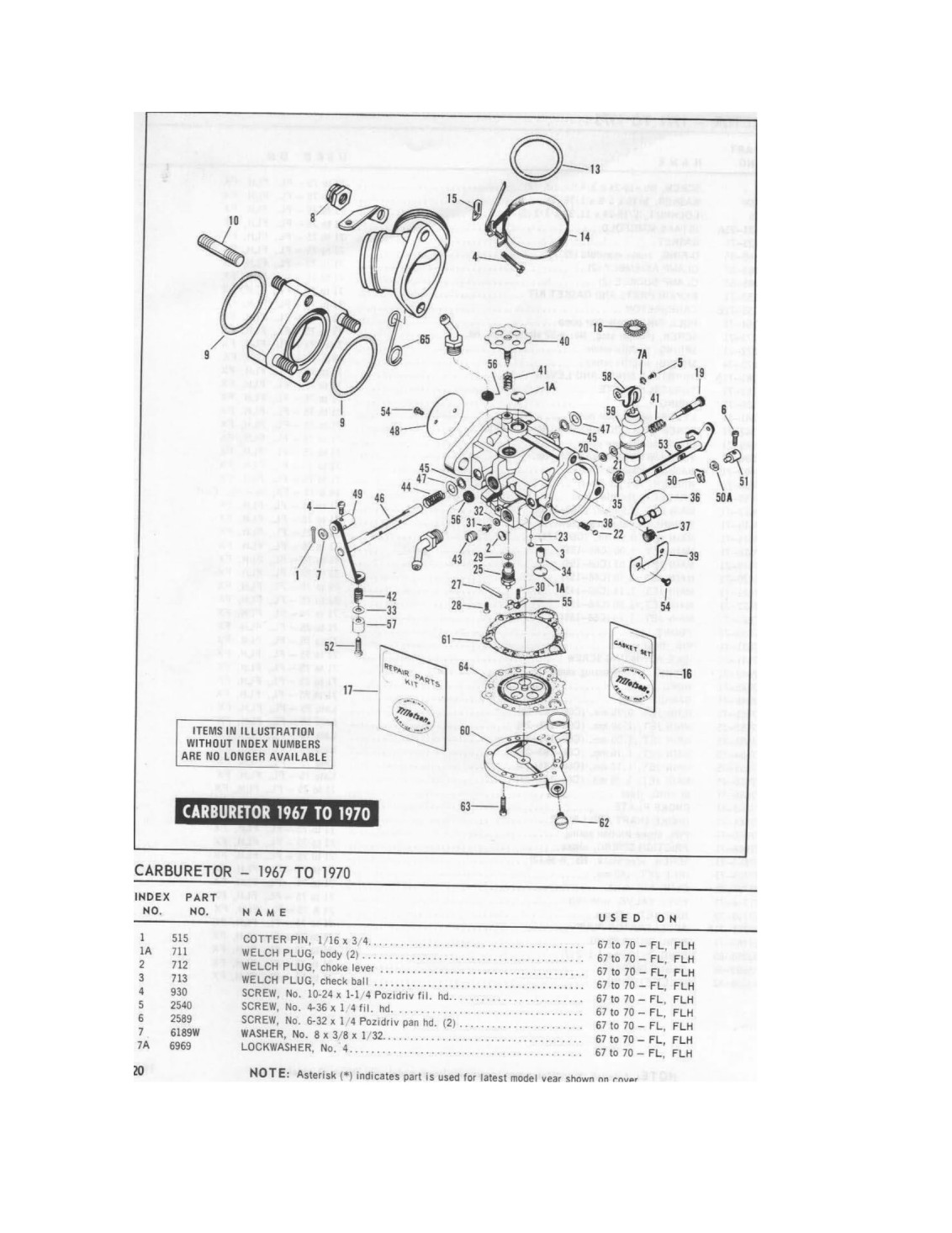

Carburetor - 1967 to 1970 20

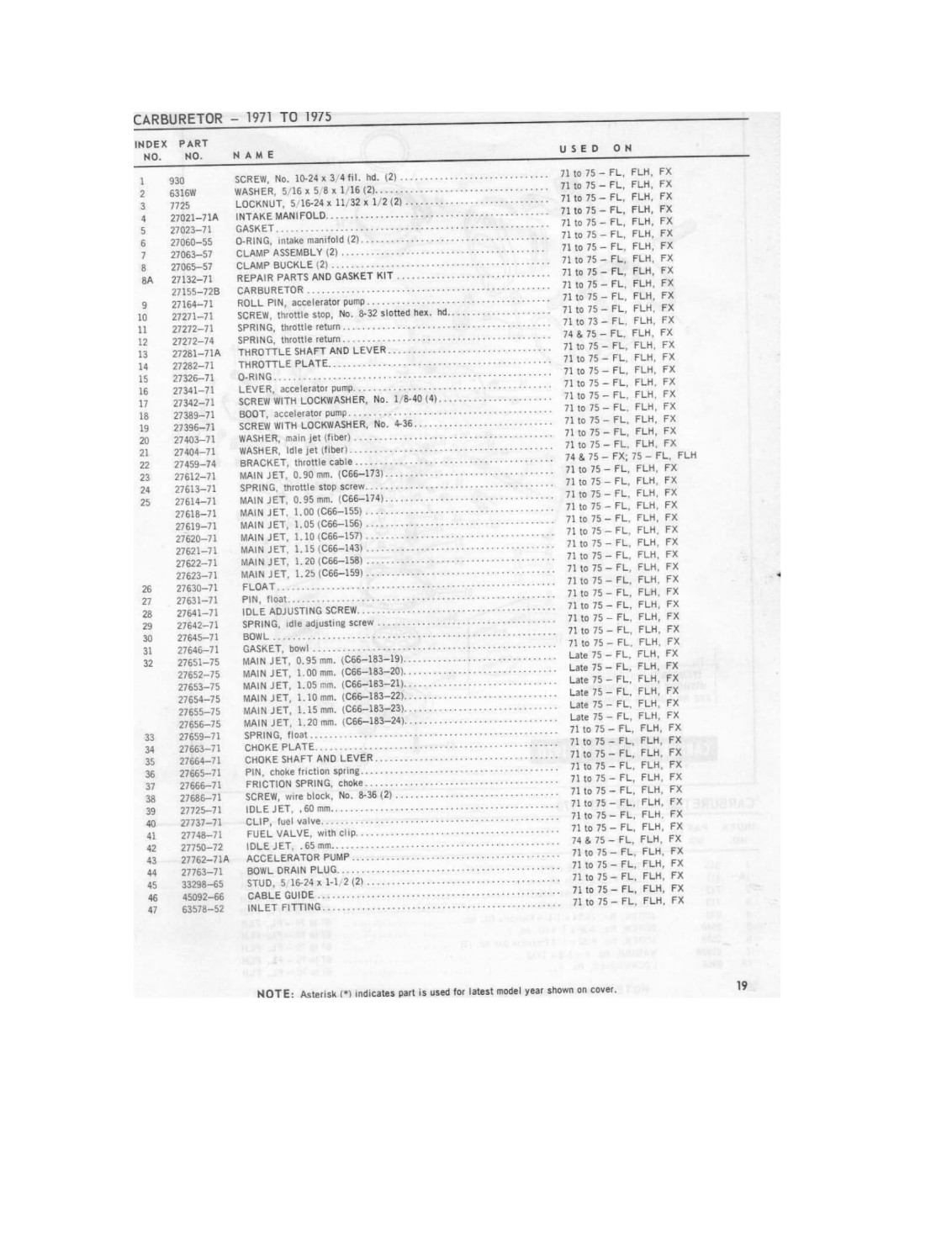

Carburetor - 1971 to 1975 19
Carburetor - 1976 & Later 17
Cast Wheel - FL, FLH 75
Cast Wheel - Front - FX, FXS 83
Cast Wheel - Rear - FX, FXS 85
Center Stand 103
54
141, 147
144
Cham Oiler 144, 153

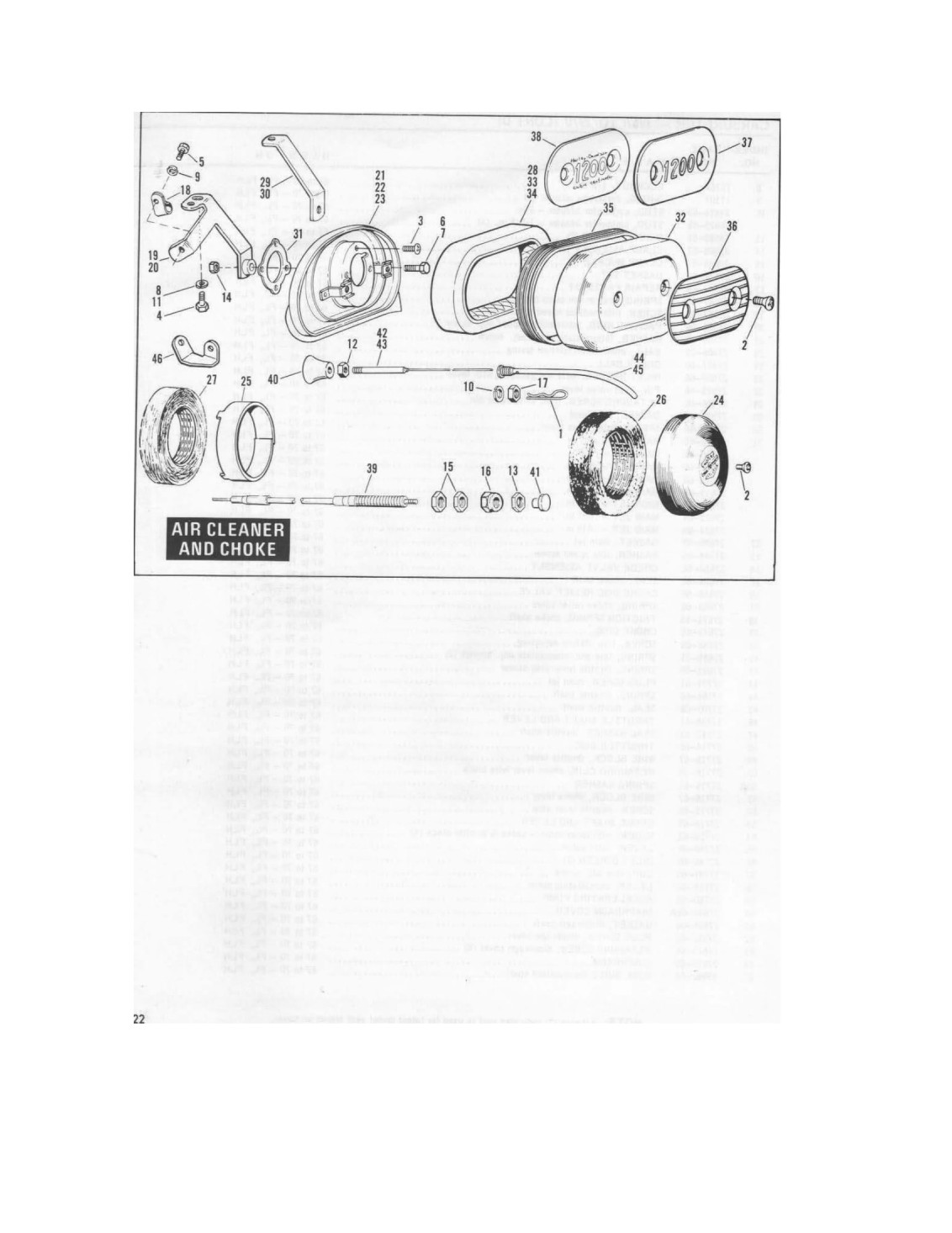

Choke 23
Circuit Breaker 29, 206
48
Clutch Foot Control 51
Clutch Hand Control & Booster 53
7
11
Cycle Signal Lamp 175, 176
Cylinders 3, 6
197
Exhaust Pipes 157, 159, 160, 161, 163, 165
Fairing 131. 133, 137
Fender Lamp - Front 189
Fenders 138, 141, 219
Fire Extinguisher 223
FLHS Parts 228

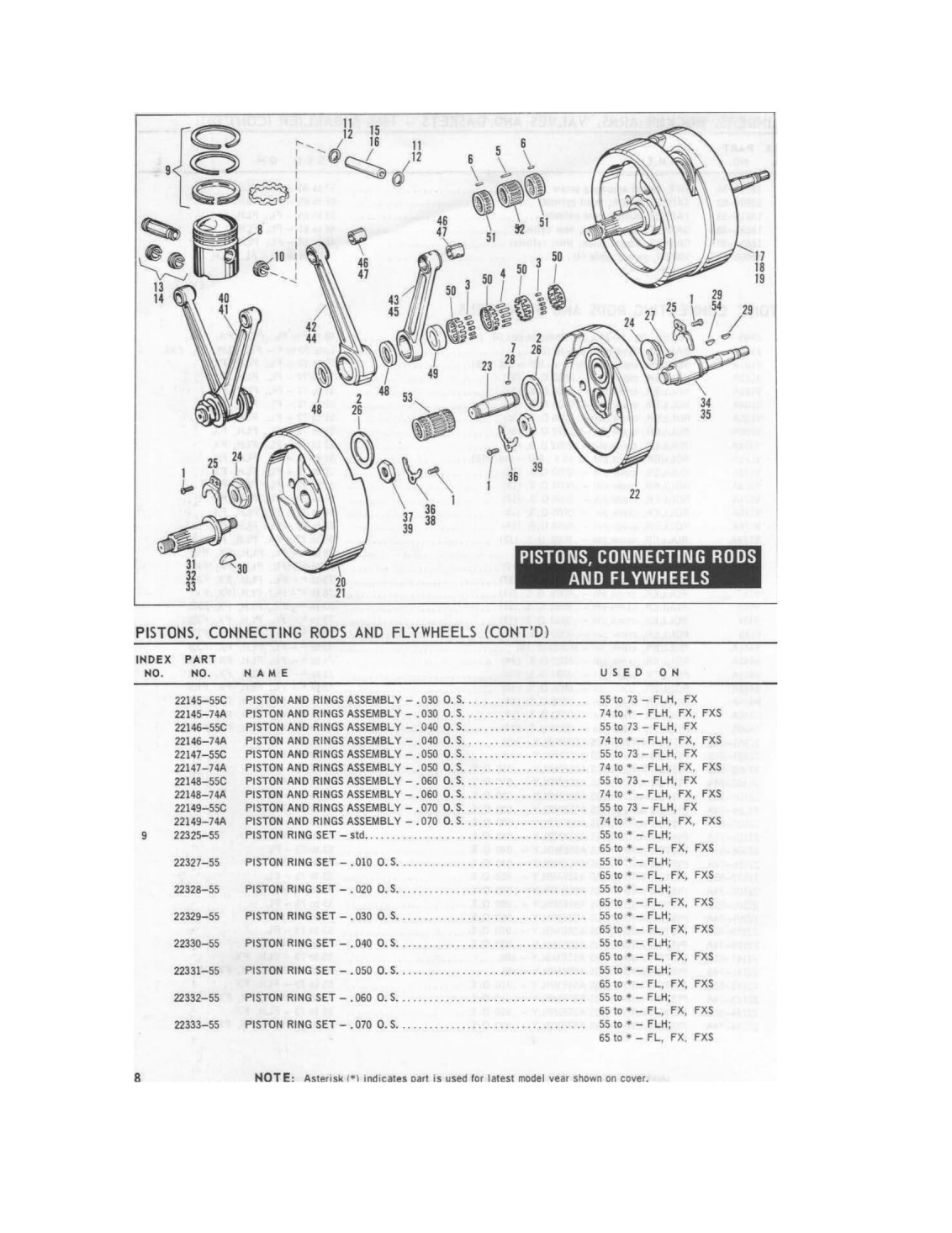

Flywheels 7
Footboards 115
Footrests 117, 119
Footshift 39
Fork - Front 86, 88, 91, 93, 95, 97
Fork - Rear 99
Frame 99
Frame — Sidecar 215
Gages 205
149
Gas Tank Trim 150

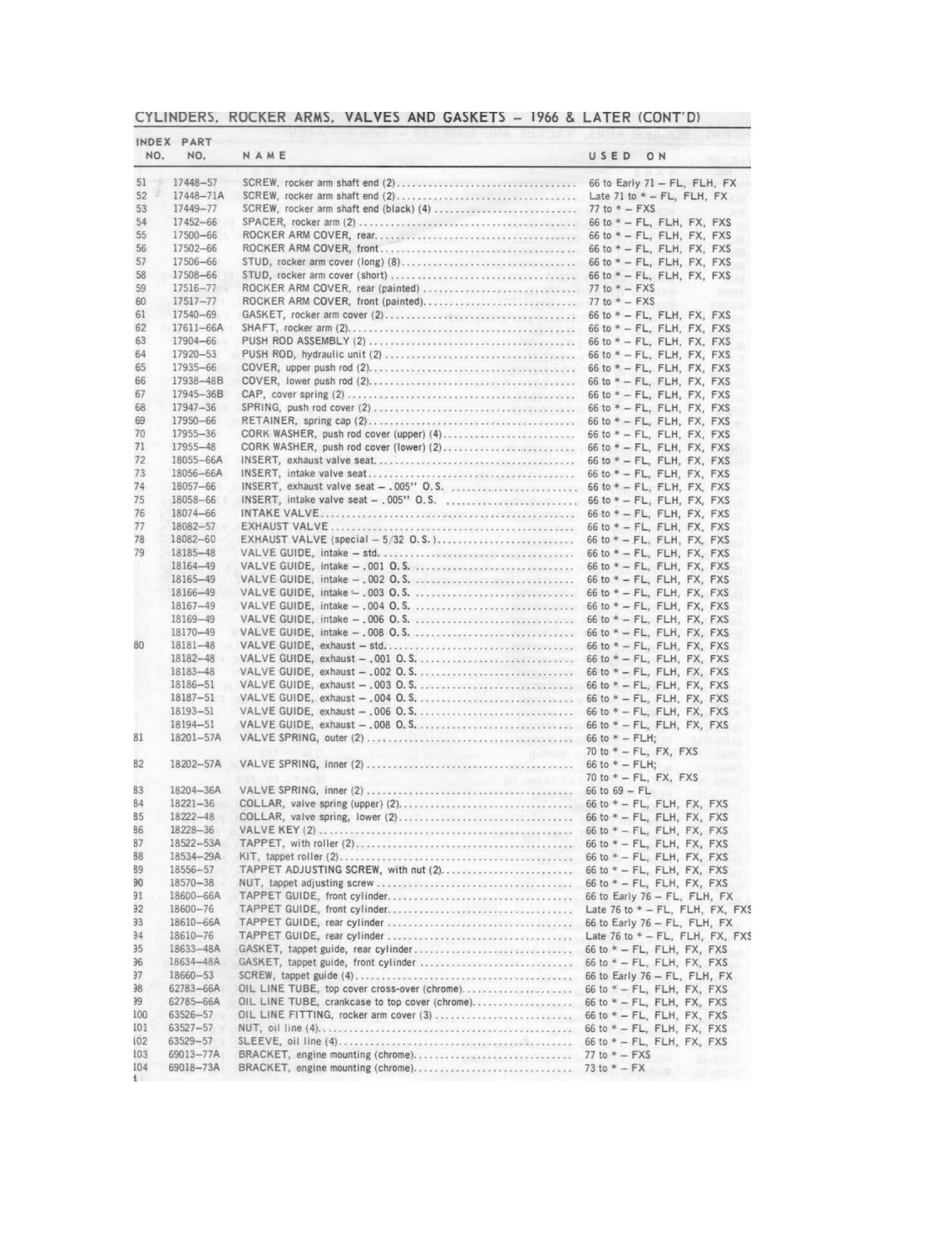

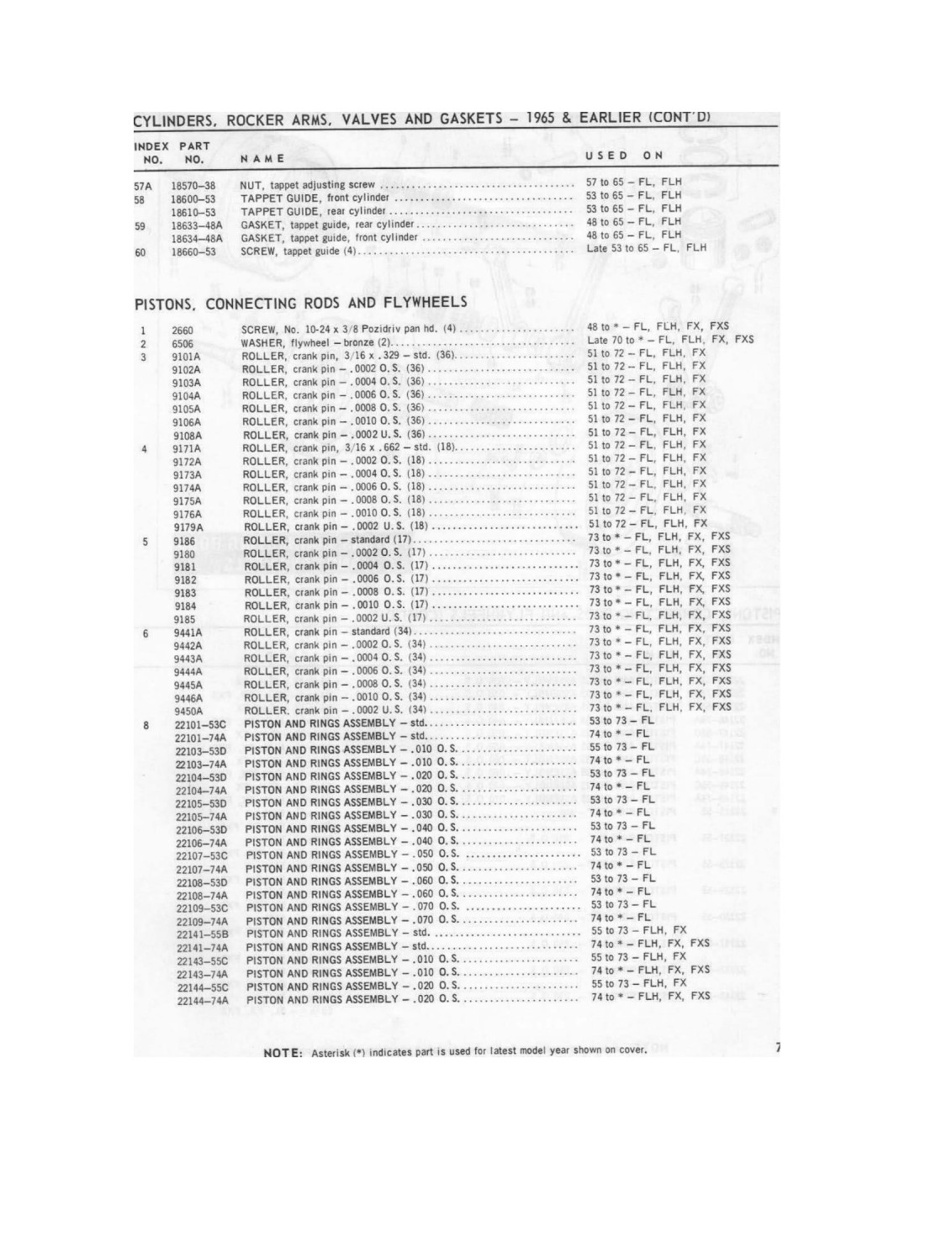

Gaskets 3, 6
Gear Case Cover 11

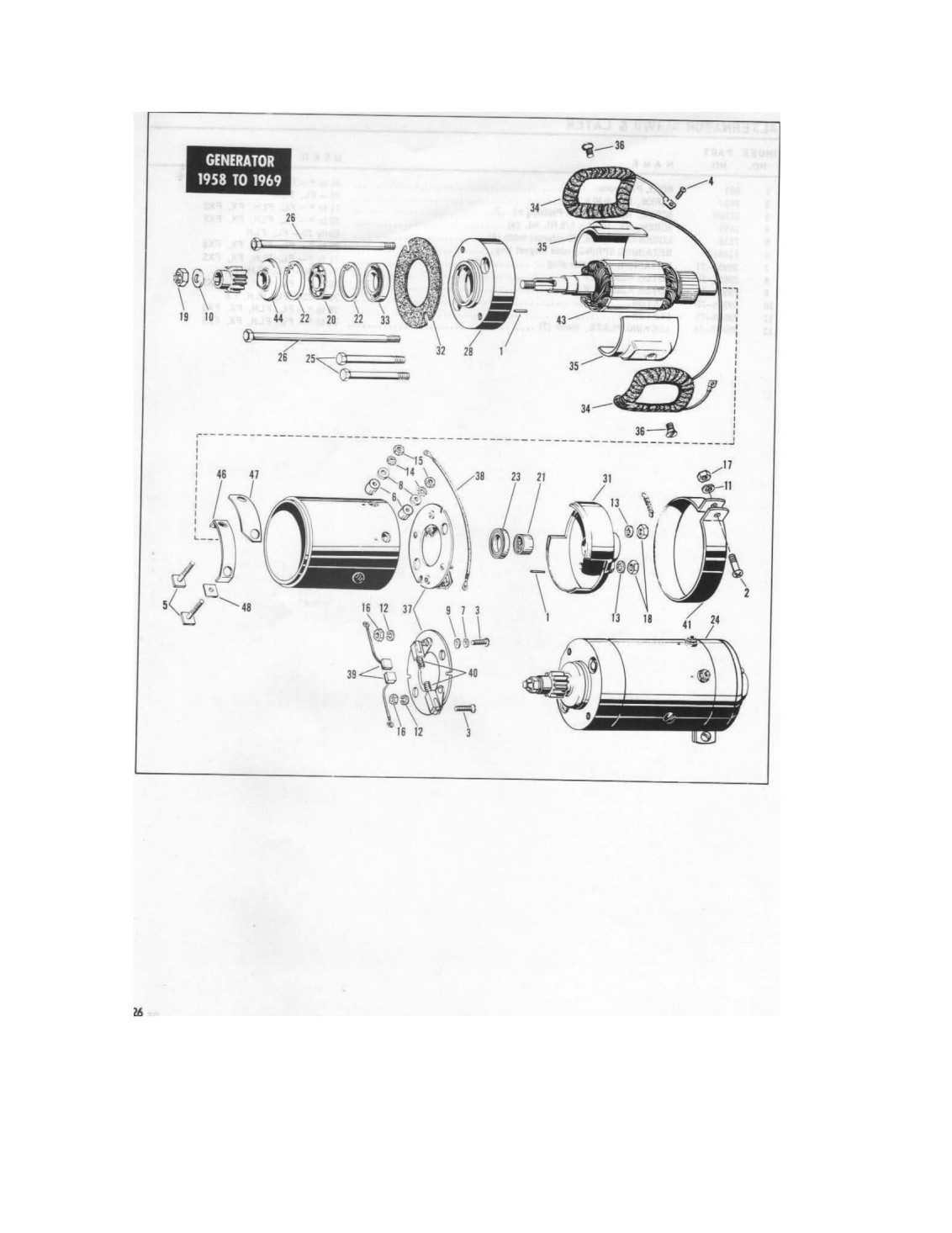

Generator — 1958 to 1969 27
Handlebar 124

Page
Headlamp 179, 180
193
Ignition Circuit Breaker 29
Indicator Lamps 181
Instrument Panel 203
Jiffy Stand 103
Kick Starter 38
Leg Shields 135
Liberty Edition 229
License Plate Bracket 143
Luggage Carrier & Box 121
Mirror - FXS 155
Mufflers . 157, 159, 160. 161, 163, 165
Nameplates 113, 121, 138, 150, 215
Oil Cooler 155
Oil Filter 154
Oil Pressure Switch 15
Oil Pump 15
Oil Tank 153
Passing Lamps 190
Pistons 7
Points 29
Pursuit Lamps 190
Push Rods 3. 6
Radio Carrier 213
75, 77, 79, 80, 81
Rocker Arms 3, 6
Saddlebags 215
Safety Guard 101
. 105, 107, 109, 110, HI, 113
39, 43
Shock Absorbers 123
Sidecar Body 215
225
Spark Cables, Coil 8i Plugs 31
Speedometer 171, 173
Spokes 75, 77, 79, 80, 81. 217
Spotlamps 190
Sprockets 54
Starter Motor 33, 35, 37
Switches 199, 201, 206, 207, 209
Tachometer 171. 173
Tail Lamp 113. 183
T appets 3
Terminal Plate 203
Throttle Control 126
29
Tour-Рак 121
Transmission 44
Tune Up Kits 31
Turn Signals 185, 186
Valves 3. 6
Valve Covers 3
Voltage Regulator 211
Wheels 75, 77, 79, 80. 81, 83. 85. 217
Windshield 129, 131, 133, 134
Wiring 195
