Harley Davidson solo model WLA. Parts list (May 1942) - page 1

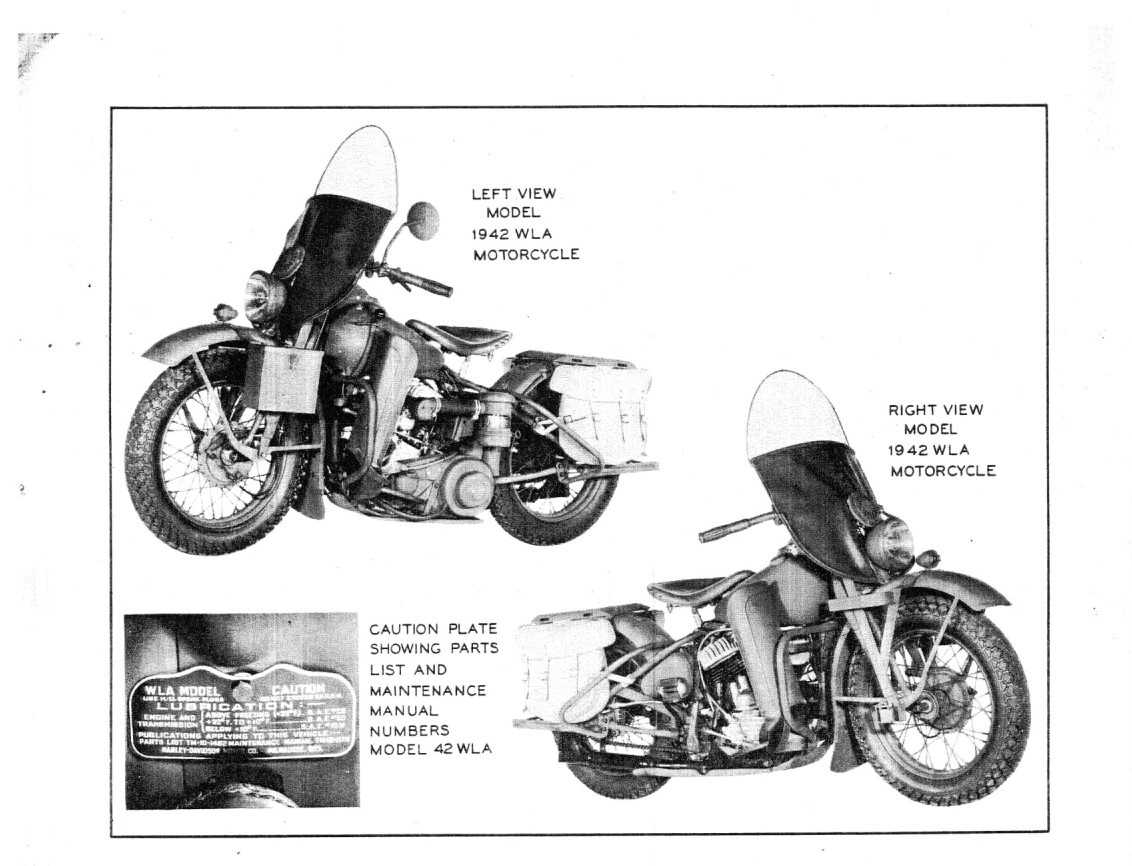

PARTS LIST for

HARLEY-DAVIDSON

MOTORCYCLES
SOLO MODEL WLA

BUILT FOR U. S. ARMY

CONTRACT NUMBER

U.S.A. REGlSTRAnON NUMBERS 616,923 to 637,285. Tncl.
ТМ-10-1482

May 1.1942

HARLEY-DAVIDSON MOTOR COMPANY

Milwaukee, Wisconsin, U.S.A.
TM-10-1 «182 Issued May 1.1942


PARTS LIST

for

HARLEY-DAVIDSON MOTORCYCLES

SOLO MODEL WLA

BUILT FOR THE U. S. ARMY

CONTRACT NUMBER W-398-QM-11782

U. S. A. REGISTRATION NUMBERS 816,923 TO 637,235 INCL.

TM-10-1482 Issued May 1, 1942

ТМ-10-1482



Me у 1, 1942

QUICK

REFERENCE

INDEX


HARLEY-DAVIDSON MOTOR COMPANY

Milwaukee, Wisconsin, U.S.A.
WINDSHIELDS & TOOLS MOTOR INLET PIPE & CARBS. CLUTCH FUEL SYSTEM EXHAUST SYSTEM GENERATOR & PARTS SWITCHES & WIRING LIGHTS & PARTS TRANSMISSION STARTER PARTS CHAINS & SPROCKETS WHEELS & BRAKES STEERING FRAME & FITTINGS FENDERS & FOOTBOARD STANDS & CHAIN GUARDS BATTERY & SADDLE TOOL BOX, SAFETY GUARDS SPEEDOMETER SPECIAL TOOLS LIST OF “O” PARTS


DIRECTIONS FOR USING BOOK

This book consists of a complete list of all service parts for all the WLA Solo Models built expressly for the U. S. Army. It also includes definite stockage recommendations.

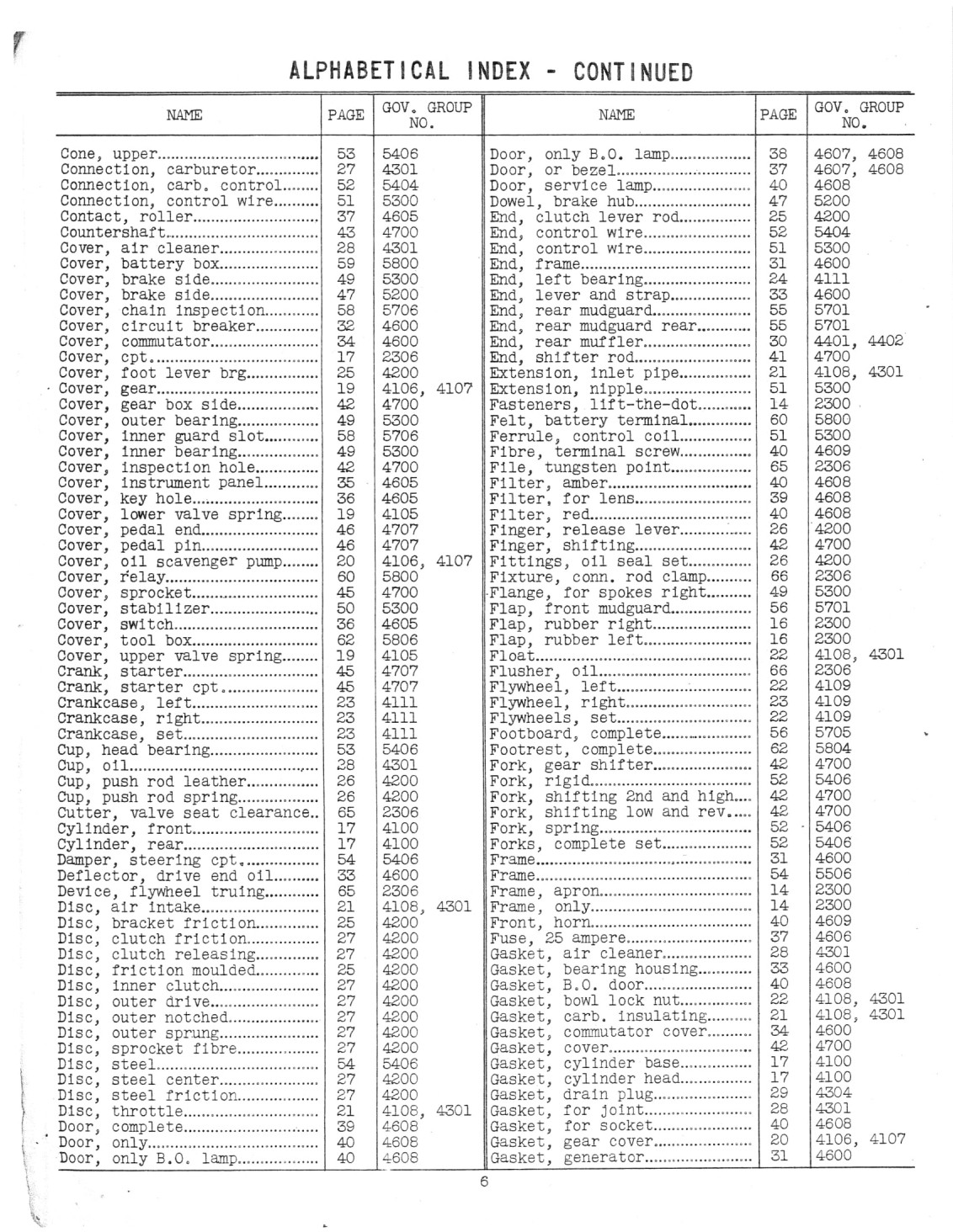

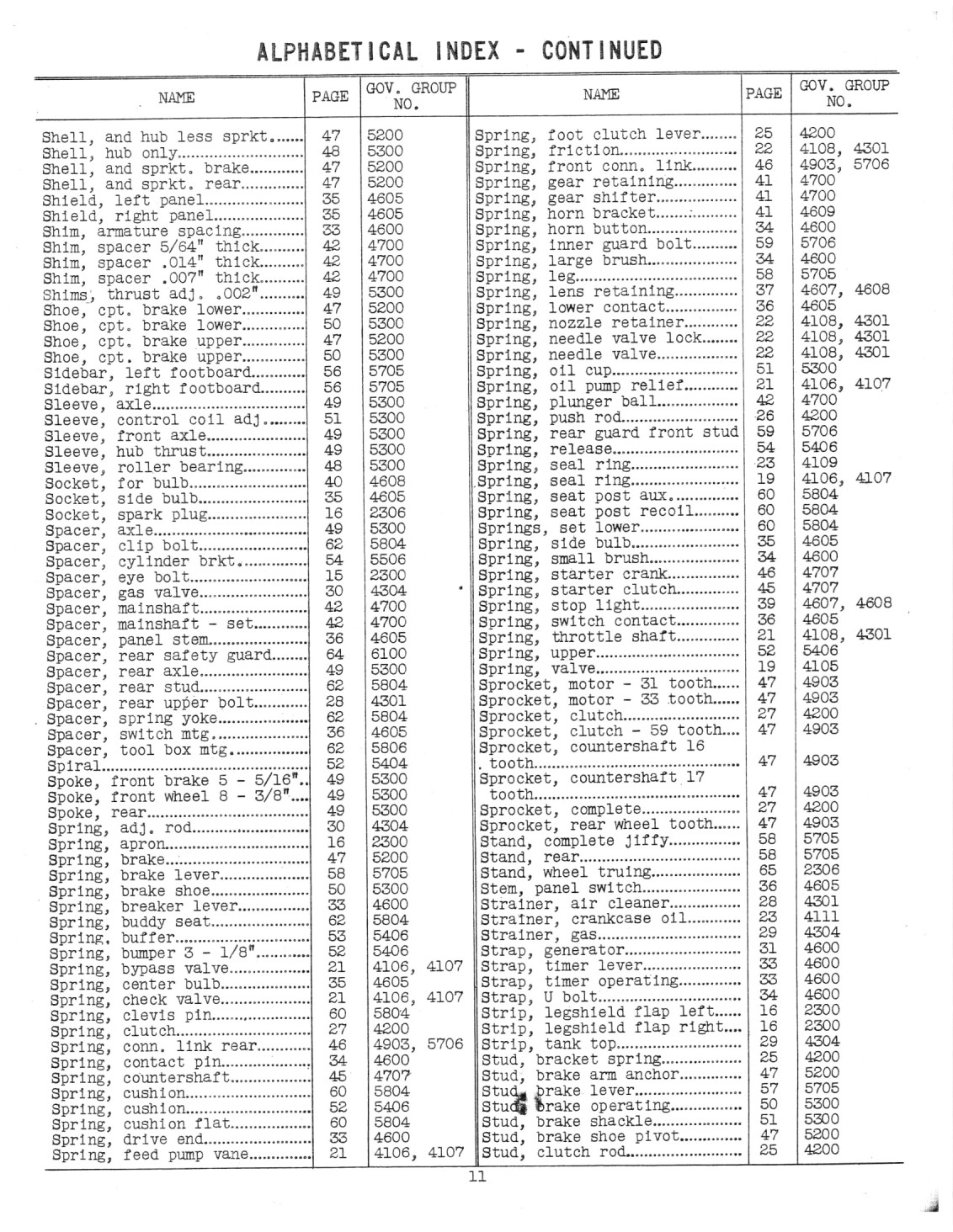

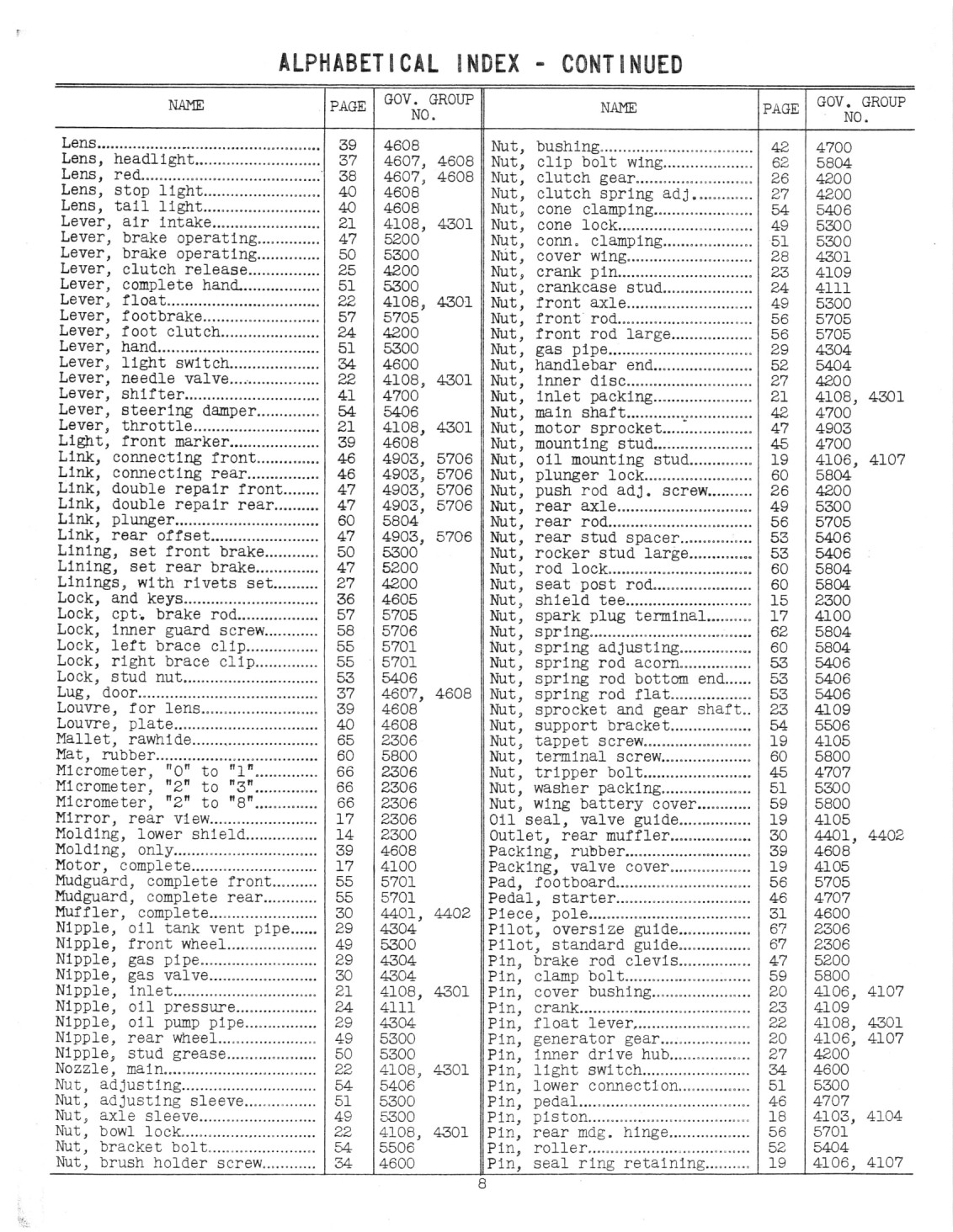

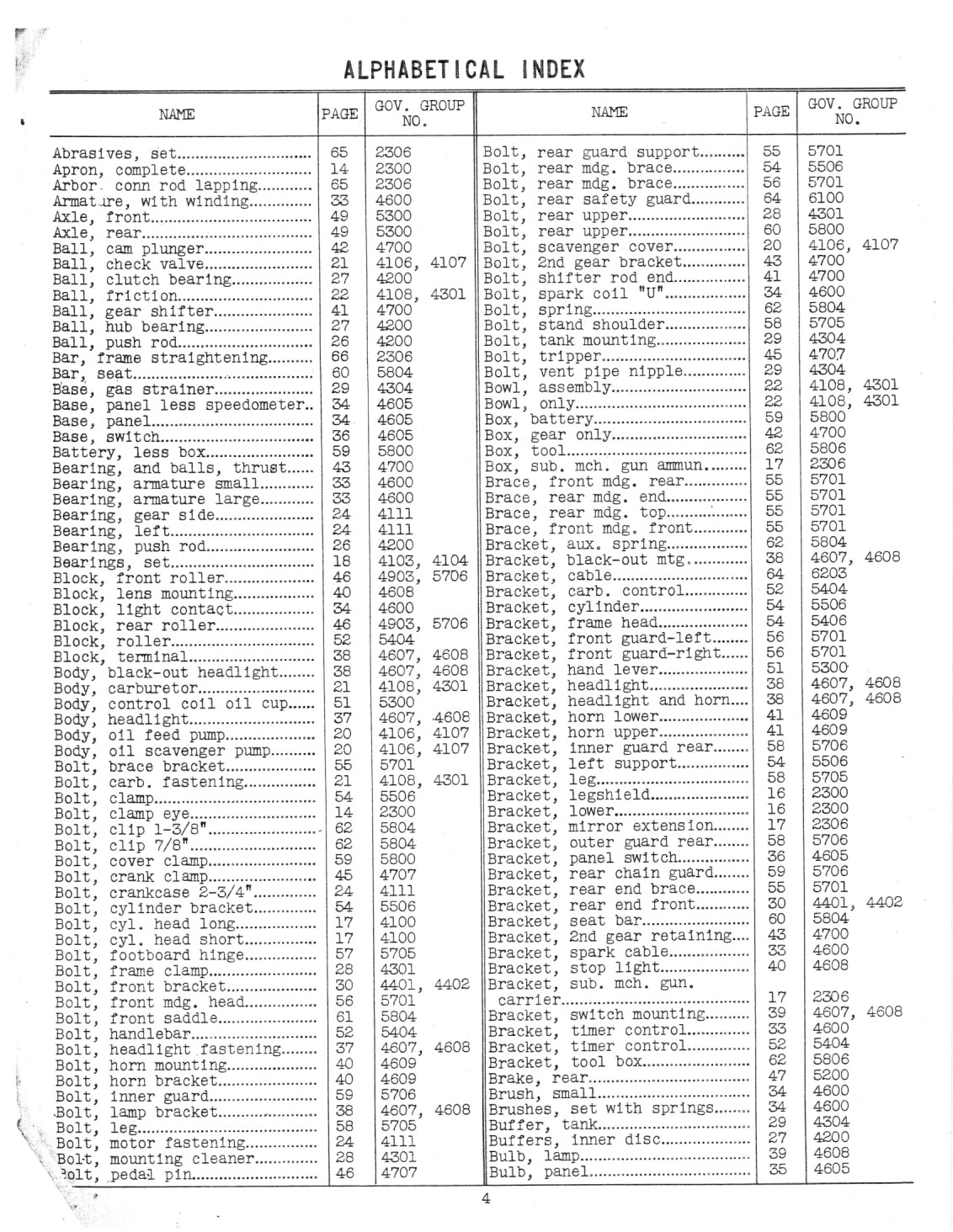

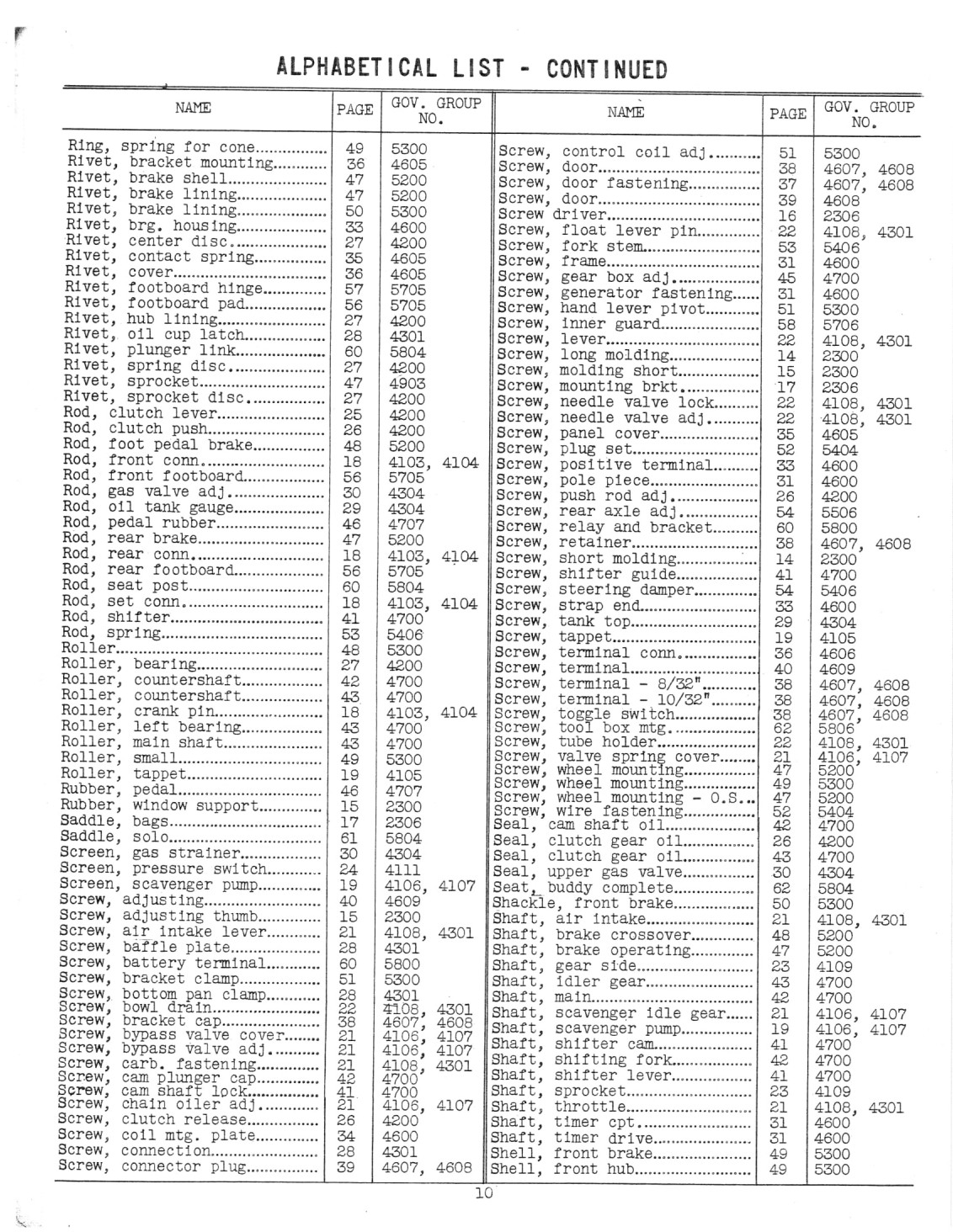

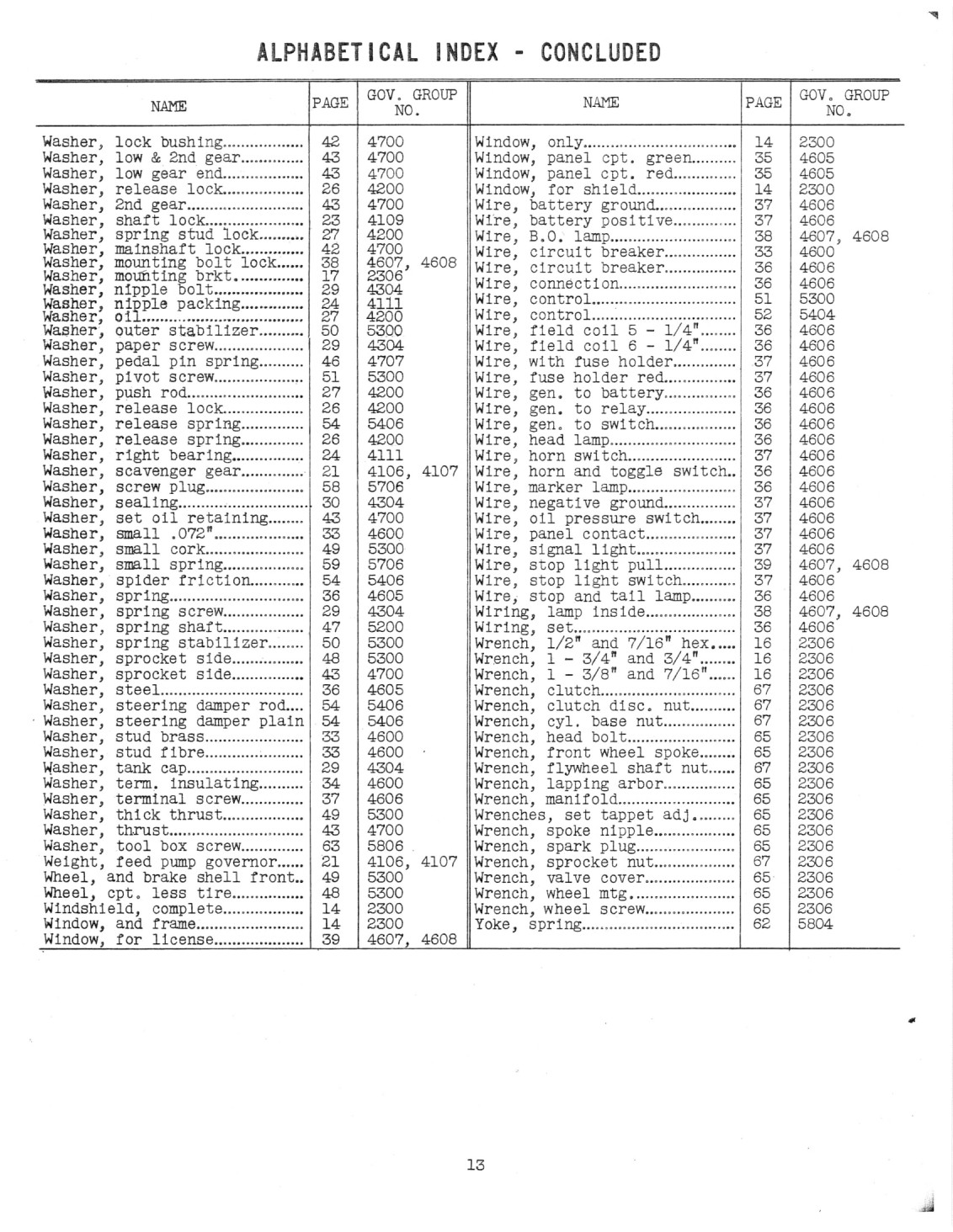

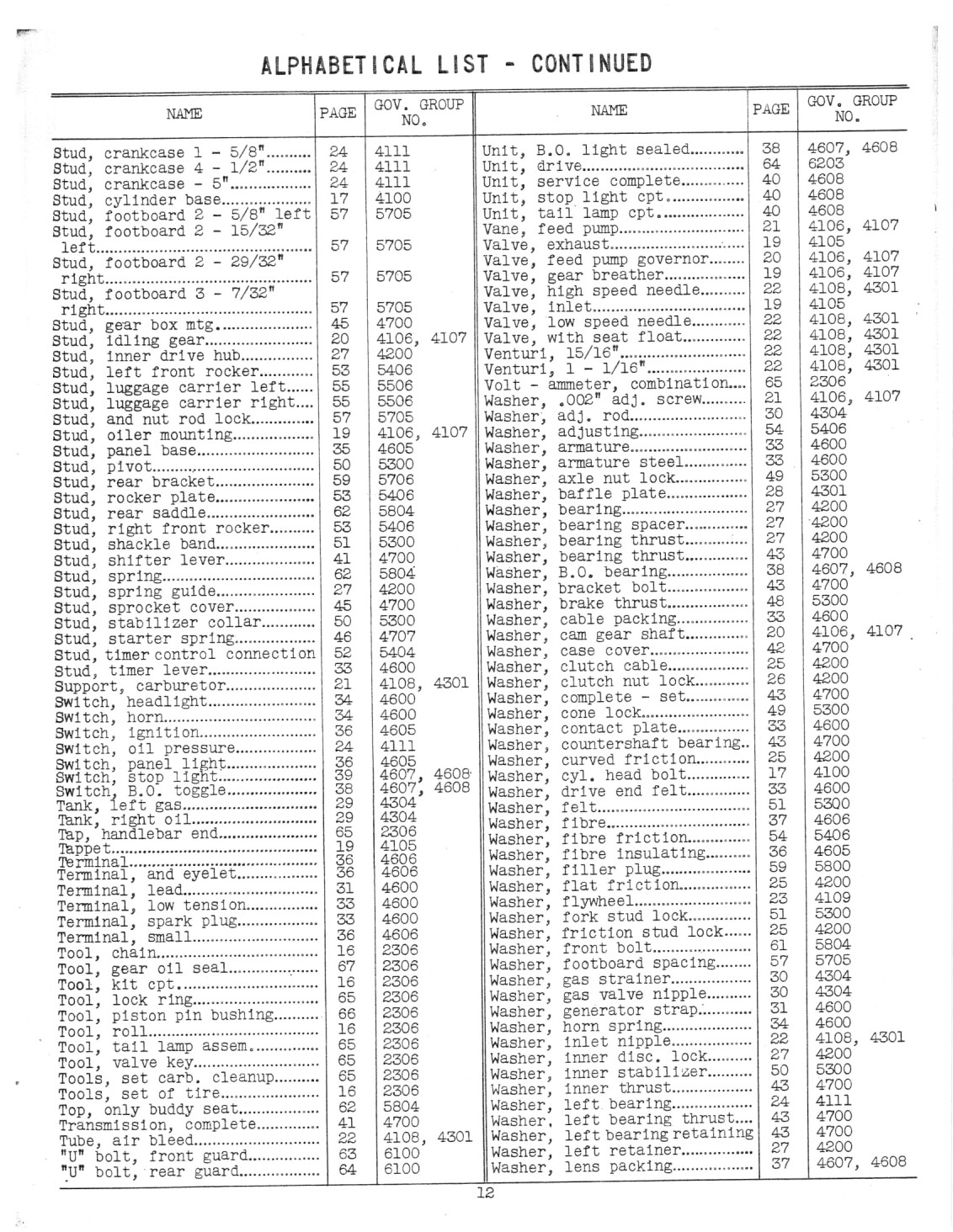

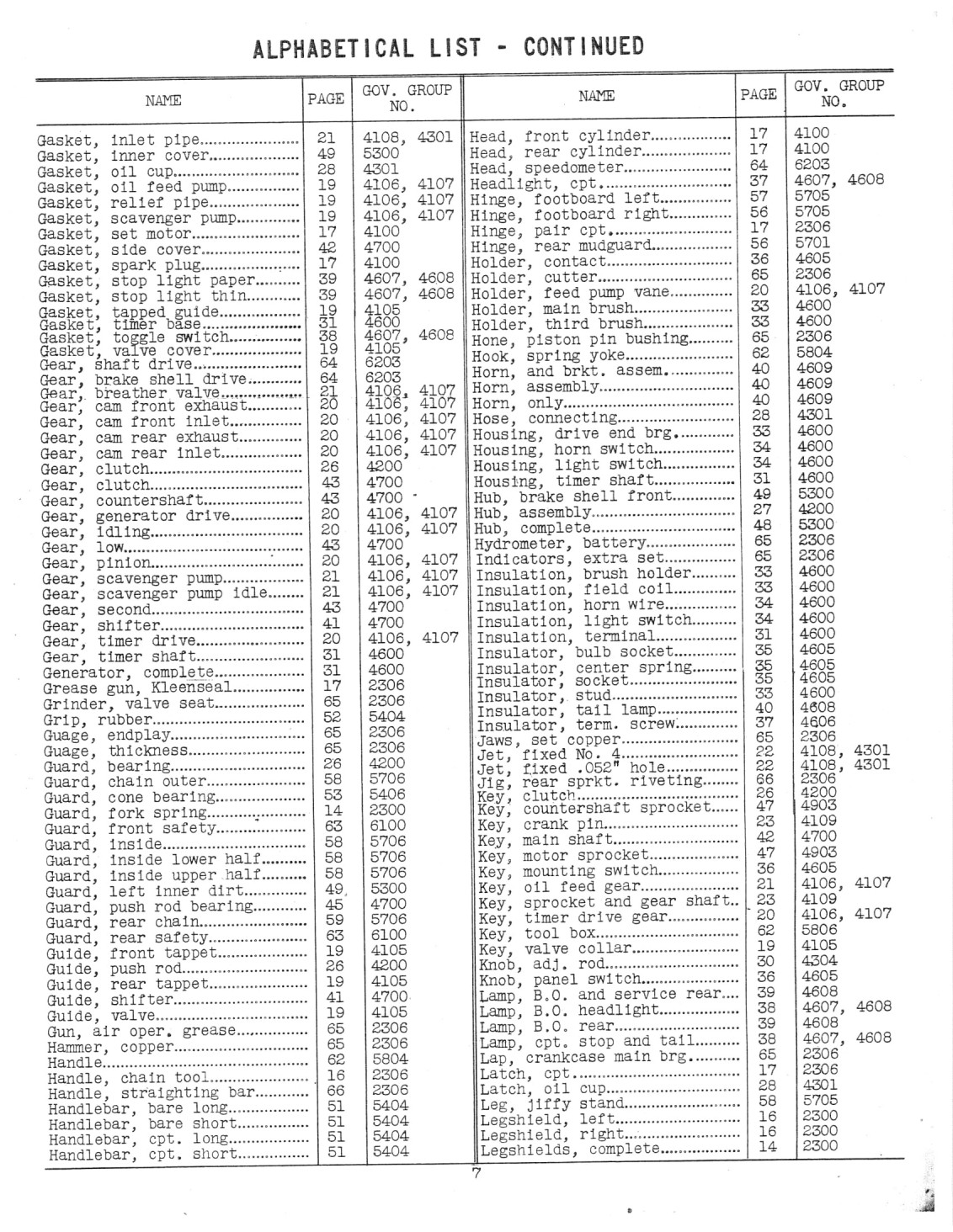

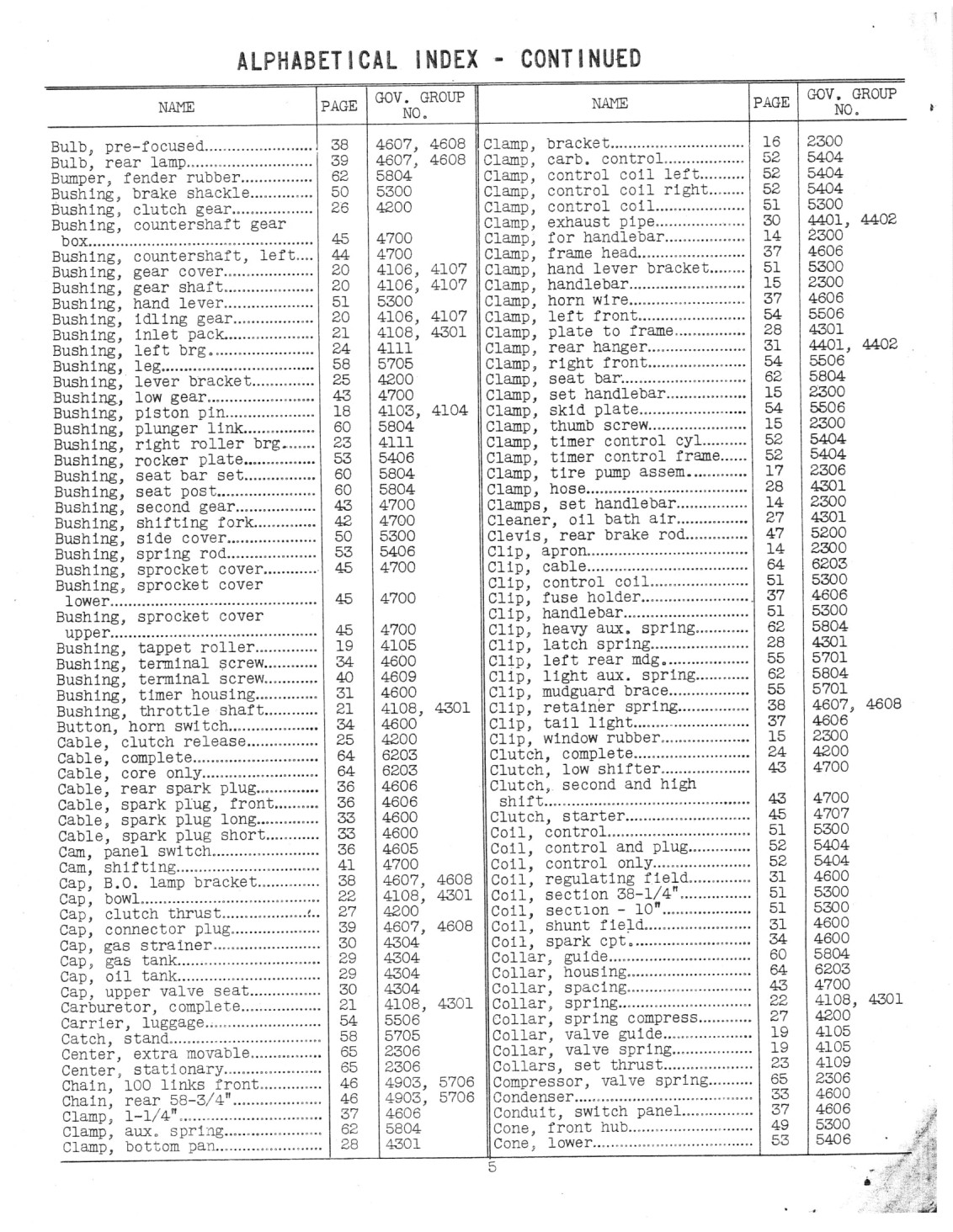

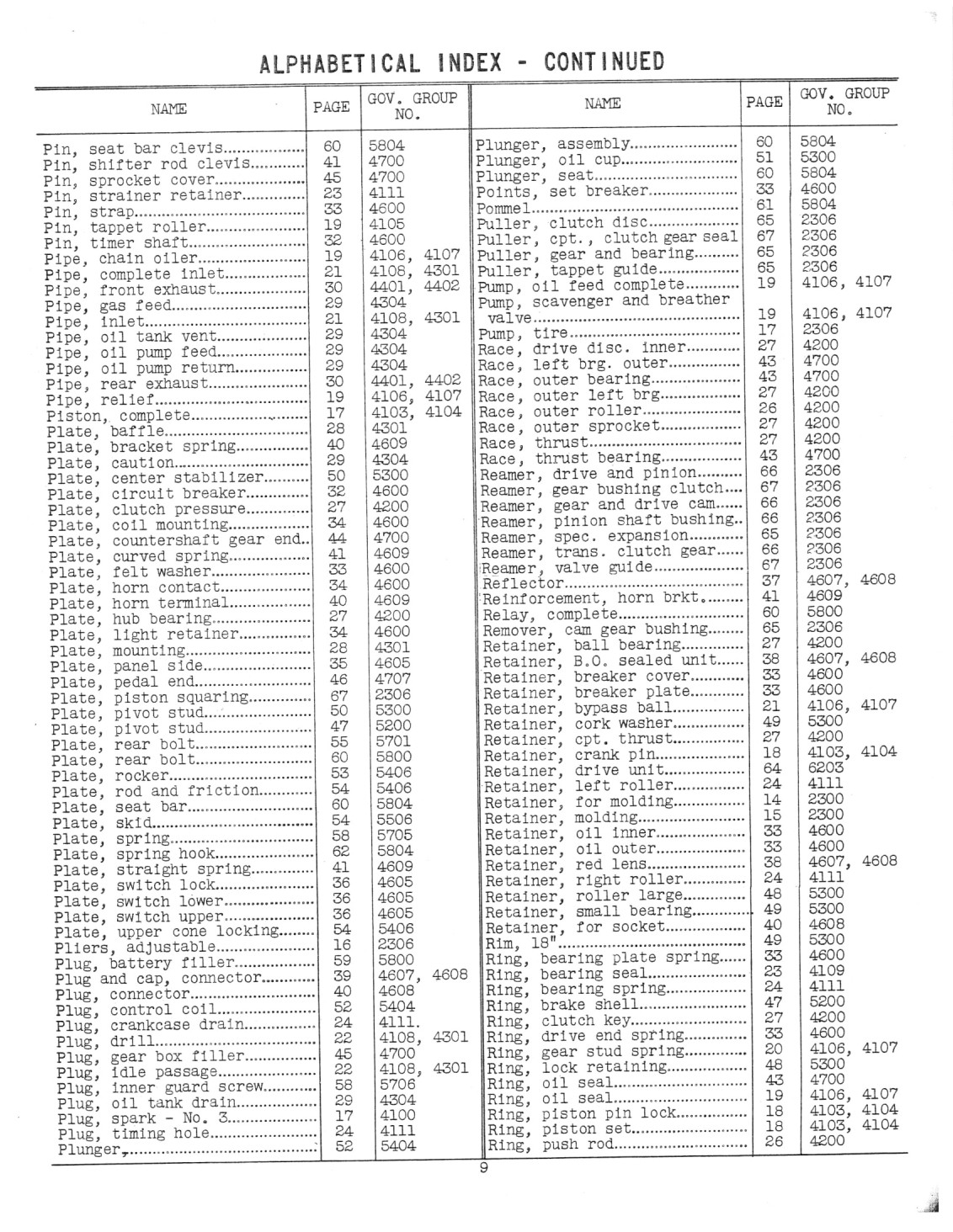

An alphabetical list of all parts appears on the pages following.

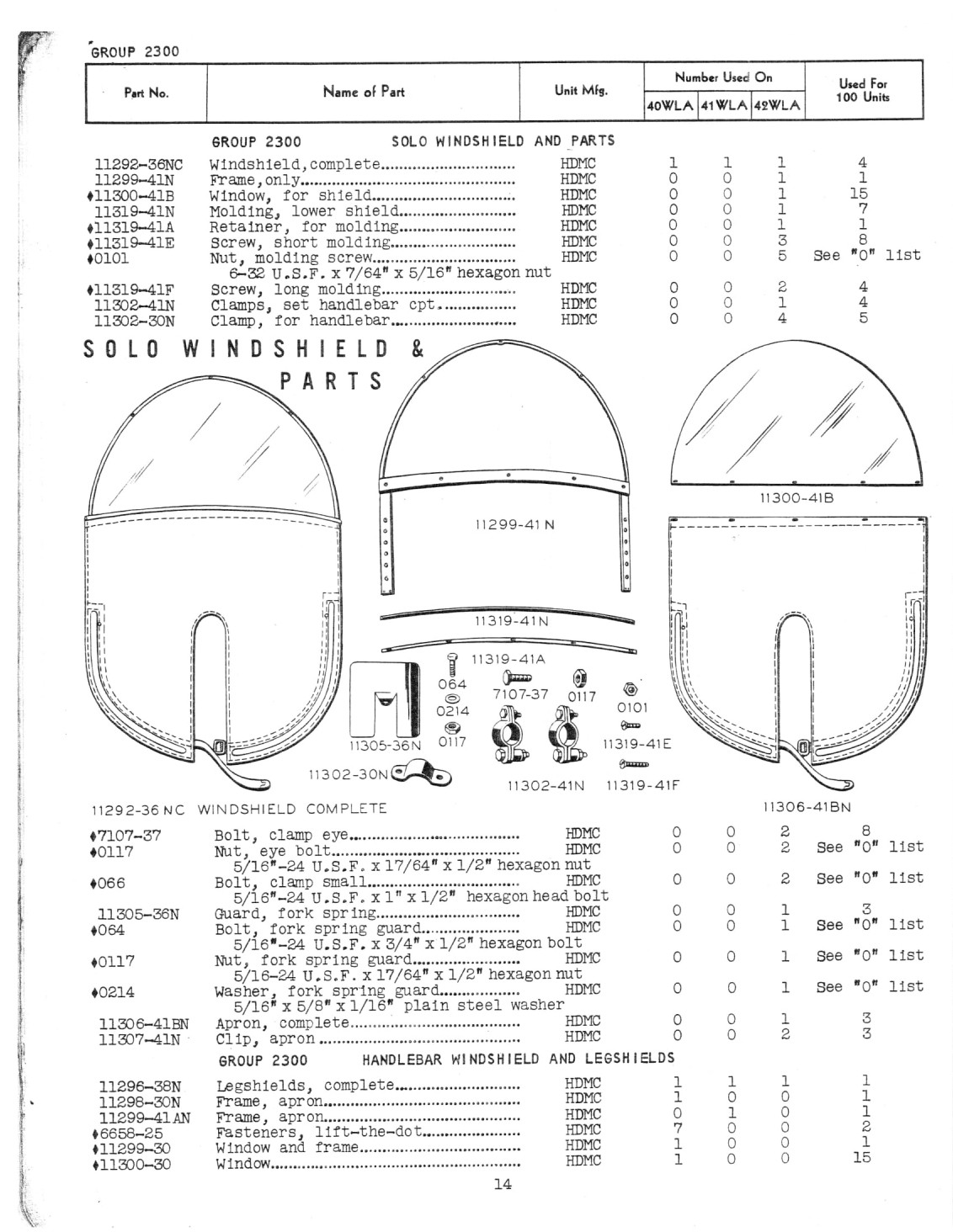

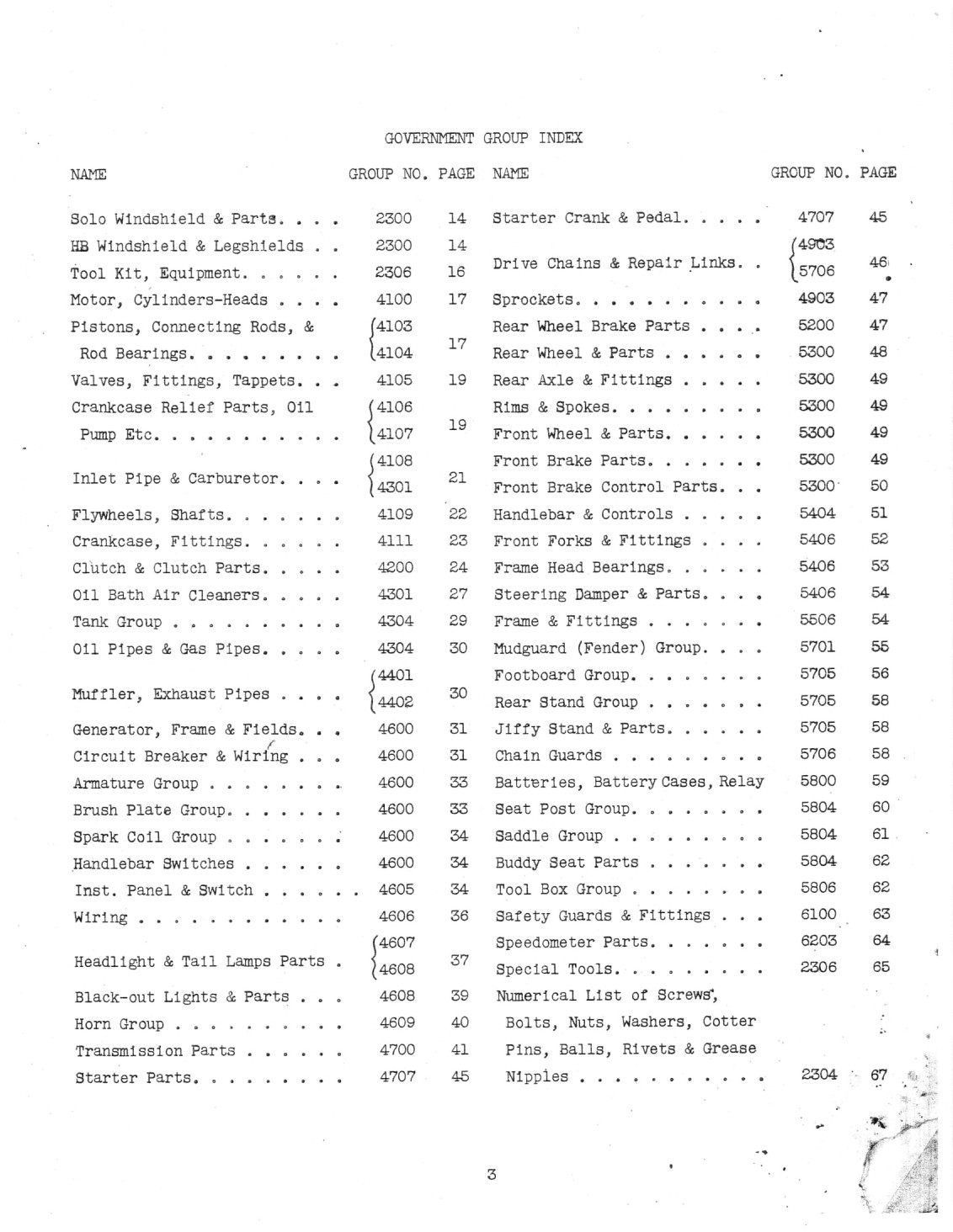

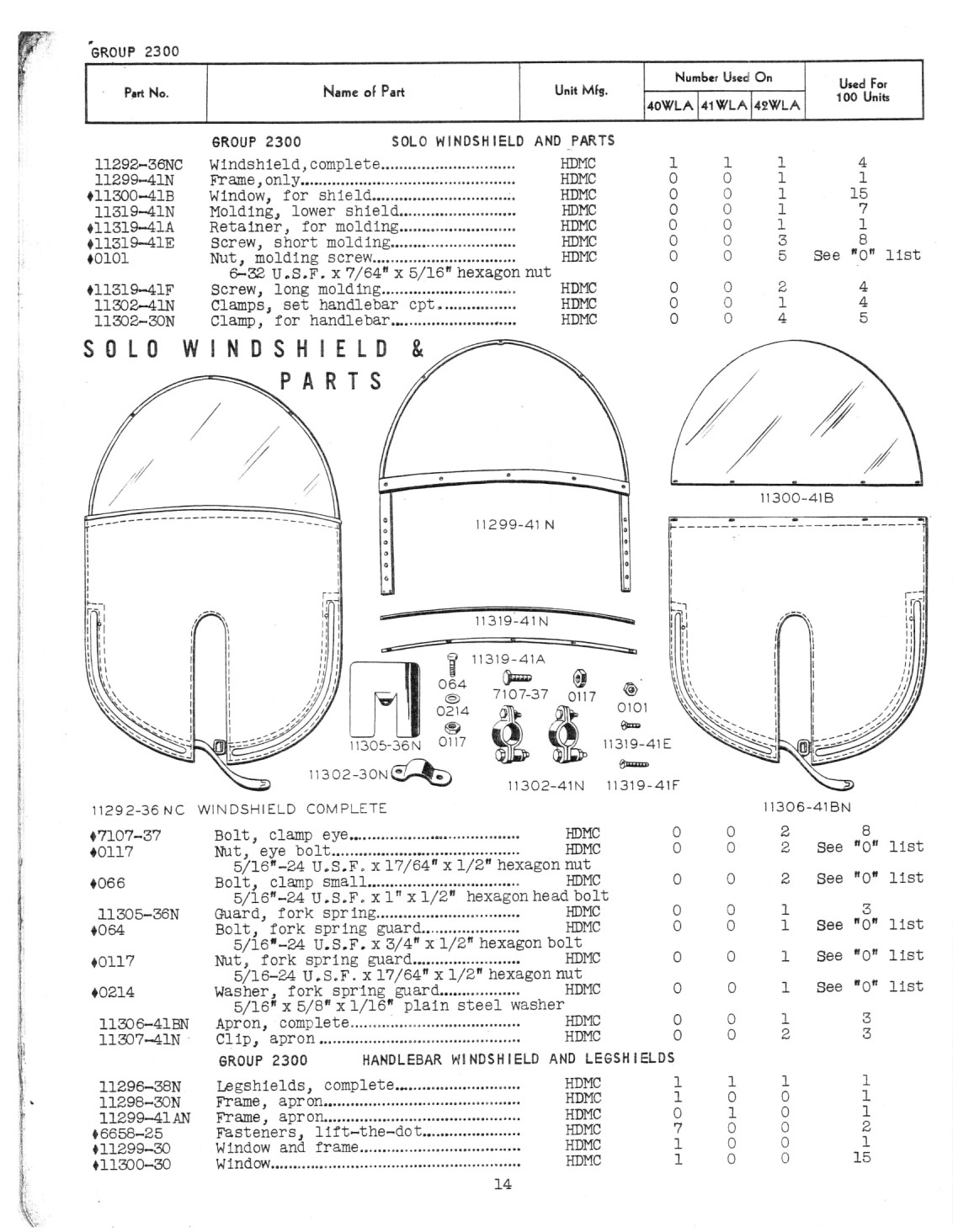

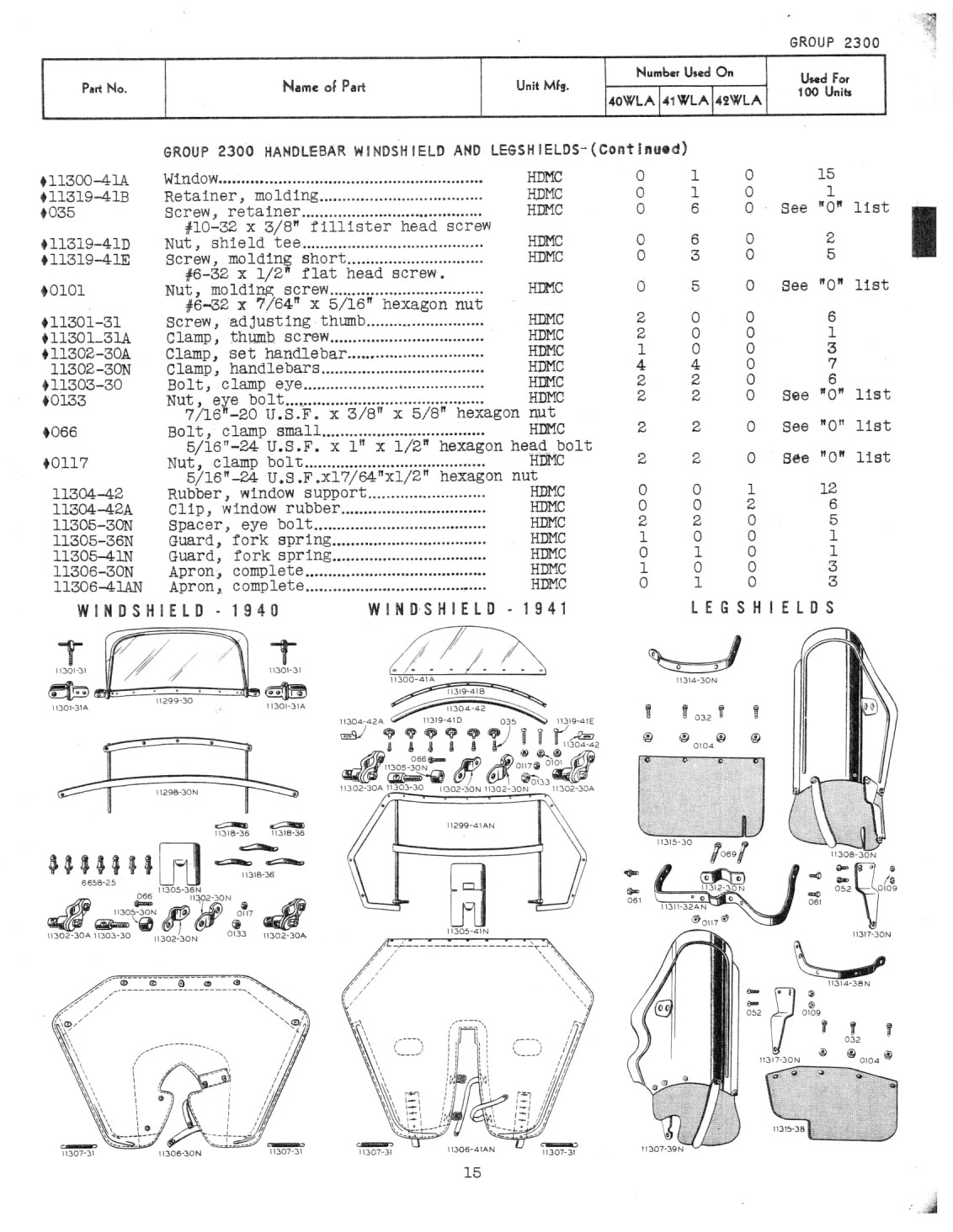

The main section of this book lists all service parts arranged by Gov't group numbers and is fully illustrated.

Immediately following this main section is a listing of all special tools which are used on these models. This list of tools covers tools used in Field Service and also Base Service.

Following the tool list is a numerical list of "O" parts. These “O" parts are screws, nuts, washers, lock washers, steel balls, cotter pins, rivets and grease fittings that may be used in several assembly groups. Sizes are marked for easy identification.

In the last section of the book, we have listed numerically all part numbers, showing the page number, Gov't group number and also the List price of each part.

A complete bearing chart is shown on the back cover of the book.

Parts stockage recommendations appear after each item in the main section of the book, with the exception of the "O" parts. The recommendations on "O" parts are shown in the numerical list of "O" parts.

The symbol shown before part numbers indicate that these parts are common parts and can be used on regular commercial machines.
