BE-65

Failure of disc box

v

k

k

ON

v

OFF

OFF

Invalid

Invalid

(d)

FM/TV failures

FM receiving effection is

not good

Whether the signal of local TV

station is weak

Pay attention to the

receiving location

Check whether the aerial

interface peels off

The receiving effection of

TV station is bad

Whether the signal of local

TV station is weak

Pay attention to the

receiving location

Check whether amplifier works

normally (the lamp is lighting )

Turn the amplifier switch to

ONposition

Search the TV station for

another time

Amplifier failure

(e)

disc box cannot be sent out

Disc box cannot be sent out

Press

OPENkey

Move the small window

shrapnel at bottom of disc box

then it can be sent out

Body Electric System

Acoustical Equipment System

BE-66

Mount of bass speaker and VCD

(a)

bass speaker

Connect the audio output wires of bass speaker with the sockets in bass speaker correspondingly according

to the wire color (red plugging element should be plugged in red socket, yellow plugging element in white

socket, the grounding wire (black), power wire (yellow) and signal wire (blue) should be fixed at the

corresponding positions (GND

12VREM) on bass speaker tightly.

(b)

multi-disc VCD

The feed cables of VCD main device should be connected as marked, when connecting the plugging element

of wire harness of video camera (CAM) with the plugs on main device (CAM), notice should be taken on the

two arrow marks so as to prevent the plugging element damage; The audio output wire plugging elements (red

and yellow plugs) of bass speaker should be connected with the red and white sockets of mainframe (AV OUT);

the plugging elements of TV receiving input wire of amplifier should be connected with either of the plugging

elements(AV AN) of the mainframe; the plugging element (black and white ACC) of anode wire of power

supply should be connected with the red socket (ACC) of mainframe wire harness; grounding wire plugging

element (black GND) should connect with the black socket of mainframe wire harness; the plugs of audio input

wire of deci-disc data converter should be connected with the red and white socket on mainframe according

to the plugs color (the plugs (red, white CD OUT) of audio input wire of eight-disc box should be connected

with the red, white socket (CD IN) on mainframe according to the plug color, the yellow power wire plugging

element (BATT) should be connected with the yellow power wire socket (BATT) on mainframe, the electric

aerial, plugging elements of control wire of function amplifier should be connected with the electric aerial

(CTL), socket of control line of function amplifier on mainframe. After completing the connection of plugging

elements, wrap the connecting position with adhesive strap in order to prevent those plugging elements from

peeling off, the plugging element of feed cable of TV receiving aerial can connect with any two of the four

holes on amplifier, meanwhile, turn on the switch (with a red indicating lamp) of amplifier when watching the

TV play. When mounting the VCD mainframe, push the wire harness innermost as can as possible so that there

is spacious room for mainframe, then push in the mainframe, notice should be taken not to damage the wire

harness. Fasten the mainframe to the degree that it cannot be pull out by hand after assembling, if it cannot be

clamped tightly, prize out the two clips on the inner sleeve, then fasten the mainframe, and mount on the

external decoration frame finally. When disassembling the mainframe, tear down the external decoration

frame first, then insert the special key into the open grooves at two sides to pull out the mainframe.

Body Electric System

Acoustical Equipment System

BE-67

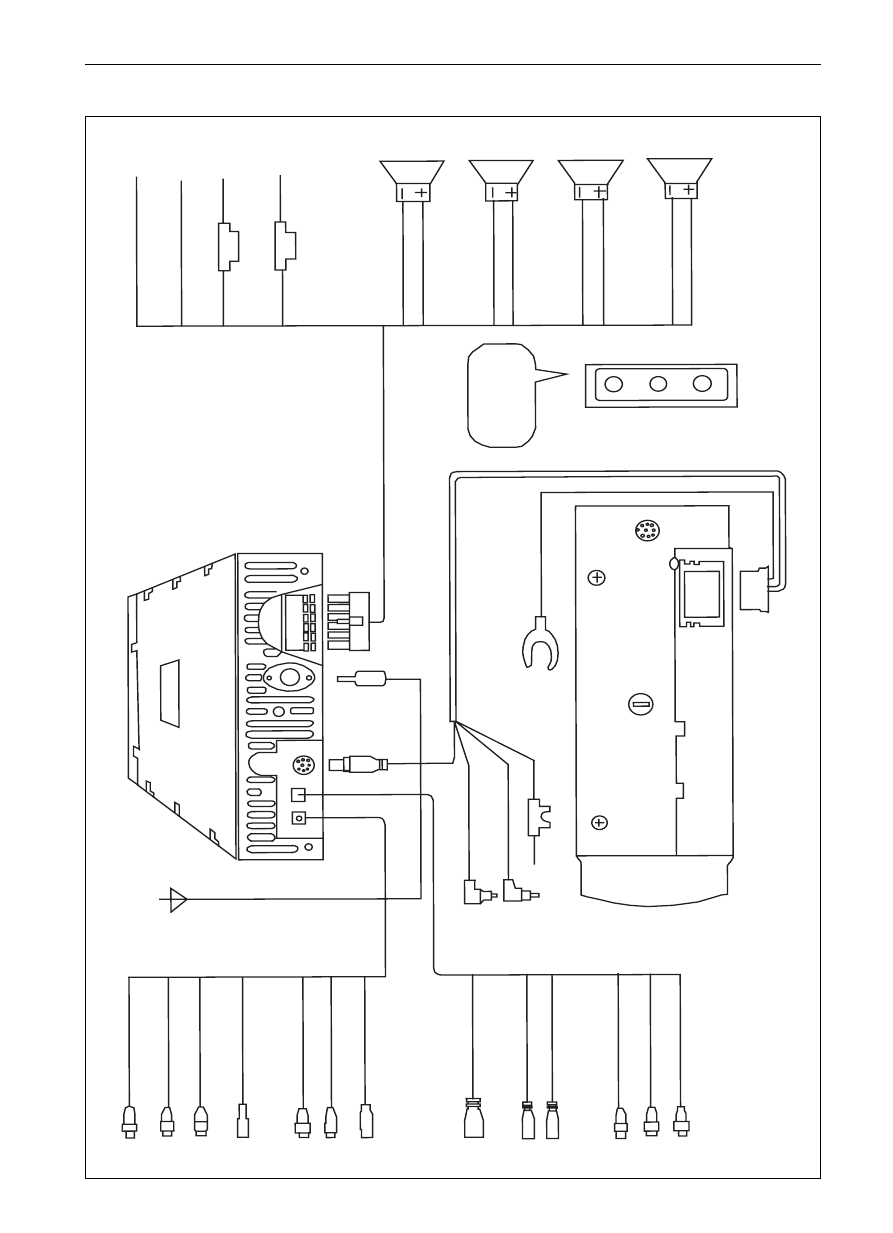

Connecting Sketch of VCD System

SY SJ

Bl

B

R

Y

ACC

BATT

Gr/B

Gr

V/B

V

W/B

W

G/B

G

Y

video

R

right sound

track
W

left sound

track

VCD output

WCD/AUDIOOUT/L

RCD/AUDIOOUT/R

ACC

RADIO  ANTENNA  IN

Notice:

1. The aerial control should be

highly effective;

2. The control of function amplifier

should be highly effective;

3. The disc device should be

earthed fixedly

grounding

right front

right rear

left front

left rear

screen

connecting wire of disc box

grounding wire

disc box

Y video input

RAV audio input

R

RAV audio input

L

TV aerial input

camera input

radar input

RCD audio input

R

L

YD function amplifier control

BL aerial control

W audio output

R

L

RCD audio input

R  audio output

back up signal

Body Electric System

Acoustical Equipment System

BE-68

Body Electric System

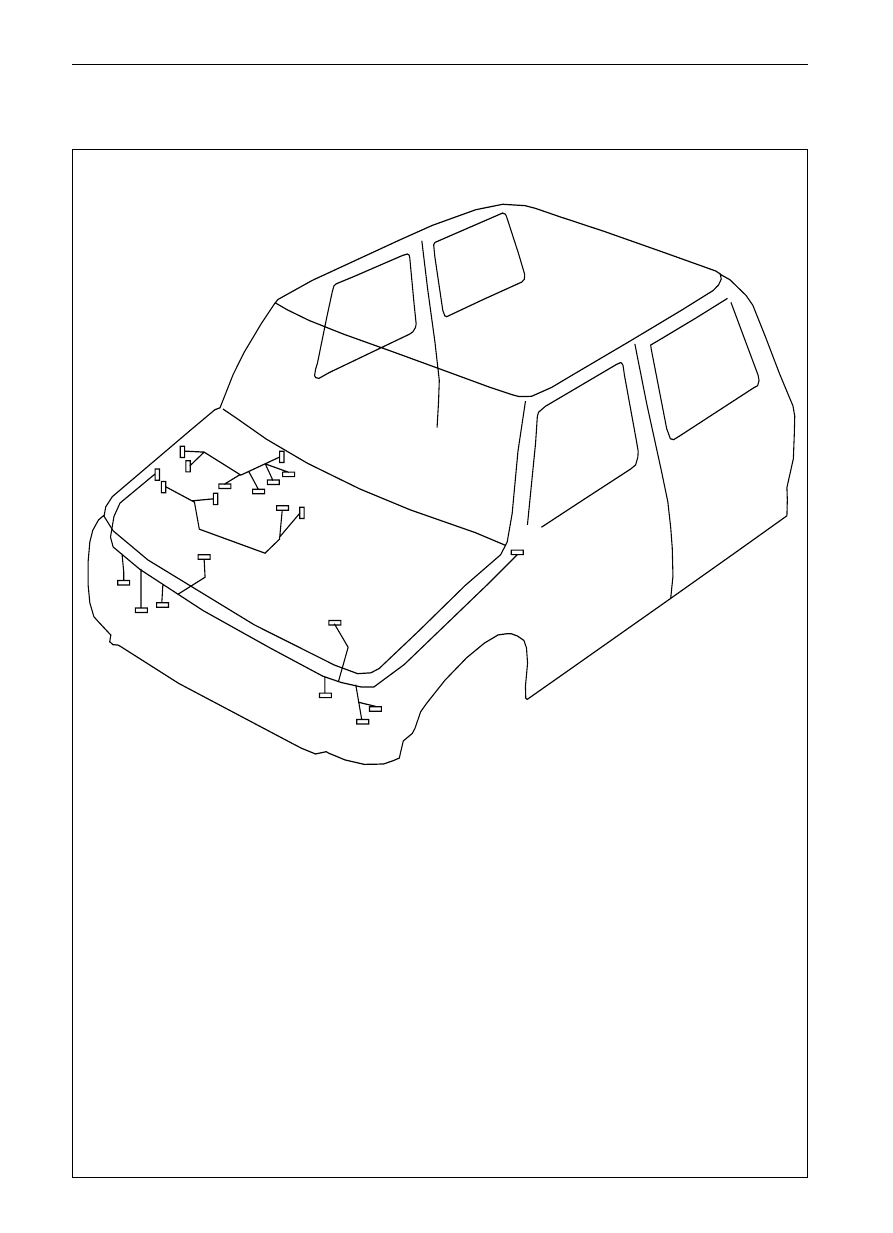

Wire Harness Distribution

Housing wire harness

1

back-up lamp switch

2

starter

3

starter

4

oil pressure sensor

5

grounding wire

6

grounding wire

7

connected to protective box II

8

protective box II

9

connected to protective box II

10 starter

11 air-conditioner compressor12water temperature sensor

13 washer motor

14 right headlamp

15 right lever-shaped lamp

16 electric horn

17 generator

18 left headlamp

19 left lever-shaped lamp

20 front turn lamp of left side

21 connected to protective box I

1

2

P

4

5

6

7

8

V

10

11

12

13

14

NR

16

17

18

19

20

21

Wire harness distribution
