Great Wall service chassis and body Manual - part 26

PR-13

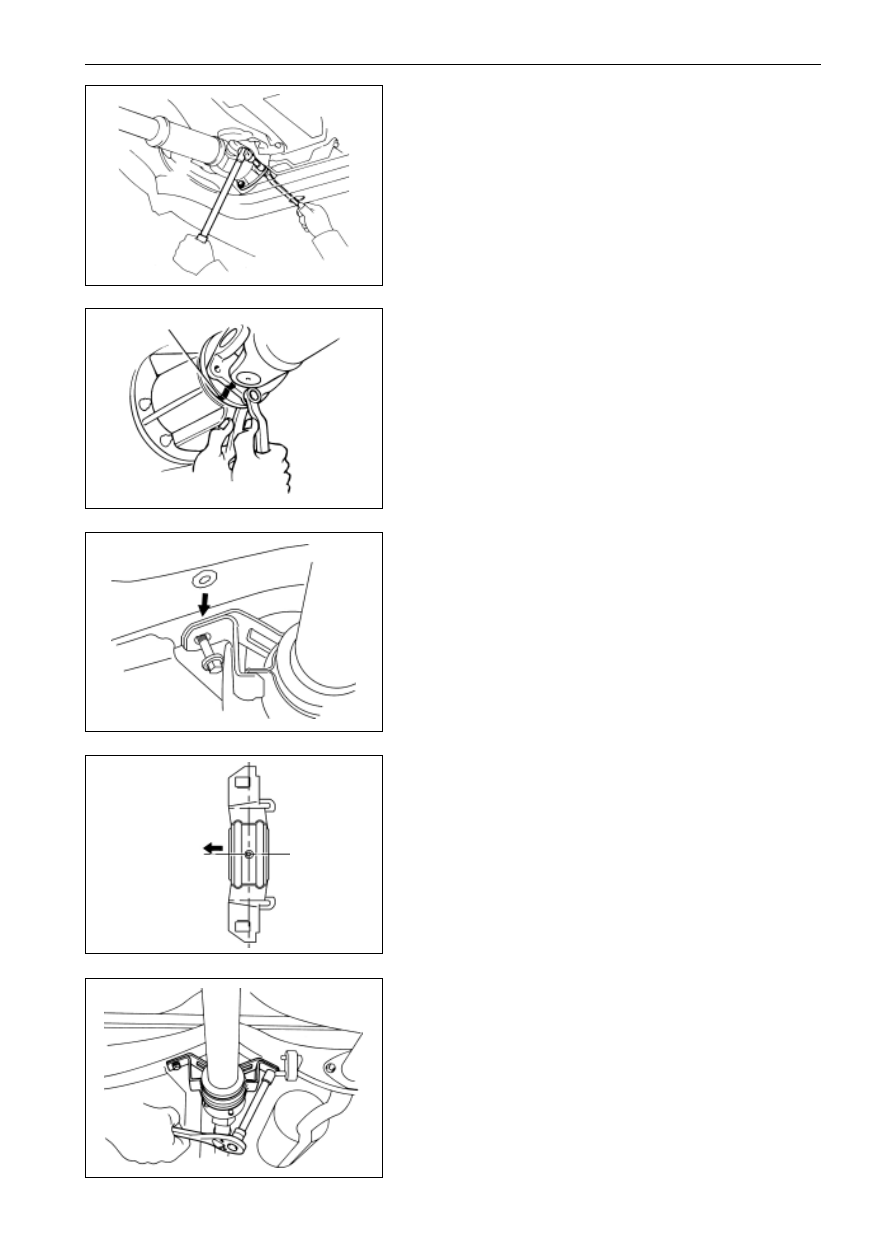

Drive Shaft

Mount on the front axle drive shaft.

Mount on it and screw up the four bolts according to the

specified torque.

Fastening torque

(74 5)Nm

Connect the universal joint flange fork of the rear axle

drive shaft on the relative differential flange.

(a)

Align the assembly marks on flanges and connect the

flanges with four sets of bolt and nut, and

(b)

Tighten the sets of bolt and nut according to the specified

torque.

Fastening torque

(74 5)Nm

Mount the center support bearing on the frame beam

(three joint type)

(a)

Use two mounting bolts to mount the center support

bearing on the frame beam and screw up them manually.

(b)

Check the bearing seat, which shall be vertical with the

drive shaft, and adjust the bearing seat when necessary.

(c)

Check the central line of the central bearing. The central

line of the central bearing shall be the same with that of

the bearing seat when vehicle is in the non-loaded stage.

(d)

Adjust the bearing seat if necessary, and

(e)

Screw up the mounting bolts according to the specified

torque.

Fastening torque

(40 5)Nm

assembly mark

forward

SA-1

Suspension System and Automobile Axle

Page

Troubleshooting .......................................................... SA-2
Alignment of Front Wheel ............................................ SA-3
(Dr/2WD)
Front Wheel Hub and Steering Knuckle ...................... SA-10

Front Wheel Hub ..................................................... SA-11
Steering Knuckle ..................................................... SA-14

Front Suspension ........................................................ SA-16

Ball Stud .................................................................. SA-17
Torsion bar .............................................................. SA-19
Lower Arm and Vibration Damper ........................... SA-21
Upper Arm ............................................................... SA-24
Guide Level ............................................................. SA-26
Lateral Stabilizer ..................................................... SA-27

(SF/2WD)
Front Wheel Hub and Steering Knuckle ...................... SA-28

Front Wheel Hub ..................................................... SA-29
Steering Knuckle ..................................................... SA-32

Front Suspension ......................................................... SA-36

Ball Stud ................................................................... SA-37
Torsion bar ............................................................... SA-38
Lower Arm and Vibration Damper ............................ SA-39
Upper Arm ................................................................ SA-42
Guide Level .............................................................. SA-43
Lateral Stabilizer ....................................................... SA-43

(SF/4WD)
Front Wheel Hub and Steering Knuckle ....................... SA-44

Front Wheel Hub ...................................................... SA-45
Steering Knuckle ..................................................... SA-49

Constant Speed Drive Shaft ........................................ SA-54
Front Speed Reducer .................................................. SA-57

Change of Oil Seal of Driving Bevel Gear Of
Front Speed Reducer ............................................. SA-57
Dismantle of Front Speed Reducer ......................... SA-61
Change of Axle Shaft Oil Seal ................................. SA-63
Disassembly and Assembly of Front Speed Reducer .... SA-65
Assembly of Front Speed Reducer ......................... SA-74

(Back)
Rear Axle Shaft ........................................................... SA-79
Rear Speed Reducer .................................................. SA-83

On-vehicle Change of Oil Seal of Main Teeth ......... SA-84
Dismantle of Rear Speed Reducer .......................... SA-85
Disassembly of Rear Speed Reducer ..................... SA-85
Assembly of Rear Speed Reducer .......................... SA-89
Mount of Rear Speed Reducer and
Differential Assembly .............................................. SA-94

Rear Differential .......................................................... SA-95
Rear Suspension ......................................................... SA-97

SA-2

Troubleshooting

Suspension System and Automobile Axle

Troubleshooting

Change the tire or inflate to the proper pressure

Balance the wheels

Change vibration damper

Check Alignment of Front Wheel

Change or adjust the wheel bearing

Check ball joint) or liner

Tighten or change steering linkage

Adjust or repair the steering device

Discharge the oil and change with new one

Check the wandering clearance

Check the gears

Change the bearing

Tighten or change the bearing

Trouble

Causes

Inspection items

Body wandering/body

dragging

Tire wear or improper air inflation

Incorrect alignment of front wheel

Over-tightened wheel bearing

Part looseness or damage of front/rear sus-

pension

Wear or looseness of steering rod system

Poor connection or damage of steering de-

vice

Inflate the tire to the proper pressure or change

the tire.

Check the situation of alignment of front wheel

Adjust the wheel bearing

Tighten or change the suspension element

Tighten or change the steering rod system

Adjust or repair the steering device

Body sink

Overloaded vehicle

Wear of vibration damper

Poor spring performance

Check the loading mass

Change vibration damper

Change spring

Left-right vibration/up-

down bouncing

Improper air inflation

Bending or damaged lateral stabilizer

Vibration damper wear

Inflate the tire to suitable pressure

Change stabilizer

Change vibration damper

Front wheel vibration

Tire wear or improper air inflation

Imbalance of wheels

Vibration damper wear)

Improper Alignment of Front Wheel

Wheel bearing wear or improper adjustment

Ball joint or liner wear

Steering linkage looseness or wear

Poor adjustment or damage of steering mecha-

nism

Abnormal tire wear

Improper air inflation

Vibration damper wear

Poor Alignment of Front Wheel

Suspension system wear

Inflate the tire to the proper pressure

Change vibration damper

Check the Alignment of Front Wheel

Change suspension element

Speed reducer leakage

Over-high oil level or improper oil quality

Oil seal wear or damage

Flange looseness or damage

Discharge the oil for change

Change oil seal

Tighten or change the flange

Noise inside the

axleNoise inside the axle

Over-low oil level or inferior oil quality

Over-large wandering clearance between

driving bevel gear and driven bevel gear

Wear and disintegration of driving bevel

gear and driven bevel gear

Bearing wear of driving bevel gear

Bearing wear of rear axle shaft

Bearing looseness or wear of speed reducer

SA-3

Suspension System and Automobile Axle

Alignment of Front Wheel (Dr SL SK SY SJ)

Alignment of Front Wheel

(Dr SL SK SY SJ)

Inspection should be conducted for the following items to

remove the trouble

(a)

Check the tire abrasion and air inflation situation

Tire inflation pressure:

Front (220

0)kPa

Back (240

0)kPa

(b)

Check the front wheel bearing to see whether it is loose.

(c)

Check the front suspension to see whether it is loose.

(d)

Check the steering driving device to see whether it is

loose, and

(e)

Check the front vibration damper work to see whether it

is loose.

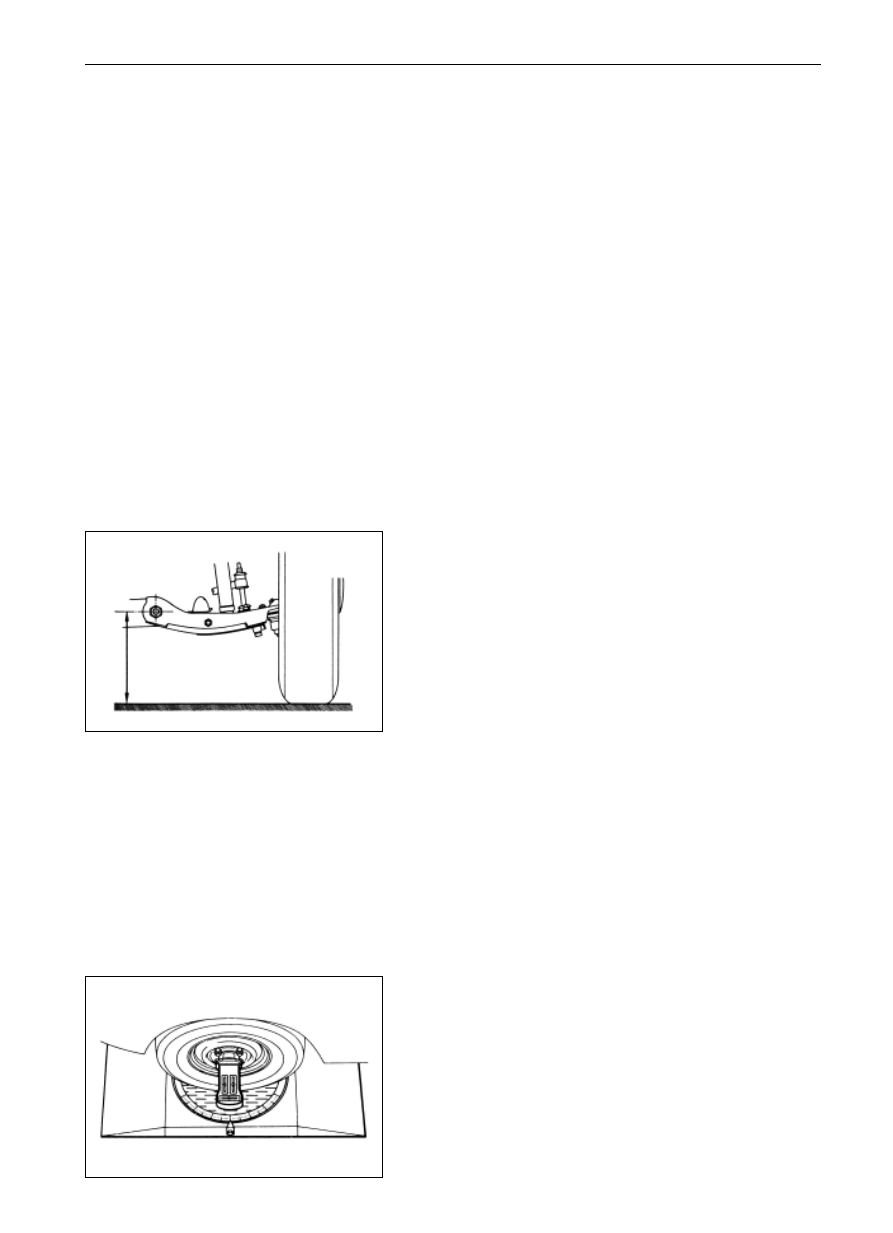

Measure the ground clearance of the chassis.

Chassis ground clearance:

295

SL SK

(255 2)mm

(310 2)mm

(295 1)mm

If the chassis ground clearance of the vehicle is sub-standard,

push down the body or raise it for a trial adjustment, if fails,

check the spring or suspension element to see whether they are

normal.

Remarks: adjust the chassis ground clearance to a specified

value before checking the Alignment of Front Wheel

parameters.

Mount on the four-wheel locating device.

The mount should be conducted according to the manufacturerís

instructions.
