Geely Emgrand X7. Manual part - 4





Body lubrication maintenance

Lubricate all door hinges, including the engine hood, the fuel filler door, compartment (back-door)
hinges and locking latch, glove box, console door and any folding seat parts.

Wash the behicle underbody

Firstly, loose the sediment in the vehicle block zones, and then rinse the underbody with clean
water. After winter, the underbody is washed at least once a year. The corrosive materials used for
deicing and anti-dust will be washed away when we wash the underbody.

Engine cooling system

Warning!

When working around the running engine, avoid contacting with moving components and hot
surfaces to prevent injuries.

Inspect the engine coolant. If the engine coolant is too dirty or rusty, drain the engine coolant.
Flush the engine cooling system and refill the new engine coolant. Maintain an appropriate
concentration of engine coolant in order to ensure the correct antifreeze, anti-corrosion properties
and engine operating temperature. Inspect the hoses. Replace the cracked, expanded, or aged
hoses.

Inspect fastening clip, cleaning radiators and A/C system condenser outside. Clean filler cap and
filler neck tube. Test the pressure in the cooling system and cover to ensure that the system
operates properly.

15



1.3 Lifting vehicle

1.3.1 Description and operation

1.3.1.1 Lifting vehicle

Warning!

Refer to "warning for Lifting vehicle " in "Warnings and important precaution s".

To avoid personal injury, always use jack stands when you are working on or under any vehicle
that is supported only by a jack.

Notes:

When you are jacking or lifting a vehicle at the frame side rails or other prescribed lift points, be
certain that the lift pads do not contact the catalytic converter, the brake pipes or the fuel lines. If
such contact occurs, vehicle damage or unsatisfactory vehicle performance may result. Before you
begin any lifting procedure, be sure the vehicle is on a clean, hard and level surface. Be sure all
the lifting equipment meets weight standards and is in good working order. Be sure all the vehicle
loads are equally distributed and secure. If you are only supporting the vehicle at the frame side
rails, make sure the lifting equipment does not put too much stress on or weaken the frame side
rails.

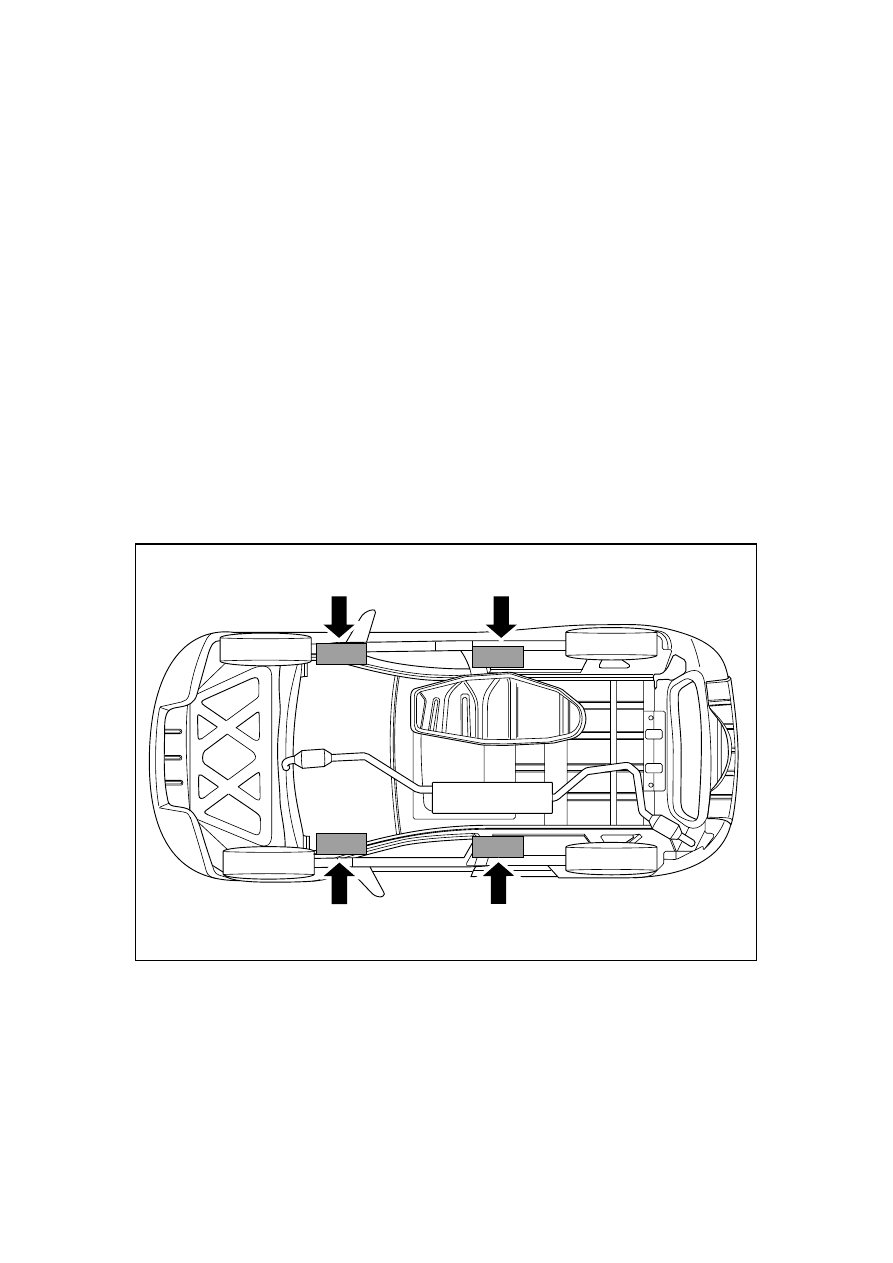

Lifting vehicle positions

NL01-0001b



Lifting vehicle - Frame contact hoist

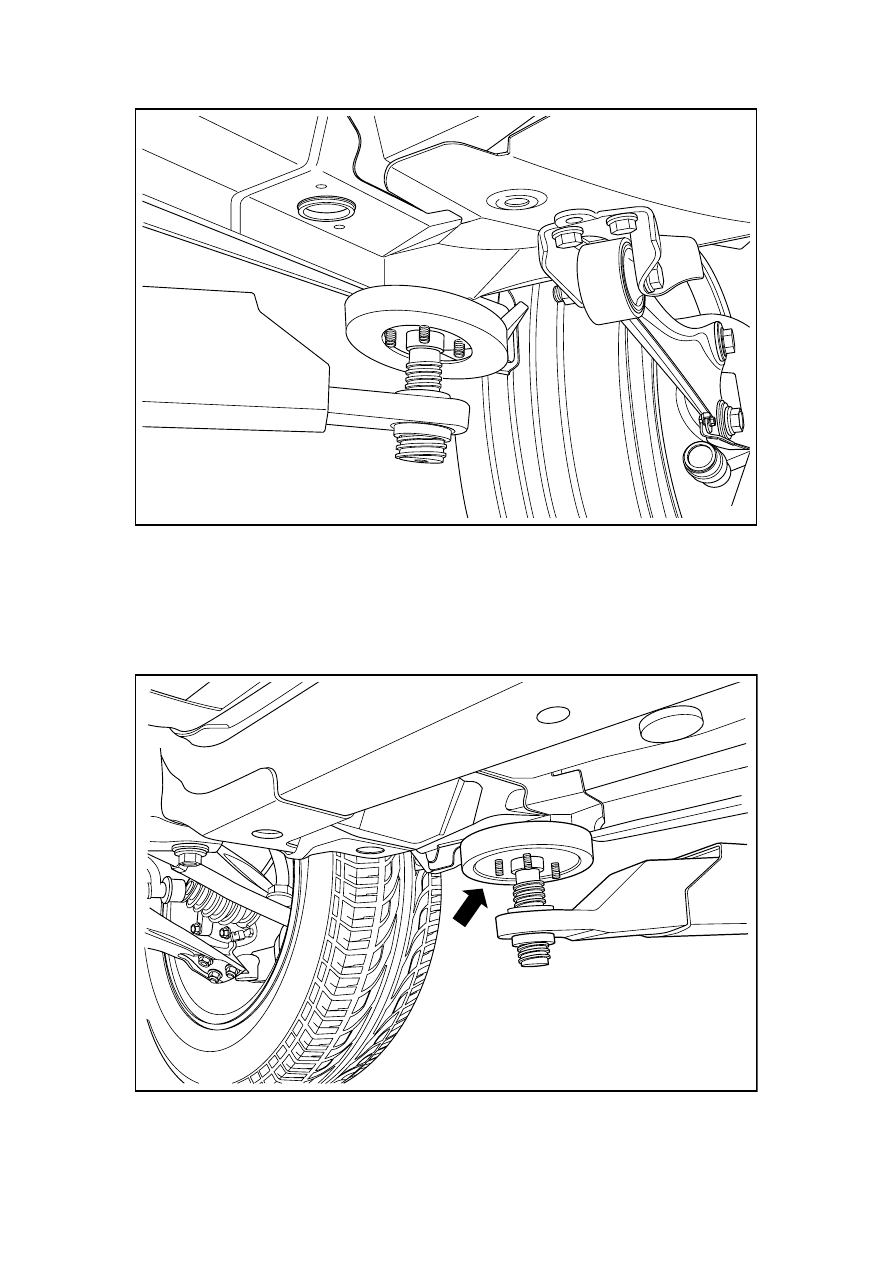

Rear hoist pads

16

NL01-0002b



Notes:

The rear hoist pads and arms must not contact the rocker panels to the outside of the side frame
rails or the floor pan.

Position the rear hoist pads as follows:

–

Under the junction between the rear frame rails and the side frame rails.

NL01-0003b



17

1.4 Maintenance

1.4.1 Specifications

1.4.1.1 Oil and fluid capacity

Applications

Specification

Brake Fluid and Clutch Fluid

0.665L(1.174 pt)

Engine oil(JL4G18-E, JLD-4G20, JLD-4G24)

4L(7.04 pt)

Engine coolant(JL4G18-E, JLD-4G20, JLD-4G24)

6.5L(11.44 pt)

Engine Coolant

6.5L(11.44 pt)

Manual Transmission Axle

2.2L(3.87 pt)

Automatic transaxle

7 . 5L13 . 2 pt)

Power steering system

0.91L(1.58 pt)

Refrigerant

550g(1 . 22 b)

Washer fluid

2L(3 . 52 pt.)

1.4.1.2 Recommended oil lubricating oil

Applications

Oil and fluid/ lubrication oil

Brake fluid and clutch fluid

DOT4 (HZY4)

Clutch linkage pivot grease

Universal lithium grease

Engine coolant

Glycol type engine coolant(coolant), freezing
point≤-40℃

Engine oil



SAE10W-30 or SAE15W-40 (SAE5W-30 for cold region in

winter), with API quality class of SL or above. SAE15W-40

(quality class of SL or above) or SAE20W-50 (quality class of SJ

or above) for tropic region.

Floor shift linkage grease

Universal lithium grease

Hood and truck hinges, fuel filler door
hinges, compartment door hinge

Universal lithium grease

Manual transmission axle

Compliant with JT/T 224; API quality class: GL-4; viscosity: SAE 75W-90



Automatic transaxle

Fuch FES 209-3292

Power steering system

ATF DEXRON Ⅲ auto/drive fluid

Doors and windows sealing strip grease

Silicon lubrication grease

A/c refrigerant

R134a

1.4.2 Description and operation

1.4.2.1 Fluid maintenance schedule.

Notes:

–

*1 Refer to the harsh conditions maintenance schedule.

–

*2 Only ""Geely produced long-efficiency engine coolant"" or equivalent high-quality
ethylene glycol engine coolant can be used. It is not allowed to use common water.

18
