Ford Festiva. Instruction - part 93





BRAKE PAD WEAR INDICATOR

CATALYTIC CONVERTER

COOLANT (PROPYLENE-GLYCOL FORMULATIONS)

ELECTROSTATIC DISCHARGE SENSITIVE (ESD) PARTS

ENGINE OIL

FUEL PUMP SHUTOFF SWITCH

This switch stops flow of fuel to engine after a collision. The impact does not have to be great for switch to be triggered. Switch must be reset
after collision. Switch is located under left rear speaker in luggage compartment. Press button to reset switch.

FUEL SYSTEM SERVICE

HALOGEN BULBS

PASSIVE RESTRAINTS

RADIATOR CAP

RADIATOR FAN

WARRANTY INFORMATION

BASIC NEW CAR LIMITED WARRANTY

All parts of the vehicle, except tires, are covered against defects in factory-supplied materials and workmanship for 12 months or 12,000 miles,

CAUTION:

Indicator will cause a squealing or scraping noise, warning that brake pads need replacement.

CAUTION:

Continued operation of vehicle with a severe malfunction could cause converter to overheat, resulting
in possible damage to converter and vehicle.

CAUTION:

To avoid possible damage to vehicle use only ethylene-glycol based coolants with a mixture ratio from
44-68% anti-freeze. DO NOT use 100% anti-freeze as it will cause the formation of cooling system
deposits. This results in coolant temperatures of over 300° F (149°C) which can melt plastics. 100% anti-
freeze has a freeze point of only -8° F (-22°C).

CAUTION:

Propylene-Glycol Mixtures has a smaller temperature range than Ethylene-Glycol. The temperature
range (freeze-boil) of a 50/50 Anti-Freeze/Water Mix is as follows: Propylene-Glycol -26° F (-32°C) - 257° F
(125°C) Ethylene-Glycol -35° F (-37°C) - 263° F (128°C)

CAUTION:

Propylene-Glycol/Ethylene-Glycol Mixtures can cause the destabilization of various corrosion inhibitors.
Also Propylene-Glycol/Ethylene-Glycol has a different specific gravity than Ethylene-Glycol coolant,
which will result in inaccurate freeze point calculations.

WARNING:

Many solid state electrical components can be damaged by static electricity (ESD). Some will display a
warning label, but many will not. Discharge personal static electricity by touching a metal ground point
on the vehicle prior to servicing any ESD sensitive component.

CAUTION:

Never use non-detergent or straight mineral oil.

WARNING:

Relieve fuel system pressure prior to servicing any fuel system component (fuel injection models).

WARNING:

Halogen bulbs contain pressurized gas which may explode if overheated. DO NOT touch glass portion
of bulb with bare hands. Eye protection should be worn when handling or working around halogen
bulbs.

CAUTION:

Before operating vehicle, securely fasten passive shoulder restraints to the emergency release buckles.
The buckle fits in only one way. Ensure to position it properly.

CAUTION:

Always disconnect the fan motor when working near the radiator fan. The fan is temperature controlled
and could start at any time even when the ignition key is in the OFF position. DO NOT loosen or remove
radiator cap when cooling system is hot.

WARNING:

Keep hands away from radiator fan. Fan is controlled by a thermostatic switch which may come on or
run for up to 15 minutes even after engine is turned off.

CAUTION:

Due to the different warranties offered in various regions and the variety of after-market extended
warranties available, please refer to the warranty package that came with the vehicle to verify all
warranty options.

whichever occurs first.

POWERTRAIN WARRANTY

Under this warranty, certain parts of the engine, transmission, axle and driveline are warranted against defects in materials and workmanship
for either 4 years/50,000 or 6 years/60,000 miles, depending on the model year. This coverage begins after 12 months or 12,000 miles. See
copy of warranty for specific components covered and length of coverage.

BUMPER-TO-BUMPER COVERAGE

All 1992-93 vehicles have complete warranty coverage against defects in materials and workmanship for 3 years or 36,000 miles, whichever
occurs first. There is no deductible with this warranty. Items not covered include tires and parts that are subject to normal wear and tear, such
as windshield wiper blades, brake linings, brake pads, clutch linings and scheduled maintenance items. There is no extended powertrain
coverage included in this warranty.

BATTERY COVERAGE

Begins at warranty start date and lasts up to 3 years or 36,000 miles, whichever occurs first. For the first 12 months in service (less than
36,000 miles), battery will be replaced at no charge. After that, battery will be replaced on a customer-participation basis: For the 13th-24th
month in service, Ford will pay 50%; for the 25th-36th month, Ford will pay 25%. Labor is covered for 3 years or 36,000 miles, whichever
occurs first.

SAFETY RESTRAINT SYSTEM COVERAGE

Begins at warranty start date and lasts for 5 years or 50,000 miles, whichever occurs first. Covers safety restraint problems not related to
comfort or appearance. Coverage for model years earlier than 1990 is 3 years with unlimited miles.

CORROSION COVERAGE

Begins at warranty start date and lasts for 6 years or 60,000 miles, whichever occurs first. 1992-93 models are covered for 6 years or 100,000
miles, whichever occurs first. Covers any holes in body sheet metal caused by corrosion.

EMISSIONS DEFECT & PERFORMANCE WARRANTIES (EXCEPT CALIFORNIA)

Defect Warranty ensures that vehicle meets applicable EPA regulations and that vehicle's emission control system is free from defects in
materials and workmanship for a period of 5 years or 50,000 miles, whichever occurs first.

The Performance Warranty covers all costs of repairing or adjusting any components or parts as needed for the vehicle to pass a Federally
required state or local emissions test.

Other emission control parts related to these components are covered by the Performance Warranty, where applicable. If another part fails due
to the failure of one of these components, both parts are covered. See customer's copy of warranty information for specific items covered.
Performance Warranty coverage is limited to fewer components after 2 years or 24,000 miles.

EMISSIONS PERFORMANCE WARRANTY (CALIFORNIA)

If vehicle fails a Smog Check inspection, all necessary repairs and adjustments will be made by manufacturer to ensure that vehicle passes the
inspection. Warranty begins at warranty start date and lasts for a period of 3 years or 50,000 miles, whichever occurs first.

EMISSIONS DEFECT WARRANTY (CALIFORNIA)

If any emission-related part on the vehicle is defective, the part will be repaired or replaced by manufacturer. Warranty begins at warranty start
date and lasts for a period of 3 years or 50,000 miles, whichever occurs first.

Some emission-related parts are warranted for 7 years or 70,000 miles whichever occurs first, and will be repaired or replaced by manufacturer
if found to be defective in material or workmanship. See customer's copy of warranty information for specific items covered.

FUSES & FUSIBLE LINKS

FUSE PANEL & FUSIBLE LINK BLOCK LOCATIONS

The vehicle has a fuse block with fusible links and a fuse panel with circuit fuses. The fuse panel is located behind the instrument panel, left of
the steering column. The fuse block is located under the hood.

FUSE PANEL IDENTIFICATION

NOTE:

Powertrain Warranty varies in coverage length (4 years/50,000 miles or 6 years/60,000 miles) depending
on model year.

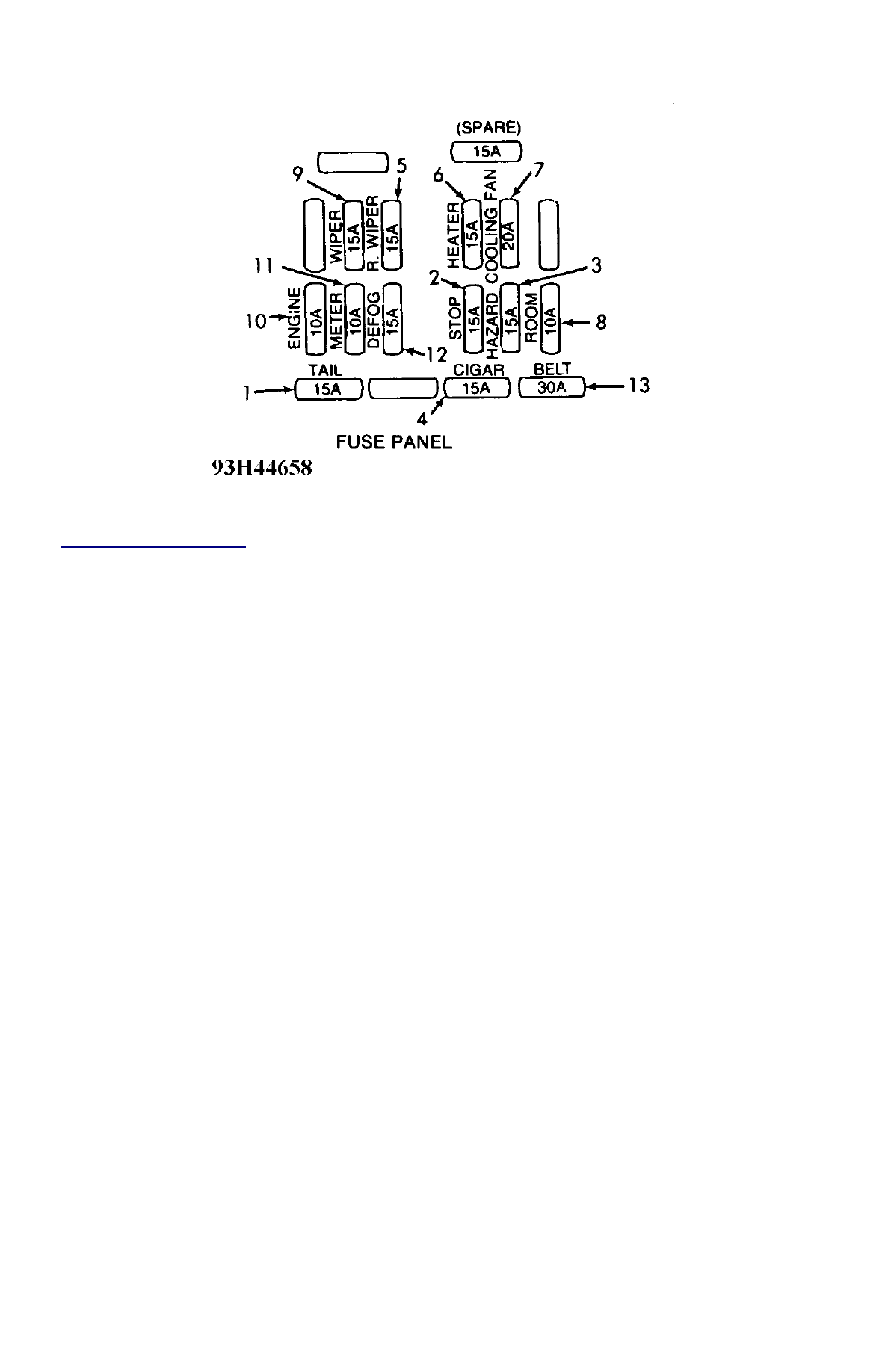

Fig. 7: Fuse Panel Identification



Courtesy of FORD MOTOR CO.

Fuse Identification

1 - 15 Amp License Plate Light, Rear Side Marker Light, Front Parking Lights, Cluster and Tail Lights

2 - 15 Amp Horn, Brakelights, High-Mount Brakelight

3 - 15 Amp (1988-89) Safety Belt Warning, Turn & Hazard Warning Flasher Lights, Radio, Trunk Light, Ignition Key Reminder Buzzer

15 Amp (1990-93) Safety Belt Warning, Turn & Hazard Warning Flasher Lights, Ignition Key Reminder Buzzer

4 - 15 Amp Audio System, Cigarette Lighter, Remote Control Mirror

5 - 15 Amp Rear Wiper/Washer, Daytime Running Light System (Canada)

6 - 15 Amp Heater & Air Conditioner

7 - 20 Amp Heater & Air Conditioner, Cooling Fan System

8 - 10 Amp (1988-89) Interior Courtesy Lights

10 Amp (1990-93) Radio, Interior Courtesy Lights, Luggage Compartment Light

9 - 15 Amp (1988-89) Front Wiper/Washer

15 Amp (1990-93) Front Wiper/Washer, Shift-Lock System (ATX), Engine Control System

10 - 10 Amp Charging System, Emission Control System

11 - 10 Amp (1988-90) Safety Belt Warning, Turn & Hazard Warning Flasher Lights, Back-Up Lights, Instrument Cluster, Warning
Lights,

10 Amp (1991-93) Safety Belt Warning, Turn & Hazard Warning Flasher Lights, Back-Up Lights, Instrument Cluster, Warning Lights,
Shift-Lock System

12 - 15 Amp Rear Window Defroster

13 - Not Used (1988-89) Spare

30 Amp (1990-93) Passive Restraint System (Automatic Seat Belt)

In-Line Fuse Identification

15 Amp (1990-93) Condenser Fan Motor (A/T Models Only)

10 Amp (1990-93) A/C System (located on left side of heater case)

FUSIBLE LINK BLOCK IDENTIFICATION

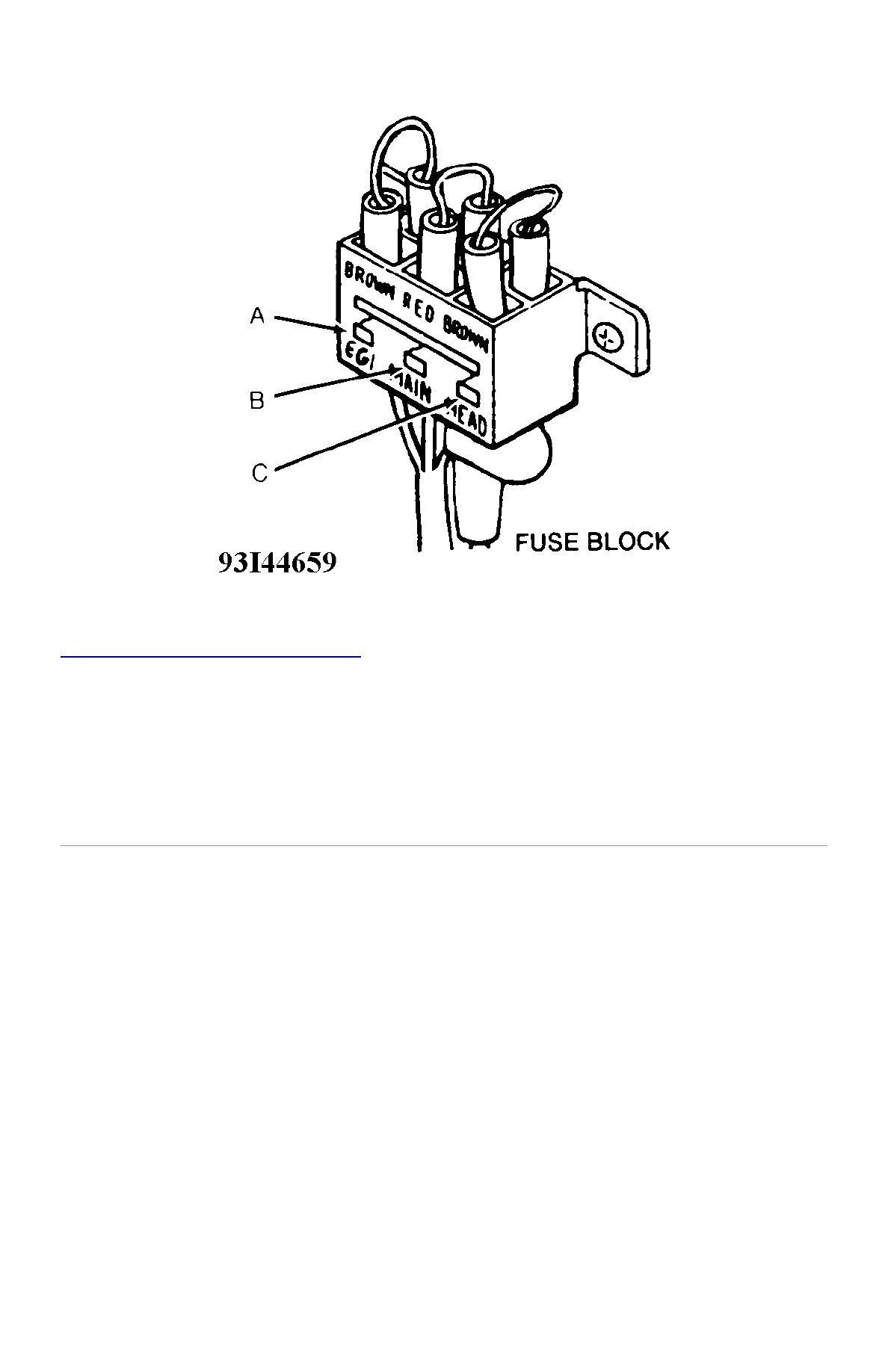

Fig. 8: Underhood Fusible Link Block Identification



Courtesy of FORD MOTOR CO.

Fusible Link Identification

A - Brown (PTC) (1988-89 Carburetor) EFE Carburetor Heater

Brown (EGI) (1989-93 EFI) EFI System (1989-92), EGI-EFI System (1993)

B - Red (Main) Back-Up, Interior & Parking Lights, Brakelights, Taillights, Horn, Luggage Compartment Light, Turn Signal & Hazard
Flasher Lights, Cluster & Warning Lights, Radio, Cigarette Lighter, Charging & Emission Control Systems, Wiper/Washer Systems,
A/C-Heater System, Cooling Fan System, Rear Window Defroster, Ignition & Starting Systems, Shift Lock System, Remote Control
Mirror, Ignition Key Reminder, Passive Restraint System (1990-93)

C - Brown (Head) Headlights, Daytime Running Lights, Starting & Charging System

Copyright 2009 Mitchell Repair Information Company, LLC.  All Rights Reserved.



Article GUID: A00129179
