Ford Festiva. Instruction - part 90

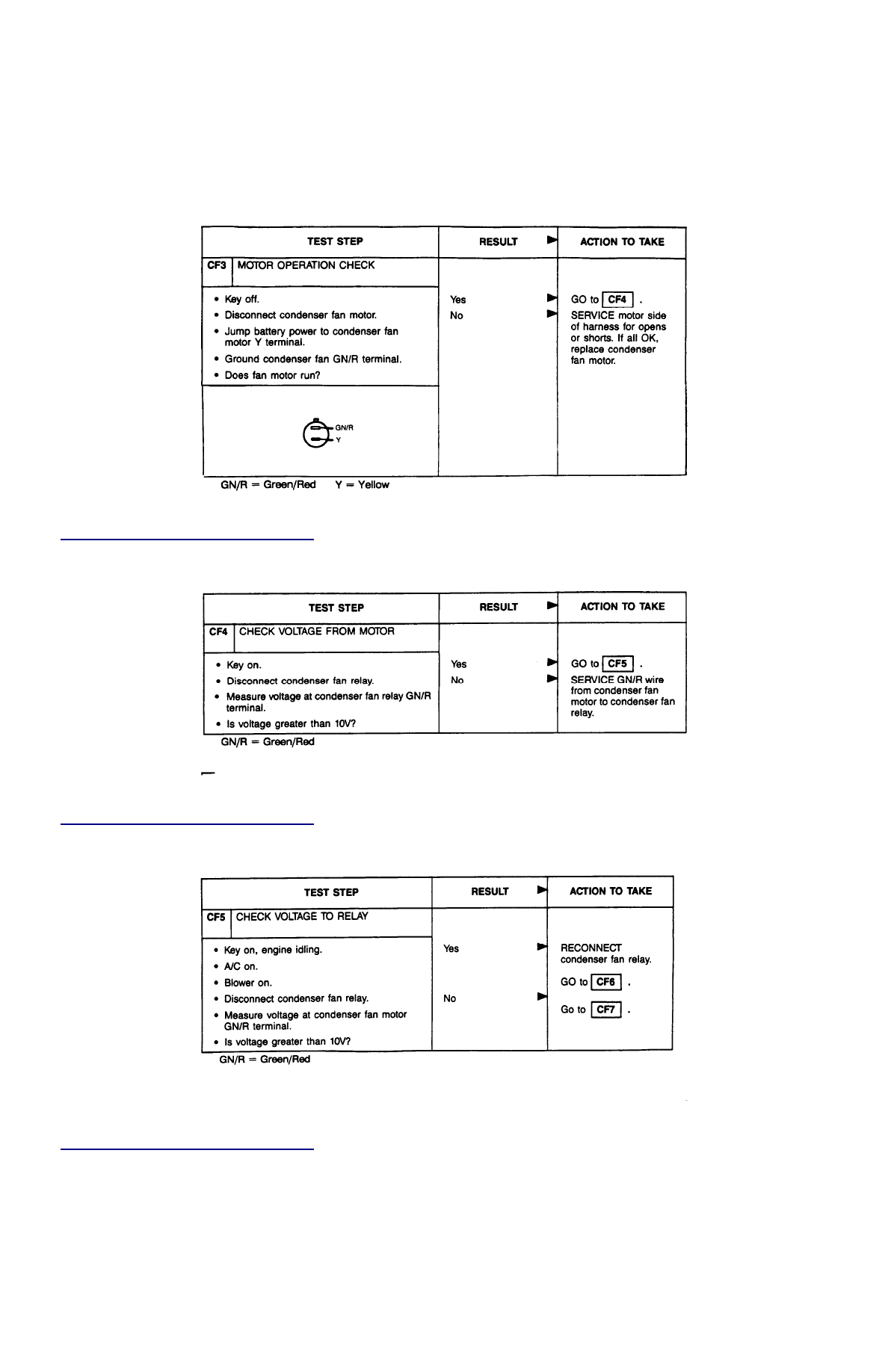

Fig. 23: Condensor Fan Trouble Chart CF3



Courtesy of FORD MOTOR CO.



Fig. 24: Condensor Fan Trouble Chart CF4



Courtesy of FORD MOTOR CO.



Fig. 25: Condensor Fan Trouble Chart CF5



Courtesy of FORD MOTOR CO.

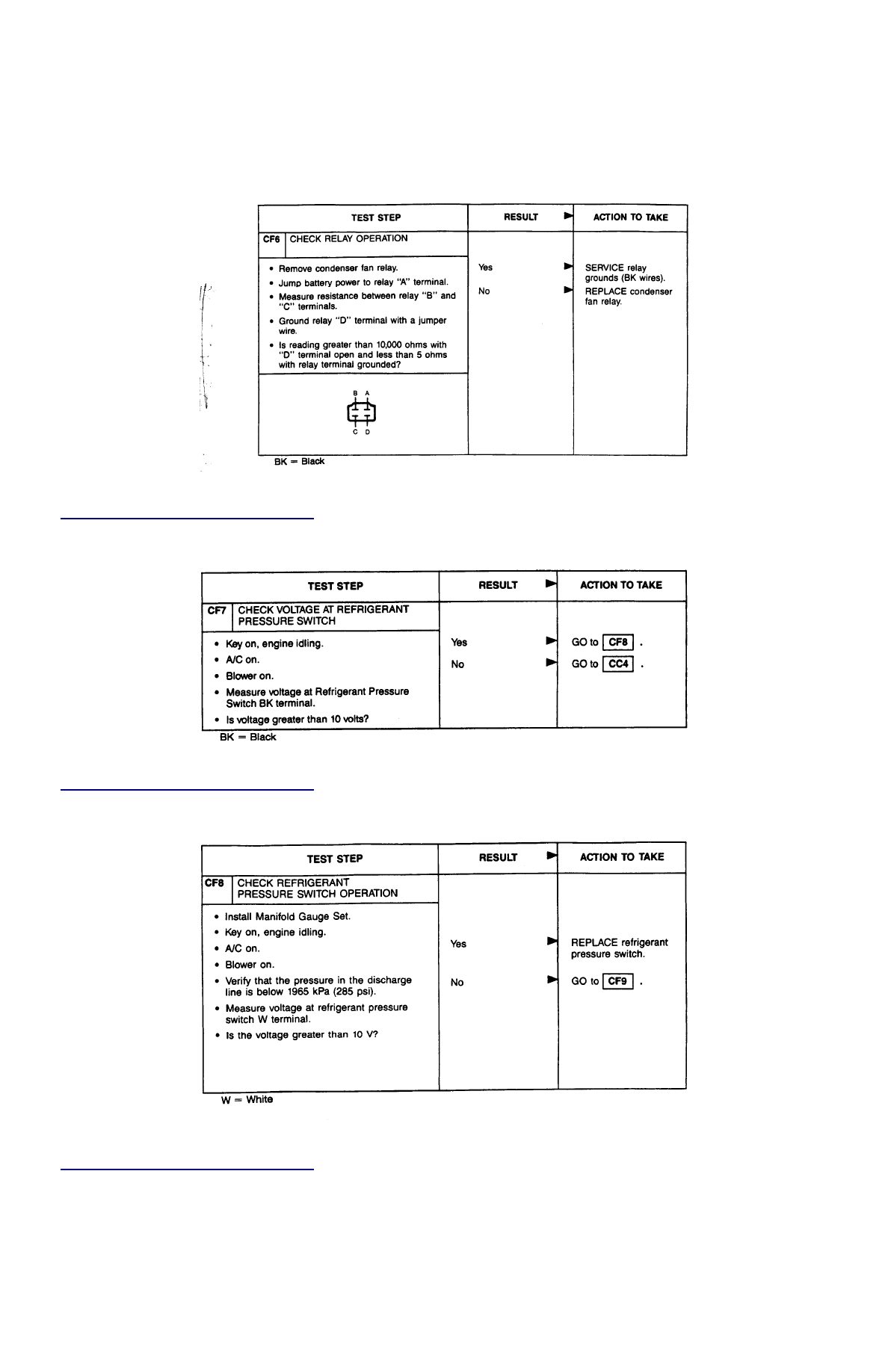

Fig. 26: Condensor Fan Trouble Chart CF6



Courtesy of FORD MOTOR CO.



Fig. 27: Condensor Fan Trouble Chart CF7



Courtesy of FORD MOTOR CO.



Fig. 28: Condensor Fan Trouble Chart CF8



Courtesy of FORD MOTOR CO.

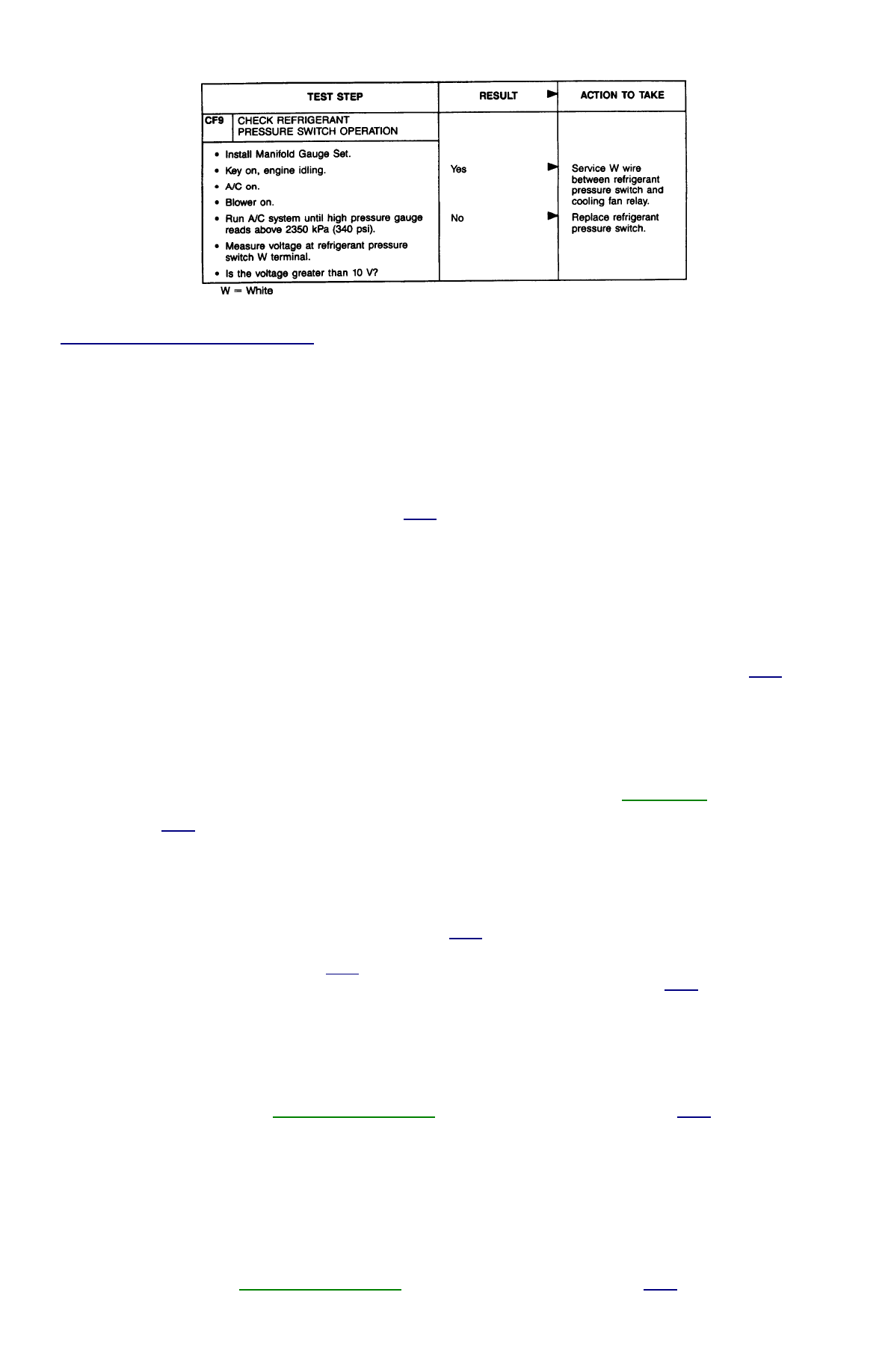

Fig. 29: Condensor Fan Trouble Chart CF9



Courtesy of FORD MOTOR CO.

REMOVAL & INSTALLATION

COMPRESSOR

Removal & Installation

1. Discharge A/C system using approved refrigerant recovery/recycling equipment. Disconnect negative battery cable. Remove compressor

drive belt. Disconnect electrical connector. Disconnect refrigerant lines, and plug openings.

2. Remove compressor mounting bolts and compressor. See

Fig. 1

 . To install, reverse removal procedure. If installing a new compressor,

drain 1.2 ounces of refrigerant oil from compressor before installation. Evacuate and recharge system.

CONDENSER

Removal & Installation

1. Discharge A/C system using approved refrigerant recovery/recycling equipment. Remove radiator grille. Remove right-side sight glass

cover. Disconnect refrigerant line from receiver-drier. Remove refrigerant line clamp from condenser bracket. Remove hood latch and
center brace bolts.

2. Remove condenser fan (if equipped). Remove condenser mounting bolts. Lift out condenser and mounting grommets. See

Fig. 1

 . To

install, reverse removal procedure. Ensure mounting grommets are properly positioned. Install new "O" rings on all refrigerant line.
Evacuate and recharge system.

RECEIVER-DRIER

Removal & Installation

Discharge A/C system using approved refrigerant recovery/recycling equipment. Remove condenser. See

CONDENSER

 under REMOVAL &

INSTALLATION. Disconnect refrigerant lines from receiver-drier, and plug openings immediately. Remove receiver-drier mounting bolts and
receiver-drier. See

Fig. 1

 . To install, reverse removal procedure. Use new "O" rings. Evacuate and recharge system.

EVAPORATOR HOUSING

Removal & Installation

1. Disconnect negative battery cable. Discharge A/C system using approved refrigerant recovery/recycling equipment. Disconnect

evaporator outlet tubes (refrigerant lines), and plug openings. See

Fig. 1

 . Remove glove box. Disconnect 2 electrical connectors from

thermostatic switch.

2. Disconnect temperature control cable. See

Fig. 4

 . Remove wiring harness clamps from evaporator housing. Loosen clamp screws

securing connector duct to evaporator housing. Remove evaporator drain hose. Remove air inlet duct. See

Fig. 2

 .

3. Remove evaporator housing-to-dash panel bolts. Remove evaporator housing. To install, reverse removal procedure. Use new "O" rings.

Evacuate and recharge system.

EVAPORATOR

Removal & Installation

1. Remove evaporator housing. See

EVAPORATOR HOUSING

 under REMOVAL & INSTALLATION. See

Fig. 1

 . Remove upper and

lower evaporator case half clips. Remove upper housing. Carefully pull sensing tube from evaporator core fins while removing
thermostat. Remove evaporator from lower housing. Remove stand-off insert from between inlet and outlet tubes.

2. Remove insulator from around capillary tube and thermostatic expansion valve. Remove capillary tube-to-suction tube clamp.

Disconnect evaporator tube fitting and thermostatic expansion valve. To install, reverse removal procedure. Use new "O" rings on all
refrigerant line connections. Evacuate and recharge system.

THERMOSTATIC SWITCH

Removal & Installation

Remove evaporator housing. See

EVAPORATOR HOUSING

 under REMOVAL & INSTALLATION. See

Fig. 1

. Remove 10 clips retaining

evaporator housing halves. Remove upper housing section. Remove thermostatic switch mounting screws. Carefully pull thermostat sensing

tube from evaporator core fins while removing thermostatic switch. To install, reverse removal procedure. Evacuate and recharge system.

THERMOSTATIC EXPANSION VALVE

Removal & Installation

1. Discharge A/C system using approved refrigerant recovery/recycling equipment. Remove evaporator housing. See

EVAPORATOR

HOUSING

 under REMOVAL & INSTALLATION. Remove air inlet duct. See

Fig. 1

 .

2. Remove insulation from sensing bulb. Disconnect thermostatic expansion valve at evaporator tube fitting and inlet tube fitting (from

receiver-drier). See

Fig. 3

 . Remove thermostatic expansion valve. To install, reverse removal procedure. Use new "O" rings. Evacuate

and recharge system.

A/C RELAYS

Removal & Installation

A/C relays are located in left front corner of engine compartment, near battery. Unclip relay holder from its mounting bracket. Disconnect
relay wiring. DO NOT pull on wiring connector to remove relay from holder. Remove relay from holder. To install, reverse removal procedure.

A/C-HEATER CONTROL ASSEMBLY

Removal & Installation

1. A/C control module is located above radio. Remove accessory bezel. Remove radio (if necessary) and glove box. Disconnect

recirculated/fresh air cable from door lever. See

Fig. 5

 . Disconnect mode select cable from door lever. See

Fig. 6

 .

2. Disconnect temperature control cable from door lever. See

Fig. 4

 . Pull control assembly away from dash, and disconnect wiring

connectors. Remove control assembly.

3. To install, reverse removal procedure. Check and adjust temperature control, recirculated/fresh air and mode cables. See

ADJUSTMENTS. Test control assembly operation.

BLOWER MOTOR

Removal & Installation

Disconnect negative battery cable. Remove A/C air outlet duct located below steering column. See

Fig. 2

 . Disconnect blower motor wiring.

Remove blower motor attaching screws and blower motor. Remove blower wheel attaching nut. Remove blower wheel and washer. To install,
reverse removal procedure.

BLOWER MOTOR RESISTOR

Removal & Installation

Disconnect negative battery cable. Remove air duct located below steering column. See

Fig. 2

 . Disconnect blower motor resistor wiring.

Remove blower resistor attaching screws and resistor. To install, reverse removal procedure.

AIR DISTRIBUTION PLENUM

Removal & Installation

1. Remove instrument panel. See

INSTRUMENT PANEL

 under REMOVAL & INSTALLATION. Drain cooling system. Disconnect

heater hoses in engine compartment. Disconnect wiring for blower motor and blower resistor. Disengage wiring harness and antenna
lead from bracket on front of air distribution housing.

2. Loosen connector duct-to-air inlet clamp screw. Remove upper and lower mounting nuts from plenum. Disengage and remove plenum

from defroster ducts. To install, reverse removal procedure. Refill cooling system, and check for leaks.

HEATER CORE

Removal & Installation

1. Remove air distribution plenum. See

AIR DISTRIBUTION PLENUM

 under REMOVAL & INSTALLATION. Disconnect linkage

connecting defroster doors. Remove attaching screw located near blower resistor. Turn housing around and remove attaching screw
located near blower motor opening.

2. Remove clips retaining blower housing halves. Separate blower housing halves. Remove heater core. Remove tube insert from heater

core. To install, reverse removal procedure. Test system for proper operation.

INSTRUMENT PANEL

Removal & Installation

1. Disconnect negative battery cable. Remove steering wheel, steering column covers and multifunction switch assembly. Disconnect

electrical connectors from switches on instrument panel. Remove instrument cluster hood.

2. Disconnect speedometer cable from transmission. Remove 4 instrument cluster screws. Pull instrument cluster out from instrument

panel cluster enough to disconnect wiring and speedometer cable. Remove instrument cluster.

3. Remove steering column shield. Remove shield bracket. Remove glove box. Remove fuse panel cover and 4 fuse panel screws. Pull fuse

panel out, but DO NOT remove. Remove shift lever console and mount brackets.

CAUTION:

DO NOT remove screw in front of blower resistor, or blower resistor mounting plate will fall into air
distribution plenum. To retrieve plate, disassemble instrument panel.
