Ford F150 Pickup. Instruction - part 755

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

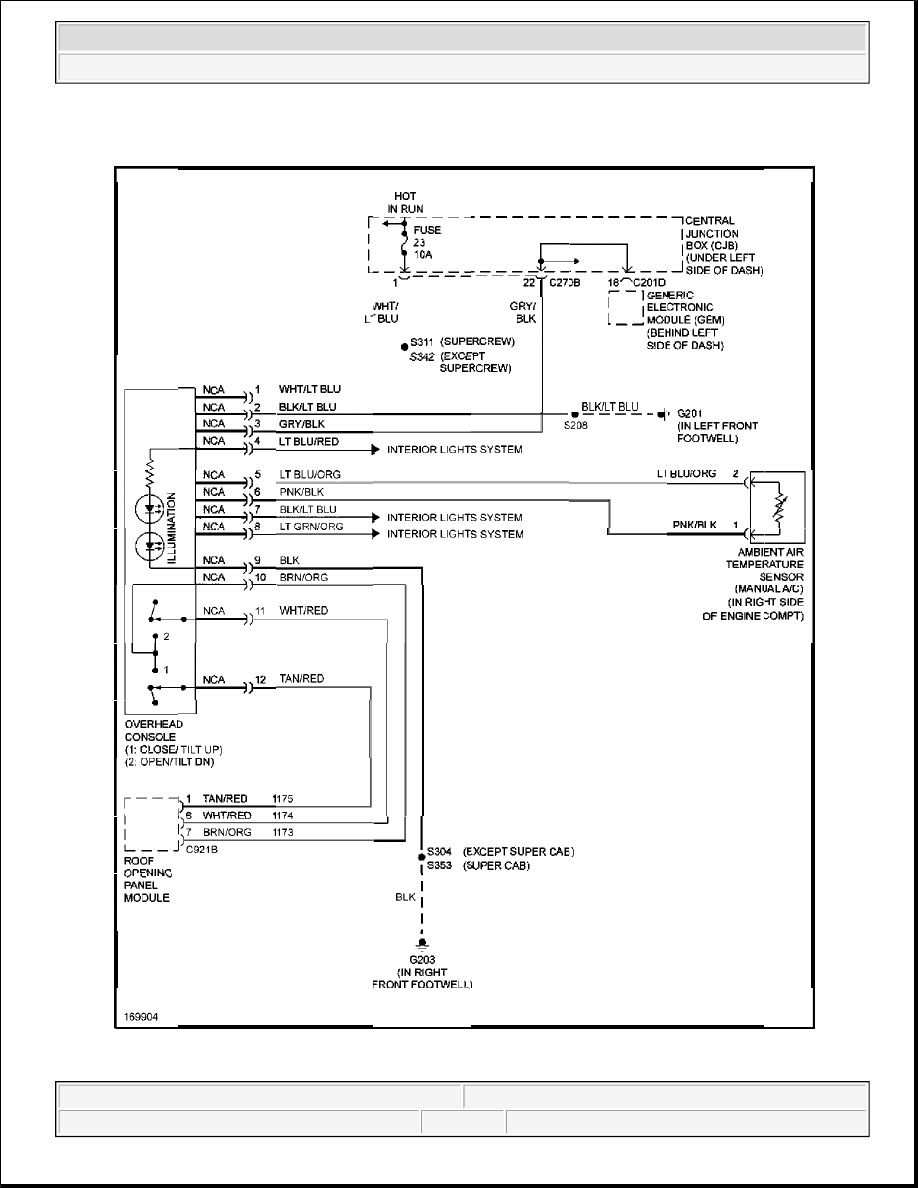

Fig. 61: Overhead Console Circuit

INTERIOR LIGHTS

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

Fig. 62: Courtesy Lamps Circuit, Except Supercrew

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150
