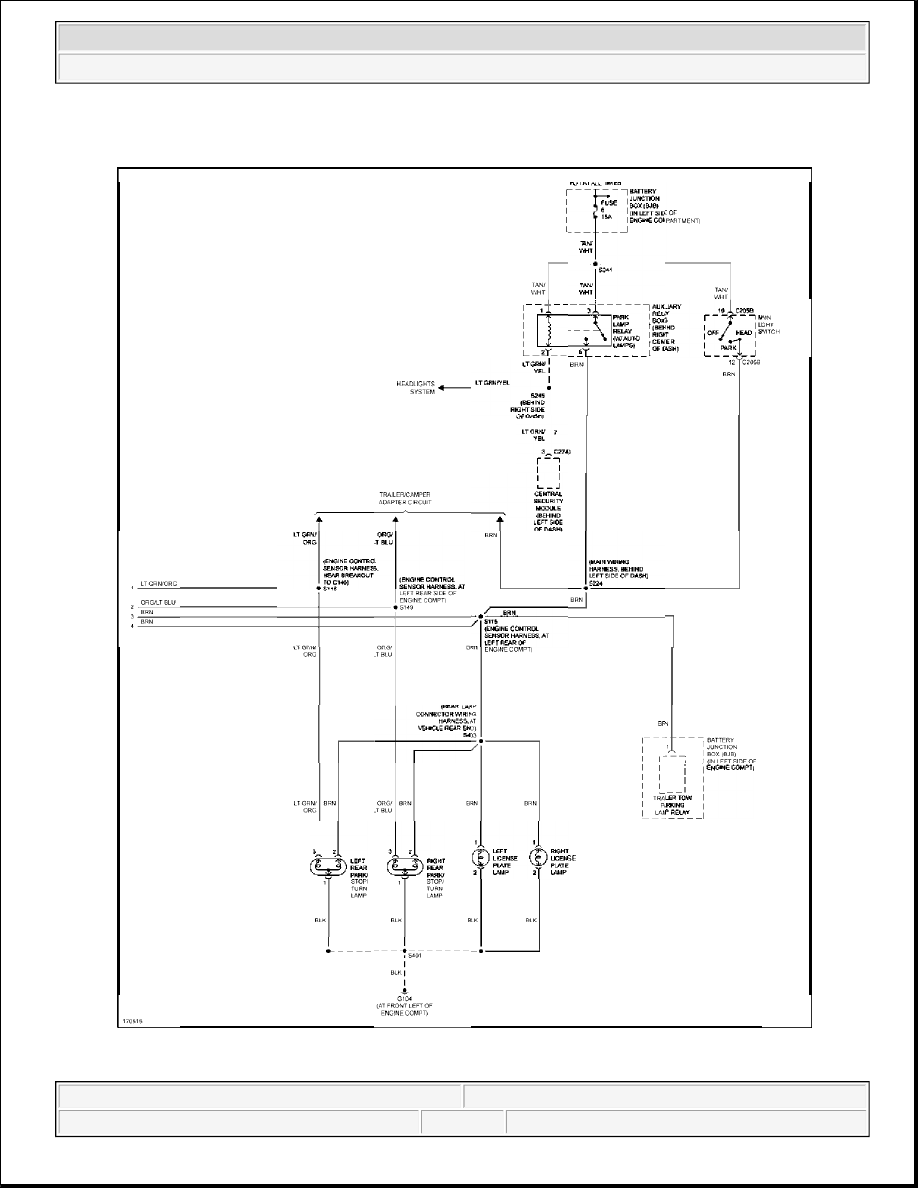

Fig. 49: Exterior Lamps Circuit (2 of 2)

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

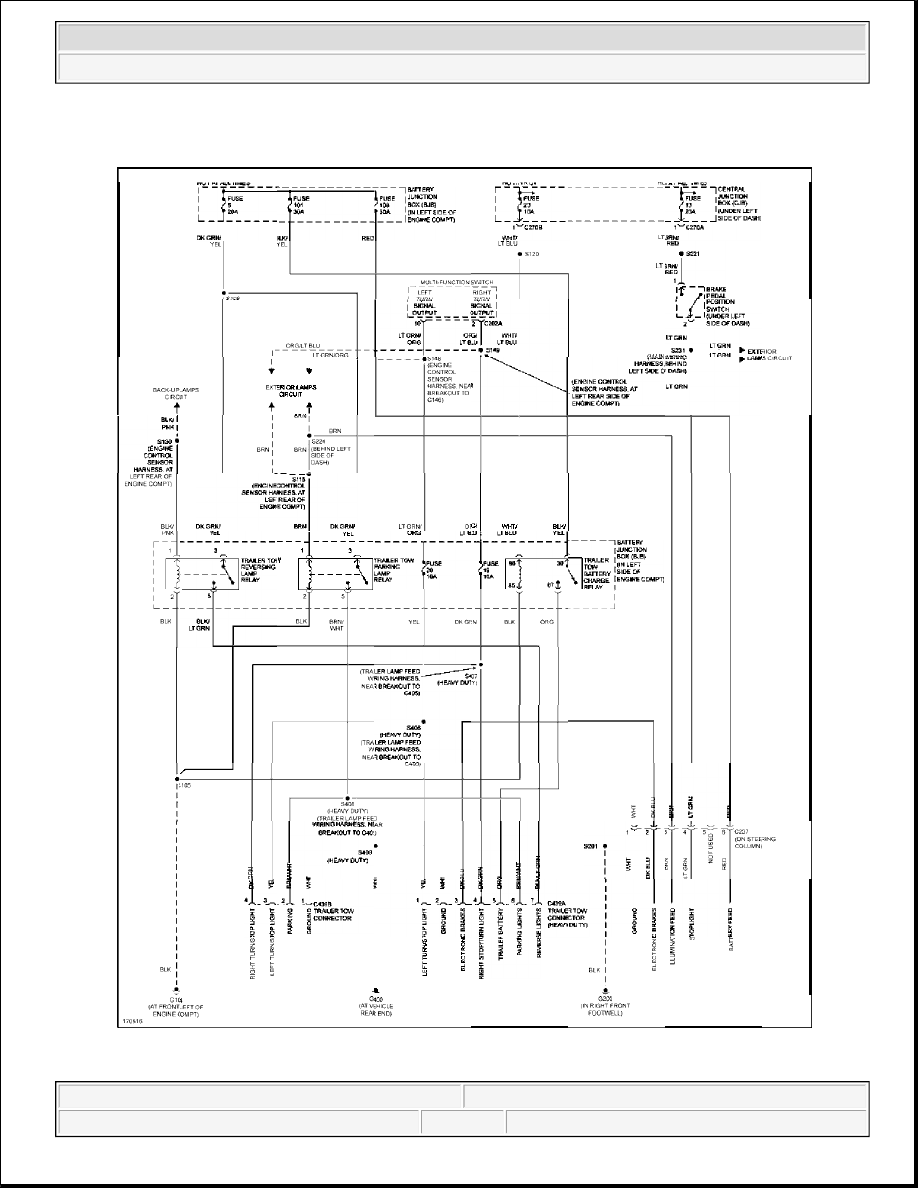

Fig. 50: Trailer/Camper Adapter Circuit
