Ford F150 Pickup. Instruction - part 733







2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

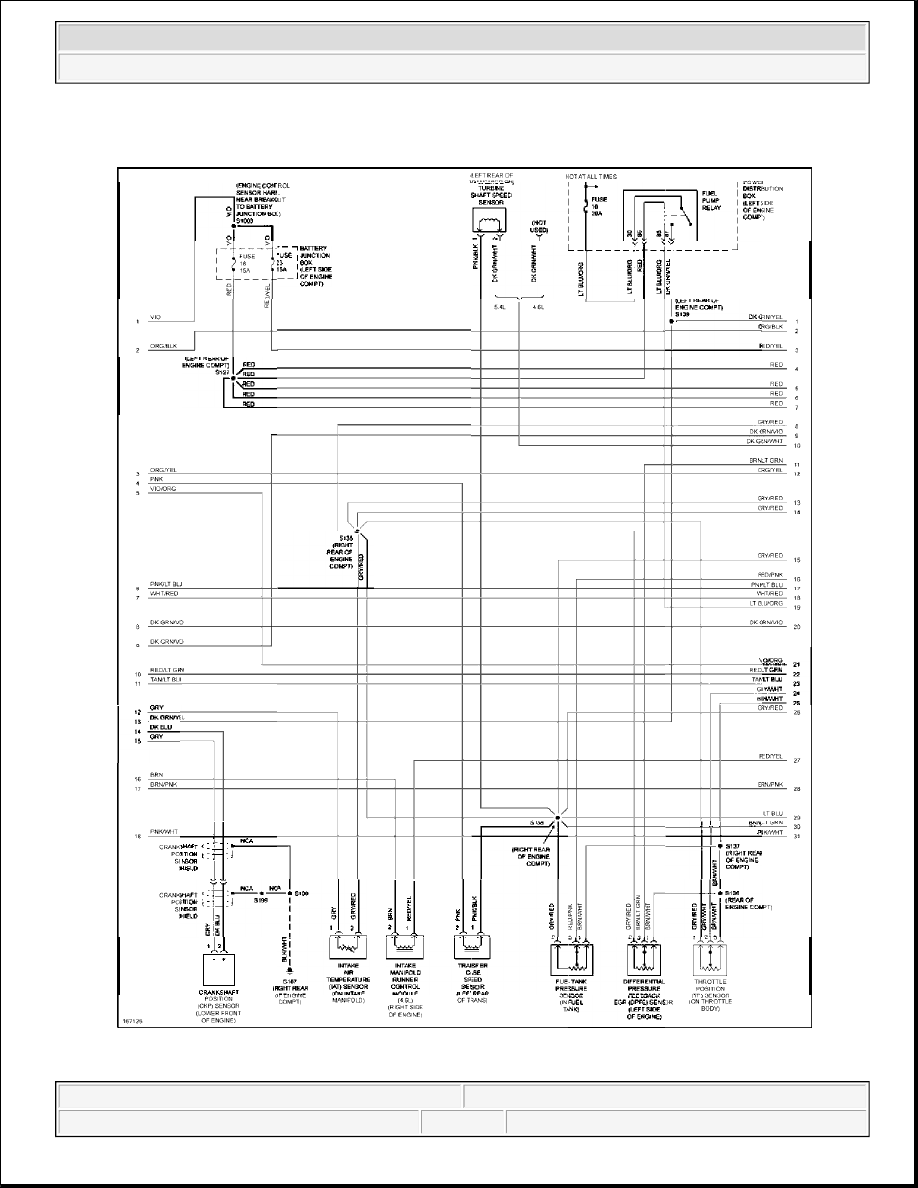

Fig. 17: 4.6L, Engine Performance Circuit, W/ 4R70W Transmission (2 of 4)



2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150





2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150



Fig. 18: 4.6L, Engine Performance Circuit, W/ 4R70W Transmission (3 of 4)



2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150
