Ford F150 Pickup. Instruction - part 723





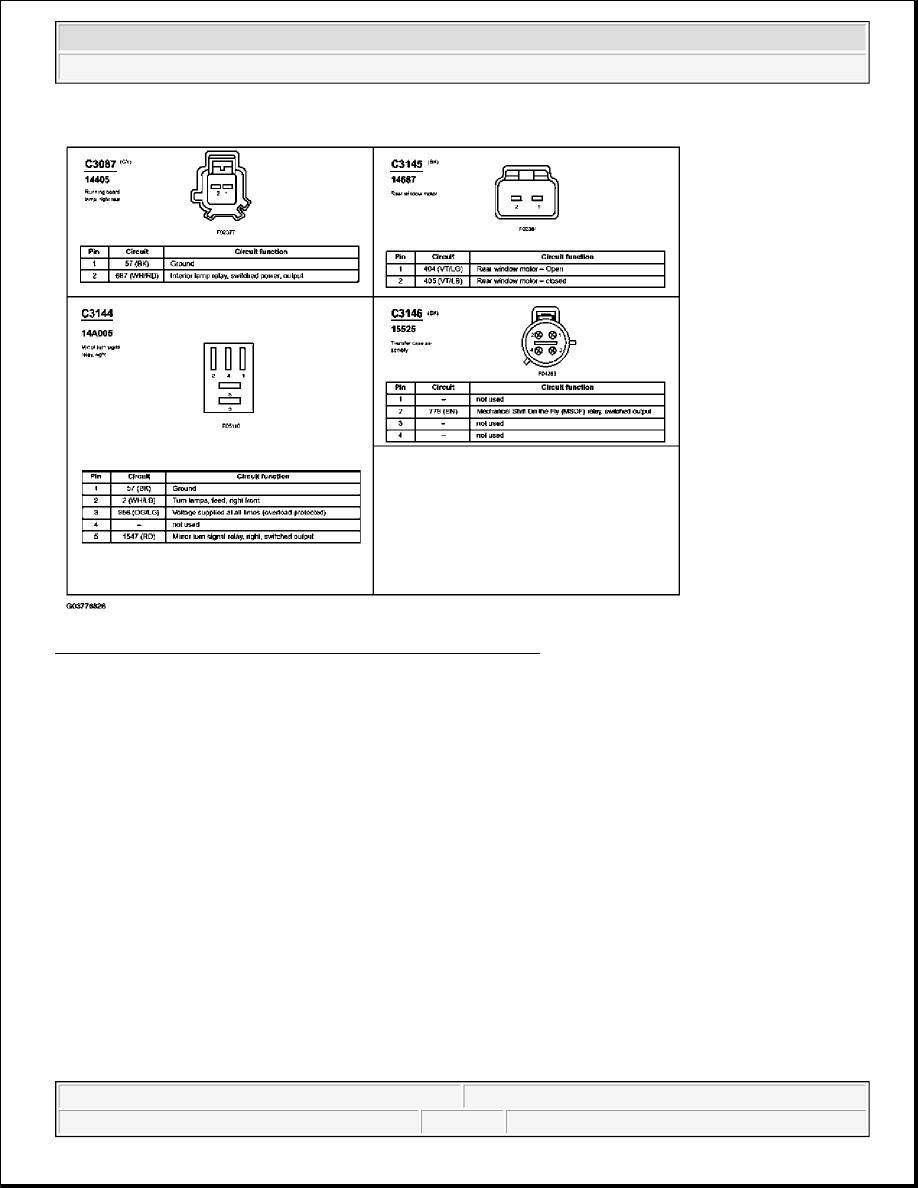

Fig. 112: Identifying Connector C3087, C3144, C3145 & C3146
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup



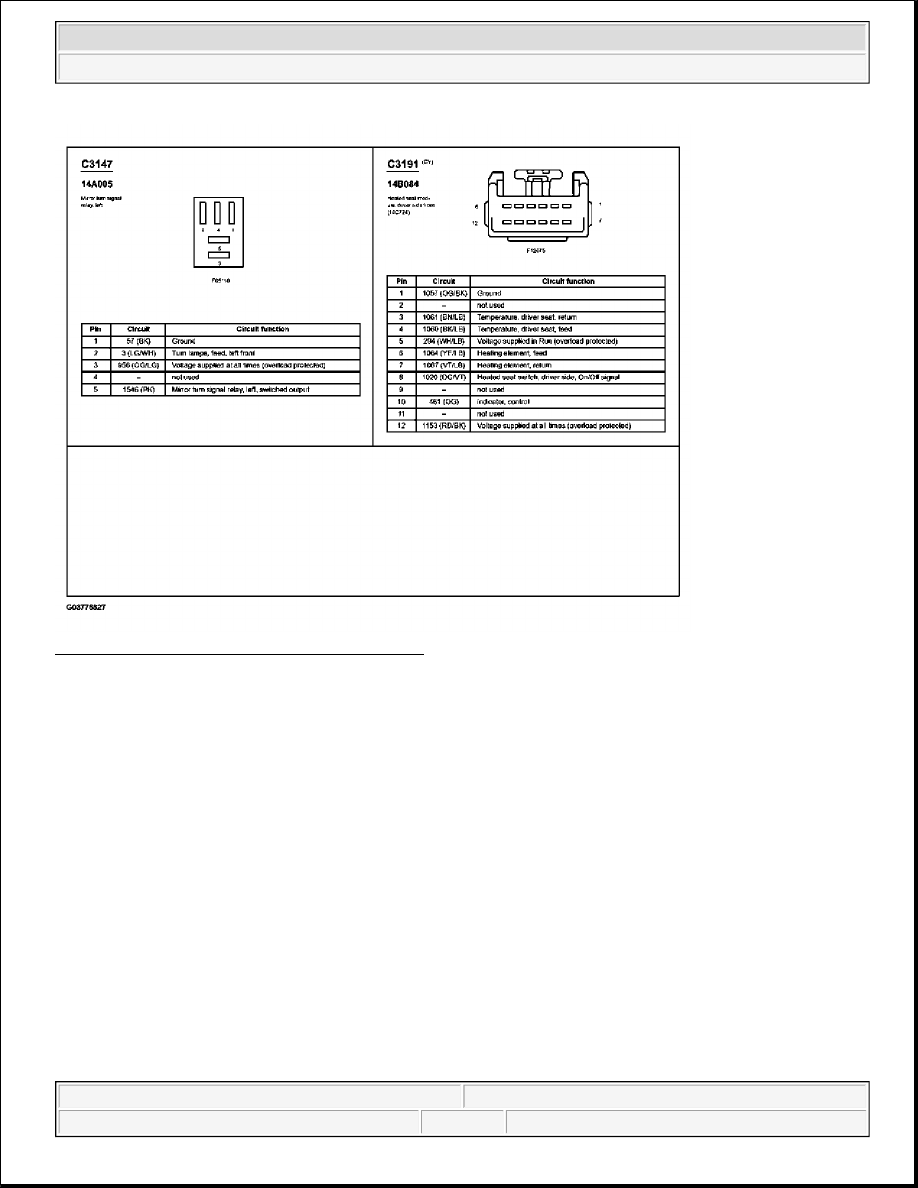

Fig. 113: Identifying Connector C3147 & C3191
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup



Fig. 114: Identifying Connector C3192, C3241a, C3241b, C4000 & C4001
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup



Fig. 115: Identifying Connector C4002, C4004, C4013, C4032 & C4035
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup
