Ford F150 Pickup. Instruction - part 705

Fig. 40: Identifying Connector C270b
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

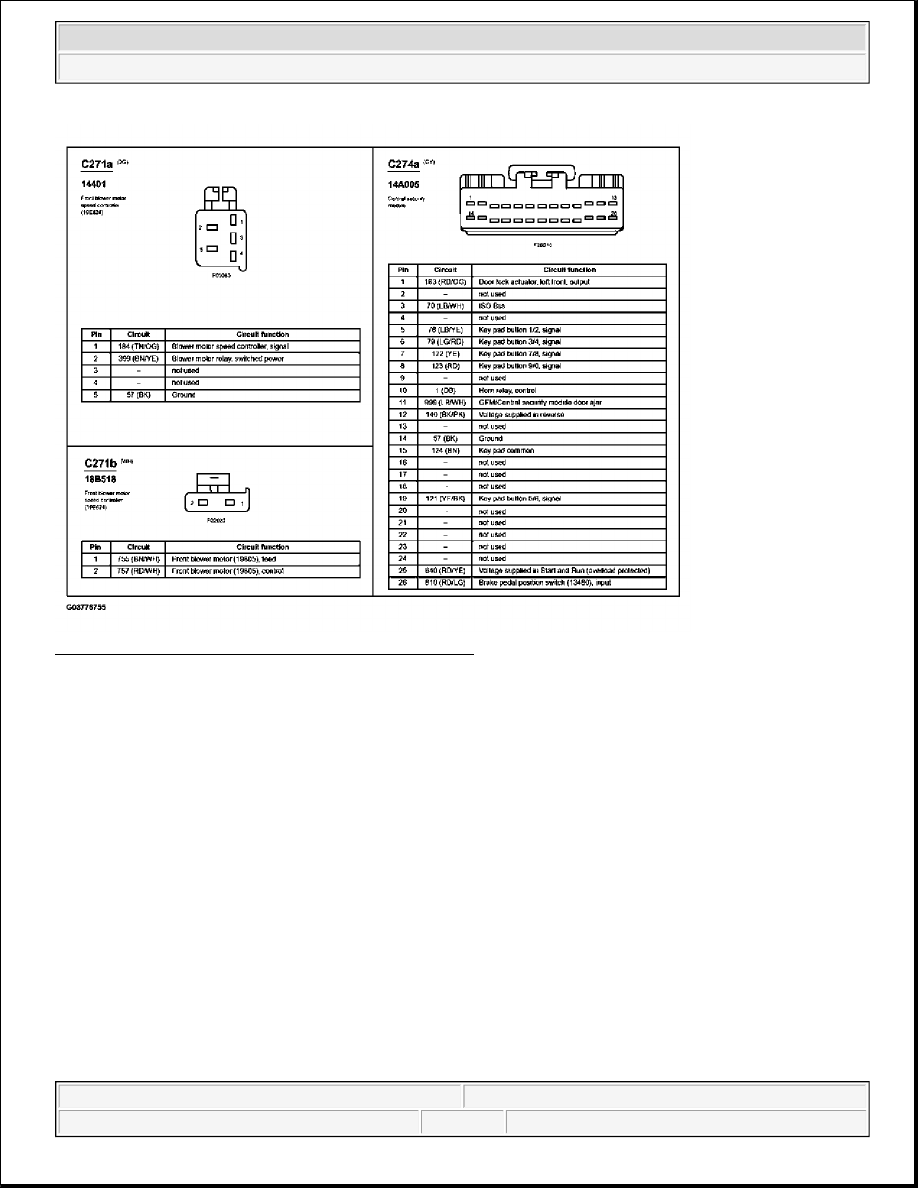

Fig. 41: Identifying Connector C271a, C271b & C274a
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

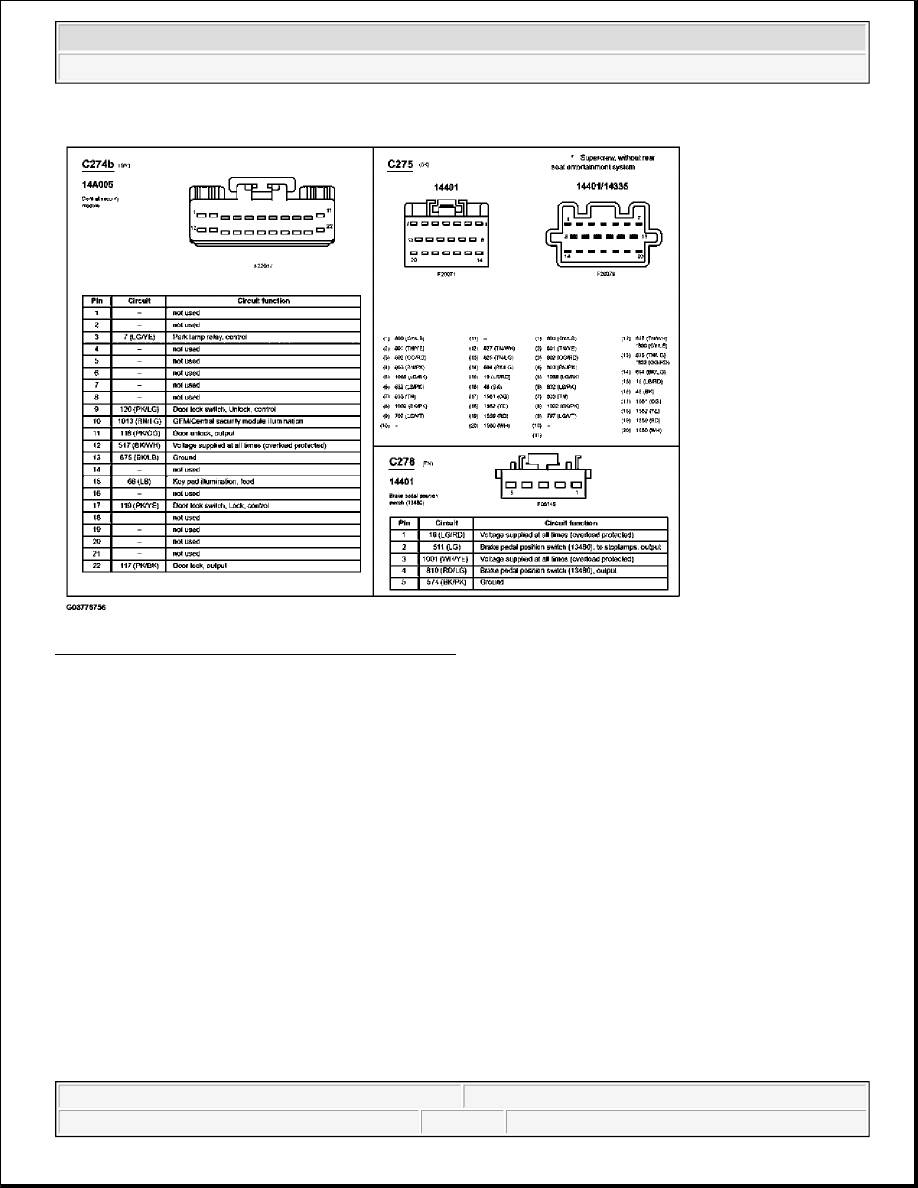

Fig. 42: Identifying Connector C274b, C275 & C278
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

Fig. 43: Identifying Connector C279, C282, C286, C287 & C289
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup
