Use Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESA-
M1C75-B.

2. Position the slip-yoke boot clamp.

3. Align the blind splines, and install the driveshaft slip-yoke on the coupling shaft.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup

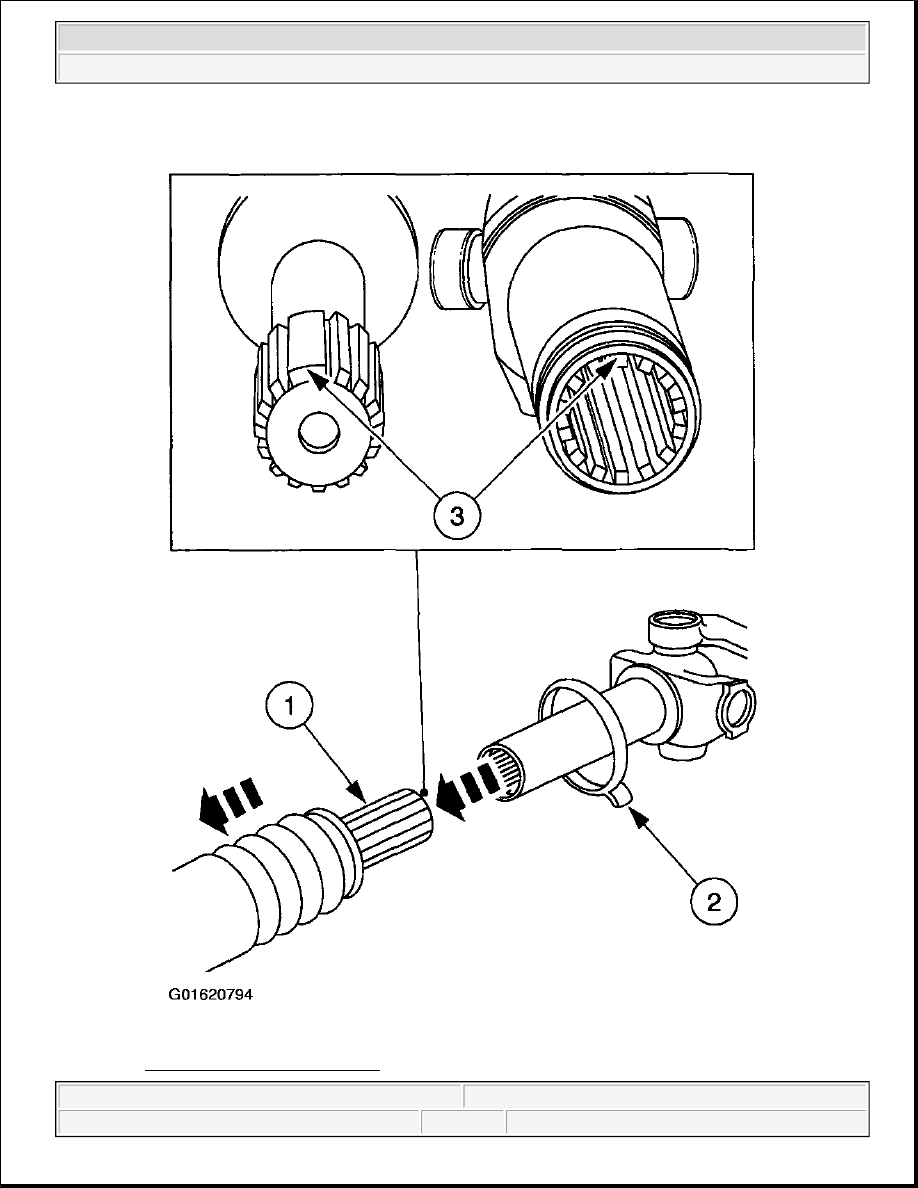

Fig. 35: Aligning Blind Splines



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup



Courtesy of FORD MOTOR CO.

8. Set the driveshaft assembled length to specification.

1. Remove any excess grease from the slip-yoke boot and driveshaft slip-yoke surfaces.

2. Position the slip-yoke boot over the slip-yoke boot groove.

3. Set the driveshaft assembled length to specification.

z

Measure from the stub shaft weld to the U-joint centerline.

4. Bleed the air from the slip-yoke boot.

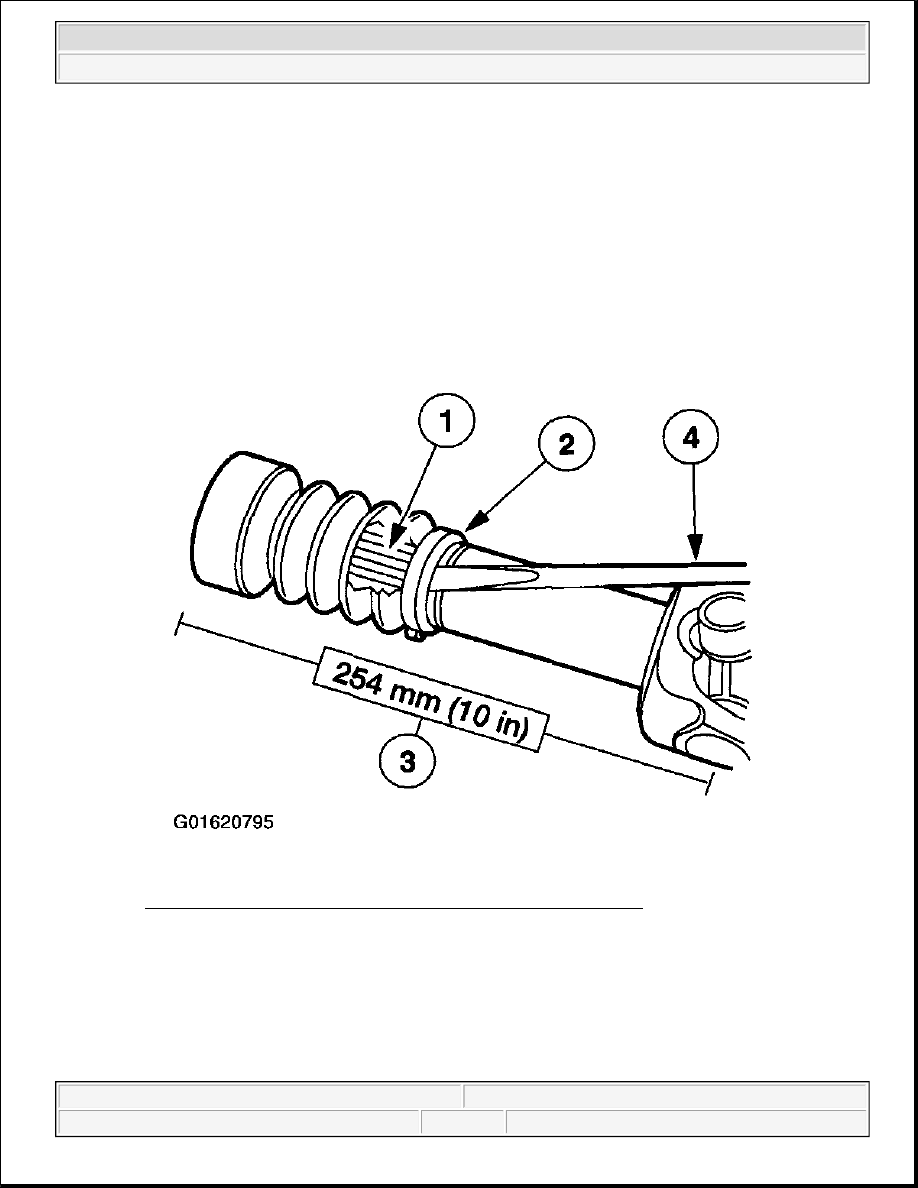

Fig. 36: Measuring From Stub Shaft Weld To U-Joint Centerline
Courtesy of FORD MOTOR CO.

9. Using the special tool, crimp the large driveshaft slip-yoke boot clamp.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup



Fig. 37: Crimping Large Driveshaft Slip-Yoke Boot Clamp
Courtesy of FORD MOTOR CO.

10. Install the driveshaft. For additional information, refer to DRIVESHAFT-REAR, TWO-PIECE .

11. Road test the vehicle.

DRIVESHAFT UNIVERSAL JOINT - SINGLE CARDAN, SLIP YOKE

NOTE:

If a vibration exists, insert 1.59-mm (1/16-inch) shims, as necessary,
between the driveshaft center bearing bracket and support plate (on the
bolt ends of the driveshaft center bearing bracket) to reduce compression
of the rubber insulator.
