2003 DRIVELINE/AXLES

Driveshaft & Universal Joints - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

Fig. 1: Torque Specifications Table (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup





2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup

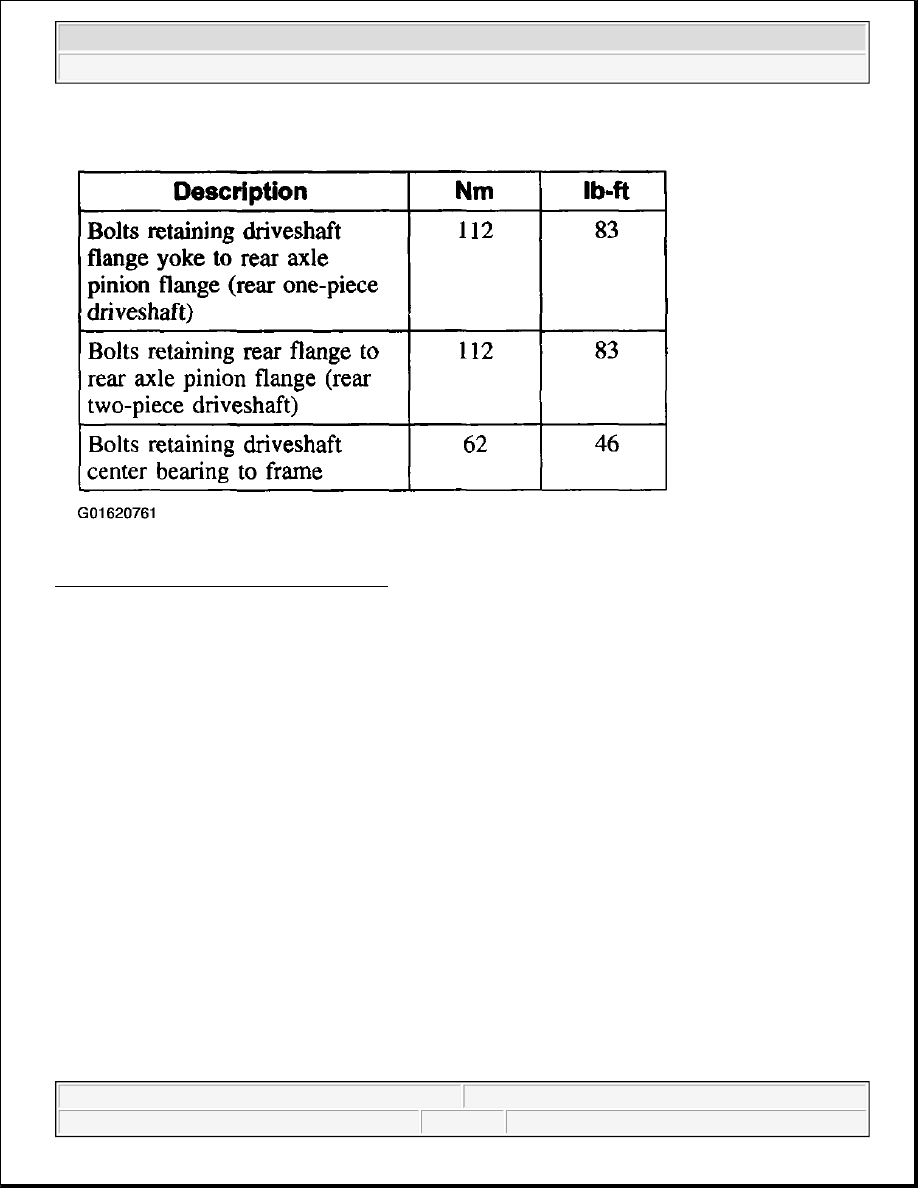

Fig. 2: Torque Specifications Table (2 Of 2)
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION

DRIVESHAFT

Driveshaft - Rear, One-Piece



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup



Fig. 3: Exploded View Of Rear, One-Piece Driveshaft
Courtesy of FORD MOTOR CO.

Driveshaft - Rear, Two-Piece



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup

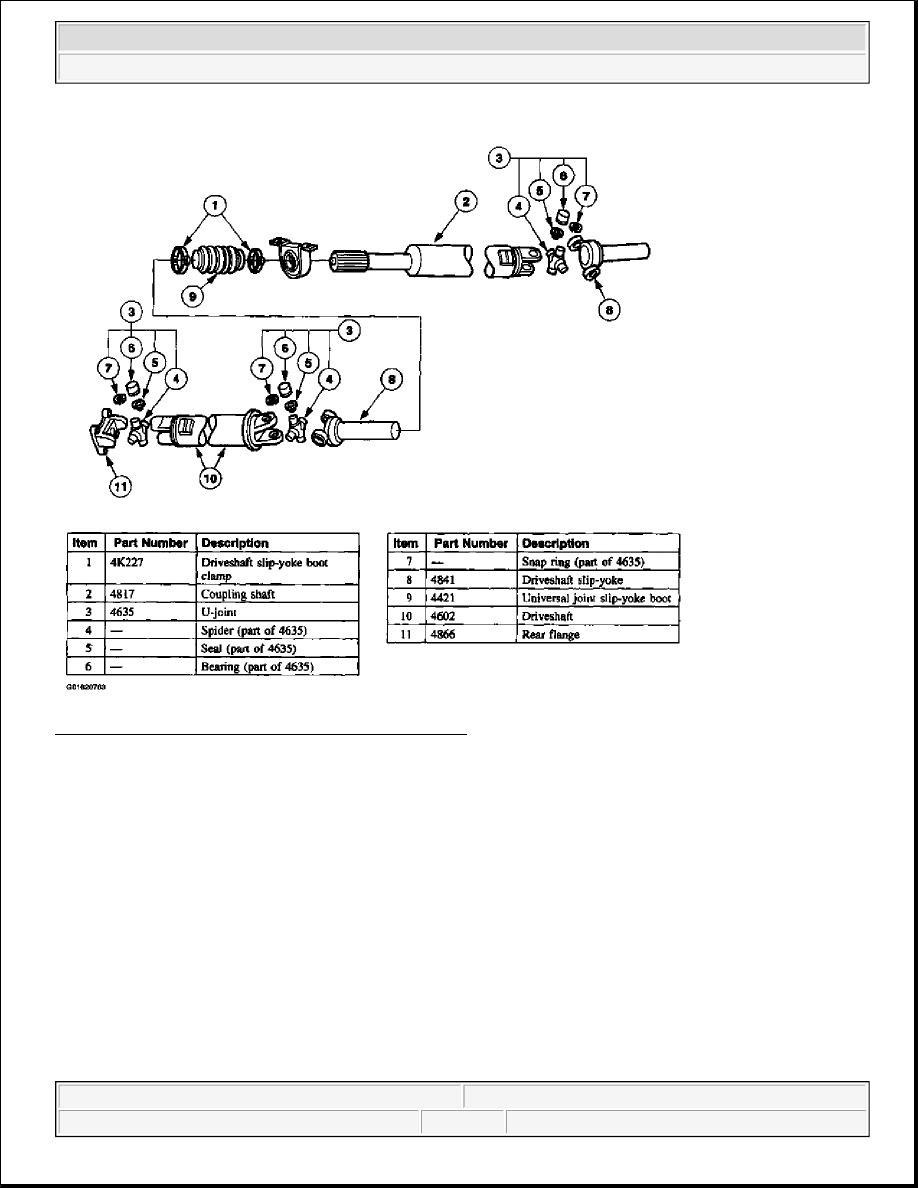

Fig. 4: Exploded View Of Rear, Two-Piece Driveshaft
Courtesy of FORD MOTOR CO.

Driveshaft - Front



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup
