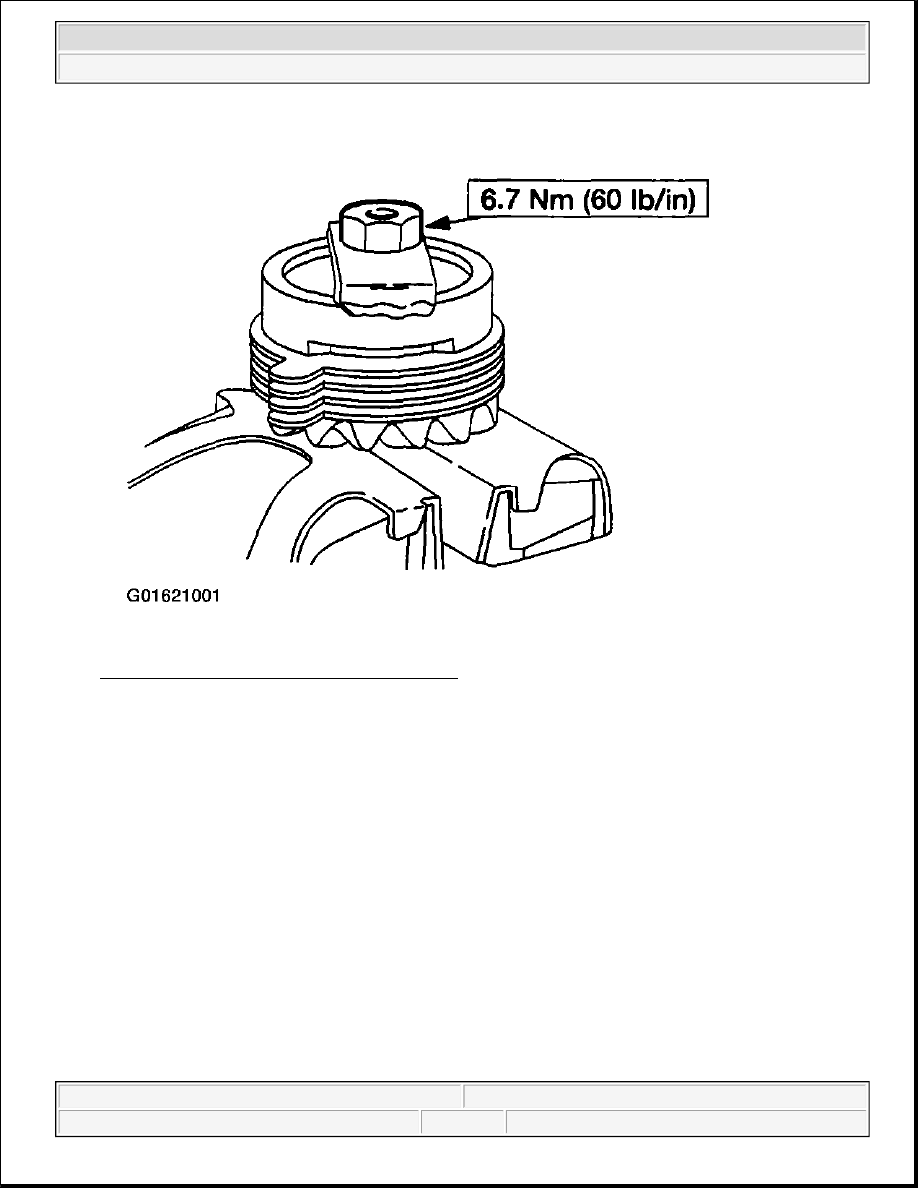

Fig. 157: Installing Nut Over Top & Base Stud
Courtesy of FORD MOTOR CO.

7. Use special tool 303-D027 (D81L-4201-A) and select the thickest blade that will enter between the tool

and the differential clutch pack. Subtract 0.010 inch from the reading to obtain the thickness of the new
clutch shim. A maximum of two shims can be used. Select the correct shim(s) size and remove special
tool 205-135 (T80P-4946-A).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

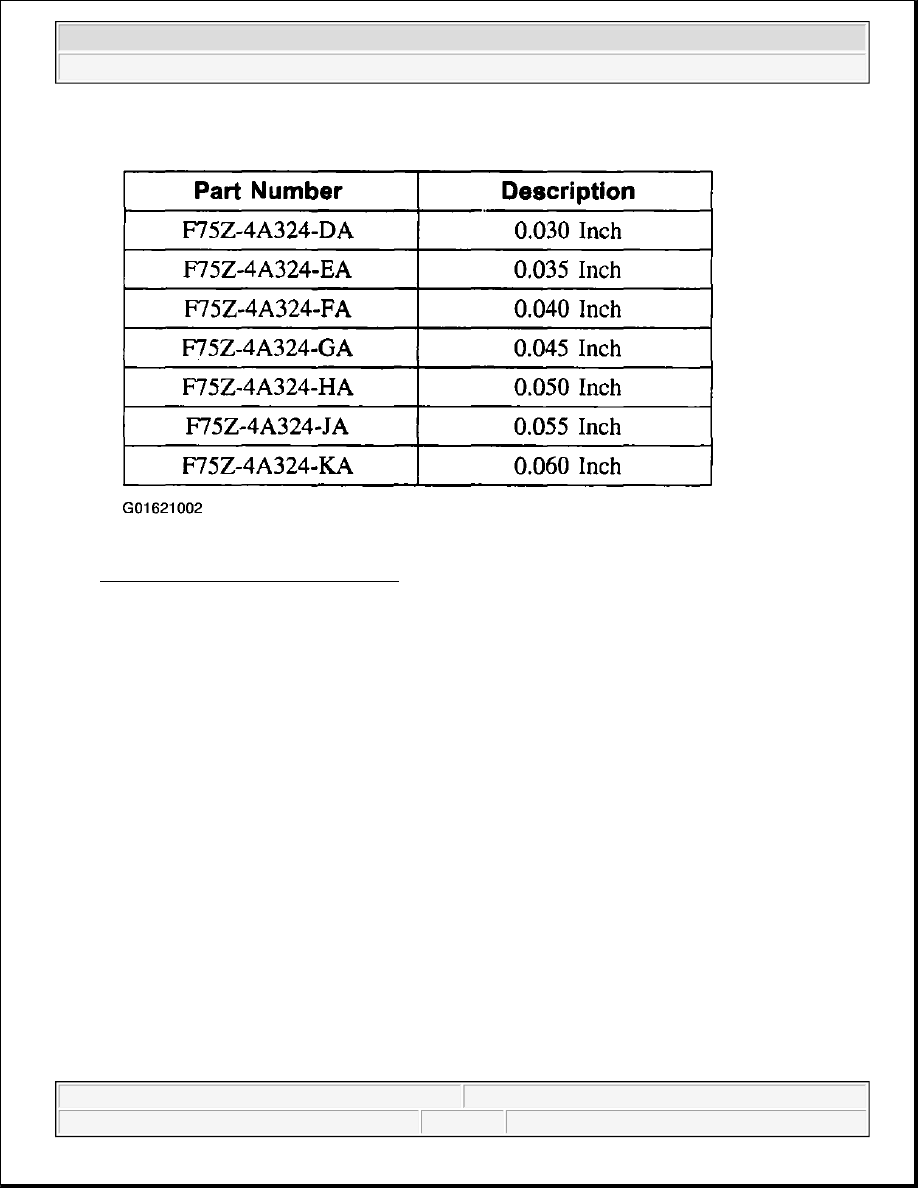

Fig. 158: Shim Part Descriptions Table
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

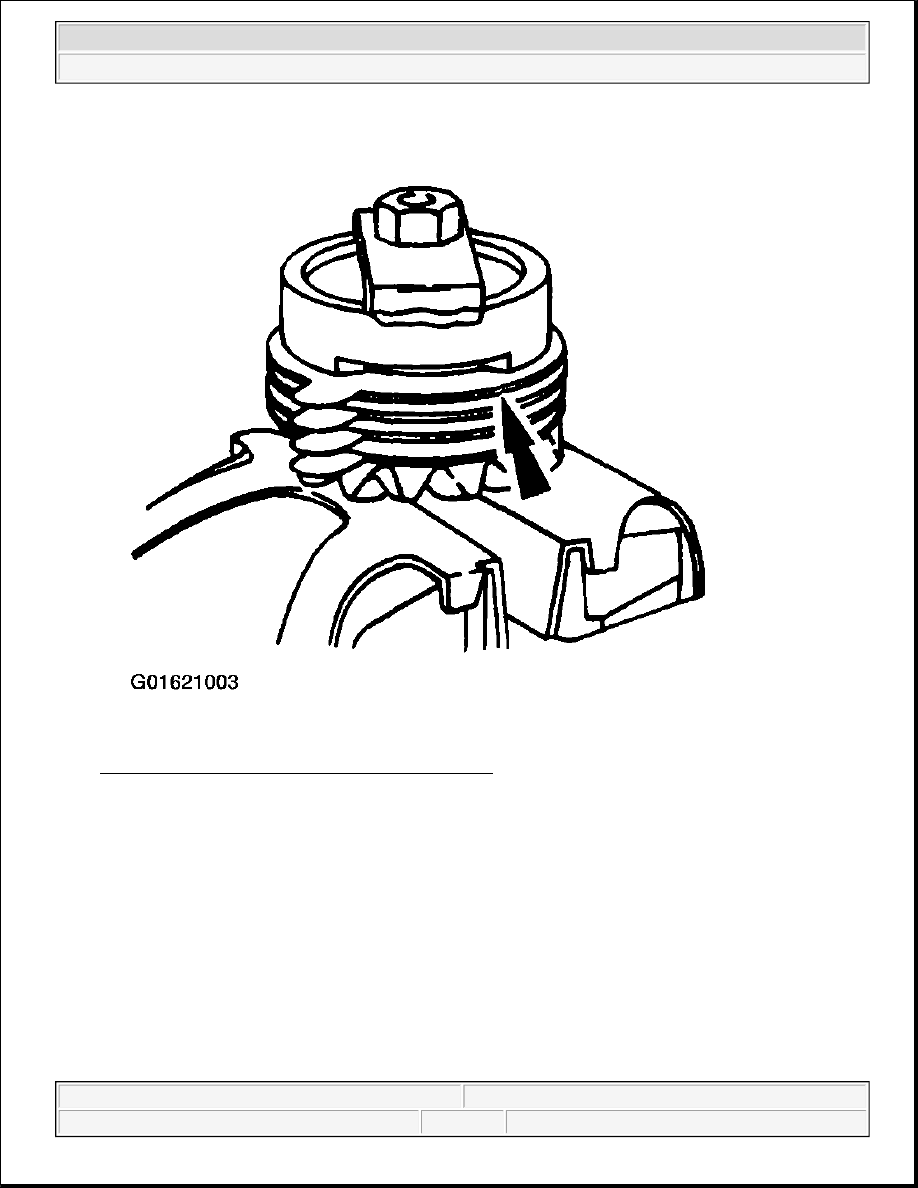

Fig. 159: Differential Clutch Pack Measuring Point
Courtesy of FORD MOTOR CO.

8. Place the shim and Belleville spring on the differential clutch pack.

z

The dished or concave side of the Belleville spring must face up and against the thrust face of the
differential case.

z

Refer to the exploded view in Description and Operation.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 160: Placing Shim & Belleville Spring On Differential Clutch Pack
Courtesy of FORD MOTOR CO.

9. Insert the differential clutch packs with shims and Belleville springs and differential side gears into the

differential case.

z

Hold the upper clutch pack and side gear assembly in place to prevent it from falling out of the
differential case.
