Fig. 94: Tightening Bearing Cap Bolts
Courtesy of FORD MOTOR CO.

8. Rotate the differential case to make sure it rotates freely.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



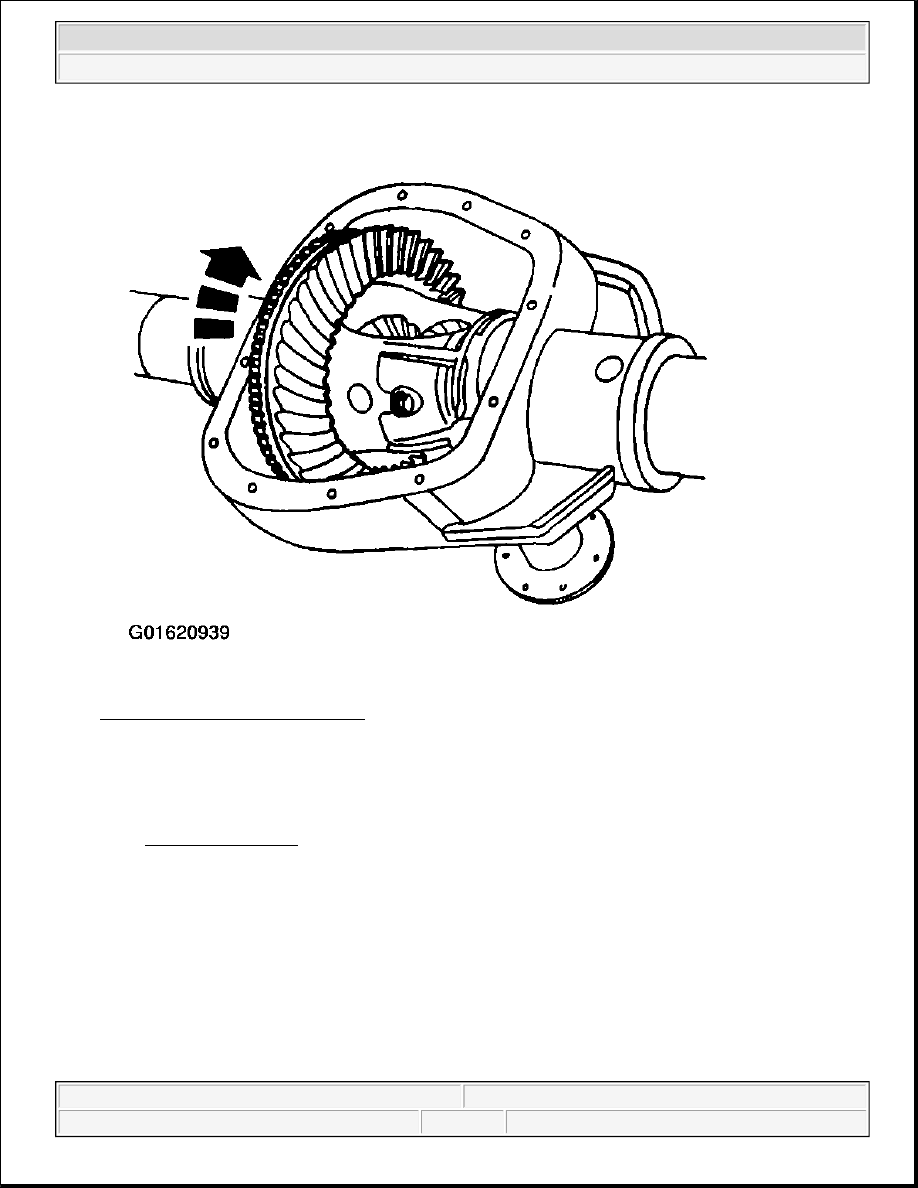

Fig. 95: Rotating Differential Case
Courtesy of FORD MOTOR CO.

9. Using the special tool, measure differential ring gear backlash.

z

If the backlash is within specification, go to Backlash within specification in this procedure. The
specification shown in the illustration is the total allowable range. For the preferred range, refer to
SPECIFICATIONS .

z

If a zero backlash condition occurs, go to Zero backlash in this procedure.

z

If the backlash is not within specification, go to Backlash not within specification in this procedure.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 96: Measuring Differential Ring Gear Backlash
Courtesy of FORD MOTOR CO.

Zero Backlash

10. If a zero backlash condition occurs, add a 0.50-mm (0.020-inch) shim to the RH side and subtract 0.50

mm (0.020 inch) from the LH side to allow backlash indication. Check backlash. Repeat Step 9 .



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 97: Backlash Check & Specifications Table (1 Of 2)
Courtesy of FORD MOTOR CO.
