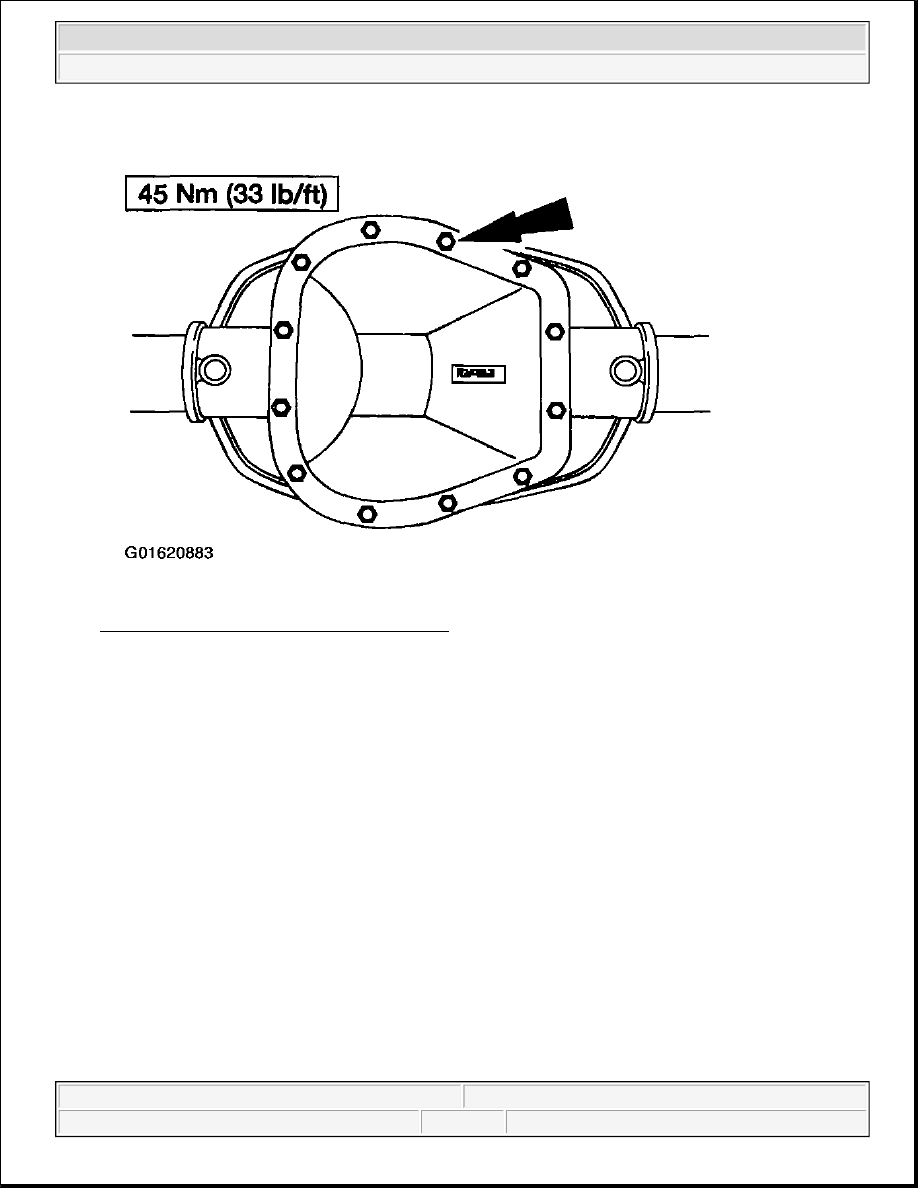

Fig. 39: Installing Differential Housing Cover
Courtesy of FORD MOTOR CO.

3. Install the differential housing cover and tighten the differential housing cover bolts.

CAUTION: For Traction-Lok(R) axles, first fill the rear axle with 118 ml (4

ounces) of specified Ford Additive Friction Modifier.

NOTE:

Service refill capacities are determined by filling the rear axle with the
specified lubricant to the specified level below the bottom of the filler hole.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

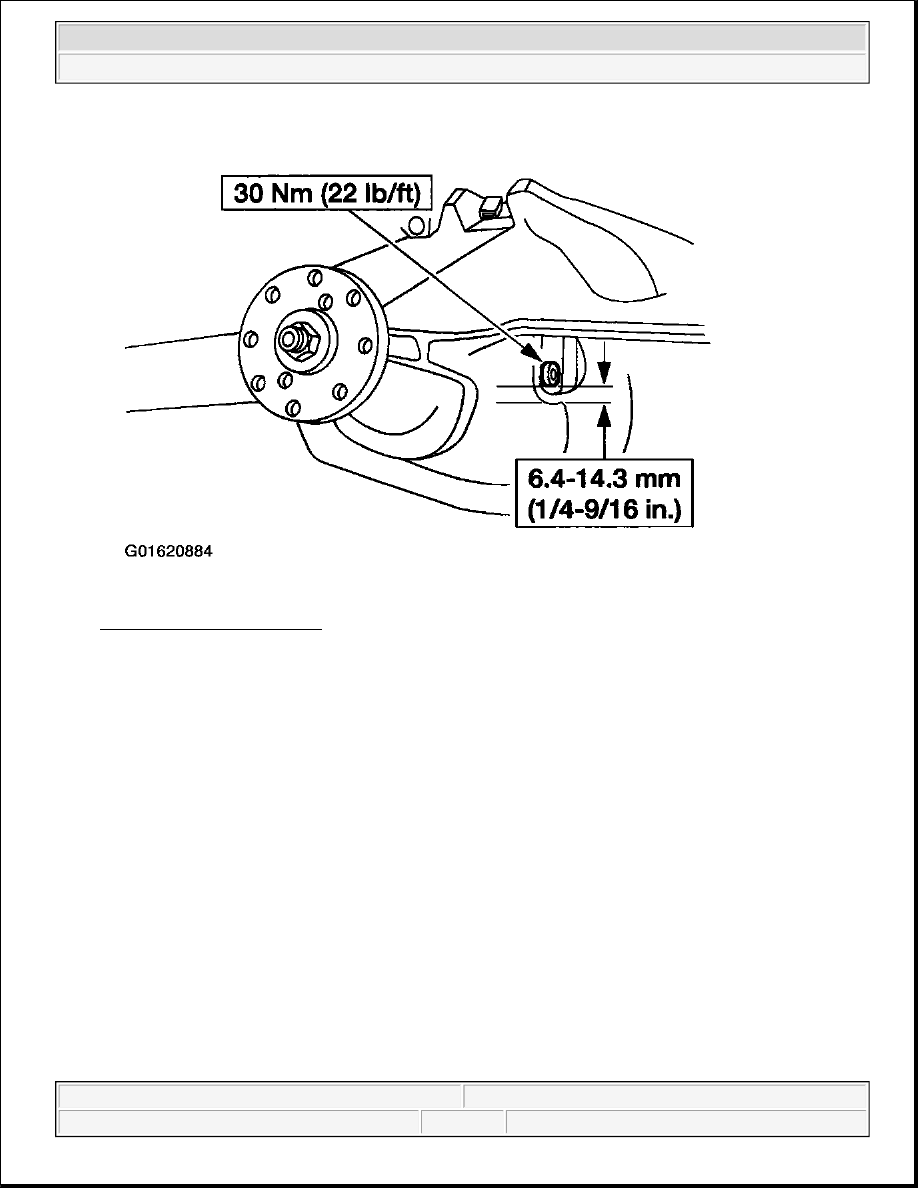

Fig. 40: Installing Filler Plug
Courtesy of FORD MOTOR CO.

4. Fill the rear axle to the level shown with SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-

19580-B or equivalent meeting Ford specification WSL-M2C192-A, and install the filler plug.

5. Lower the vehicle.

DRIVE PINION

Special Tool(s)



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

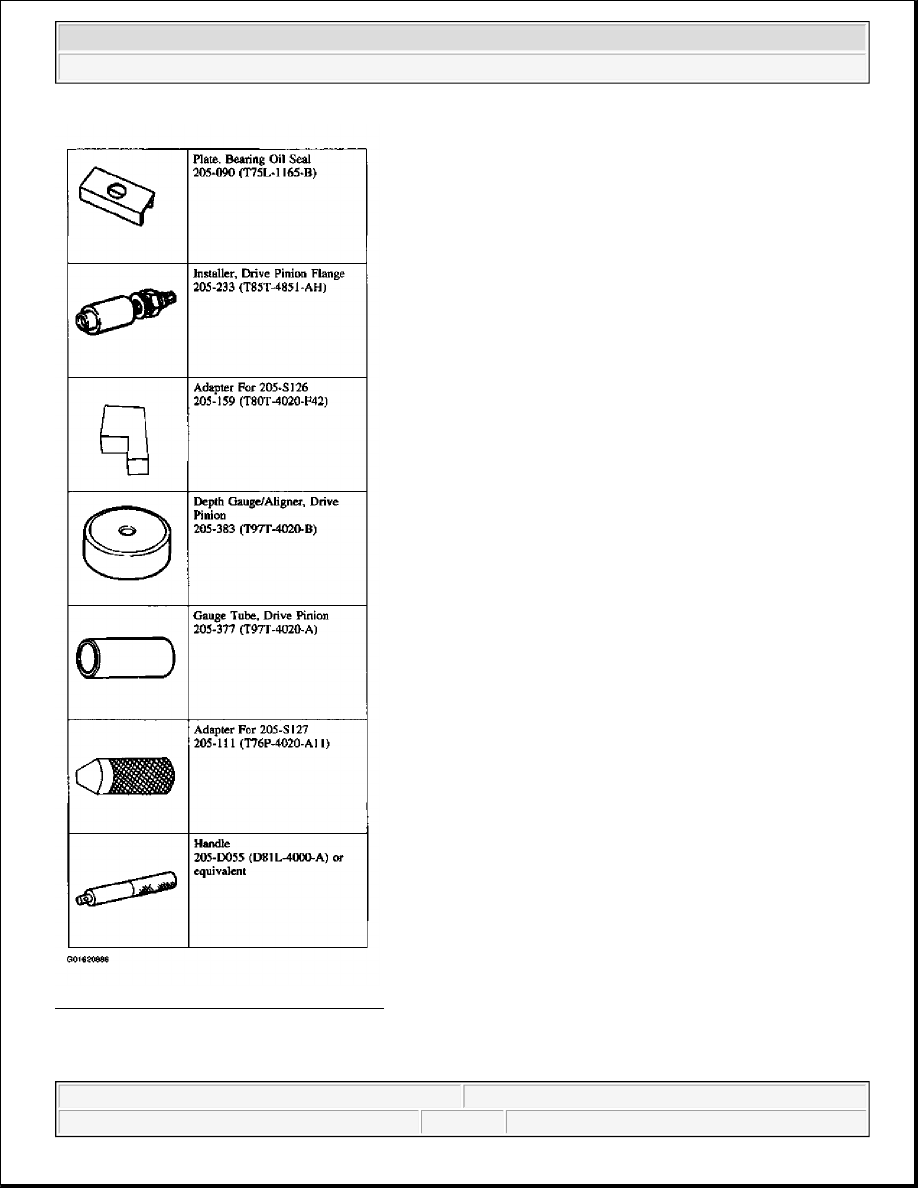

Fig. 41: Identifying Special Tool(s) (1 Of 3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

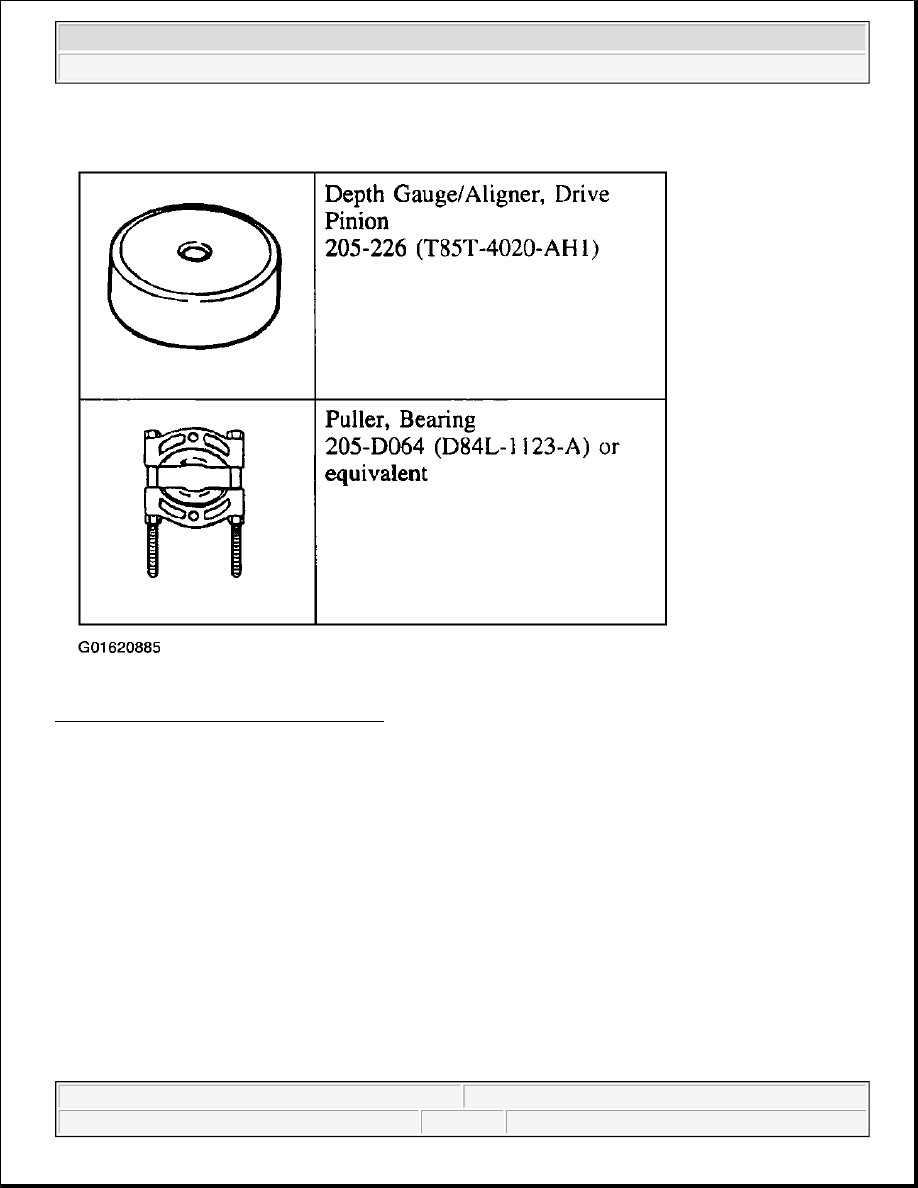

Fig. 42: Identifying Special Tool(s) (2 Of 3)
Courtesy of FORD MOTOR CO.
