Ford F150 Pickup. Instruction - part 601

Fig. 23: Disconnecting Driveshaft Centering Socket Yoke From Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.

5. Install a torque wrench on the pinion nut and record the torque required to maintain rotation of the pinion

through several revolutions.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 24: Checking Rotation Torque
Courtesy of FORD MOTOR CO.

CAUTION: After removal of the pinion nut, discard it. A new nut must be used

for installation.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



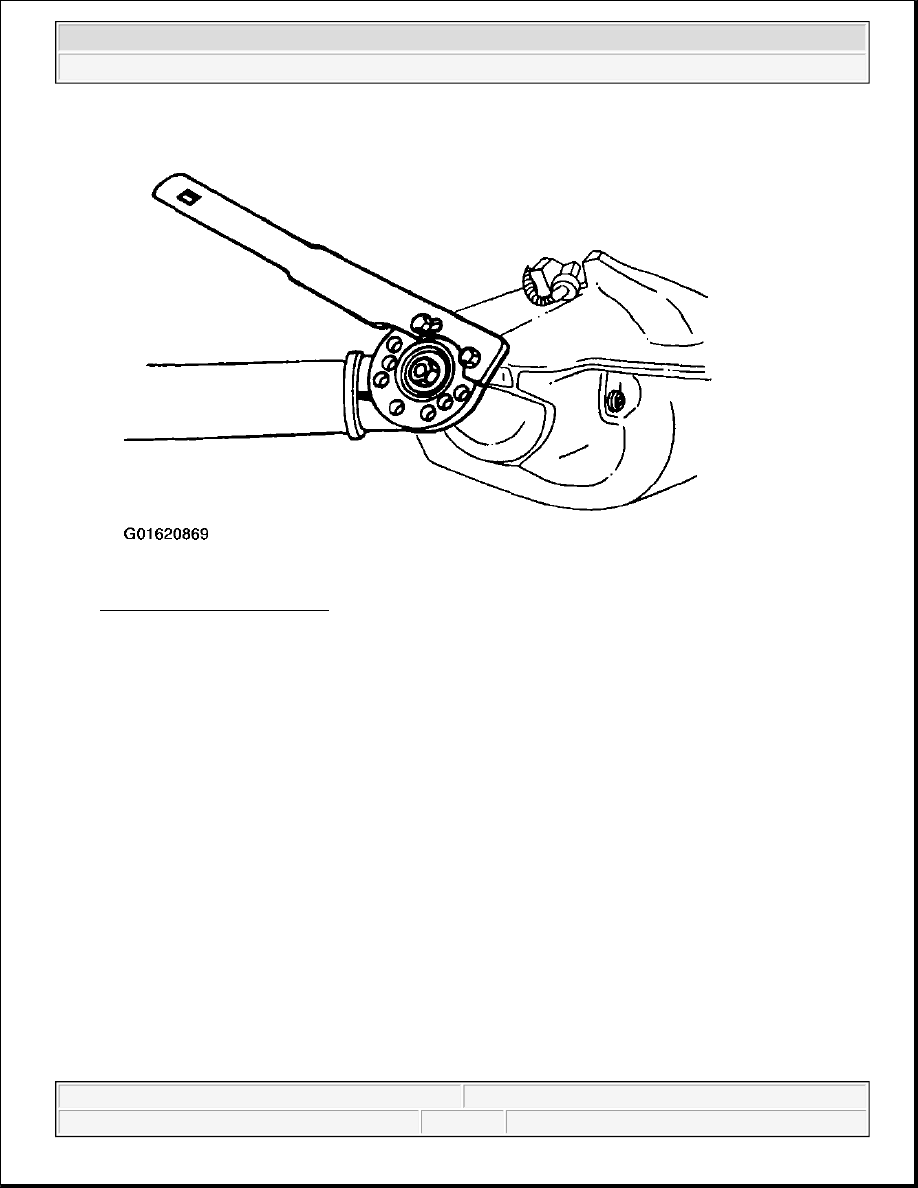

Fig. 25: Removing Pinion Nut
Courtesy of FORD MOTOR CO.

6. Use a pinion flange holding tool to hold the pinion flange while removing the pinion nut.

7. Mark the pinion flange in relation to the drive pinion stem to ensure correct alignment during installation.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 26: Index Marking Pinion Flange To Drive Pinion Stem
Courtesy of FORD MOTOR CO.

8. Using the special tools, remove the pinion flange.
