Ford F150 Pickup. Instruction - part 559

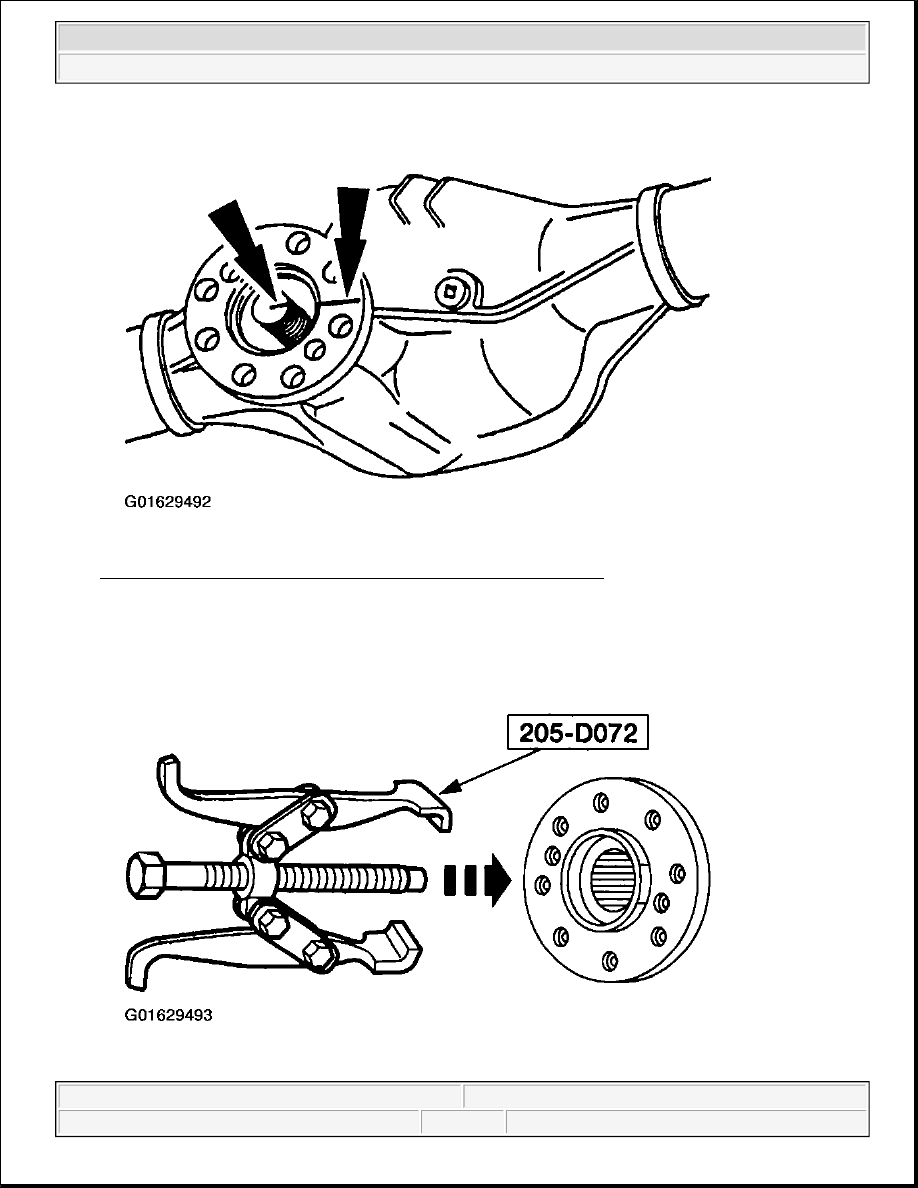

Fig. 31: Marking Pinion Flange In Relation To Drive Pinion Stem
Courtesy of FORD MOTOR CO.

12. Using the special tool, remove the pinion flange.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 32: Removing Pinion Flange
Courtesy of FORD MOTOR CO.

Installation

All Vehicles

1. Lubricate the pinion flange splines with rear axle lubricant.

Fig. 33: Aligning Pinion Flange With Drive Pinion Shaft
Courtesy of FORD MOTOR CO.

2. Align the pinion flange with the drive pinion shaft.

3. With the drive pinion in place in the rear axle housing, install the pinion flange using the special tool.

NOTE:

Disregard the scribe marks if a new pinion flange is being installed.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



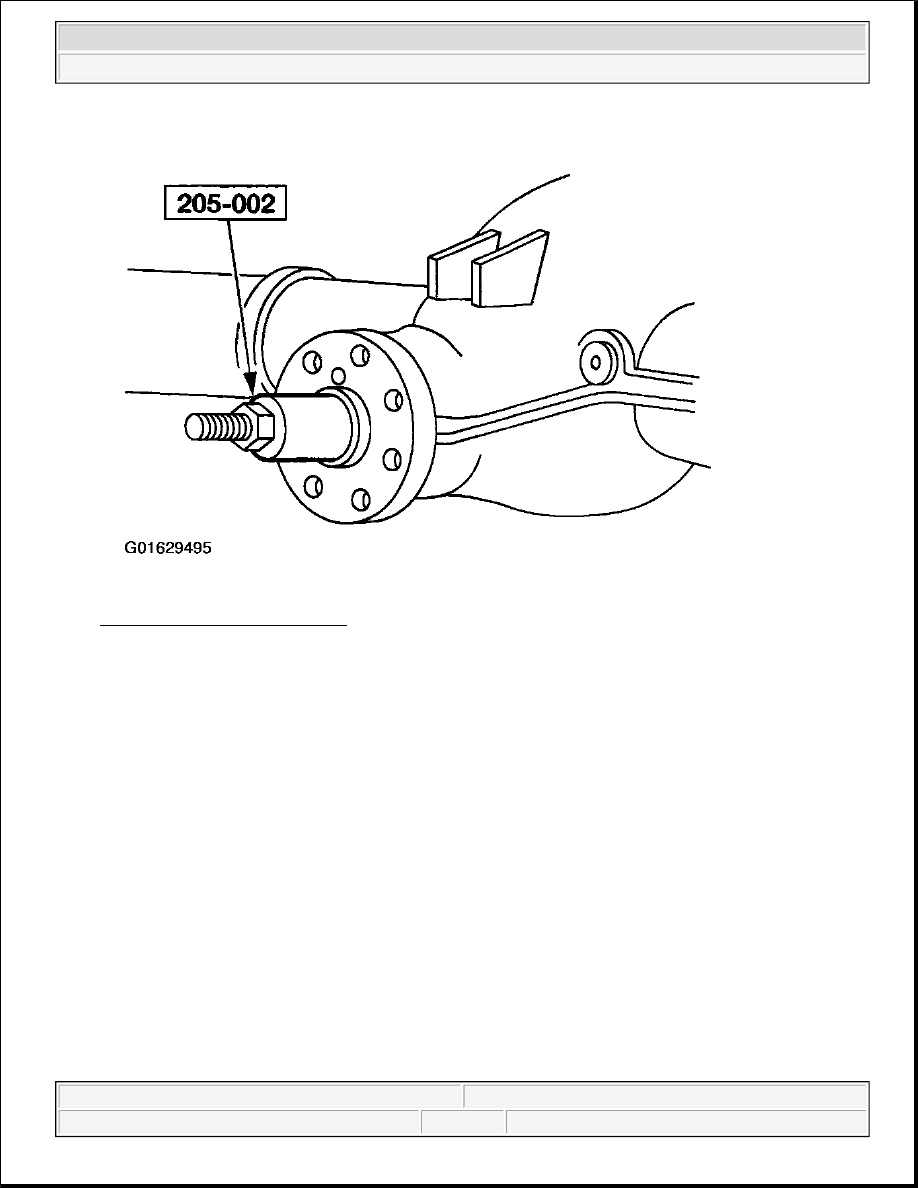

Fig. 34: Installing Pinion Flange
Courtesy of FORD MOTOR CO.

4. Position the new pinion nut.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 35: Installing Pinion Nut
Courtesy of FORD MOTOR CO.

CAUTION: Under no circumstances is the pinion nut to be backed off to reduce

preload. If reduced preload is required, a new collapsible spacer and
pinion nut must be installed.

CAUTION: Remove the special tool while taking preload readings with the Nm

(inch-pound) torque wrench.
