Ford F150 Pickup. Instruction - part 547

Fig. 168: Assembling Differential Clutch Packs
Courtesy of FORD MOTOR CO.

2. Assemble the differential clutch packs (without the shims and Belleville springs) on the respective

differential side gears.

3. Clamp the special tool in a vise. Install the differential clutch pack and the differential side gear (without

the shim or the Belleville spring) on the gauge.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 169: Clamping Special Tool In Vise
Courtesy of FORD MOTOR CO.

4. Position the special tool on top of the differential clutch pack.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



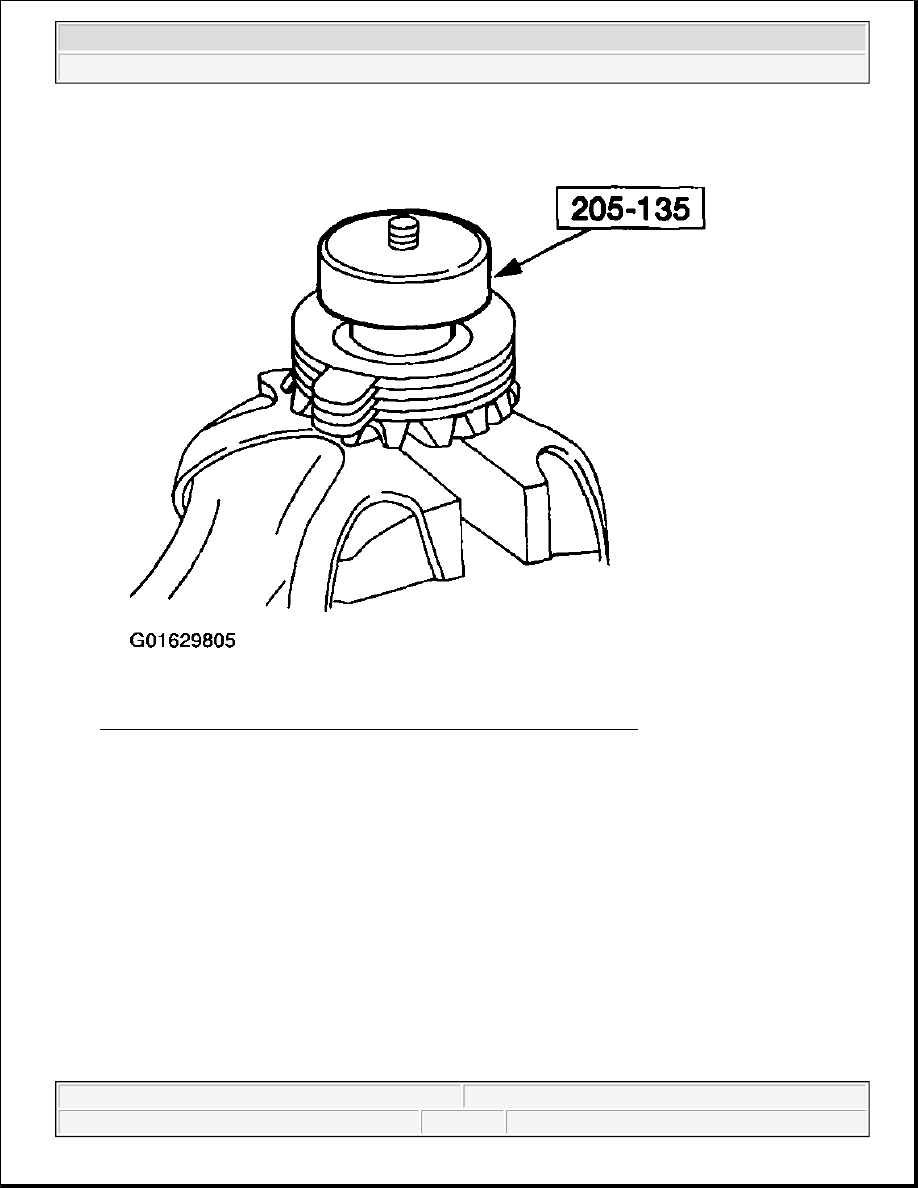

Fig. 170: Positioning Special Tool On Top Of Differential Clutch Pack
Courtesy of FORD MOTOR CO.

5. Install the special tool over the disc and differential clutch pack.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

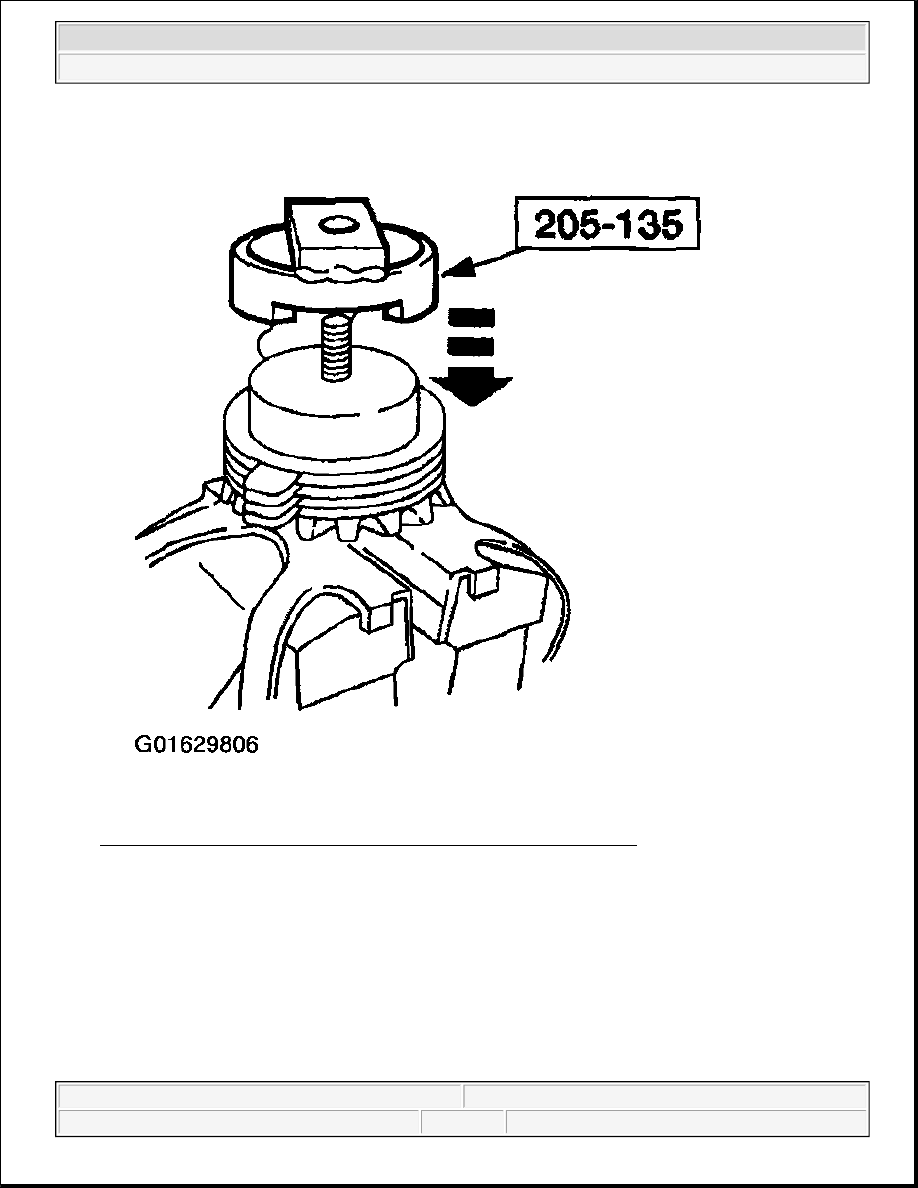

Fig. 171: Installing Special Tool Over Disc & Differential Clutch Pack
Courtesy of FORD MOTOR CO.

6. Install the gauge nut over the top and base stud.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
