Fig. 152: Inserting Differential Pinion Shaft & Lock Bolt
Courtesy of FORD MOTOR CO.

8. Press the new anti-lock speed sensor ring and the ring gear on the differential case.

9. Install the ring gear bolts and tighten.

z

Apply Stud and Bearing Mount EOAZ-19554-BA or equivalent meeting Ford specification WSK-
M2G349-A1 to the ring gear bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 153: Tightening Ring Gear Bolts
Courtesy of FORD MOTOR CO.

10. Install the differential case.

DIFFERENTIAL CASE & RING GEAR - TRACTION-LOK

Special Tool(s)



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

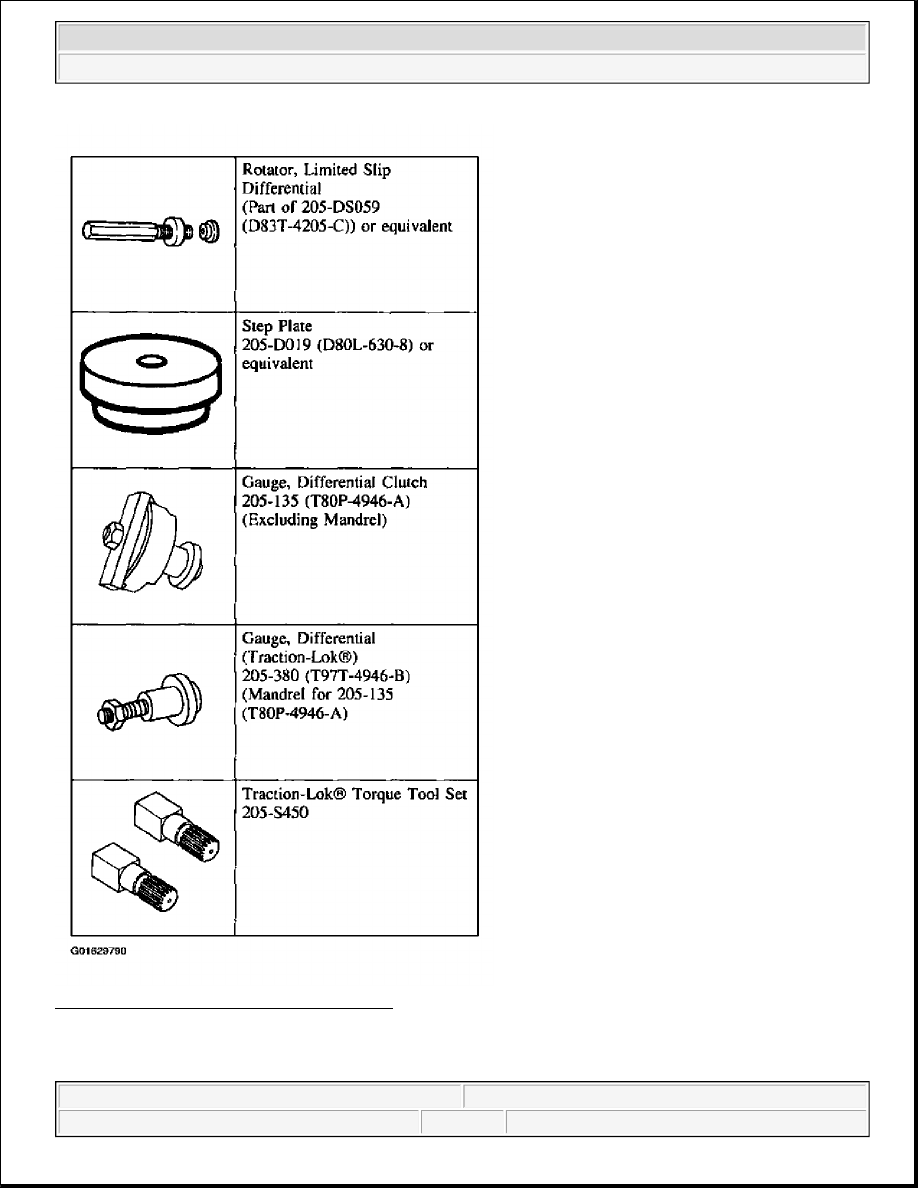

Fig. 154: Identifying Special Tool(s) (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 155: Identifying Special Tool(s) (2 Of 2)
Courtesy of FORD MOTOR CO.

Material



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
