Ford F150 Pickup. Instruction - part 538

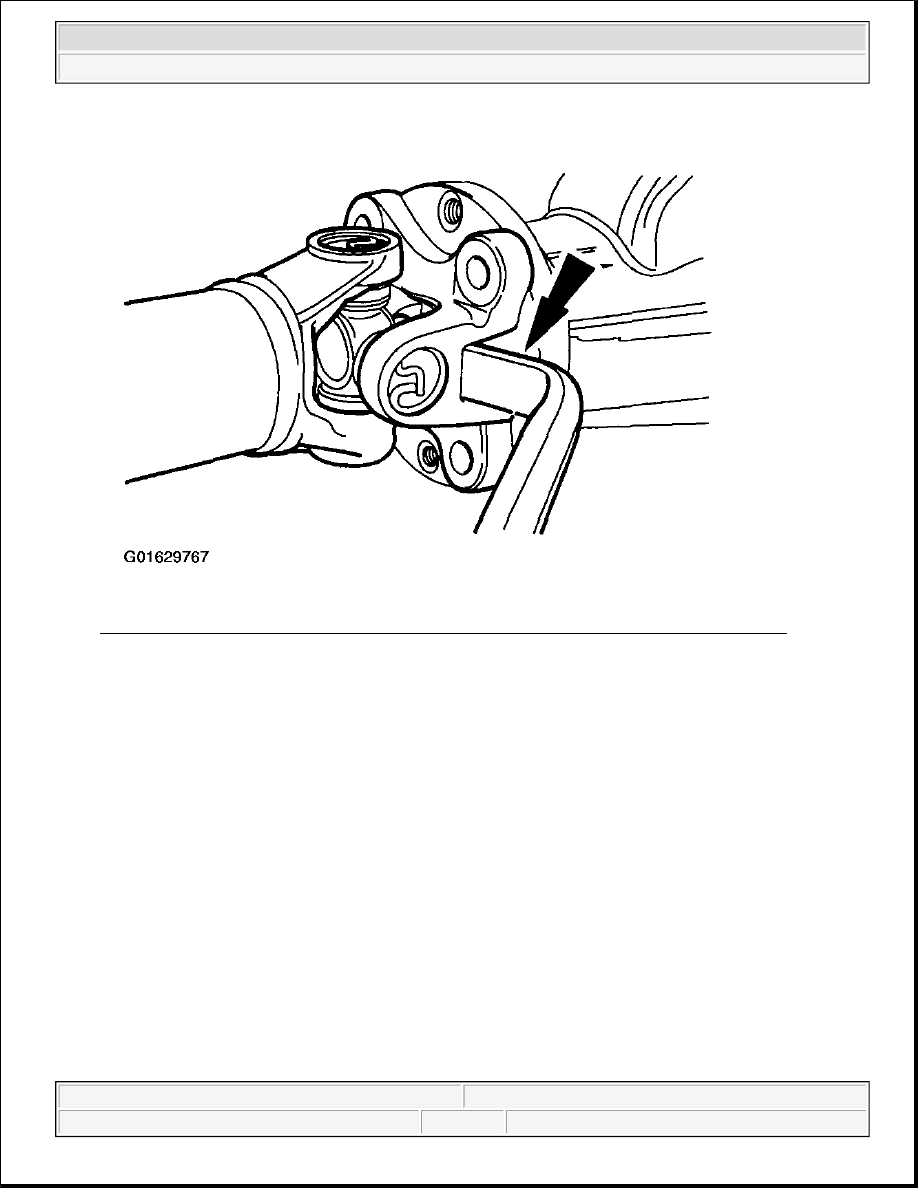

Fig. 132: Disconnecting Driveshaft Centering Socket Yoke From Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.

7. Using a suitable tool as shown, disconnect the driveshaft centering socket yoke from the rear axle pinion

flange.

8. Disconnect the rear axle brake hose.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

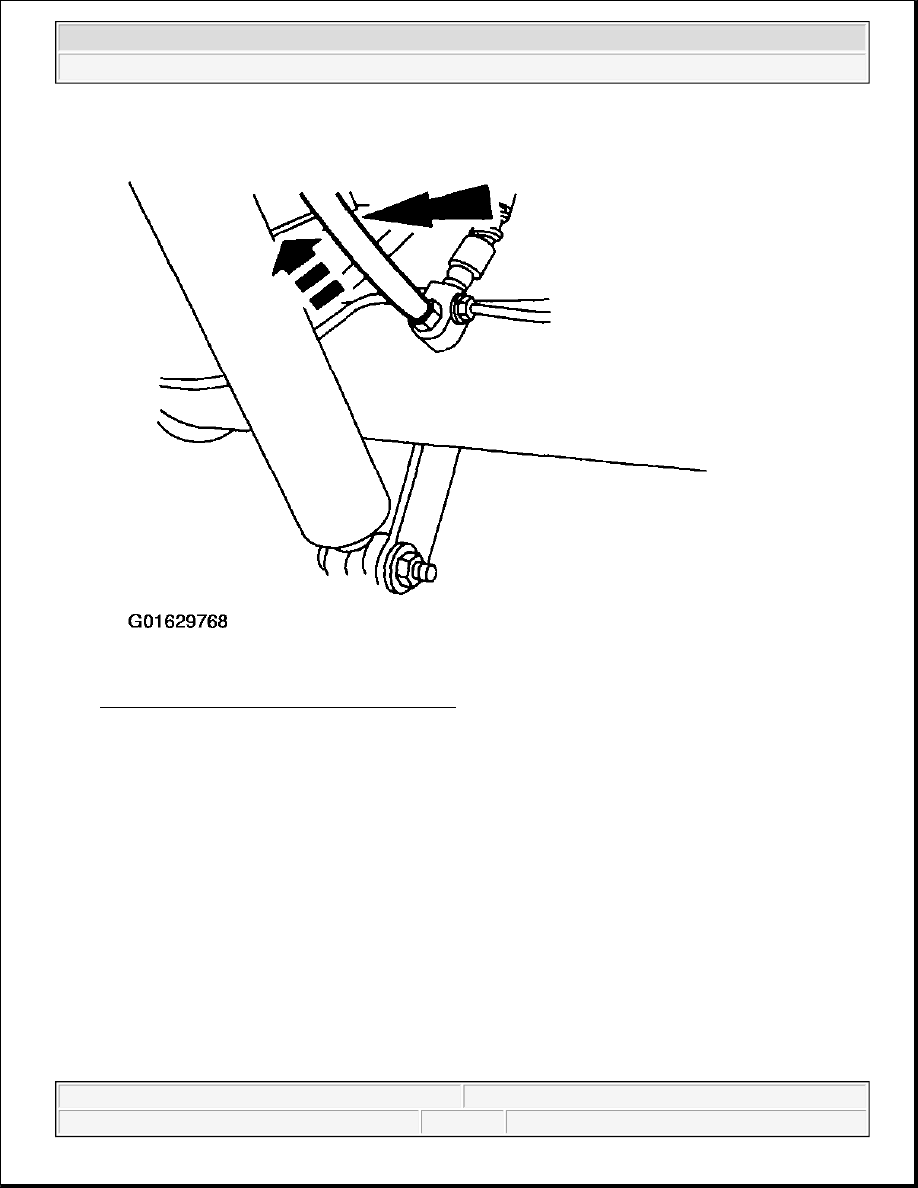

Fig. 133: Disconnecting Rear Axle Brake Hose
Courtesy of FORD MOTOR CO.

NOTE:

Do not disconnect the brake lines.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

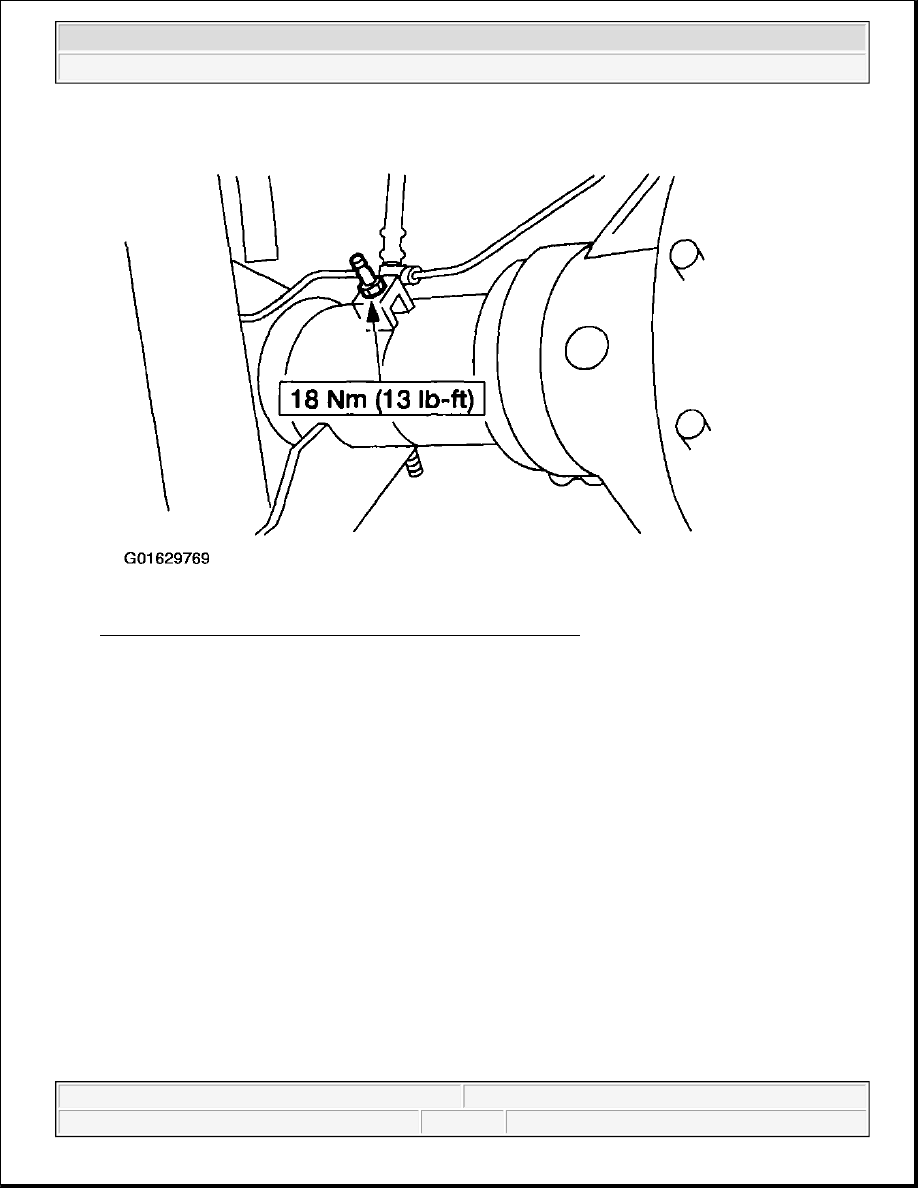

Fig. 134: Removing Brake Hose Junction Block Retaining Bolt
Courtesy of FORD MOTOR CO.

9. Remove the brake hose junction block retaining bolt.

10. Remove the lower shock absorber nuts and bolts (one on each side).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

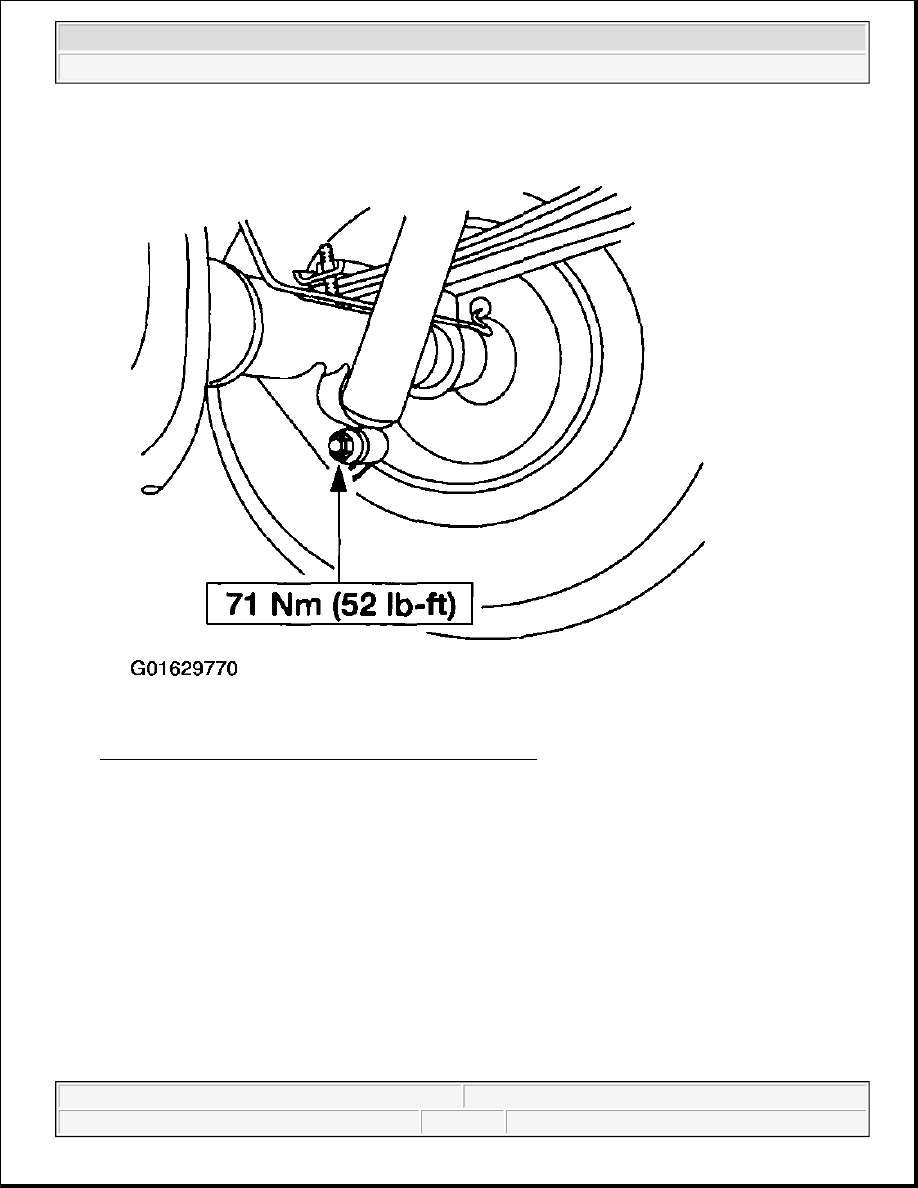

Fig. 135: Removing Lower Shock Absorber Nuts & Bolts
Courtesy of FORD MOTOR CO.

11. Remove the rear axle U-bolt assembly.

z

Remove the rear spring plate nuts.

z

Remove the two rear spring plate U-bolts.

z

Remove the rear spring plate.

z

Repeat the procedure for the other side.
