Ford F150 Pickup. Instruction - part 532

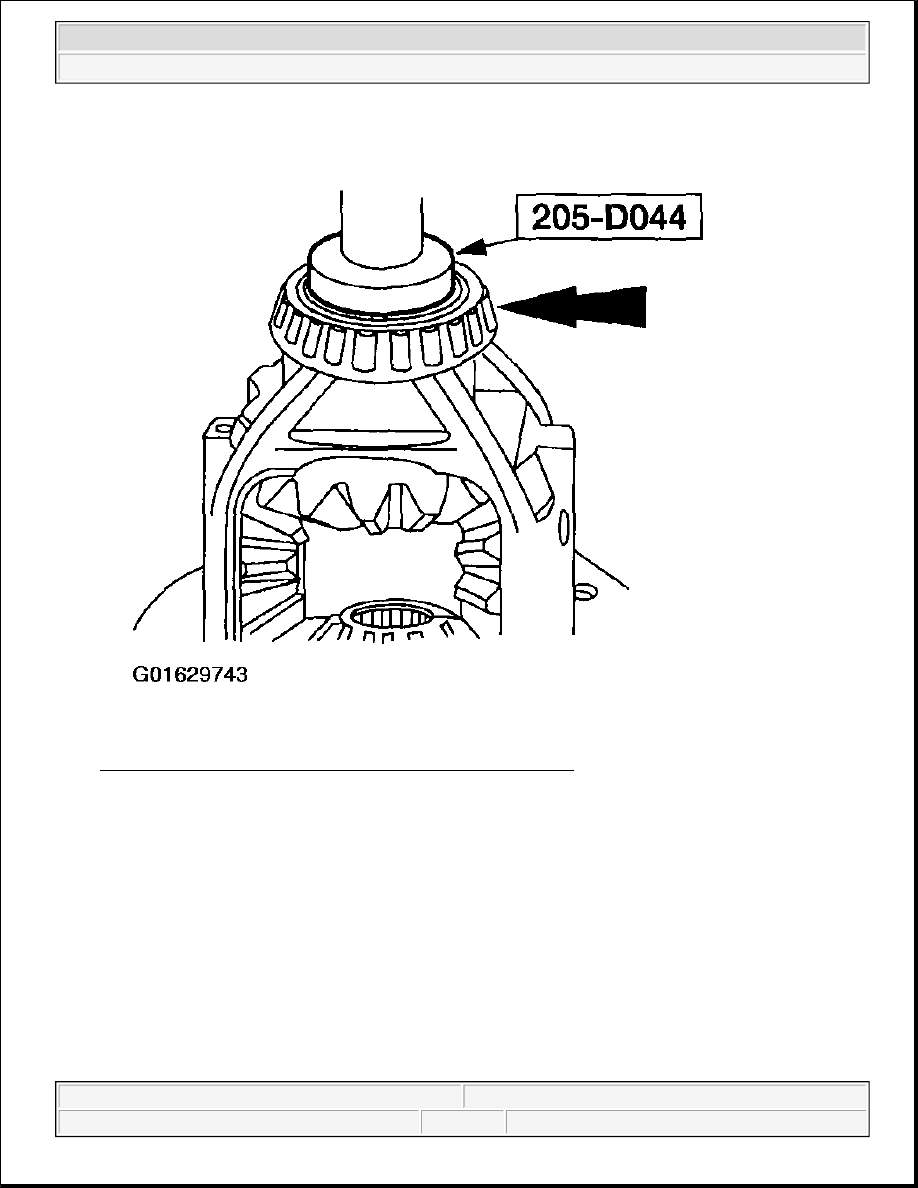

Fig. 108: Installing Differential Bearings On Differential Case
Courtesy of FORD MOTOR CO.

15. Measure the differential case runout without the ring gear.

z

Check the case runout again with the new differential bearings. If the runout is now within the
specification shown, use the new differential bearings for assembly. If the runout is still excessive,
the differential case is damaged and must be replaced.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

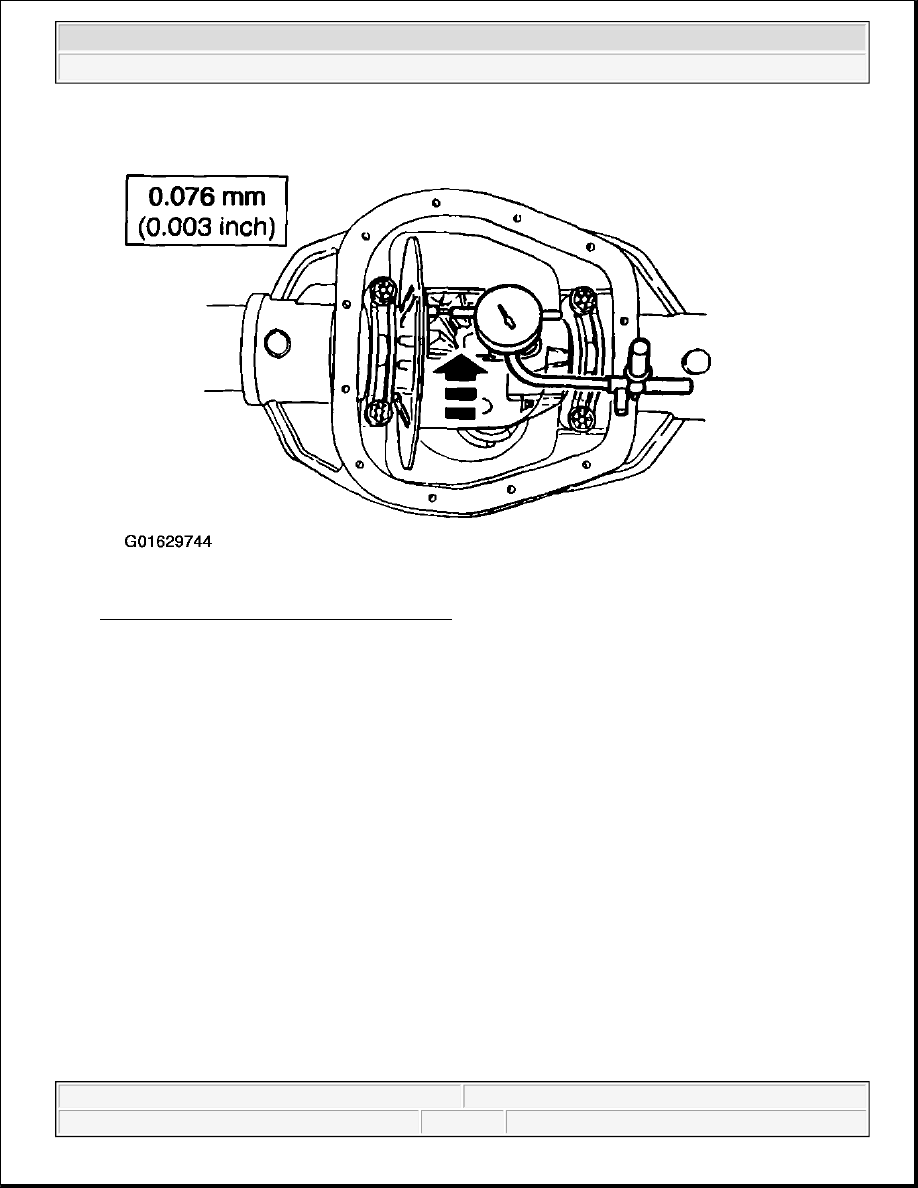

Fig. 109: Measuring Differential Case Runout
Courtesy of FORD MOTOR CO.

Installation

All Vehicles

1. Press the ring gear and, if removed, a new anti-lock speed sensor on the differential case.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

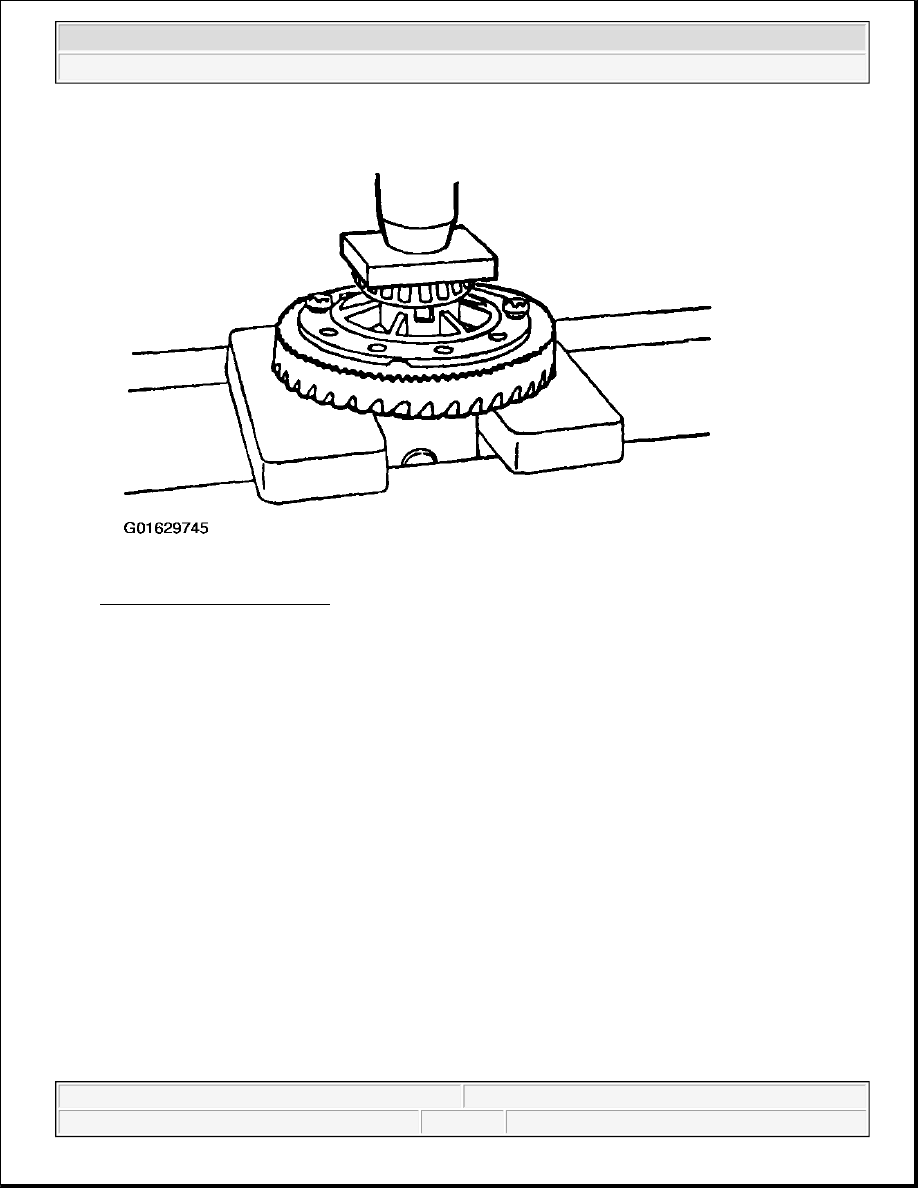

Fig. 110: Installing Ring Gear
Courtesy of FORD MOTOR CO.

2. Install the ring gear bolts.

z

Apply stud and bearing mount to the ring gear bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

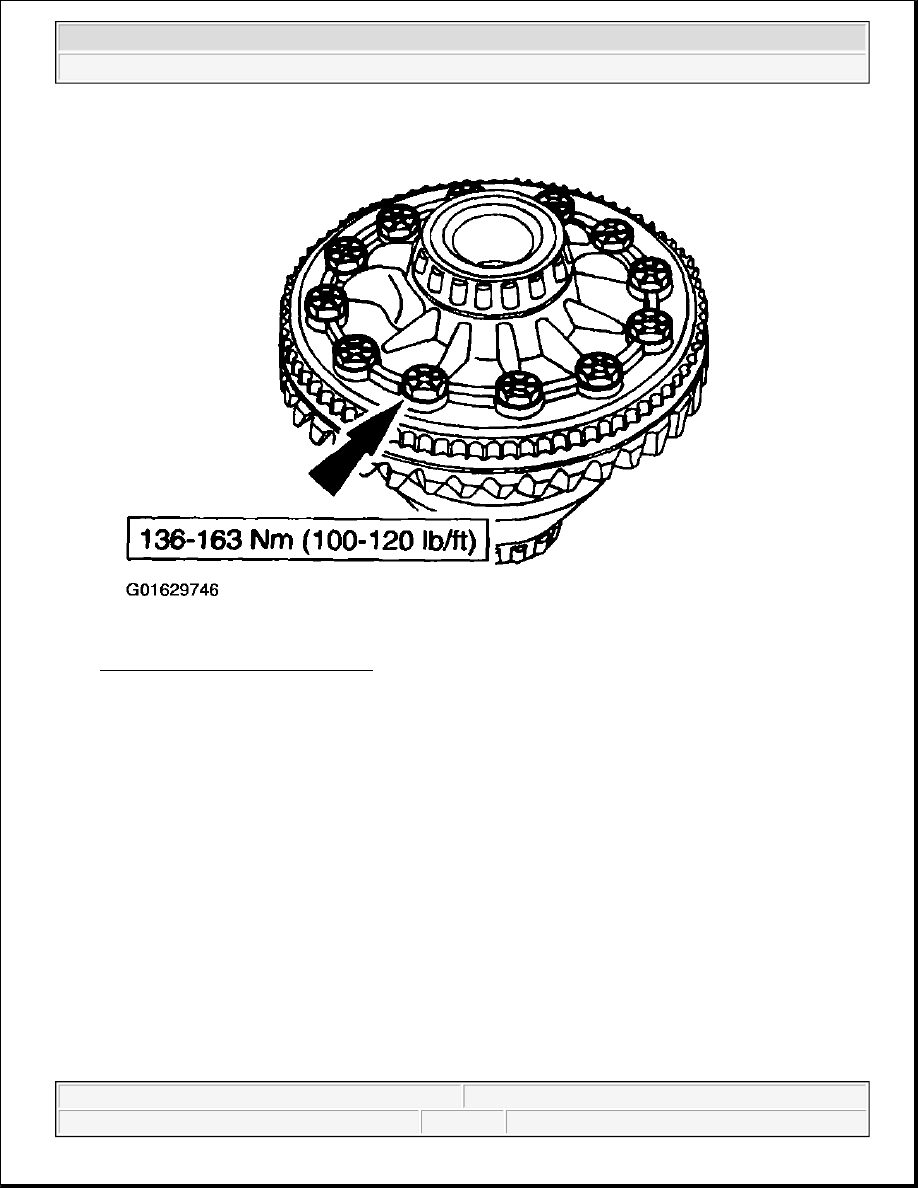

Fig. 111: Installing Ring Gear Bolts
Courtesy of FORD MOTOR CO.

3. With the pinion depth set and the pinion installed, place the differential case in the rear axle housing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
