Fig. 95: Identifying Special Tool(s) (2 Of 2)
Courtesy of FORD MOTOR CO.

Material

Fig. 96: Material Specifications
Courtesy of FORD MOTOR CO.

Removal

1. Remove the axle shafts. For additional information, refer to AXLE SHAFT-DISC BRAKE and AXLE

SHAFT-DRUM BRAKE .

2. Wipe the lubricant from the internal working parts, and visually inspect the parts for wear or damage.

3. Rotate the differential case to see if there is any roughness which would indicate damaged bearings or

gears.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



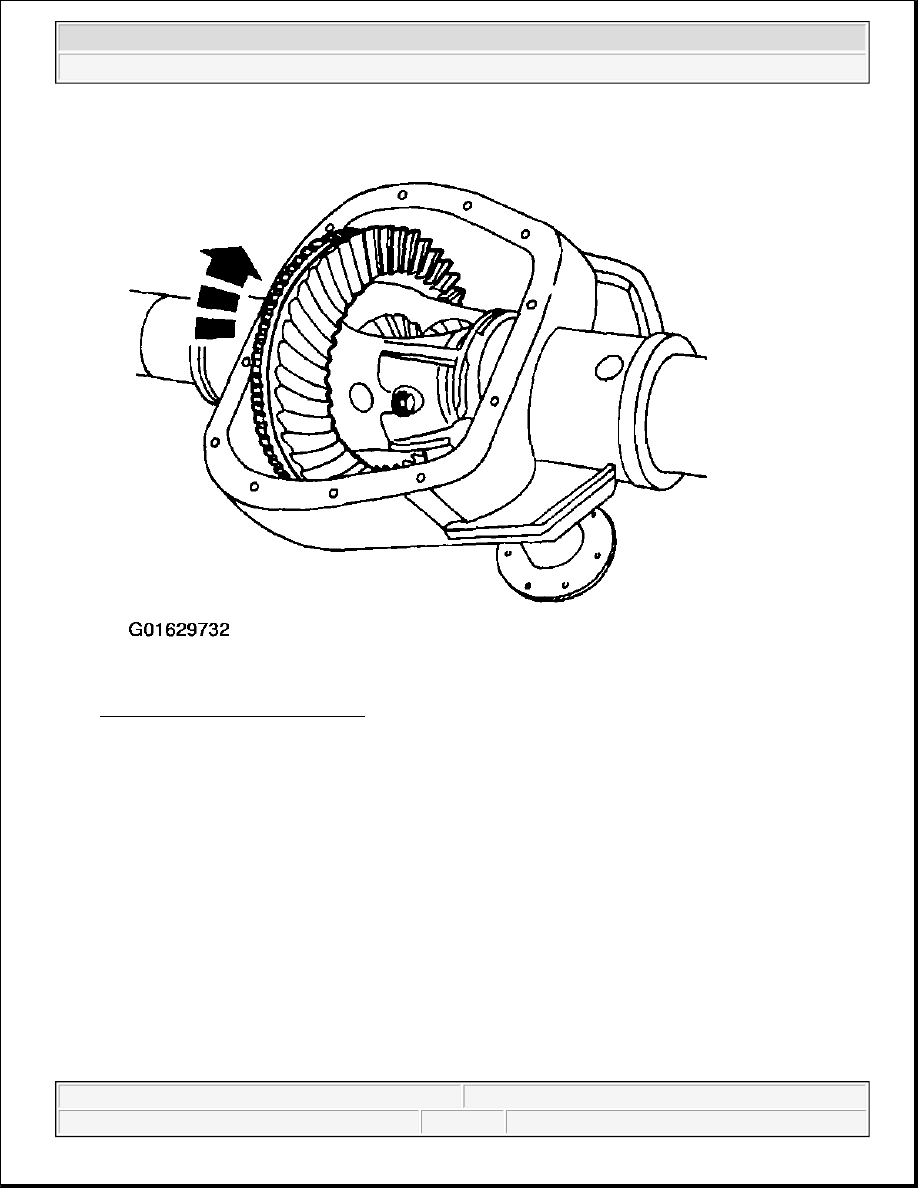

Fig. 97: Rotating Differential Case
Courtesy of FORD MOTOR CO.

NOTE:

There is a space between the anti-lock speed sensor ring and the ring gear
for measuring ring gear backface runout.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 98: Inspecting Ring Gear Backlash & Ring Gear Backface Runout
Courtesy of FORD MOTOR CO.

4. Using the special tools, inspect ring gear backlash and ring gear backface runout.

CAUTION: Mark the position of the bearing caps, as arrows may not be visible.

The bearing caps must be installed in their identical locations and
positions.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



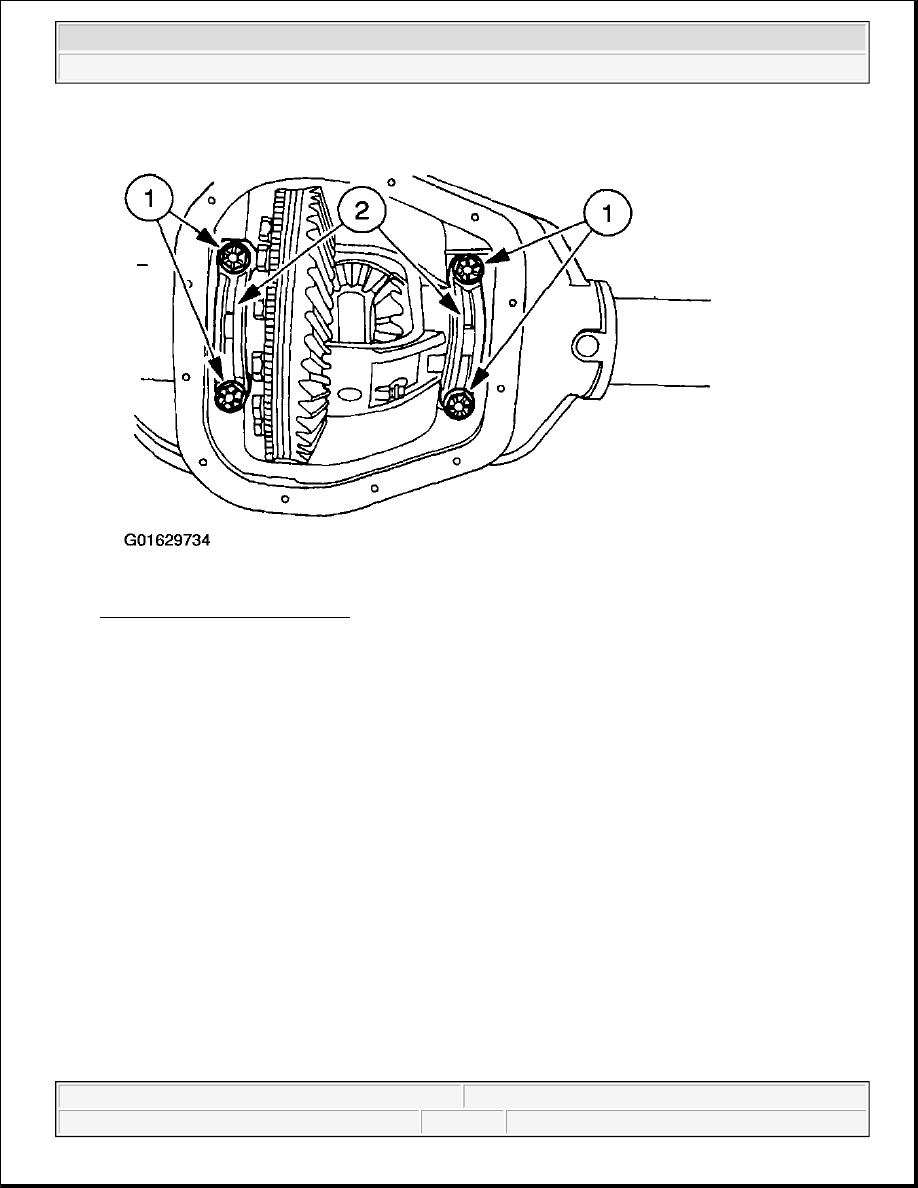

Fig. 99: Removing Bearing Caps
Courtesy of FORD MOTOR CO.

5. Loosen the differential case.

1. Remove the bearing cap bolts.

2. Remove the bearing caps.

6. To simplify the installation, fabricate two differential case retaining straps from metal stock as shown.
