Ford F150 Pickup. Instruction - part 520

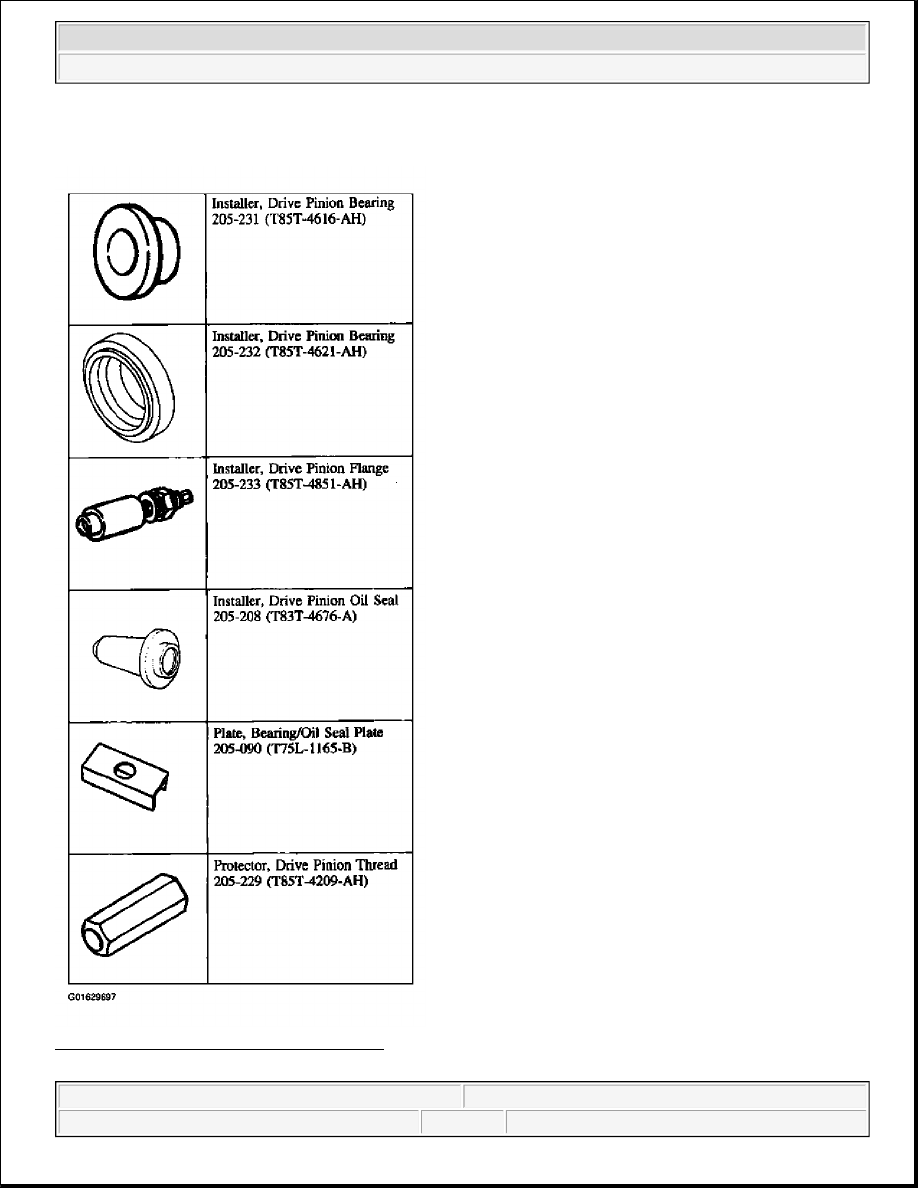

Fig. 60: Identifying Special Tool(s) (1 Of 4)
Courtesy of FORD MOTOR CO.

Fig. 61: Identifying Special Tool(s) (2 Of 4)



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Courtesy of FORD MOTOR CO.

Fig. 62: Identifying Special Tool(s) (3 Of 4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 63: Identifying Special Tool(s) (4 Of 4)
Courtesy of FORD MOTOR CO.

Material



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

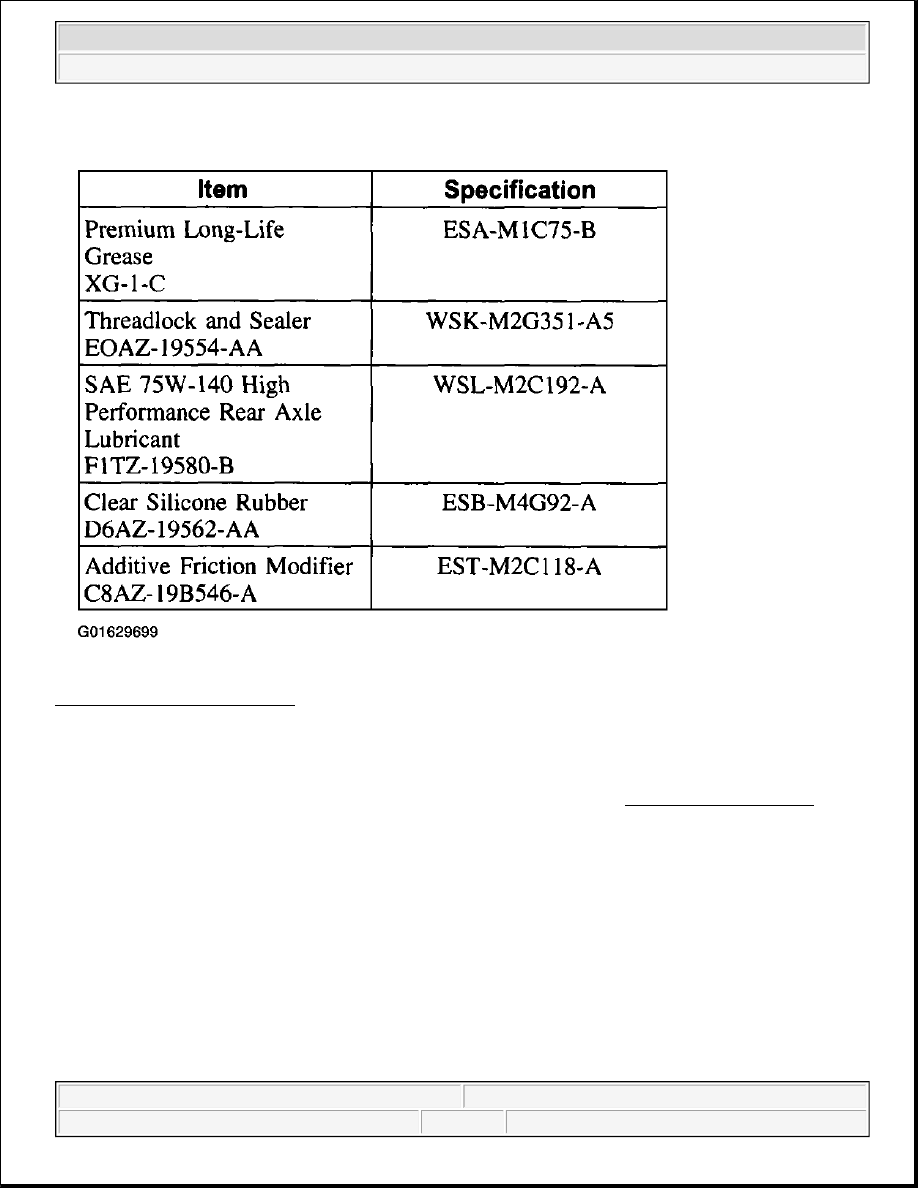

Fig. 64: Material Specifications
Courtesy of FORD MOTOR CO.

Removal

1. Remove the differential case (4204). For additional information, refer to DIFFERENTIAL CASE .

2. Mark the driveshaft flange and the driveshaft rear axle pinion flange for correct alignment during

installation.
