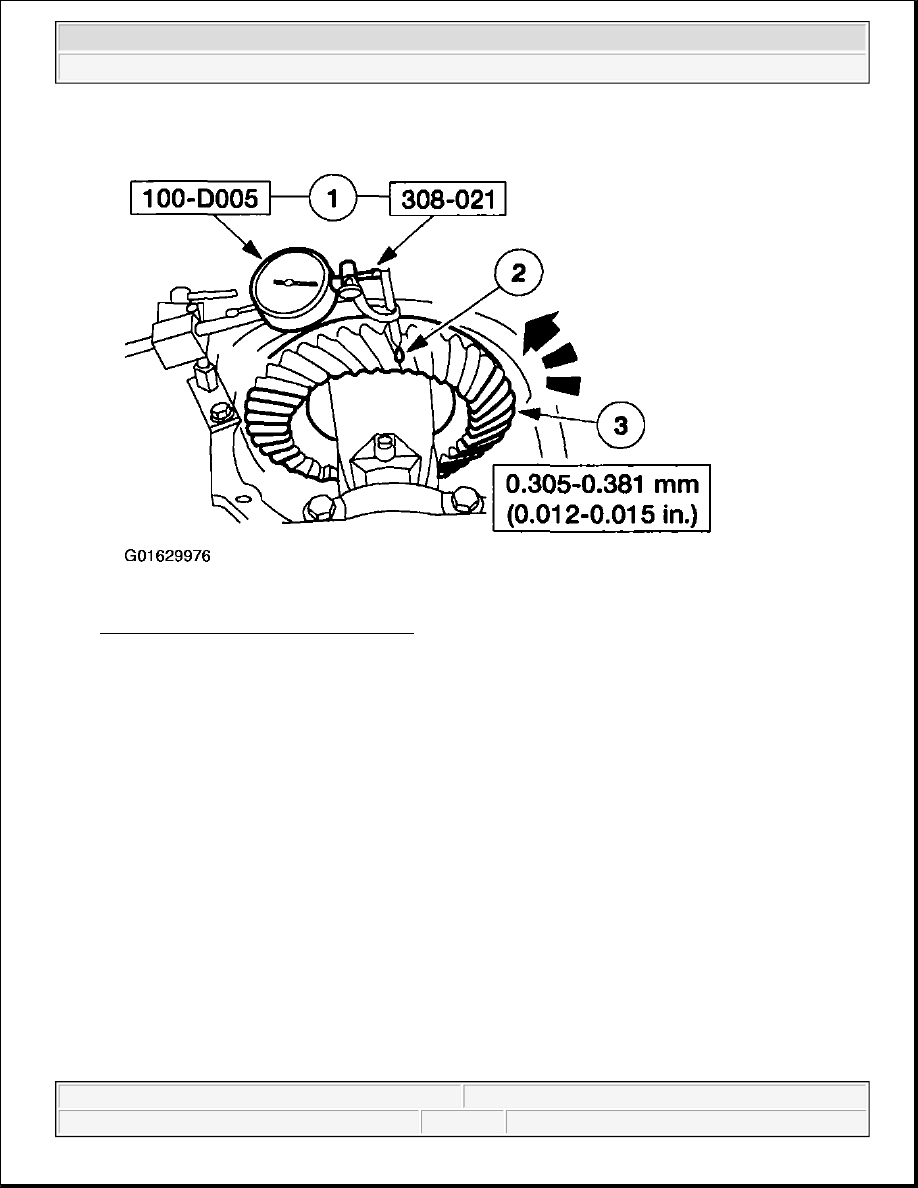

Fig. 159: Measuring Ring Gear Backlash
Courtesy of FORD MOTOR CO.

NOTE:

If the backlash is not within the specifications, correct it by increasing the
thickness of one differential bearing shim and decreasing the thickness on
the other differential bearing shim by the same amount.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 160: Increasing Backlash
Courtesy of FORD MOTOR CO.

50. To increase the backlash, install a thicker differential bearing shim and a thinner differential bearing shim

as shown.

51. To decrease the backlash, install a thicker differential bearing shim and a thinner differential bearing shim

as shown.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 161: Decreasing Backlash
Courtesy of FORD MOTOR CO.

52. Liberally lubricate the axle shaft shift lever, and install a new O-ring.

z

Use Ford Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A (Motorcraft
WA-10) or equivalent meeting Ford specification ESE-M1C171-A.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 162: Installing O-Ring
Courtesy of FORD MOTOR CO.

53. Install the axle shaft shift lever.

1. Position the clutch fork.

2. Install the axle shaft shift lever.

z

Align the instruction shaft retaining pin holes.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup
