Fig. 78: Removing Headlamp Switch
Courtesy of FORD MOTOR CO.

4. Remove the adjustable pedal switch.

1. Push the adjustable pedal switch out of the instrument panel far enough to access the electrical

connector.

2. Disconnect the electrical connector and remove the adjustable pedal switch.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 79: Removing Adjustable Pedal Switch
Courtesy of FORD MOTOR CO.

5. To install, reverse the removal procedure.

BRAKE MASTER CYLINDER

Removal

WARNING:

Use of any other than approved DOT 3 brake fluid will cause permanent
damage to brake components and will render the brakes inoperative.

WARNING:

Brake fluid contains polyglycol ethers and polyglycols. Avoid contact
with eyes. Wash hands thoroughly after handling. If brake fluid contacts
eyes, flush eyes with running water for 15 minutes. Get medical attention
if irritation persists. If taken internally, drink water and induce vomiting.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



1. Disconnect the brake fluid level warning switch.

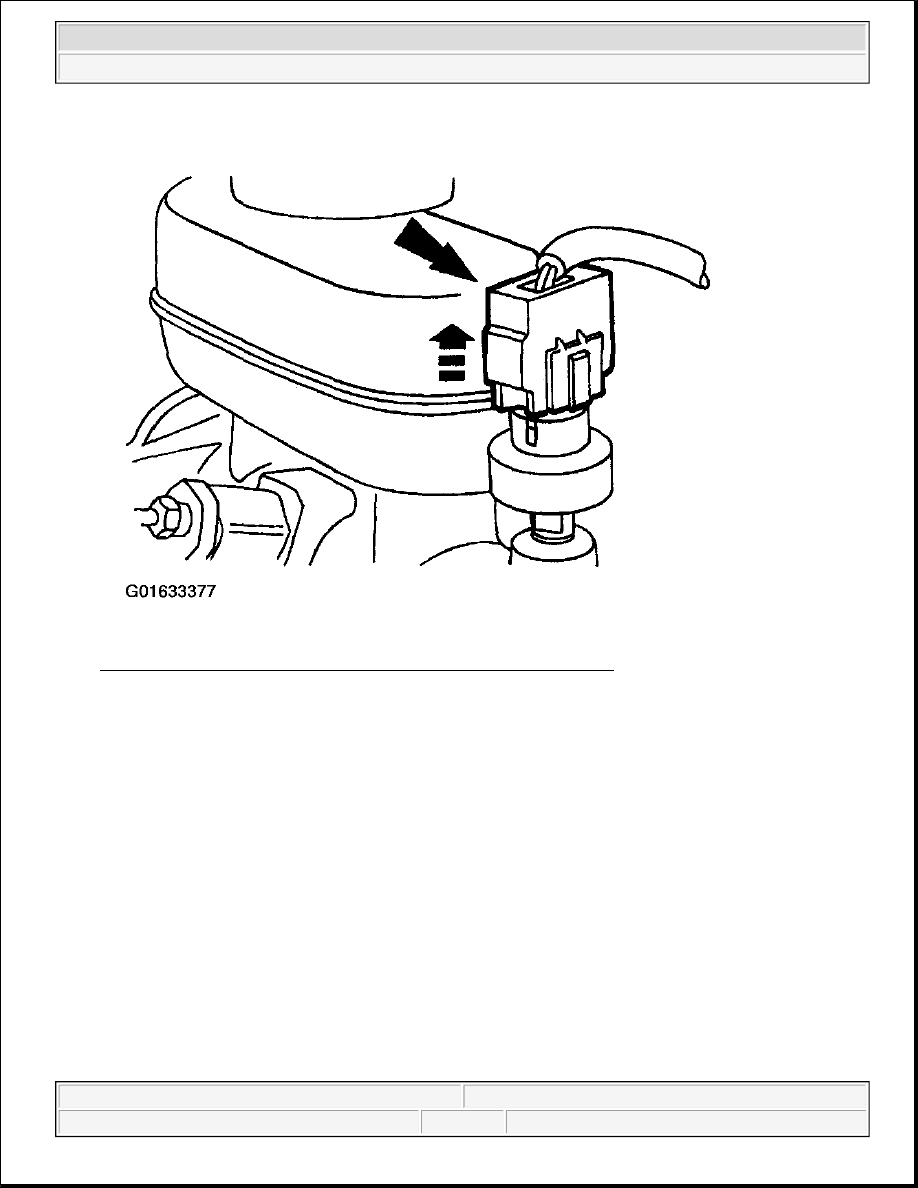

Fig. 80: Disconnecting Brake Fluid Level Warning Switch
Courtesy of FORD MOTOR CO.

2. If equipped with speed control, disconnect the brake pressure switch electrical connector.

Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted or plastic surfaces. If brake fluid is spilled

onto a painted or plastic surface, immediately wash it with water.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

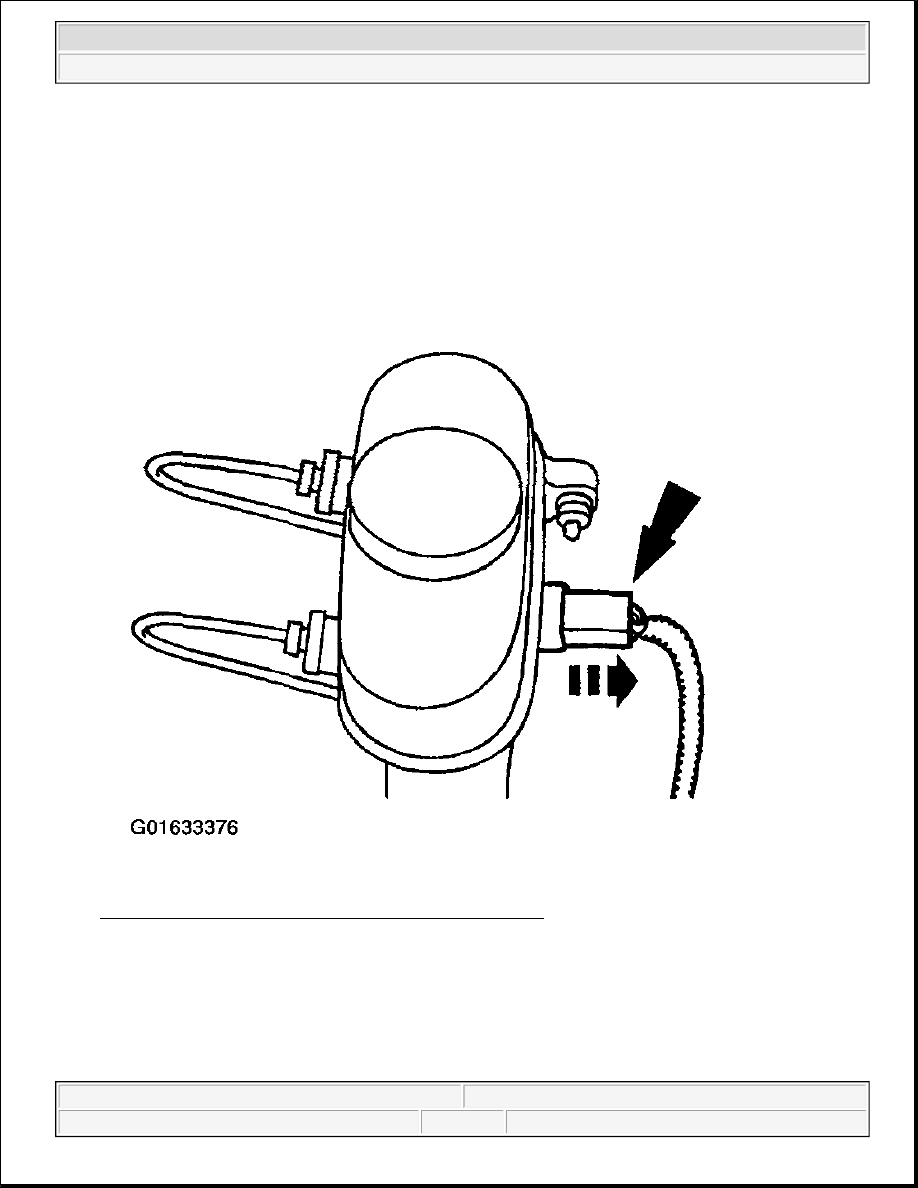

Fig. 81: Disconnecting Brake Pressure Switch Electrical Connector
Courtesy of FORD MOTOR CO.

3. Disconnect the two brake lines and plug the lines and the brake master cylinder ports.
