Ford F150 Pickup. Instruction - part 412

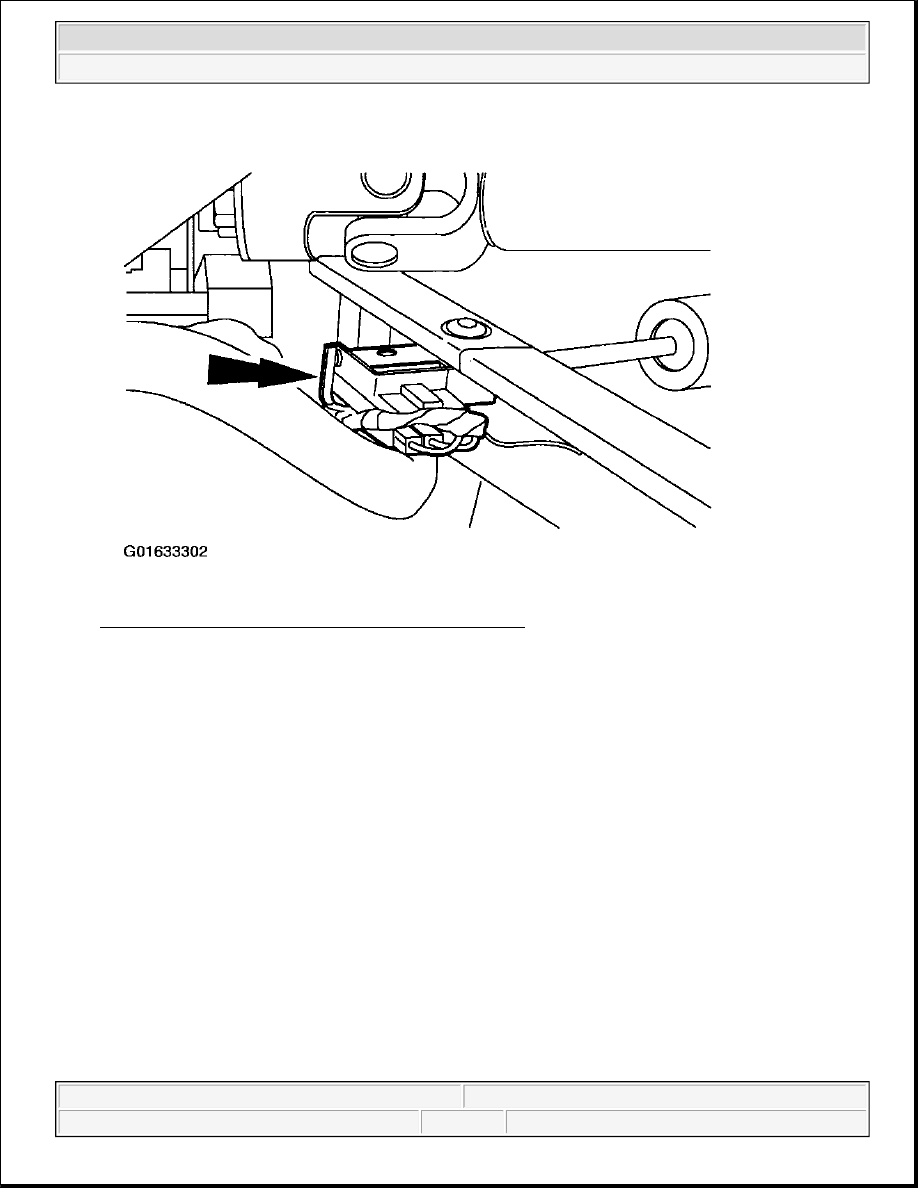

Fig. 6: Removing Stoplight Switch & Booster Push Rod
Courtesy of FORD MOTOR CO.

4. Remove the bulkhead sound insulator.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 7: Removing Bulkhead Sound Insulator
Courtesy of FORD MOTOR CO.

5. Remove the brake pedal bracket nuts.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 8: Removing Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.

CAUTION: Support the brake master cylinder and power brake booster in the

engine compartment.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 9: Removing Brake Pedal Bracket Bolts
Courtesy of FORD MOTOR CO.

6. Remove the brake pedal bracket bolts and remove brake pedal and bracket.

Installation

CAUTION: Make sure the bulkhead sound insulator is not between the brake

pedal and bracket and the bulkhead.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup
