Ford F150 Pickup. Instruction - part 401

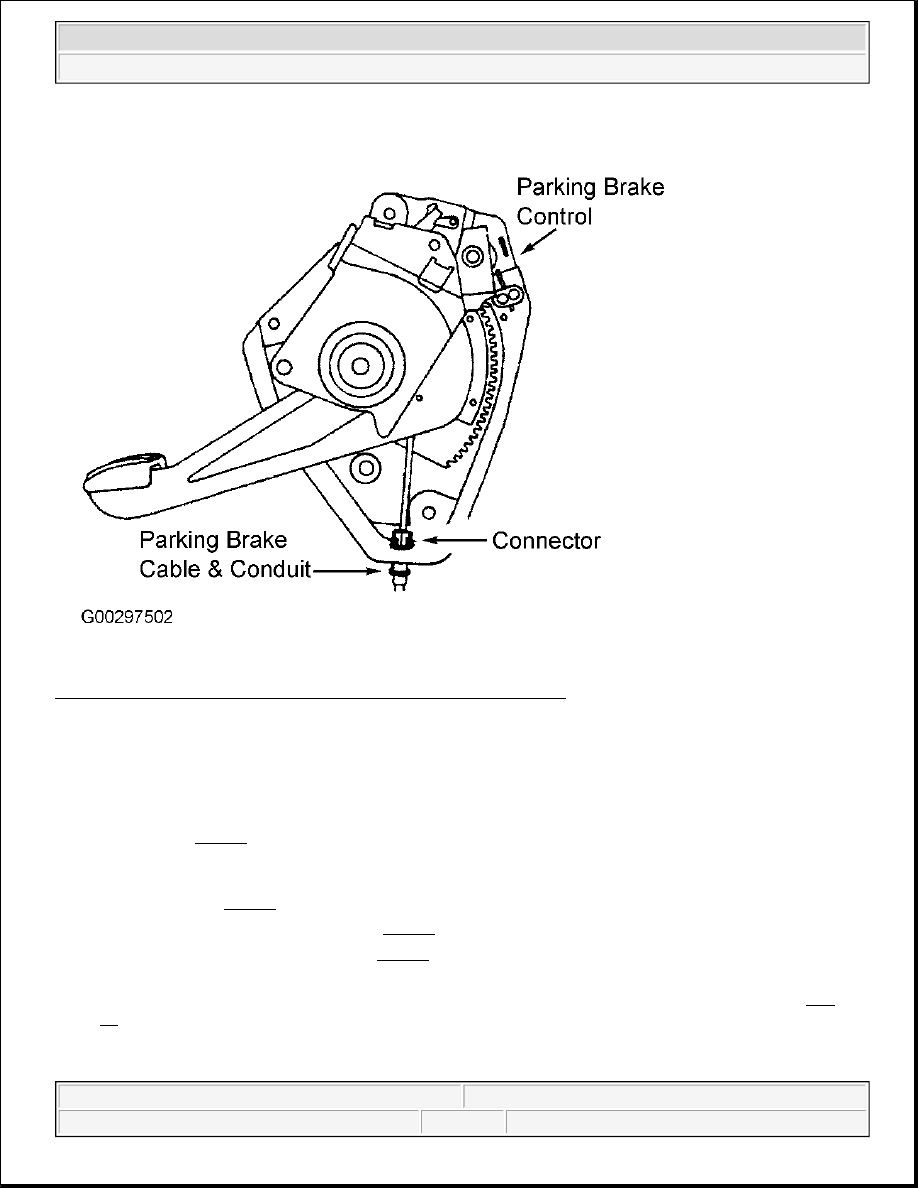

Fig. 68: Removing Parking Brake Control
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 69: Disconnecting Parking Brake Cable & Conduit Connector
Courtesy of FORD MOTOR CO.

Removal & Installation (Front Cable & Conduit)

1. Fully release parking brake control.

2. Relieve the tension on the parking brake system. Pull the front parking brake cable down. Insert a suitable

retainer. See Fig. 59 .

3. Disconnect the front parking brake cable and conduit from the right parking brake rear cable and conduit.

Pull the front parking brake cable and conduit rearward to unclip it from the right parking brake rear cable
and conduit. See Fig. 70 .

4. Remove the front door scuff plate. See Fig. 60 .

5. Remove the cowl side trim panel. See Fig. 61 .

6. Disconnect the front parking brake cable and conduit. Compress the connector to release the front parking

brake cable. Disconnect the front parking brake cable. Remove the front parking brake cable. See Fig.
69 .

7. Remove the front parking brake cable and conduit. Pry the rubber seal from the front floor pan. Unclip

the front parking brake cable and conduit from the front parking brake cable clip. Compress the retainer



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



and release the front parking brake cable and conduit from the bracket. Remove the front parking brake
cable and conduit. See Fig. 71 .

8. To install, reverse the removal procedure.

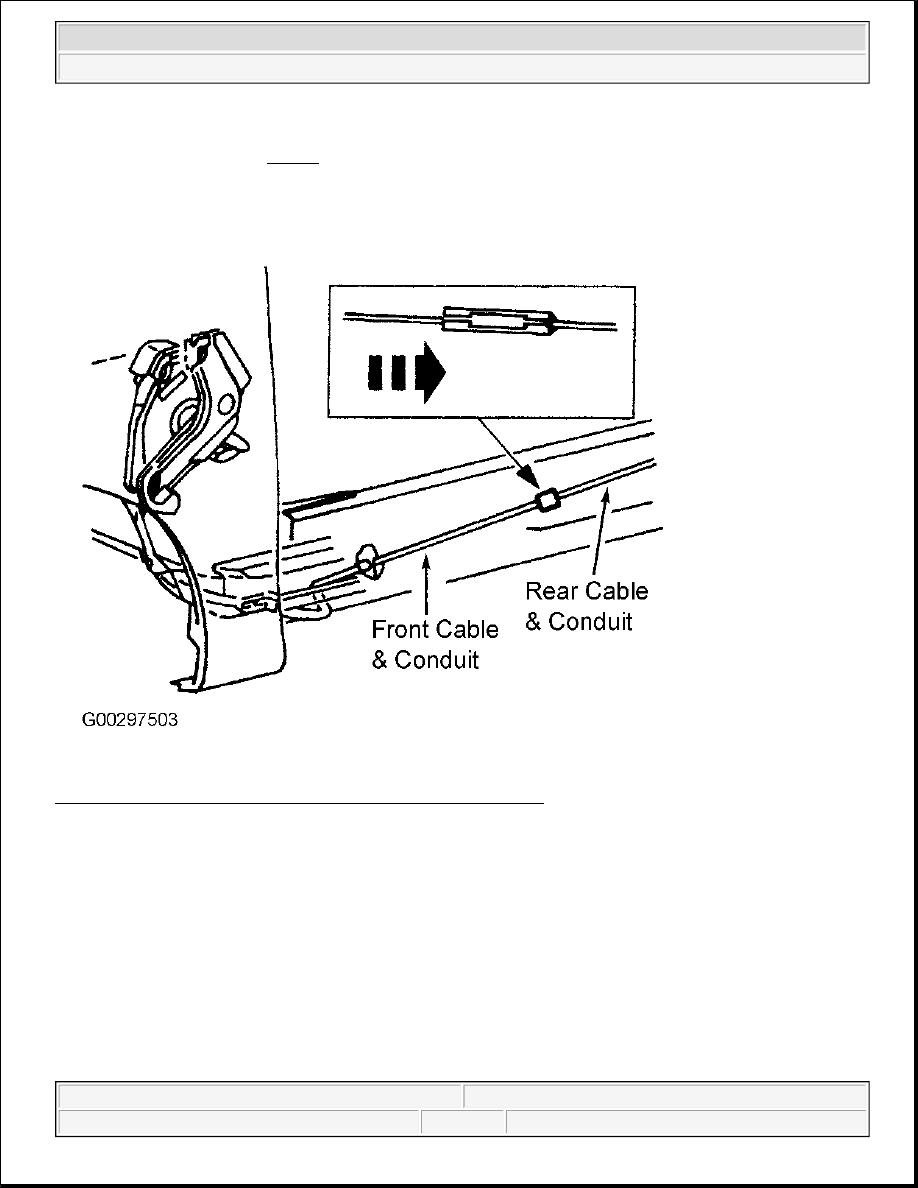

Fig. 70: Identifying Front-To-Rear Cable & Conduit Connector
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 71: Removing Front Cable & Conduit
Courtesy of FORD MOTOR CO.

Removal & Installation (Rear Cable & Conduit)

1. Fully release parking brake control.

2. Relieve the tension on the parking brake system. Pull the front parking brake cable down. Insert a suitable

retainer. See Fig. 59 .

3. Raise and support vehicle.

4. Disconnect the front parking brake cable and conduit from the right parking brake rear cable and conduit.

See Fig. 70 . Pull the front parking brake cable and conduit rearward to unclip it from the right parking
brake rear cable and conduit. See Fig. 72 .

5. For the right parking brake rear cable and conduit, compress the retainer and remove it from the parking

brake cable equalizer. See Fig. 73 .

6. For the left parking brake rear cable and conduit, remove it from the parking brake cable equalizer.

Unhook the cable end from the equalizer bracket. Compress the retainer and detach the parking brake rear
cable and conduit.

7. This step is only necessary when removing the right parking brake rear cable and conduit. Disconnect the

parking brake rear cable and conduit from the axle housing.

8. Remove the cable support bracket. Remove the bolt. Remove the bracket. See Fig. 74 .
