Ford F150 Pickup. Instruction - part 394

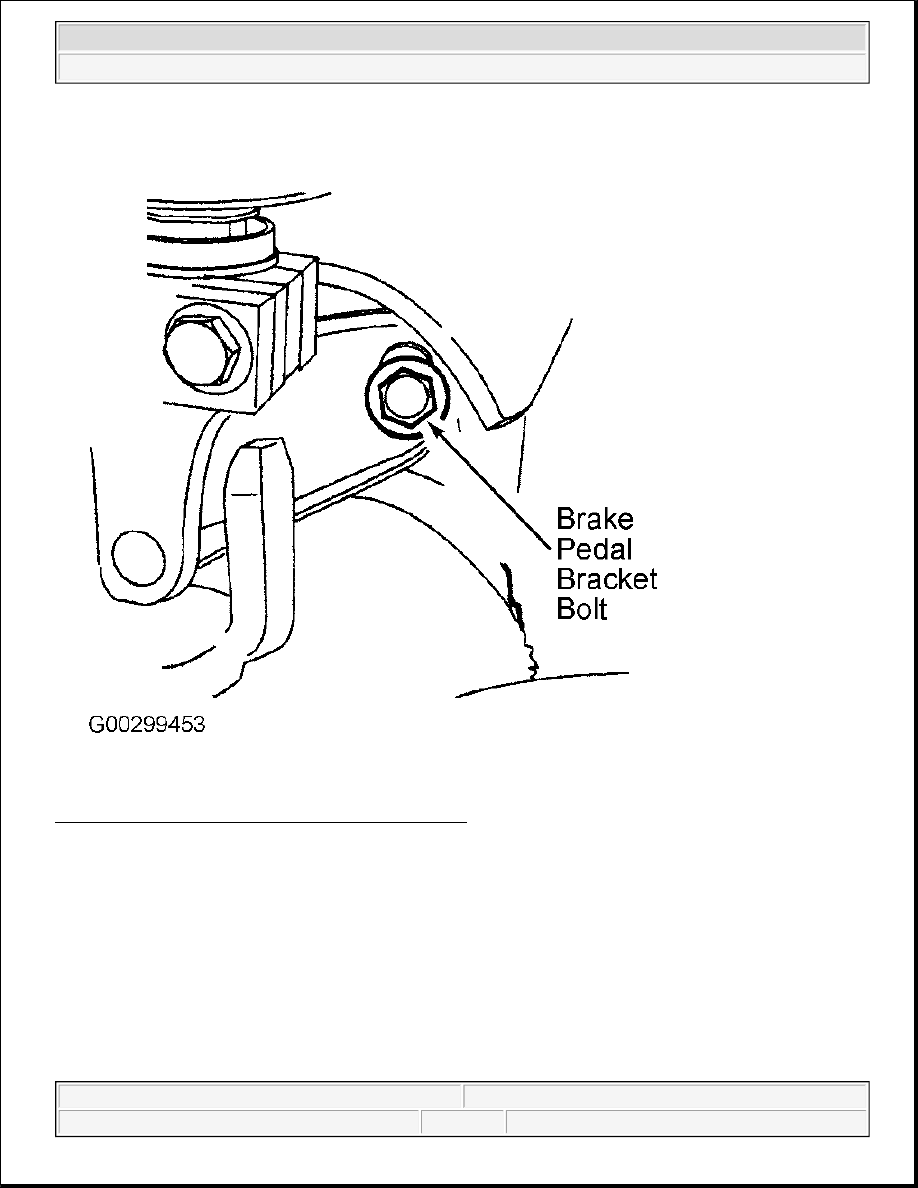

Fig. 42: Identifying Brake Pedal Bracket Bolt (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



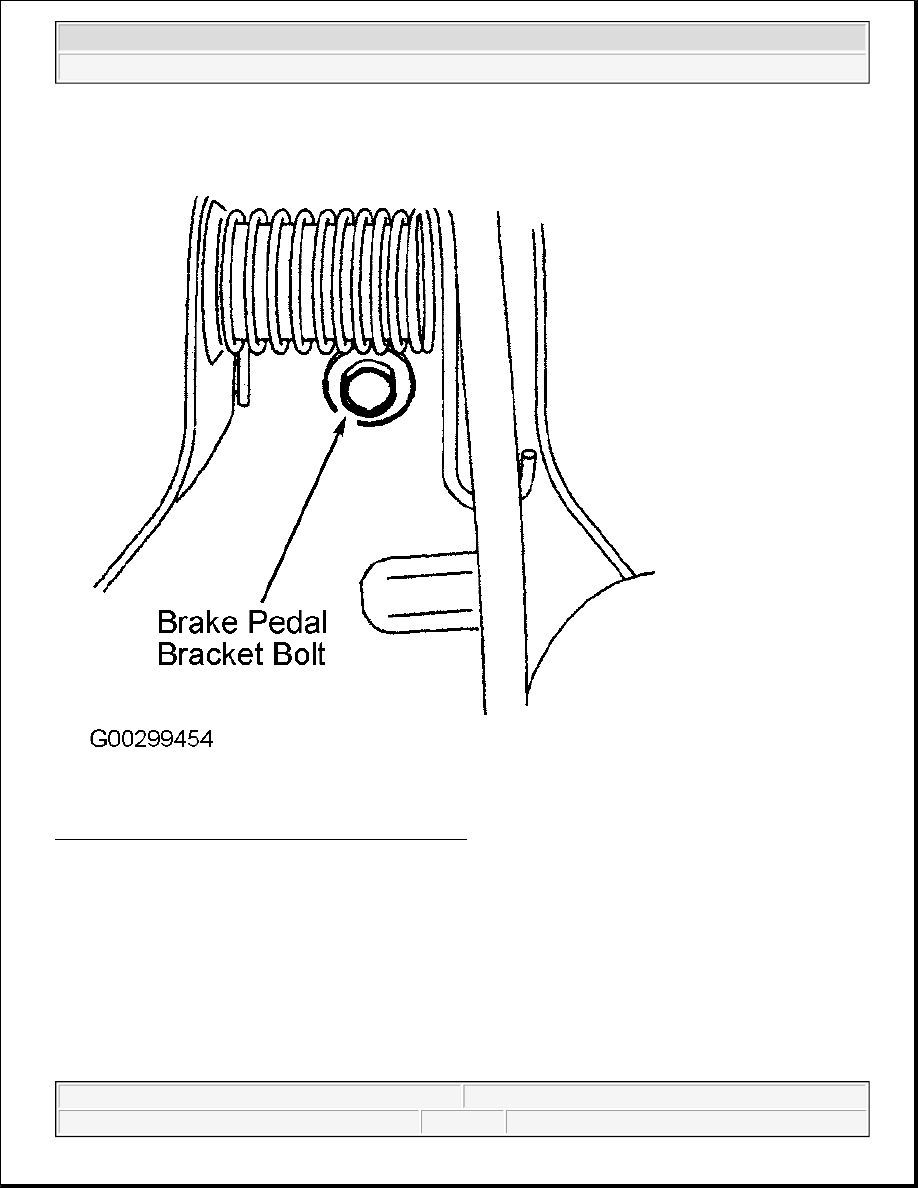

Fig. 43: Identifying Brake Pedal Bracket Bolt (2 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



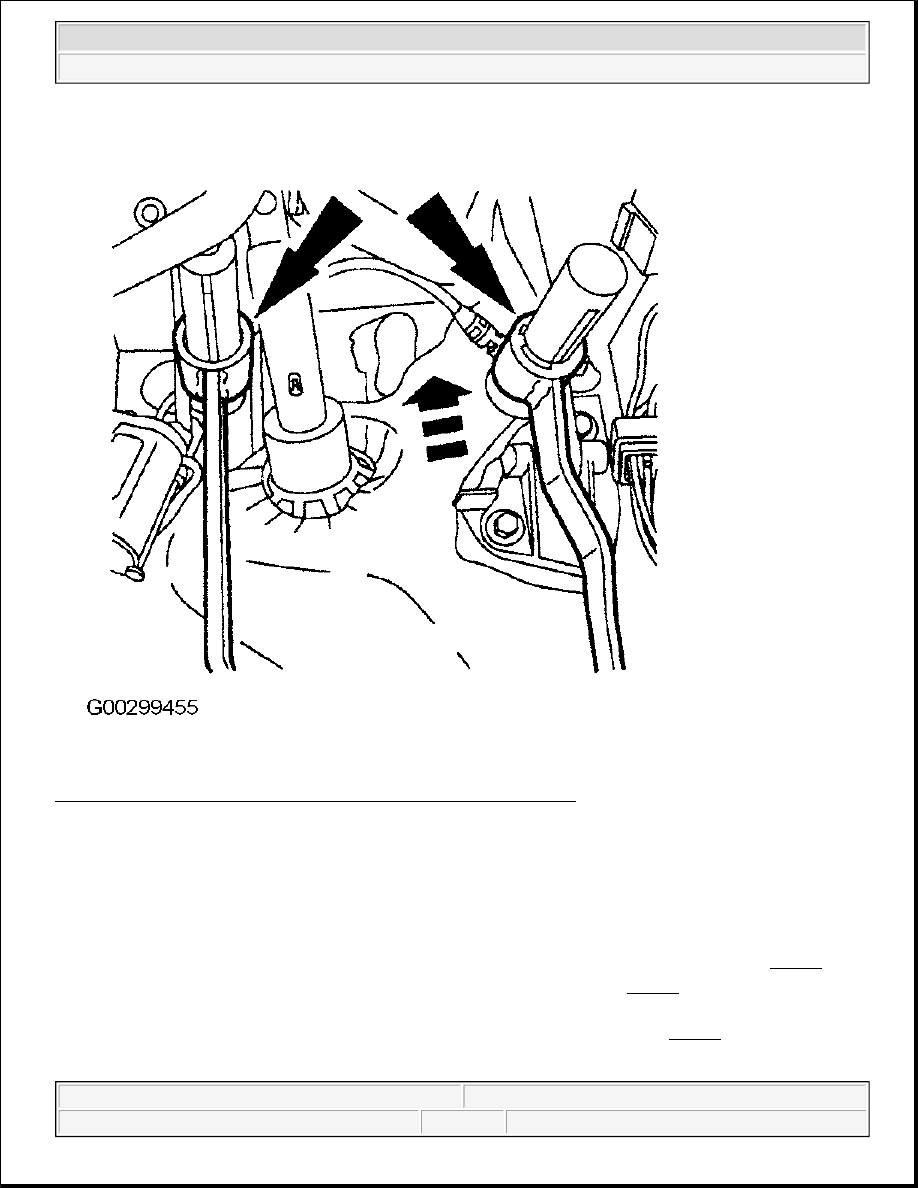

Fig. 44: Identifying Accelerator & Brake Pedal In Forward Position
Courtesy of FORD MOTOR CO.

BRAKE PEDAL ADJUSTMENT CONTROL SWITCH

Removal & Installation

1. Disconnect the battery negative cable.

2. Using a small screwdriver, carefully pry the headlight switch from the instrument panel. See Fig. 45 .

3. Disconnect the harness connectors and remove the headlight switch. See Fig. 46 .

4. Push the adjustable pedal switch out of the instrument panel far enough to access the harness connector.

Disconnect the harness connector and remove the adjustable pedal switch. See Fig. 47 .

5. To install, reverse the removal procedure.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



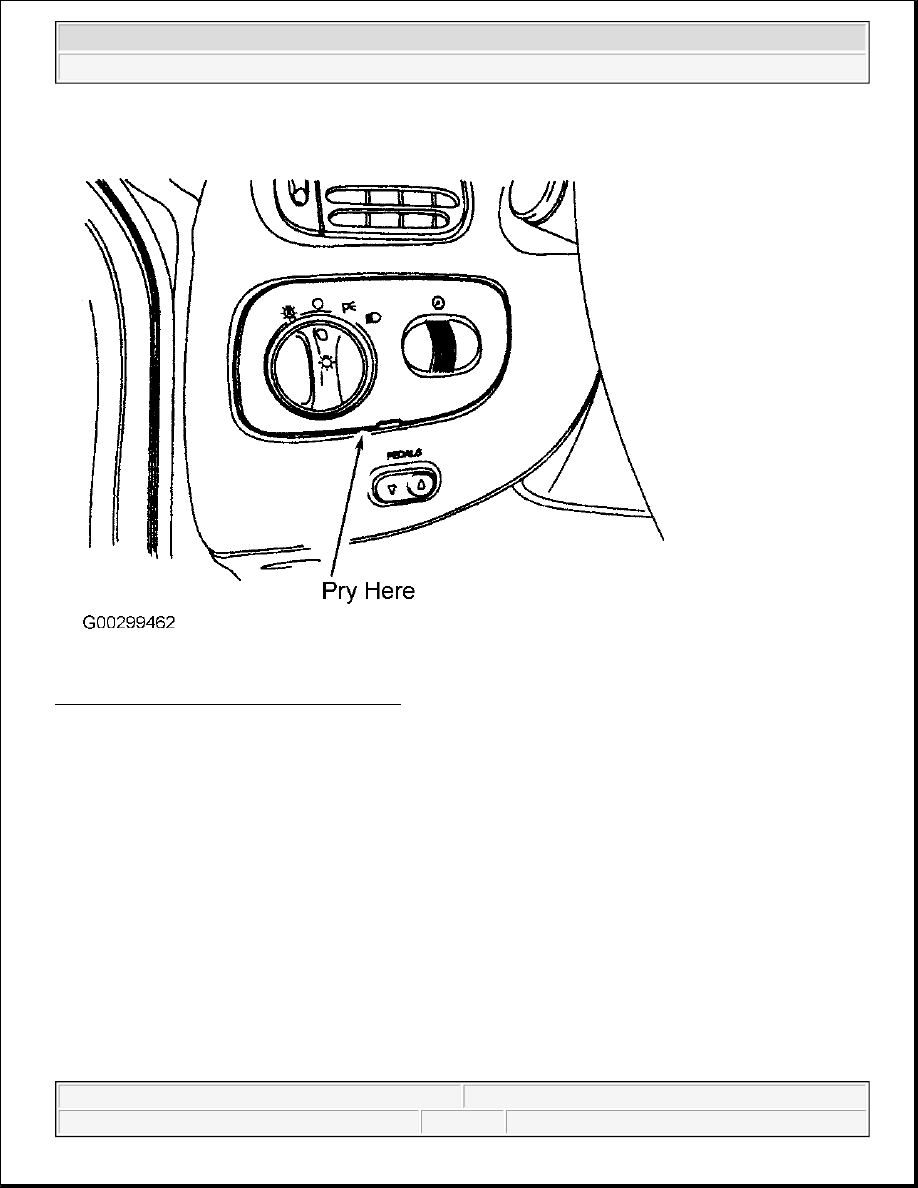

Fig. 45: Locating Headlight Switch Pry Point
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup
