Ford F150 Pickup. Instruction - part 366

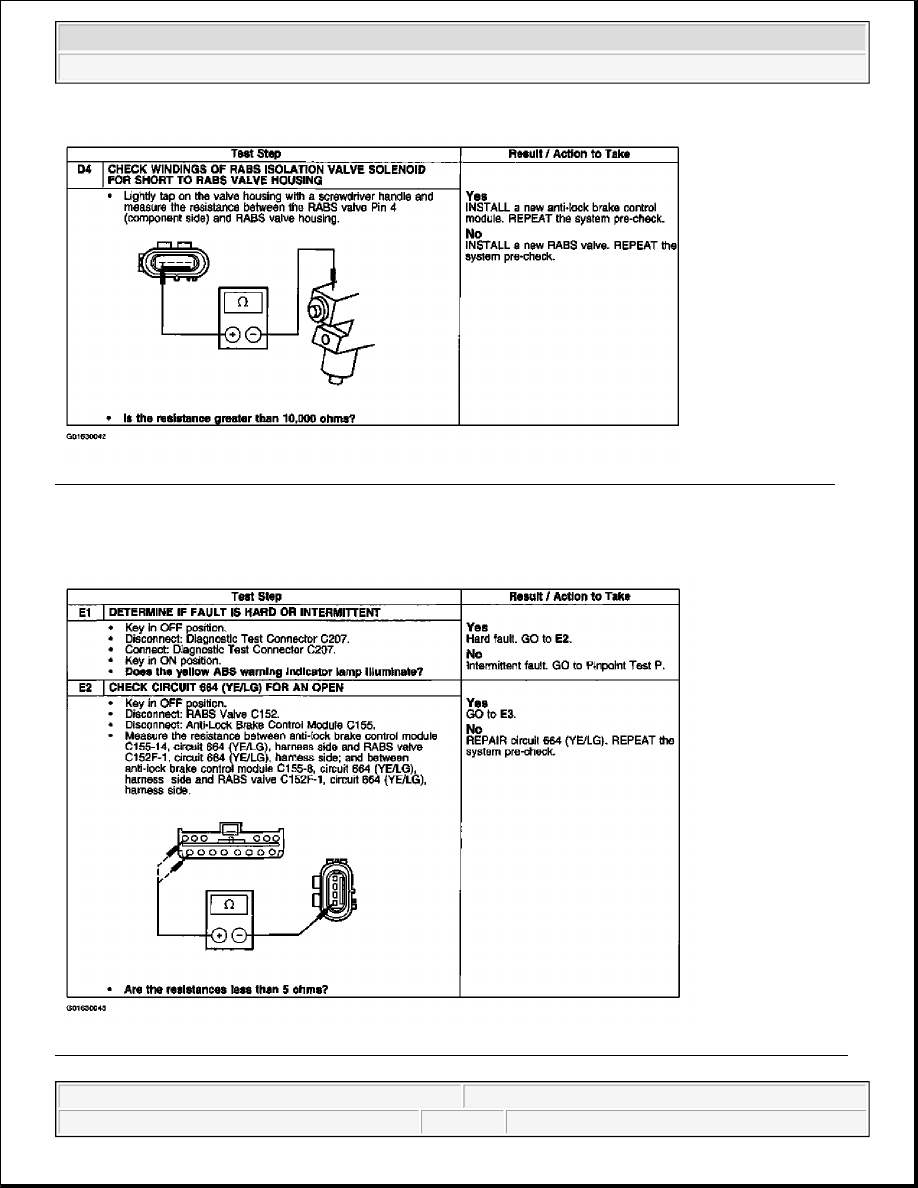

Fig. 15: Pinpoint Test D: DTC 2 - Open RABS Isolation Solenoid Circuit - Diagnostic Chart (Step D4)
Courtesy of FORD MOTOR CO.

Pinpoint Test E: Diagnostic Trouble Code (DTC) 3 - Open RABS Dump Solenoid Circuit

Fig. 16: Pinpoint Test E: DTC 3 - Open RABS Dump Solenoid Circuit - Diagnostic Chart (Steps E1-E2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

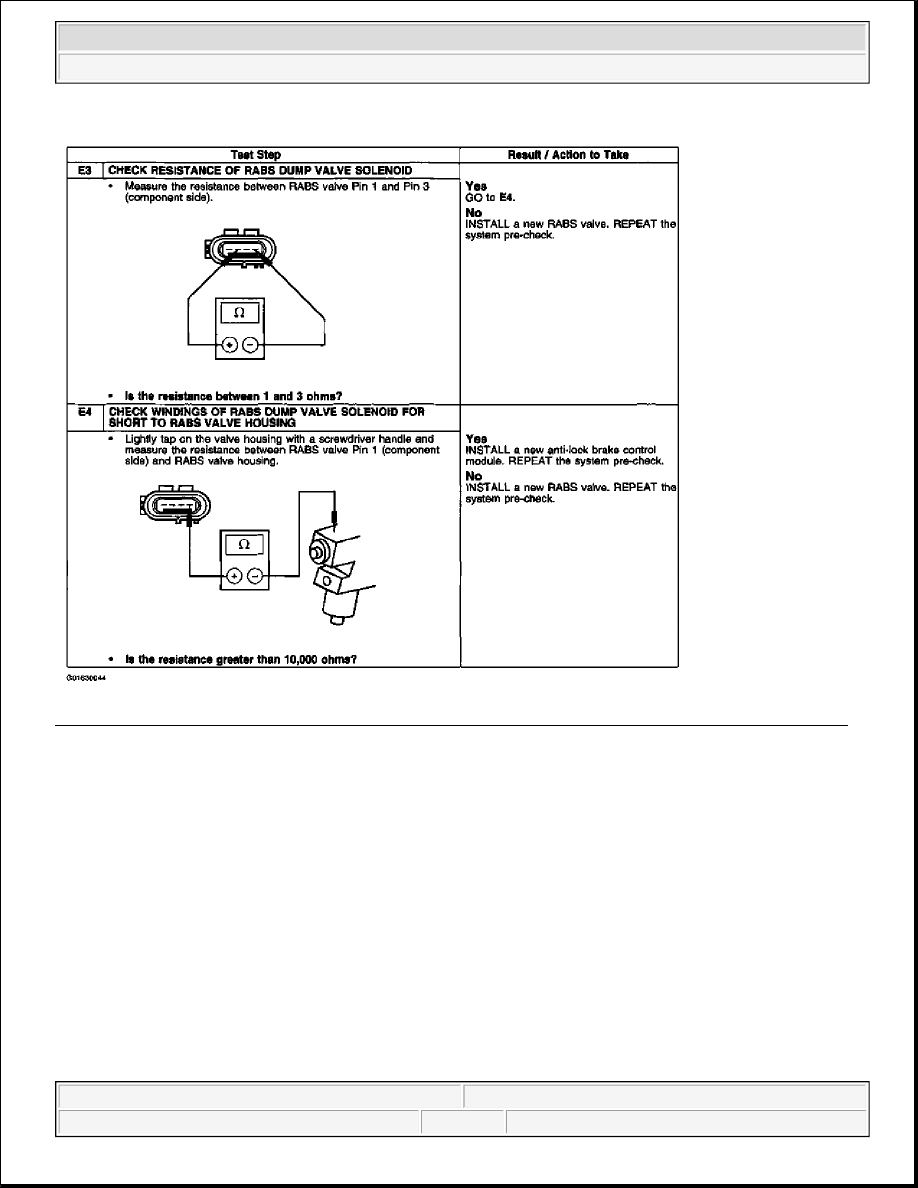

Fig. 17: Pinpoint Test E: DTC 3 - Open RABS Dump Solenoid Circuit - Diagnostic Chart (Steps E3-E4)
Courtesy of FORD MOTOR CO.

Pinpoint Test F: Diagnostic Trouble Code (DTC) 4 - Grounded/Open RABS Valve Reset Switch Circuit

NOTE:

Records maintained by the manufacturer show that a module replacement
rarely corrects DTC 4.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



Fig. 18: Pinpoint Test F: DTC 4 - Grounded/Open RABS Valve Reset Switch Circuit - Diagnostic Chart
(Steps F1-F2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



Fig. 19: Pinpoint Test F: DTC 4 - Grounded/Open RABS Valve Reset Switch Circuit - Diagnostic Chart
(Steps F3-F5)
Courtesy of FORD MOTOR CO.

Pinpoint Test G: Diagnostic Trouble Code (DTC) 5 - Excessive Dump Solenoid Activity



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup
