Ford F150 Pickup. Instruction - part 353

Courtesy of FORD MOTOR CO.

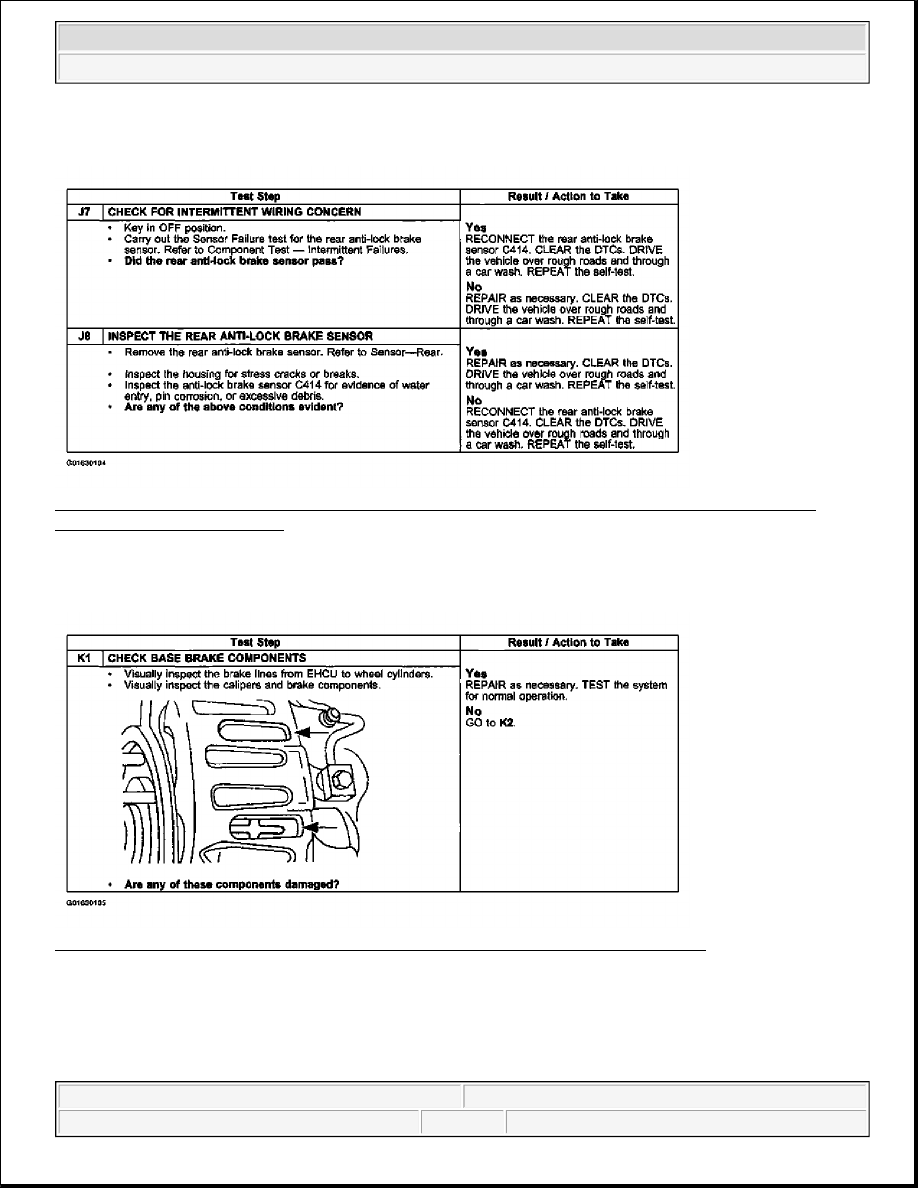

Fig. 31: Pinpoint Test J: DTCs C1229, C1237: Rear Anti-Lock Brake Sensor Diagnosis (Dynamic) -
Diagnosis Chart (Steps J7-J8)
Courtesy of FORD MOTOR CO.

Pinpoint Test K: Soft Or Excessive Pedal Travel

Fig. 32: Pinpoint Test K: Soft Or Excessive Pedal Travel - Diagnosis Chart (Step K1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Fig. 33: Pinpoint Test K: Soft Or Excessive Pedal Travel - Diagnosis Chart (Step K2)
Courtesy of FORD MOTOR CO.

Pinpoint Test L: DTCs C1095, C1096: Pump Motor Failure

Fig. 34: Pinpoint Test L: DTCs C1095, C1096: Pump Motor Failure - Diagnosis Chart (Step L1)



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Courtesy of FORD MOTOR CO.

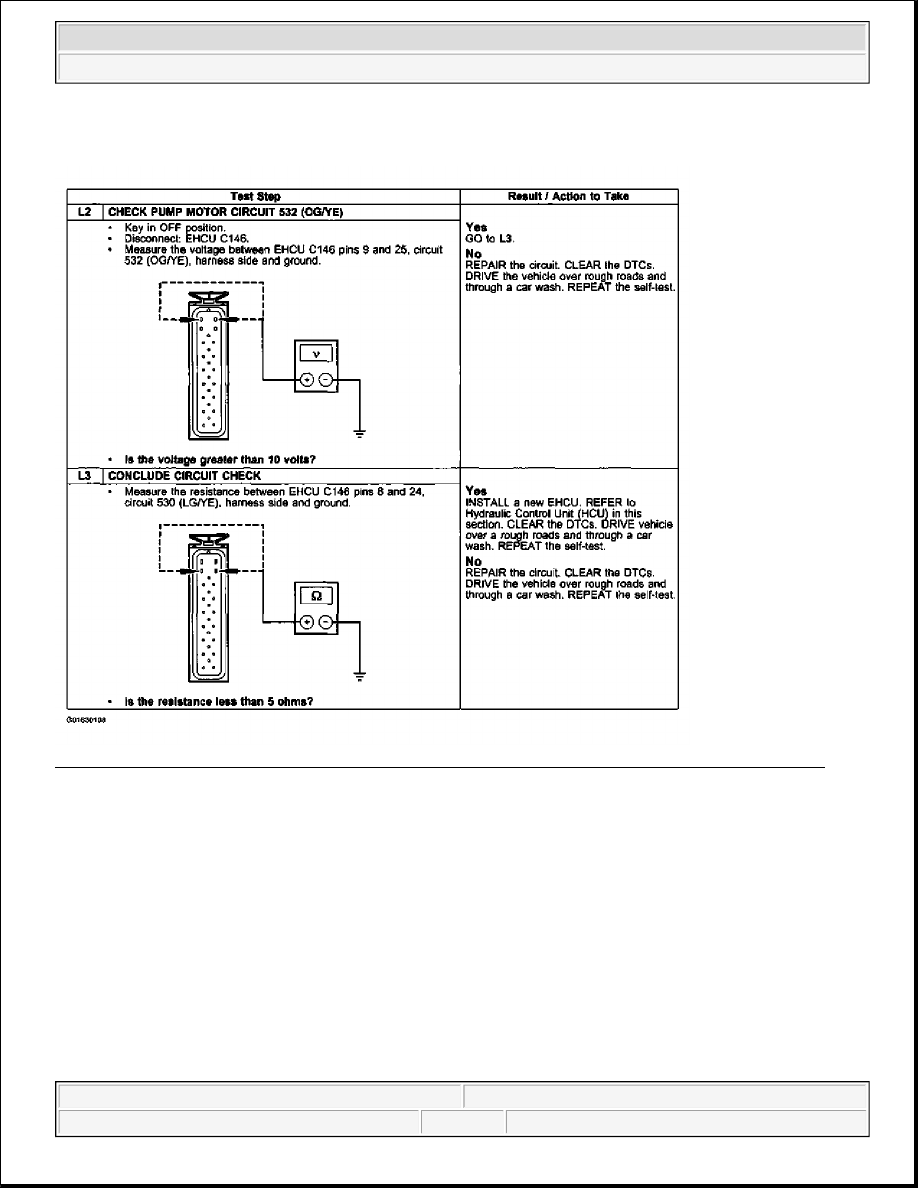

Fig. 35: Pinpoint Test L: DTCs C1095, C1096: Pump Motor Failure - Diagnosis Chart (Steps L2-L3)
Courtesy of FORD MOTOR CO.

Pinpoint Test M: DTCs C1113, C1115, C1185: Internal Power Relay Failure



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

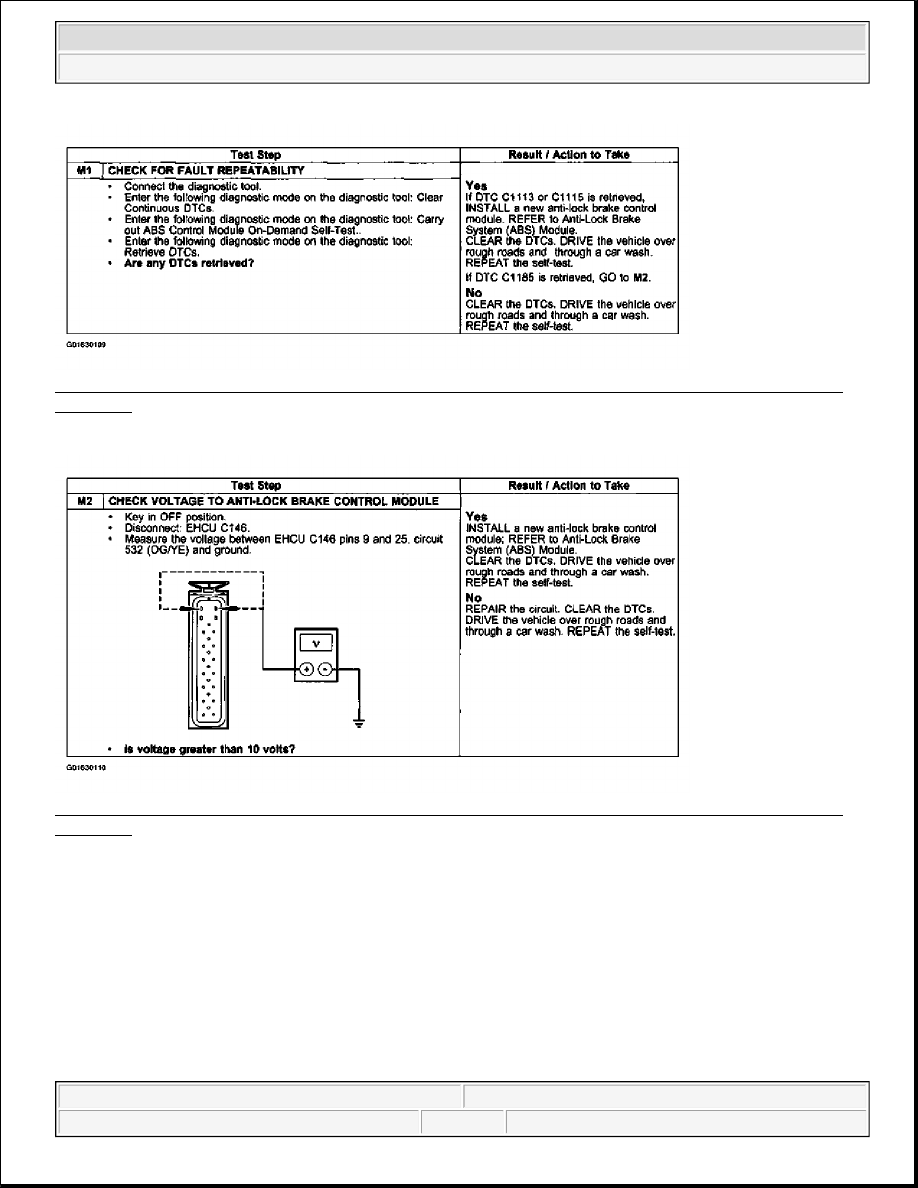

Fig. 36: Pinpoint Test M: DTCs C1113, C1115, C1185: Internal Power Relay Failure - Diagnosis Chart
(Step M1)
Courtesy of FORD MOTOR CO.

Fig. 37: Pinpoint Test M: DTCs C1113, C1115, C1185: Internal Power Relay Failure - Diagnosis Chart
(Step M2)
Courtesy of FORD MOTOR CO.

Pinpoint Test N: DTCs C1184: ABS System Timeout, C1222 - Wheel Speed Error (Dynamic)



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup
