Ford F150 Pickup. Instruction - part 348





ABS CONTROL MODULE PARAMETER IDENTIFICATION (PID) INDEX

ABS Control Module Parameter Identification (PID) Index

Failure

C1194/C1196 Dump Valve, Front Left

ABS

Go To PINPOINT TEST D .

C1198/C1200 Isolation Valve, Front Left

ABS

Go To PINPOINT TEST D .

C1202/C1204 Dump Valve, Rear

ABS

Go To PINPOINT TEST D .

C1206/C1208 Isolation Valve, Rear

ABS

Go To PINPOINT TEST D .

C1210/C1212 Dump Valve, Front Right

ABS

Go To PINPOINT TEST D .

C1214/C1216 Isolation Valve, Front Right

ABS

Go To PINPOINT TEST D .

C1155

Front Left Anti-Lock Brake
Sensor (Electrical/Static)

ABS

Go To PINPOINT TEST E .

C1158/C1233 Front Left Anti-Lock Brake

Sensor (Dynamic)

ABS

Go To PINPOINT TEST F .

C1145

Front Right Anti-Lock Brake
Sensor (Electrical/Static)

ABS

Go To PINPOINT TEST G .

C1148/C1234 Front Right Anti-Lock Brake

Sensor (Dynamic)

ABS

Go To PINPOINT TEST H

C1230

Rear Anti-Lock Brake Sensor
(Electrical/Static)

ABS

Go To PINPOINT TEST I .

C1229

Rear Anti-Lock Brake Sensor
(Dynamic)

ABS

Go To PINPOINT TEST J .

C1095/C1096 Pump Motor

ABS

Go To PINPOINT TEST L .

C1113/C1115 Internal Power Relay

ABS

Go To PINPOINT TEST M .

C1185

Open Internal Power Relay

ABS

Go To PINPOINT TEST M .

C1169

Excessive Dump Time

ABS

Go To PINPOINT TEST O .

C1184

ABS System Timeout

ABS

Go To PINPOINT TEST N .

C1222

Wheel Speed Error

ABS

Go To PINPOINT TEST N .



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

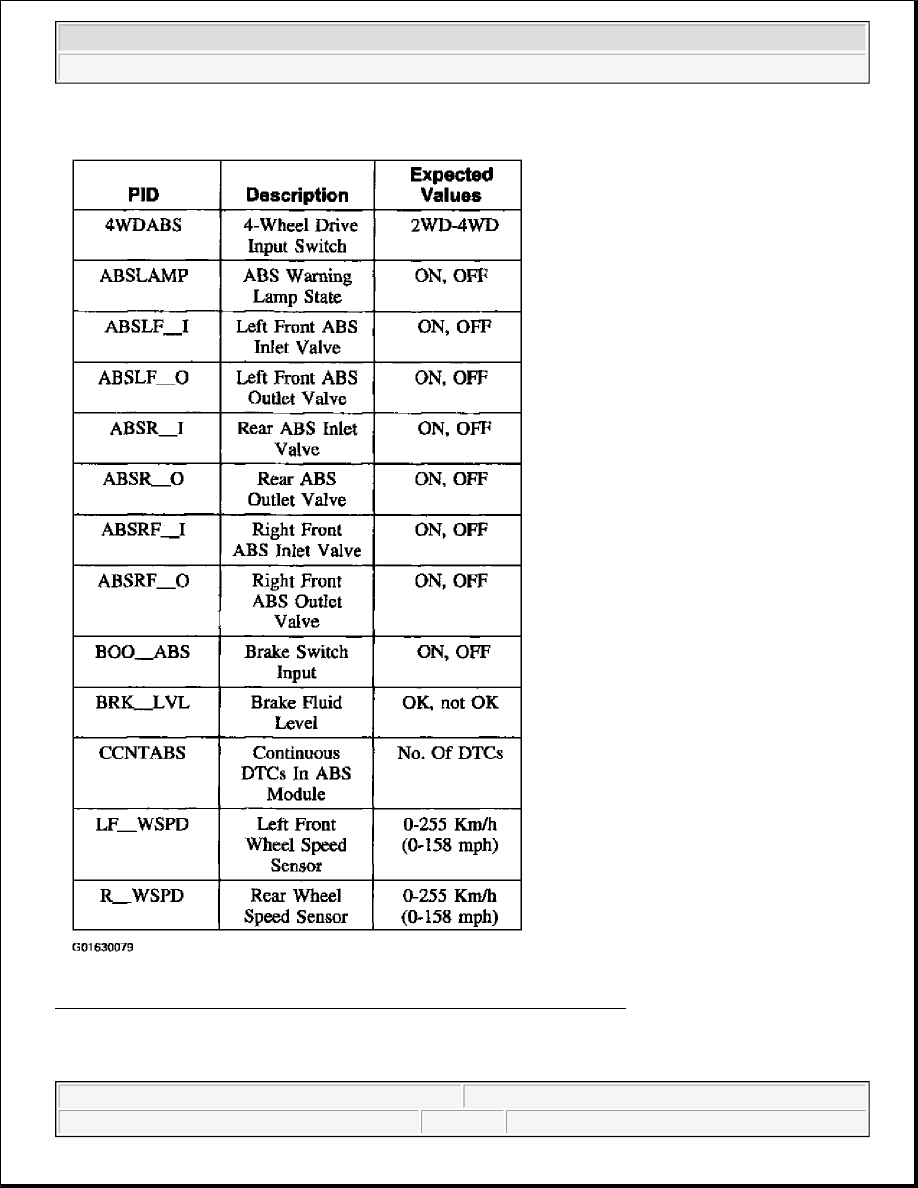

Fig. 6: ABS Control Module Parameter Identification (PID) Index (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

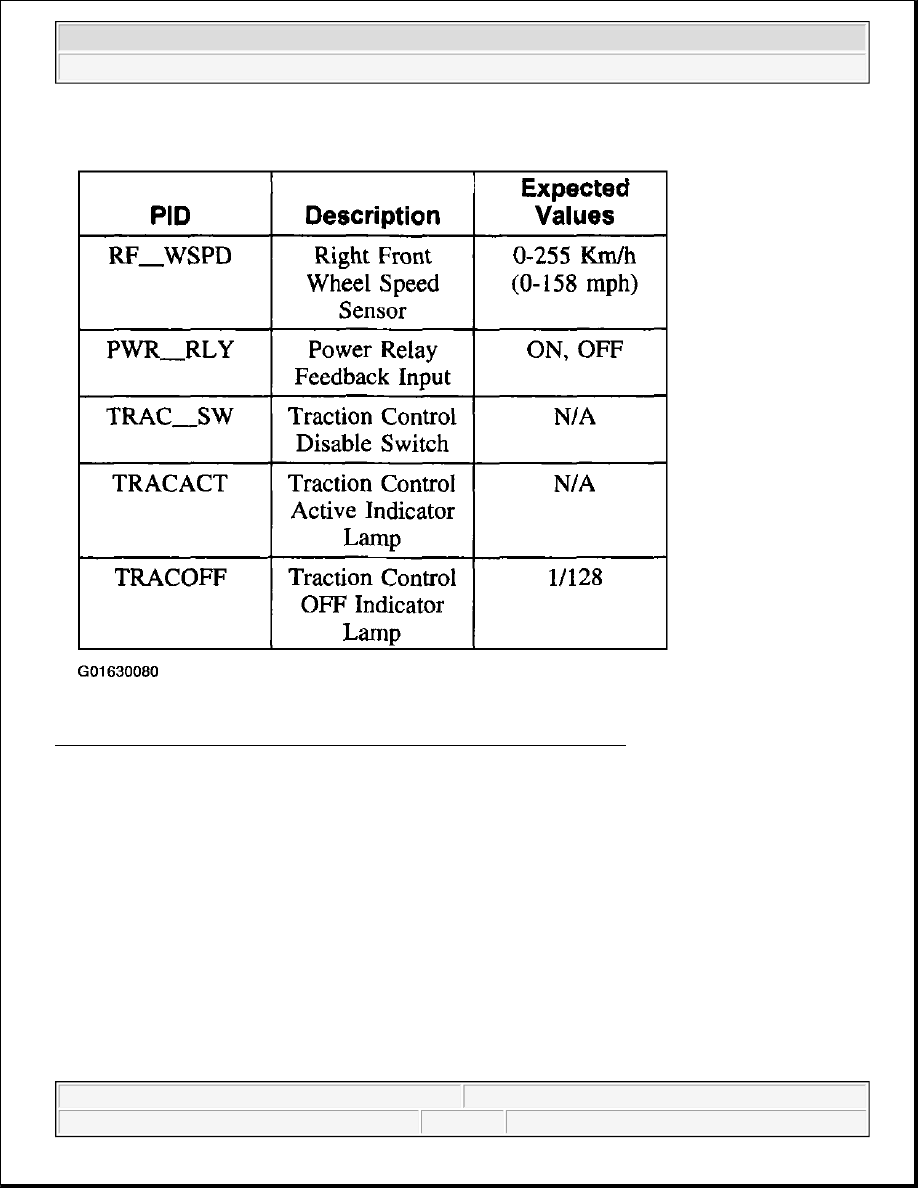

Fig. 7: ABS Control Module Parameter Identification (PID) Index (2 Of 2)
Courtesy of FORD MOTOR CO.

ABS CONTROL MODULE ACTIVE COMMAND INDEX

ABS Control Module Active Command Index



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Fig. 8: ABS Control Module Active Command Index
Courtesy of FORD MOTOR CO.

SYMPTOM CHART

Fig. 9: Anti-Lock Control - 4-Wheel Symptom Chart (1 Of 3)
Courtesy of FORD MOTOR CO.

NOTE:

Refer to ANTI-LOCK BRAKES .



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup
