Ford F150 Pickup. Instruction - part 327

Fig. 20: Pinpoint Test C: High/Low Wiper Speeds Do Not Operate Correctly (C5 - C6)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

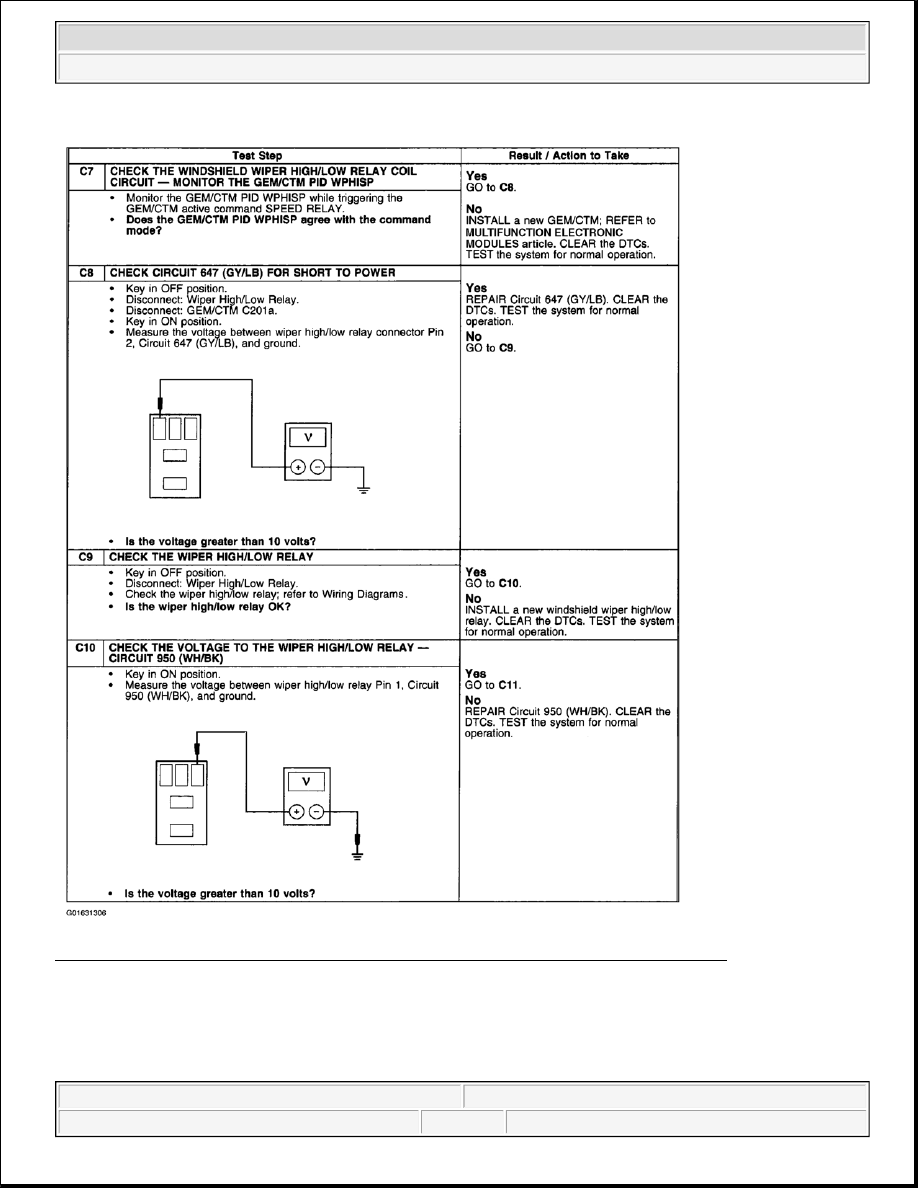

Fig. 21: Pinpoint Test C: High/Low Wiper Speeds Do Not Operate Correctly (C7 - C10)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 22: Pinpoint Test C: High/Low Wiper Speeds Do Not Operate Correctly (C11 - C13)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 23: Pinpoint Test C: High/Low Wiper Speeds Do Not Operate Correctly (C13)
Courtesy of FORD MOTOR CO.

PINPOINT TEST D: INTERMITTENT WIPER SPEED DOES NOT OPERATE CORRECTLY

Fig. 24: Pinpoint Test D: Intermittent Wiper Speed Does Not Operate Correctly (D1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup
