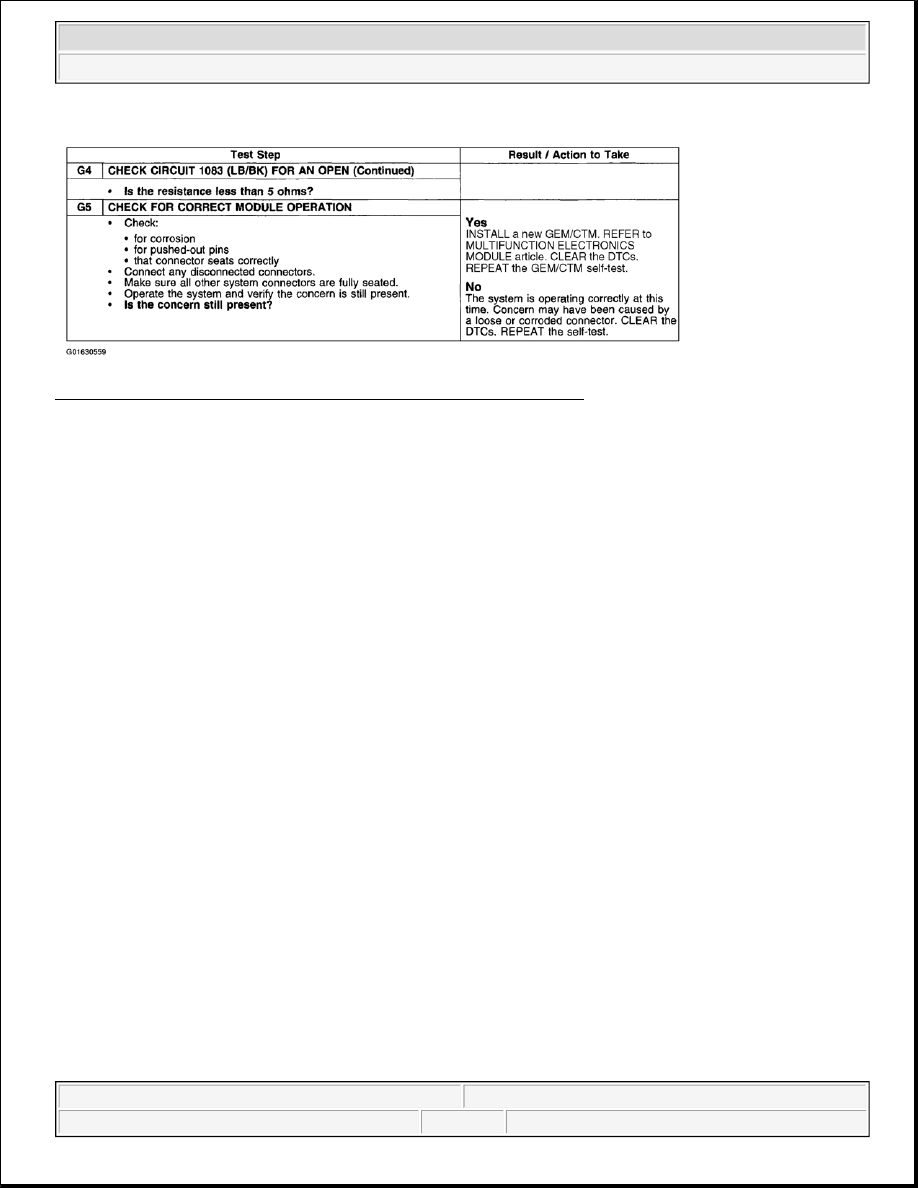

Fig. 19: Pinpoint Test G: A Chime Is Inoperative - Air Bag (G4 - G5)
Courtesy of FORD MOTOR CO.
GENERAL PROCEDURES
BELT MINDER DEACTIVATING/ACTIVATING
Preparation
1. Before deactivating/activating the belt minder, set the parking brake.
2. Place gearshift in P (Park) (automatic transmission) or the neutral position (instruction transmission)
3. Place the ignition switch in the OFF position
4. Close all the vehicle doors
5. Unbuckle the driver's safety belt
6. Place the parklamps/headlamps switch in the OFF position (If vehicle is equipped with Autolamps, this
will not affect the procedure)
Deactivating/Activating
1. Turn the ignition switch to the RUN position. (Do not start the engine)
2. Wait until the safety belt warning lamp turns off. (Approximately one to two minutes)
3. Buckle then unbuckle the safety belt three times, ending with the safety belt unbuckled.
This portion of the procedure can be done before or during belt minder warning activation.
4. Turn the parklamps/headlamps on then off.
5. Buckle then unbuckle the safety belt three times ending with the safety belt unbuckled. After this step the
safety belt warning lamp will be illuminated for three seconds.
NOTE:
Steps 3 through 5 must be completed within 60 seconds or the procedure
must be repeated.
2003 Ford Pickup F150
2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup
