Fig. 345: Removing Outer And Front Safety Belt Web Guides
Courtesy of FORD MOTOR CO.

10. Release the backrest J-clip.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

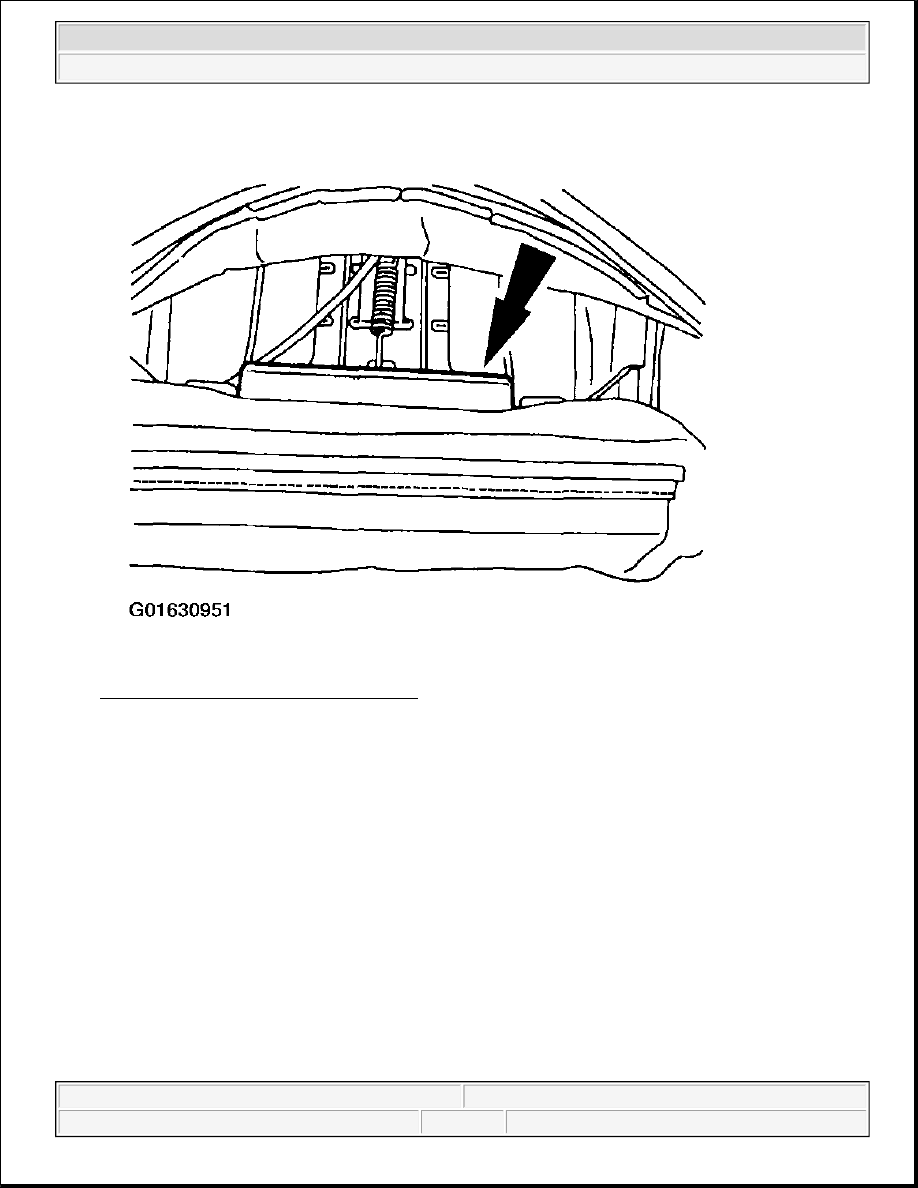

Fig. 346: Releasing Backrest J-Clip
Courtesy of FORD MOTOR CO.

11. Release the inner backrest J-clip.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 347: Releasing Inner Backrest J-Clip
Courtesy of FORD MOTOR CO.

NOTE:

Use care when separating the seat backrest covering from the hook and
loop fasteners to avoid tearing the fastener from the seat foam.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 348: Identifying Seat Fabric From Cushion Hook And Loop Fasteners
Courtesy of FORD MOTOR CO.

12. Separate the seat fabric from the cushion hook and loop fasteners.

13. Remove the hog rings from the center of the seat trim cover. Remove the seat trim cover from the foam

pad.
