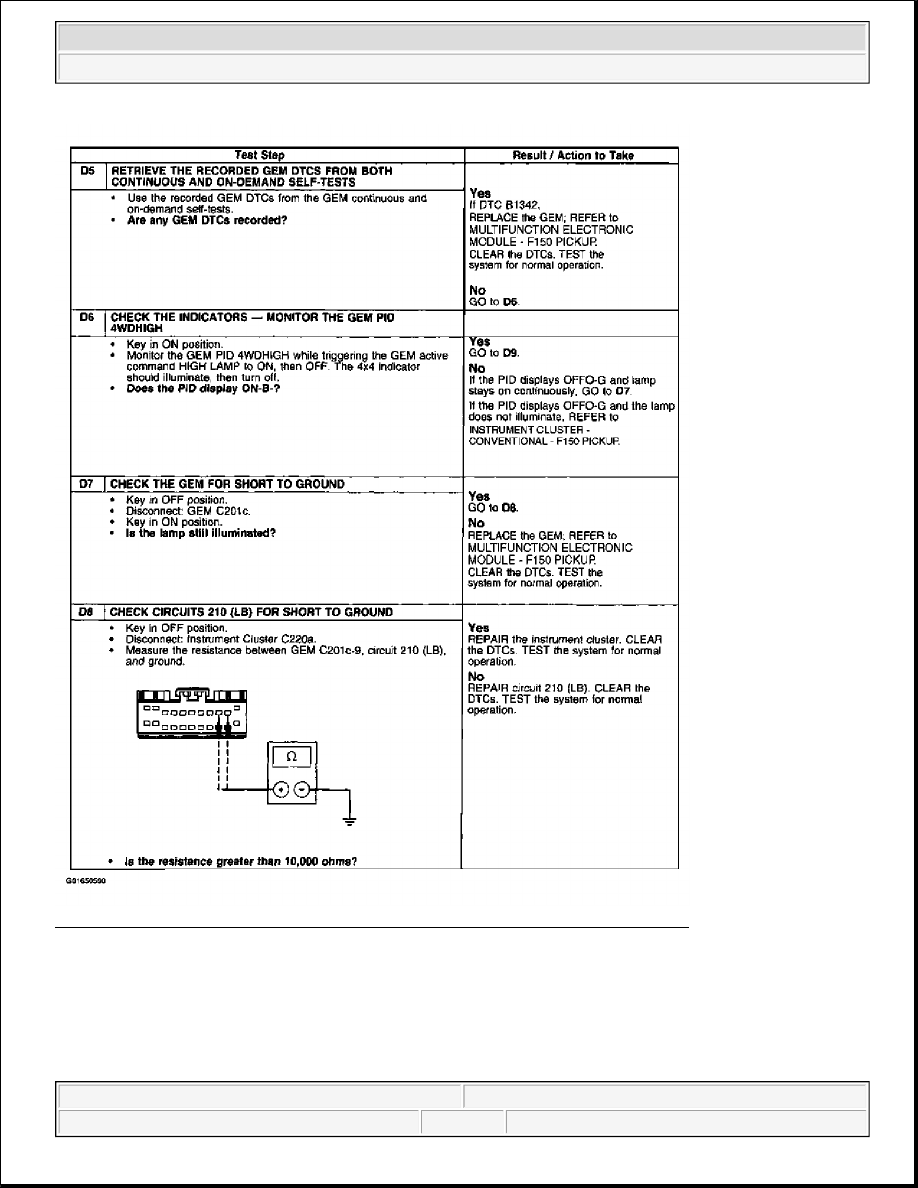

Fig. 63: Pinpoint Test D: 4X4 Indicator Does Not Operate Correctly (Steps D5-D8)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

Fig. 64: Pinpoint Test D: 4X4 Indicator Does Not Operate Correctly (Steps D9-D10)
Courtesy of FORD MOTOR CO.

Pinpoint Test E: 4X4 High Does Not Engage At Speed Correctly (Driveline Does Not Synchronize Correctly) But Does
Engage At Rest

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

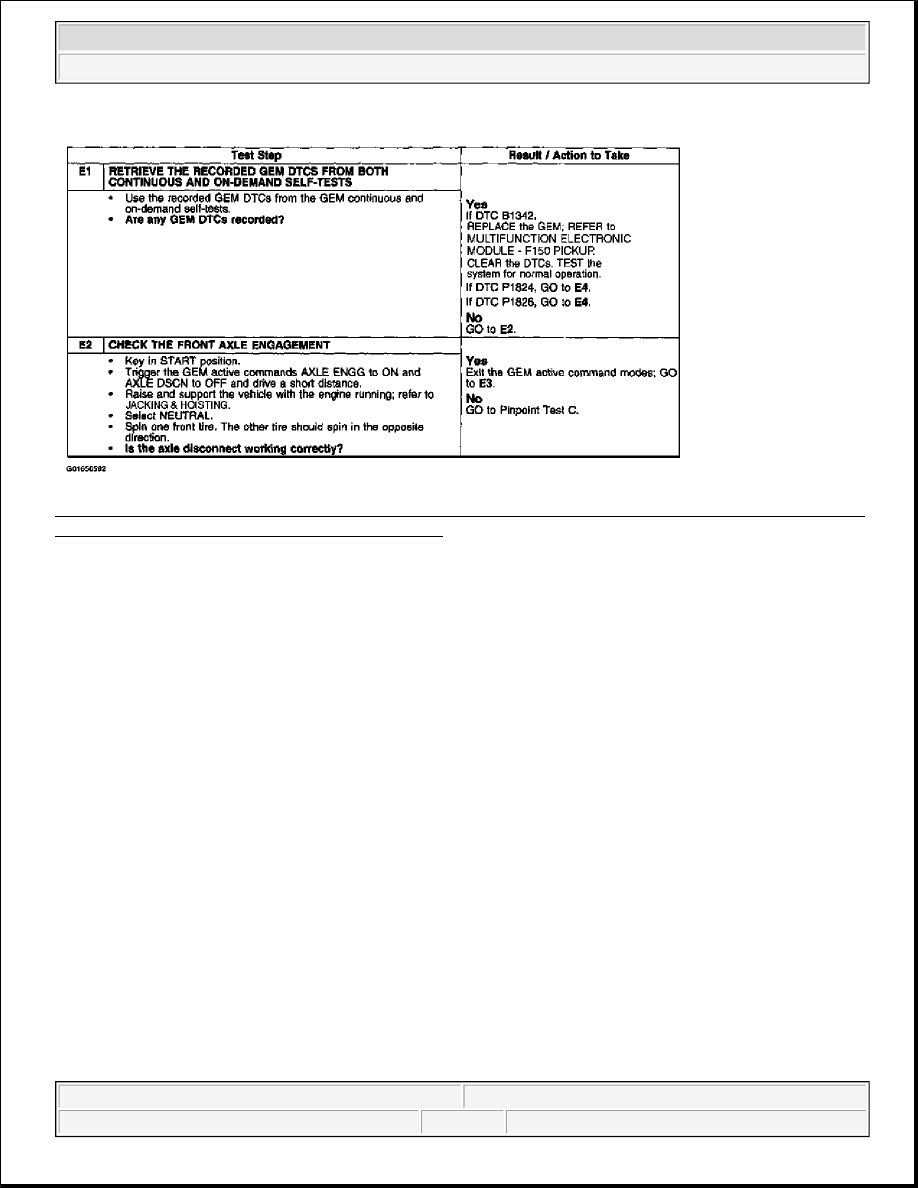

Fig. 65: Pinpoint Test E: 4X4 High Does Not Engage At Speed Correctly (Driveline Does Not Synchronize
Correctly) But Does Engage At Rest (Steps E1-E2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

Fig. 66: Pinpoint Test E: 4X4 High Does Not Engage At Speed Correctly (Driveline Does Not Synchronize
Correctly) But Does Engage At Rest (Steps E3-E7)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup
