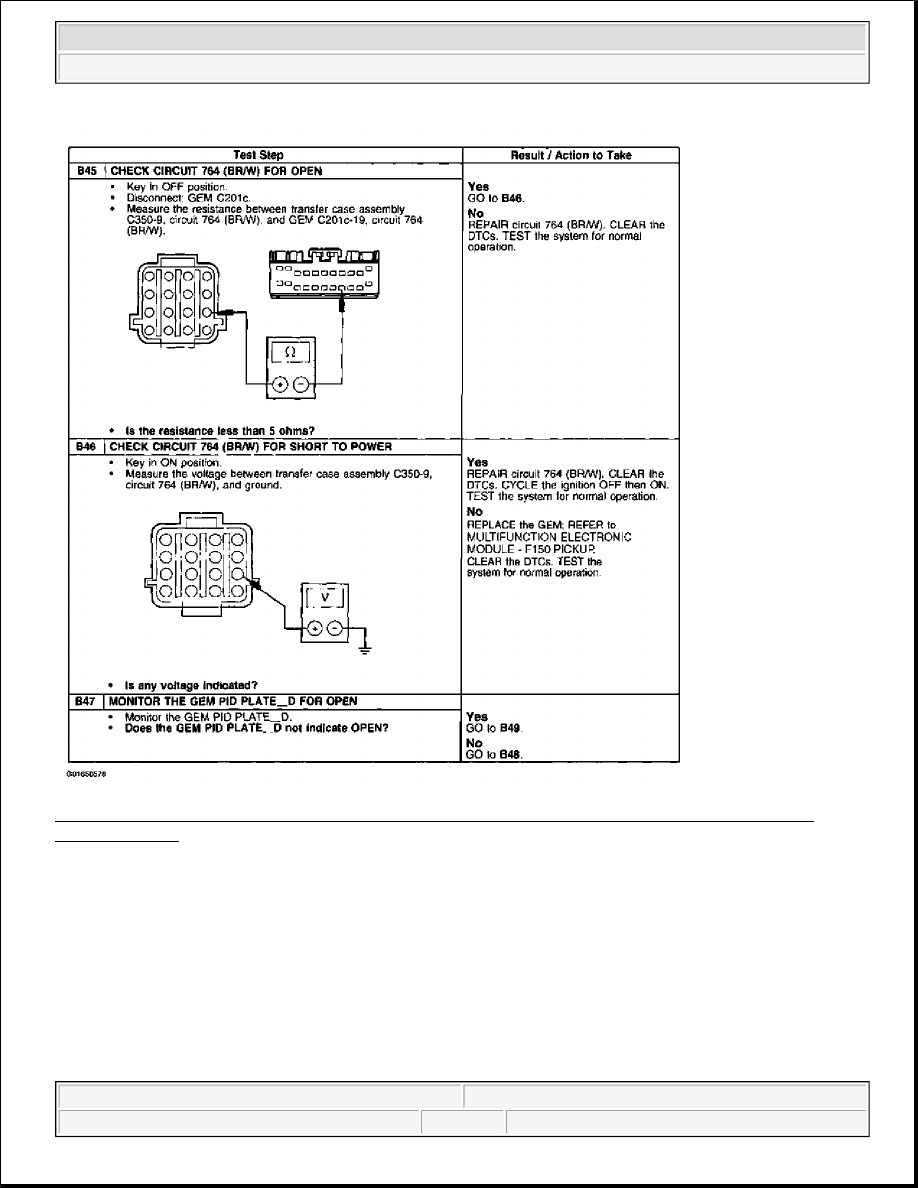

Fig. 51: Pinpoint Test B: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly
(Steps B45-B47)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

Fig. 52: Pinpoint Test B: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly
(Steps B48-B49)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

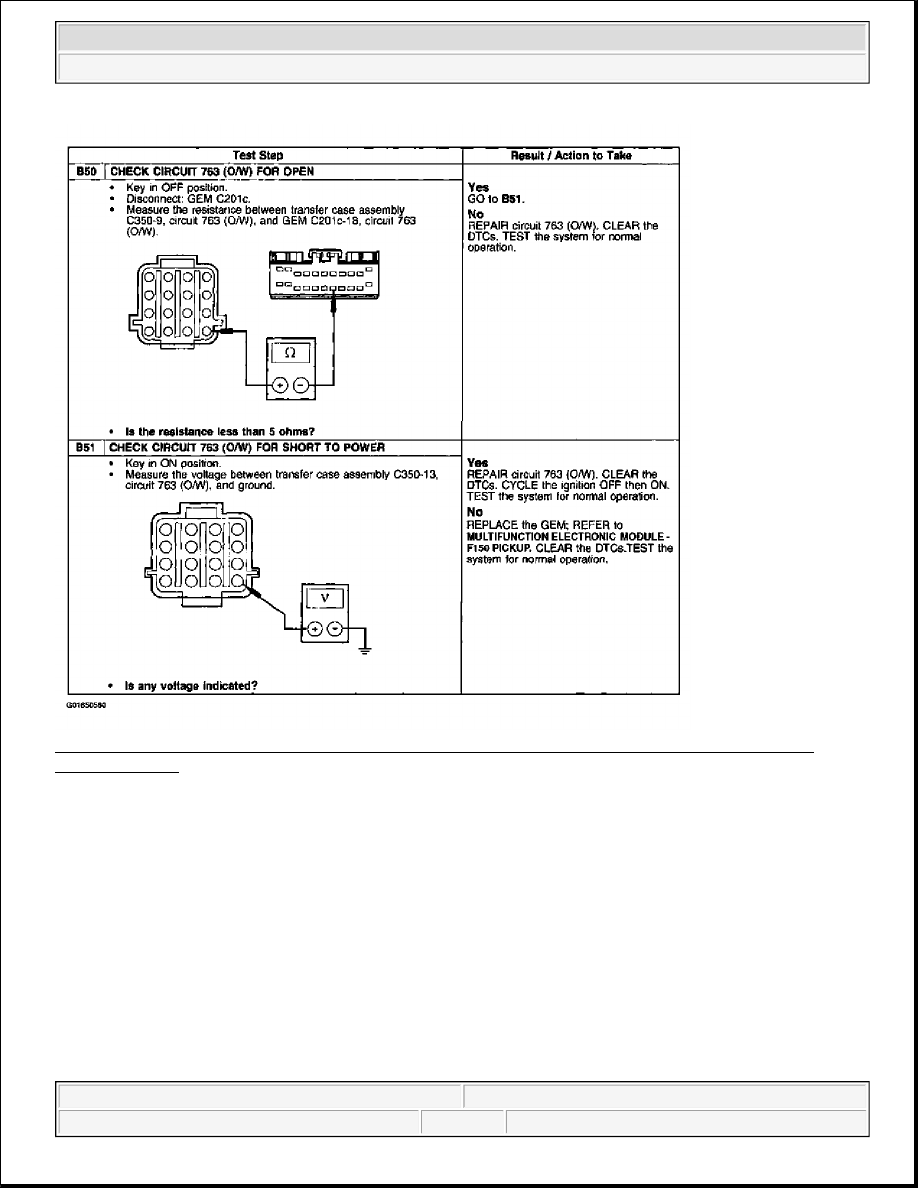

Fig. 53: Pinpoint Test B: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly
(Steps B50-B51)
Courtesy of FORD MOTOR CO.

Pinpoint Test C: Front Axle Is Not Engaging Correctly (Transfer Case Motor Movement Ok)

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

Fig. 54: Pinpoint Test C: Front Axle Is Not Engaging Correctly (Transfer Case Motor Movement Ok)
(Steps C1-C4)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup
