Ford F150 Pickup. Instruction - part 1941

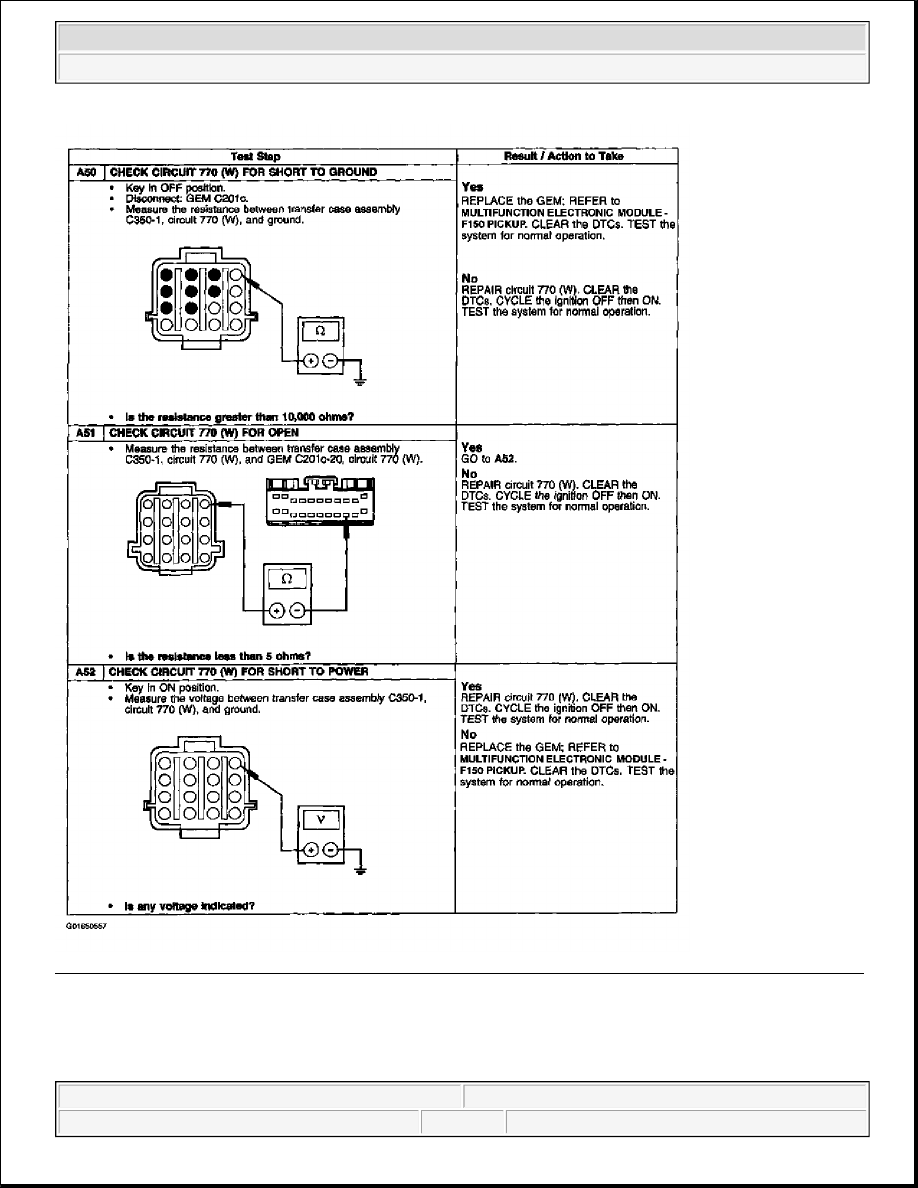

Fig. 30: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A50-A52)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

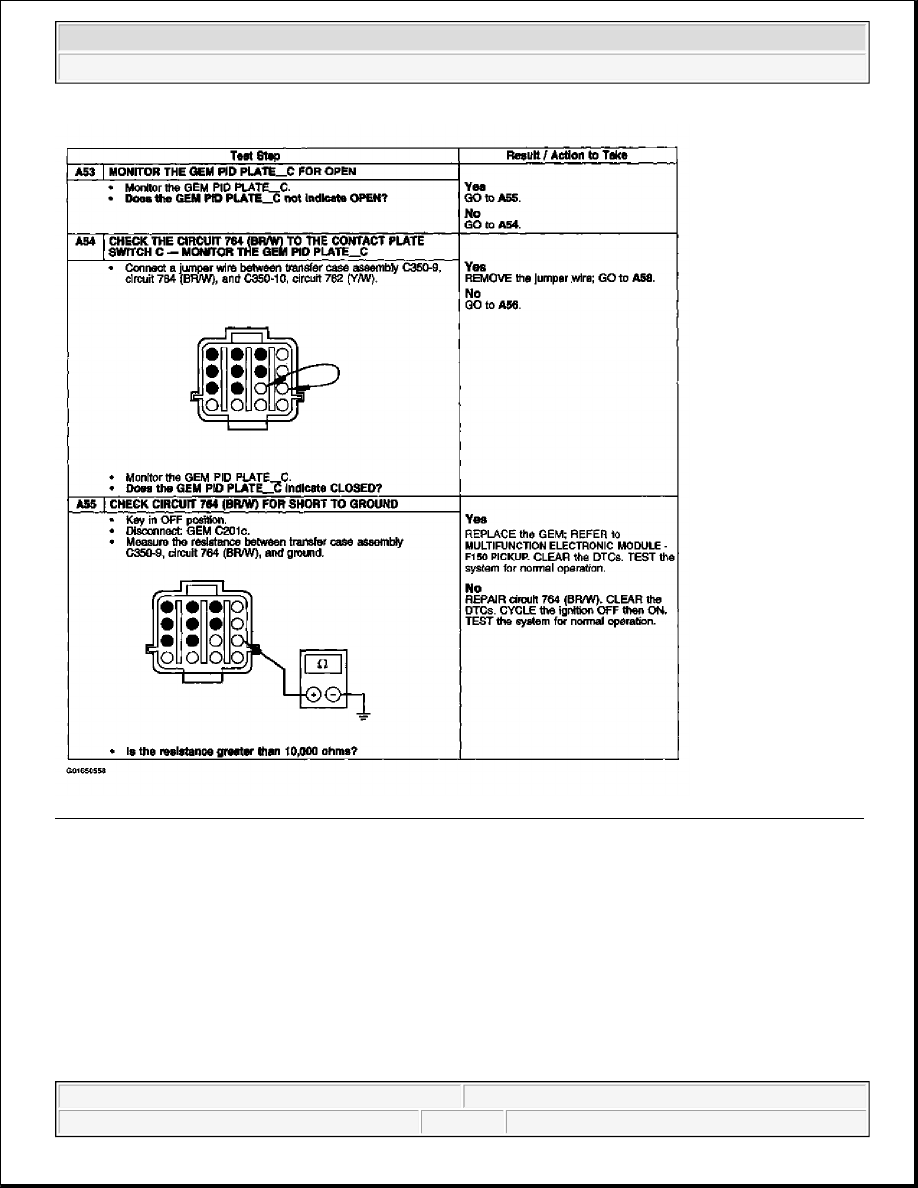

Fig. 31: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A53-A55)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

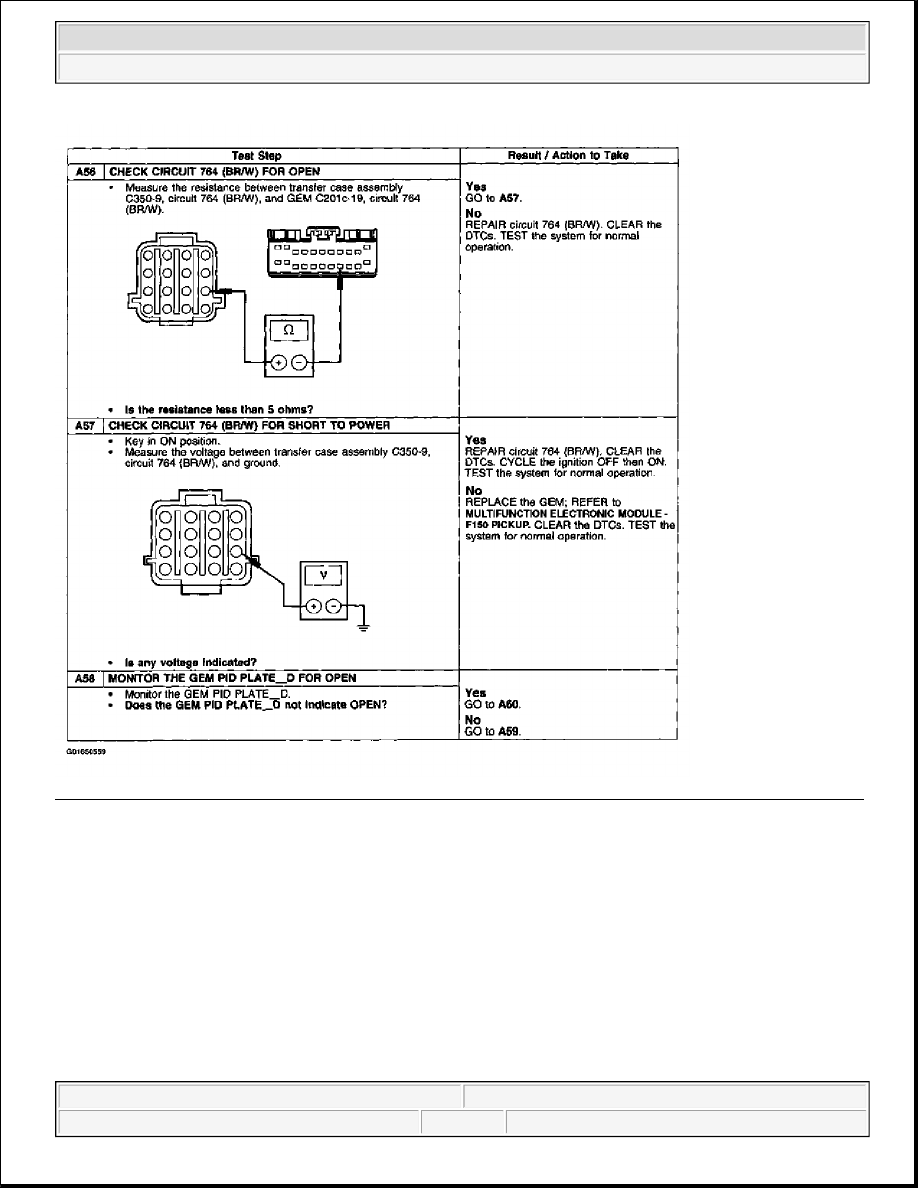

Fig. 32: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A56-A59)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

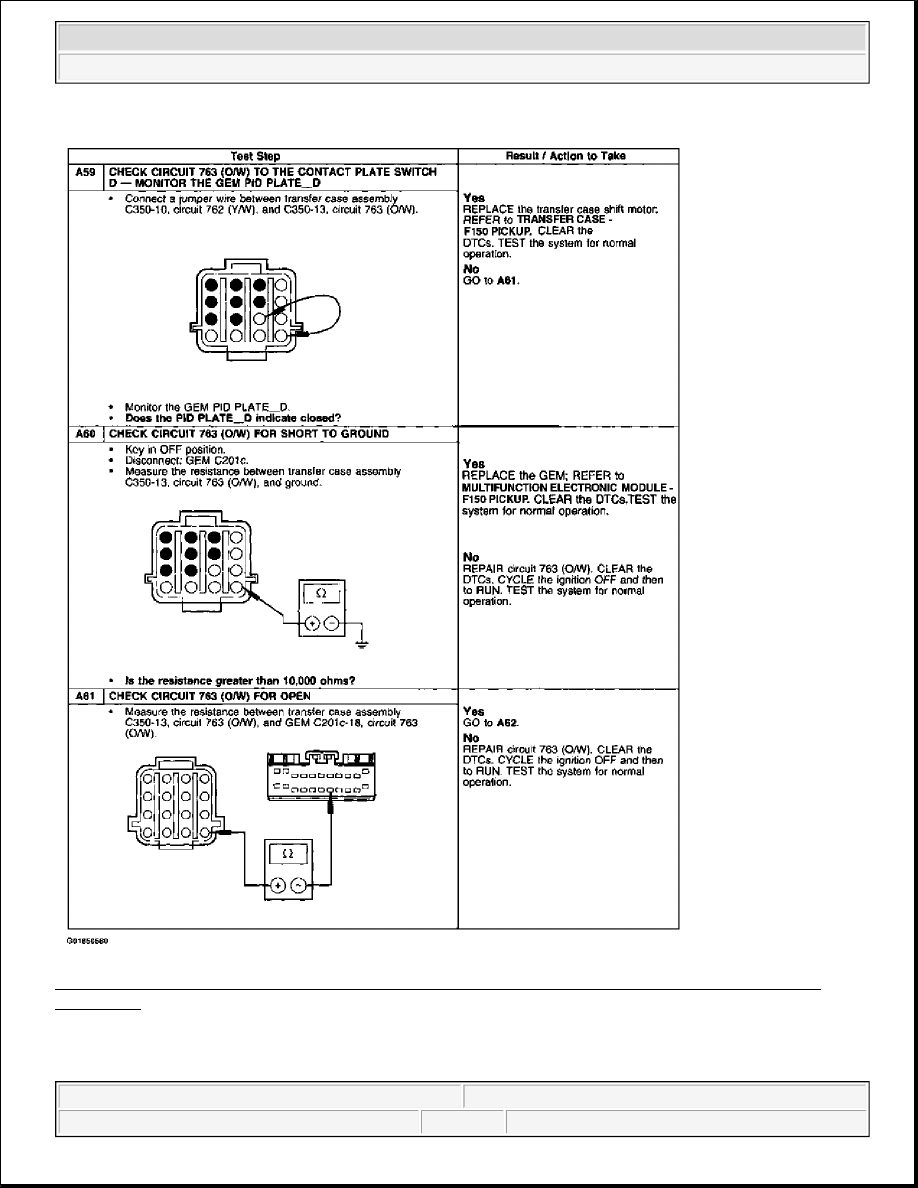

Fig. 33: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A59
Cont.-A61)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup
