Fig. 27: Removing Shift Cable Bracket From Transmission
Courtesy of FORD MOTOR CO.

4.2L Engine With 4R70W Transmission

7. Remove the shift cable bracket from the transmission.

1. Remove the nut.

2. Remove the bolt.

3. Remove the shift cable bracket.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup

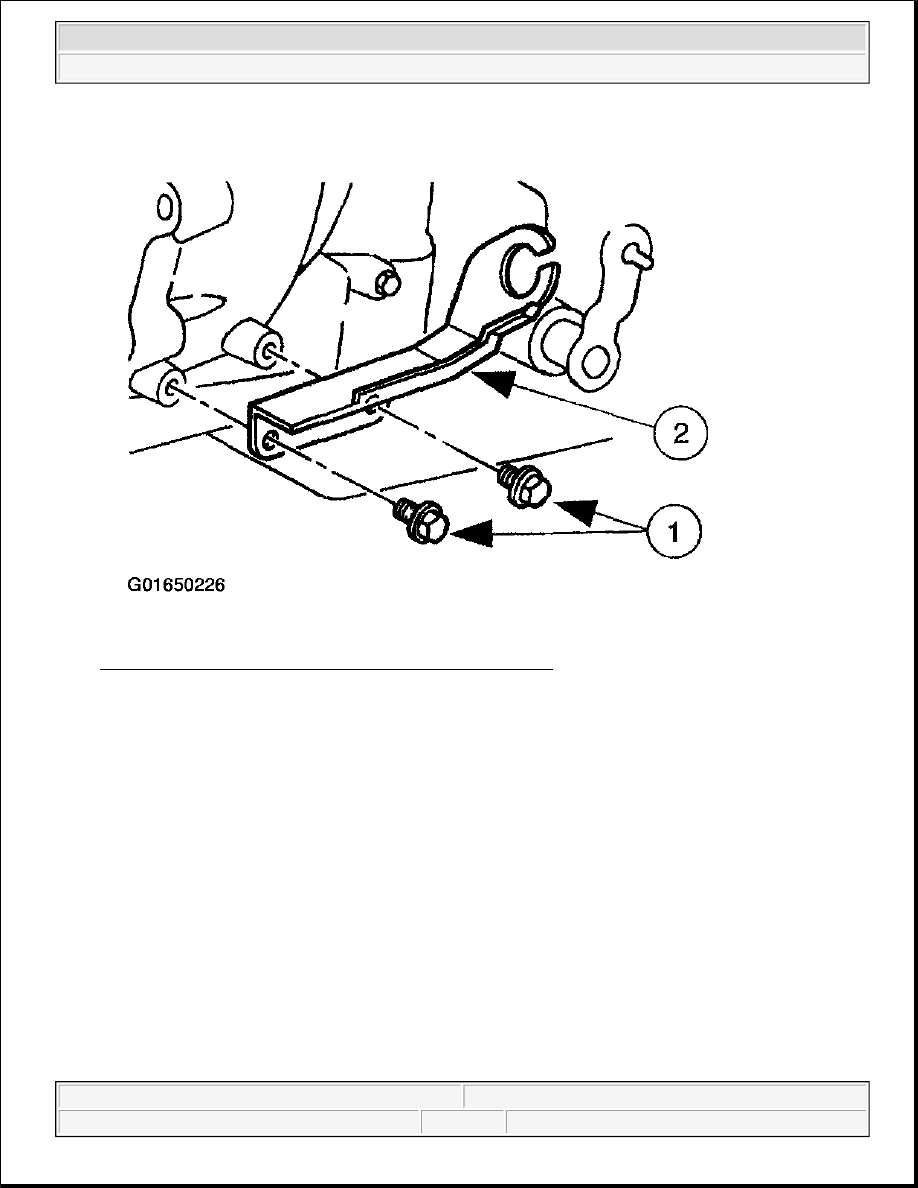

Fig. 28: Removing Shift Cable Bracket From Transmission
Courtesy of FORD MOTOR CO.

5.4L Engine With 4R100 Transmission

8. Remove the shift cable bracket from the transmission.

1. Remove the bolts.

2. Remove the shift cable bracket.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup



Fig. 29: Removing Shift Cable Bracket From Transmission
Courtesy of FORD MOTOR CO.

All Vehicles

9. To install, reverse the removal procedure.

z

Prior to installing the shift cable, verify the digital TR sensor adjustment. For additional
information, refer to AUTOMATIC TRANSMISSION-4R100 - F150 PICKUP or
AUTOMATIC TRANSMISSION-4R70W - F150 PICKUP .

z

Adjust the shift cable. For additional information, refer to CABLE ADJUSTMENT-SHIFT
INDICATOR .

SELECTOR LEVER

Removal & Installation

1. Remove the ignition switch lock cylinder (11582). For additional information, refer to STEERING

COLUMN SWITCHES - F150 PICKUP .

2. Remove the upper steering column shroud (3530).



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission External Controls - F150 Pickup



Fig. 30: Removing Upper Steering Column Shroud
Courtesy of FORD MOTOR CO.

3. Remove the gearshift lever (7210).

1. Disconnect the electrical connector.

2. Remove and discard the gearshift lever pin (7G357).

3. Remove the gearshift lever.



2003 Ford Pickup F150
