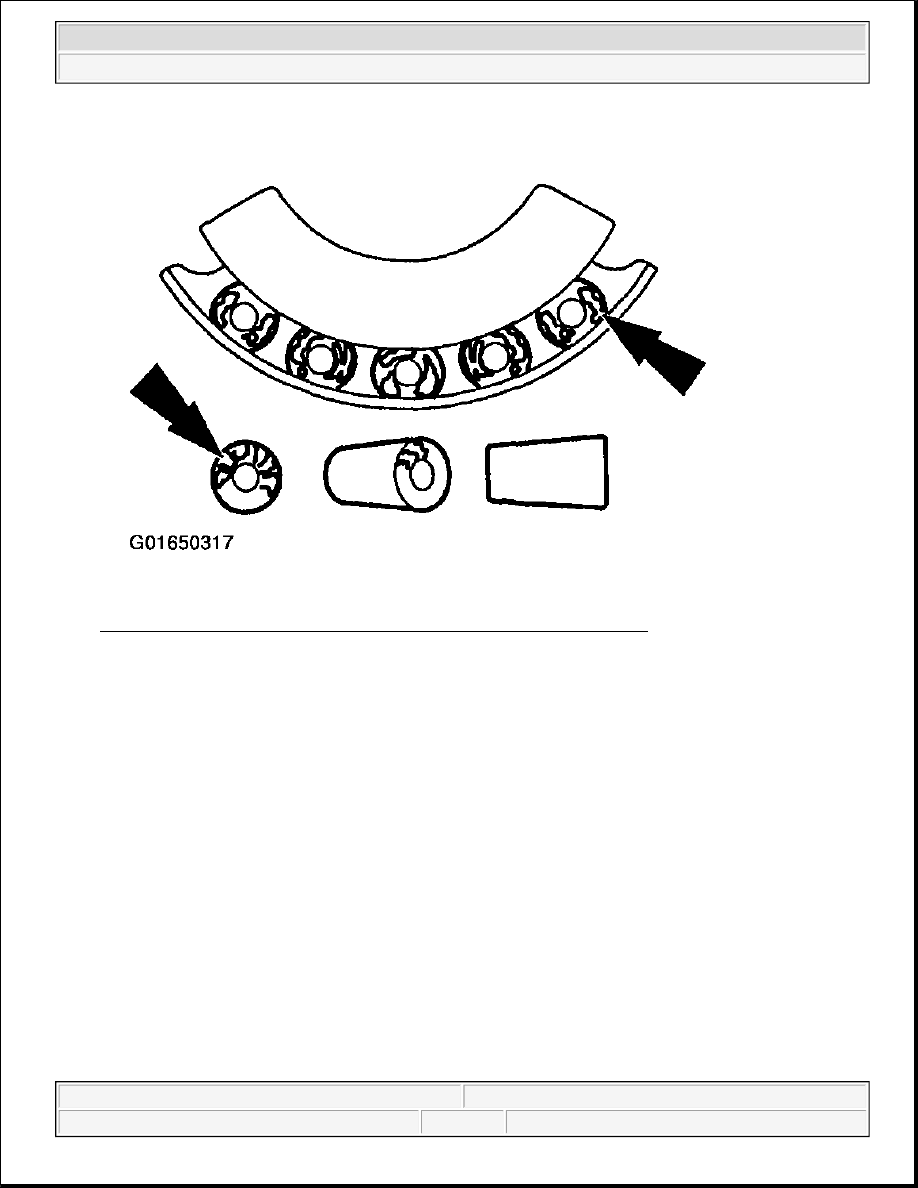

Fig. 7: Inspecting Bearings For Galling (Metal Smears On Roller Ends)
Courtesy of FORD MOTOR CO.

3. Inspect the bearing for brinelling (surface indentations in the raceway).



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

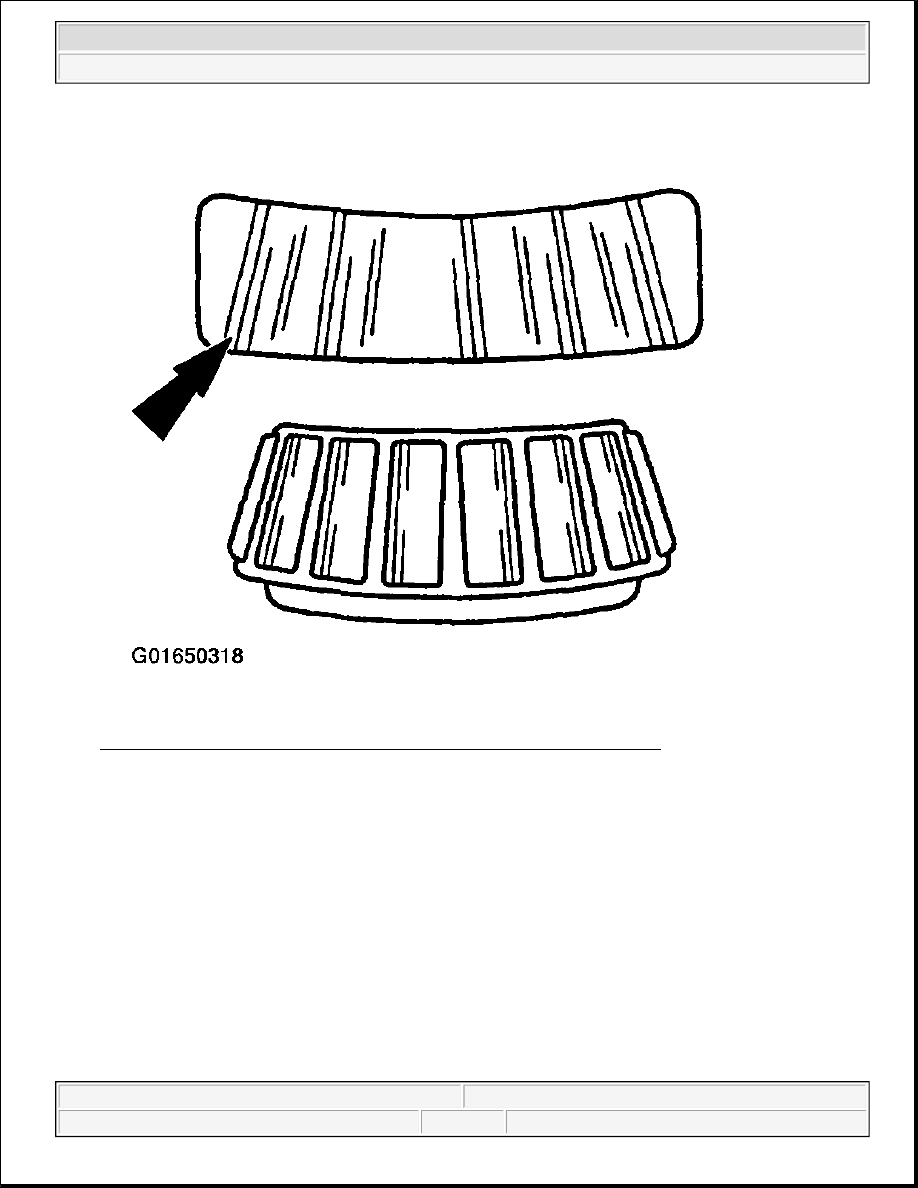

Fig. 8: Inspect Bearing For Brinelling (Surface Indentations In Raceway)
Courtesy of FORD MOTOR CO.

4. Inspect bearing for cracked inner race.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 9: Inspect Bearing For Cracked Inner Race
Courtesy of FORD MOTOR CO.

5. Inspect the bearing and raceway for etching.

z

If etching is present inspect seals.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 10: Inspect Bearing & Raceway For Etching
Courtesy of FORD MOTOR CO.

6. Inspect the bearing for heat discoloration (dark blue).

z

If heat discoloration is evident, check bearing and race for loss of temper. Draw a file across the
component. If the file cuts the metal, there is a loss of temper.
