Ford F150 Pickup. Instruction - part 1822

4R100 With Auxiliary Fluid Cooler

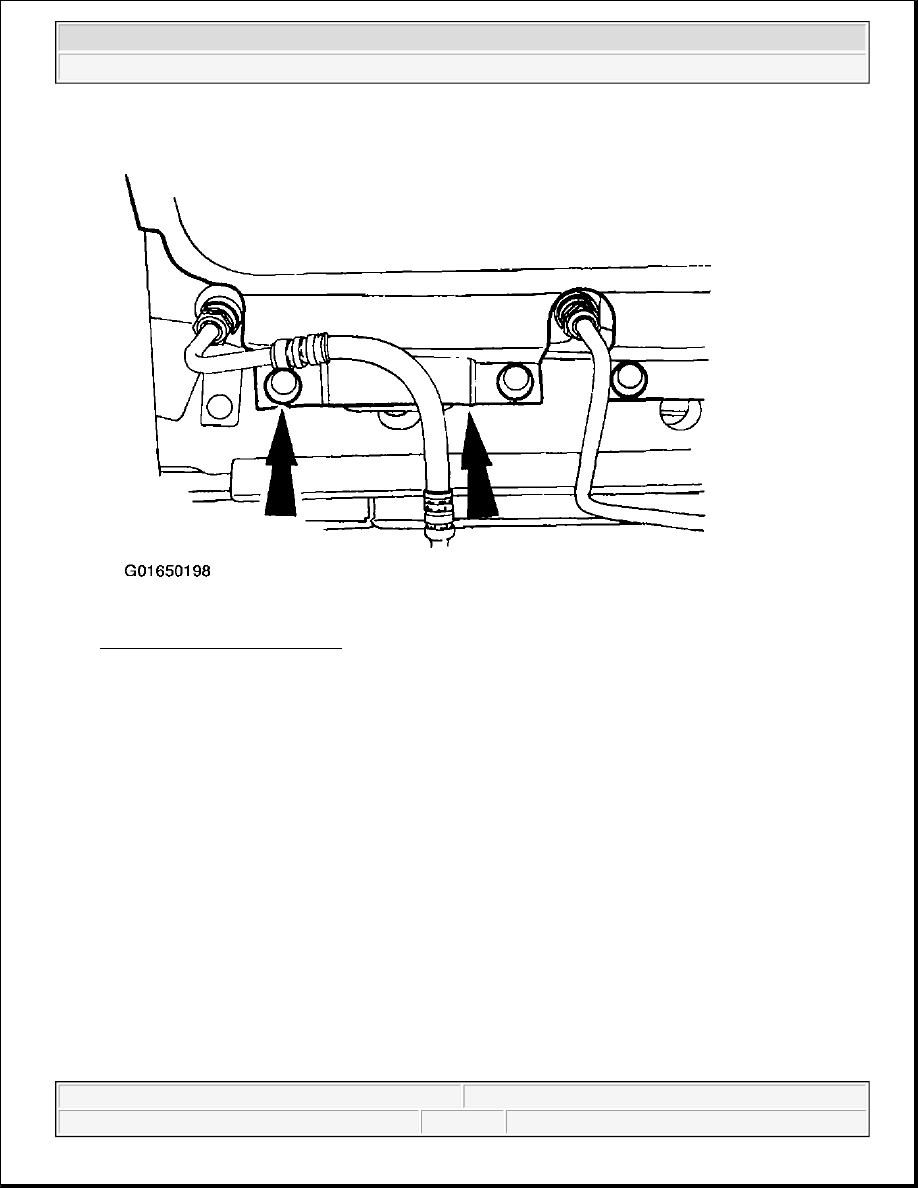

Fig. 37: Installing Fluid Cooler Tubes (4R100 Without Auxiliary Fluid Cooler)
Courtesy of FORD MOTOR CO.

4. Install the fluid cooler tube(s).

NOTE:

If the CBV assembly was removed, refer to COOLER BYPASS VALVE -
4R100 TRANSMISSION for the installation procedure.

CAUTION: Install a new inline transmission fluid filter (XC3Z-7B155-BA) as part

of a transmission overhaul or exchange. If the vehicle was not
equipped with an inline fluid filter, install a new inline transmission
fluid filter kit (XC3Z-7B155-AA) according to the instructions supplied
with the kit as part of a transmission overhaul or exchange.

CAUTION: Failure to follow the instructions supplied with the inline

transmission fluid filter kit can cause transmission damage.

CAUTION: Verify that the flow arrow on the filter points toward the transmission.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup

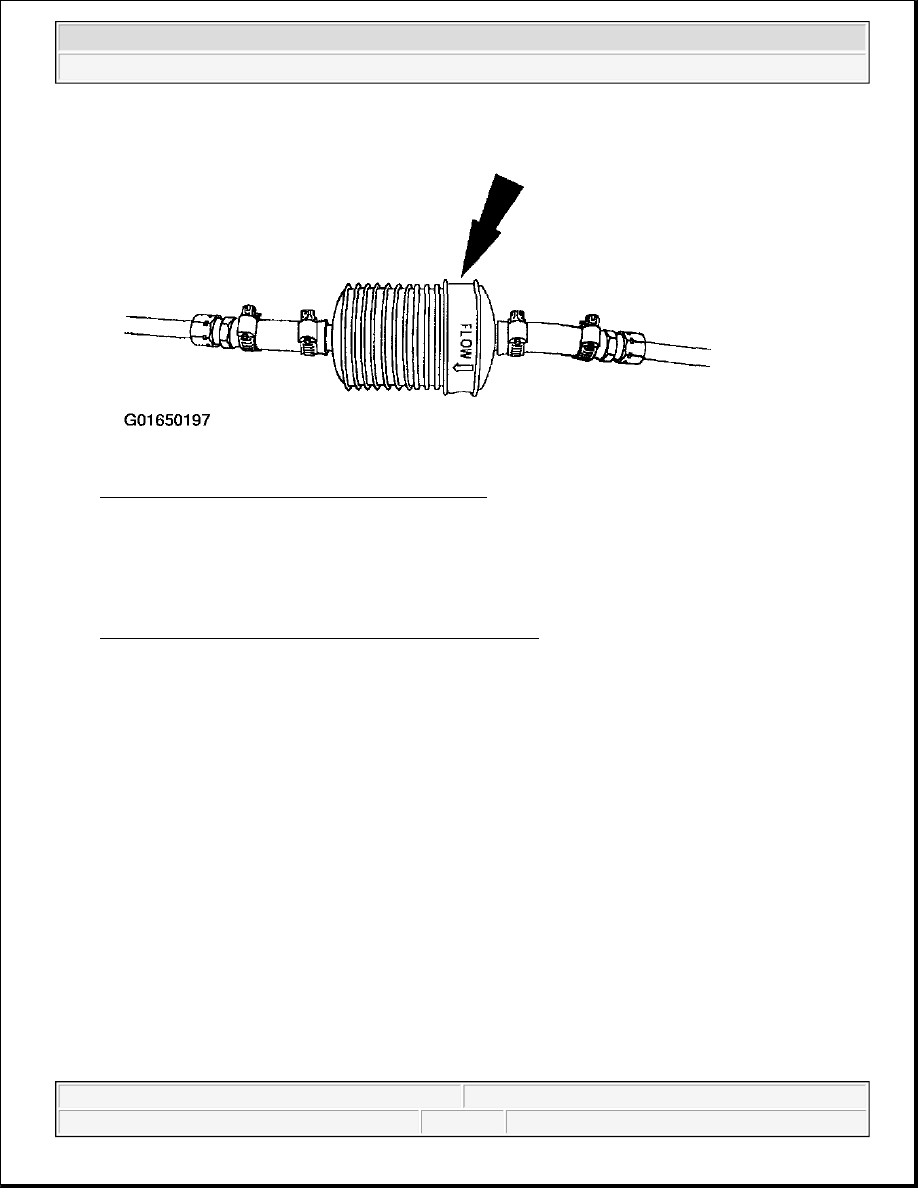

Fig. 38: Installing Inline Transmission Fluid Filter
Courtesy of FORD MOTOR CO.

5. If the vehicle was equipped with an inline fluid filter, install a new inline transmission fluid filter (XC3Z-

7B155-BA). If the vehicle was not equipped with an inline fluid filter, install a new inline transmission
fluid filter kit (XC3Z-7B155-AA). Carry out the transmission fluid cooler flow test procedure to verify
that there is correct fluid flow through the new inline fluid filter. For additional information, refer to
AUTOMATIC TRANSMISSION-4R100 - F150 PICKUP .

6. Position the air deflector and install the fasteners.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup

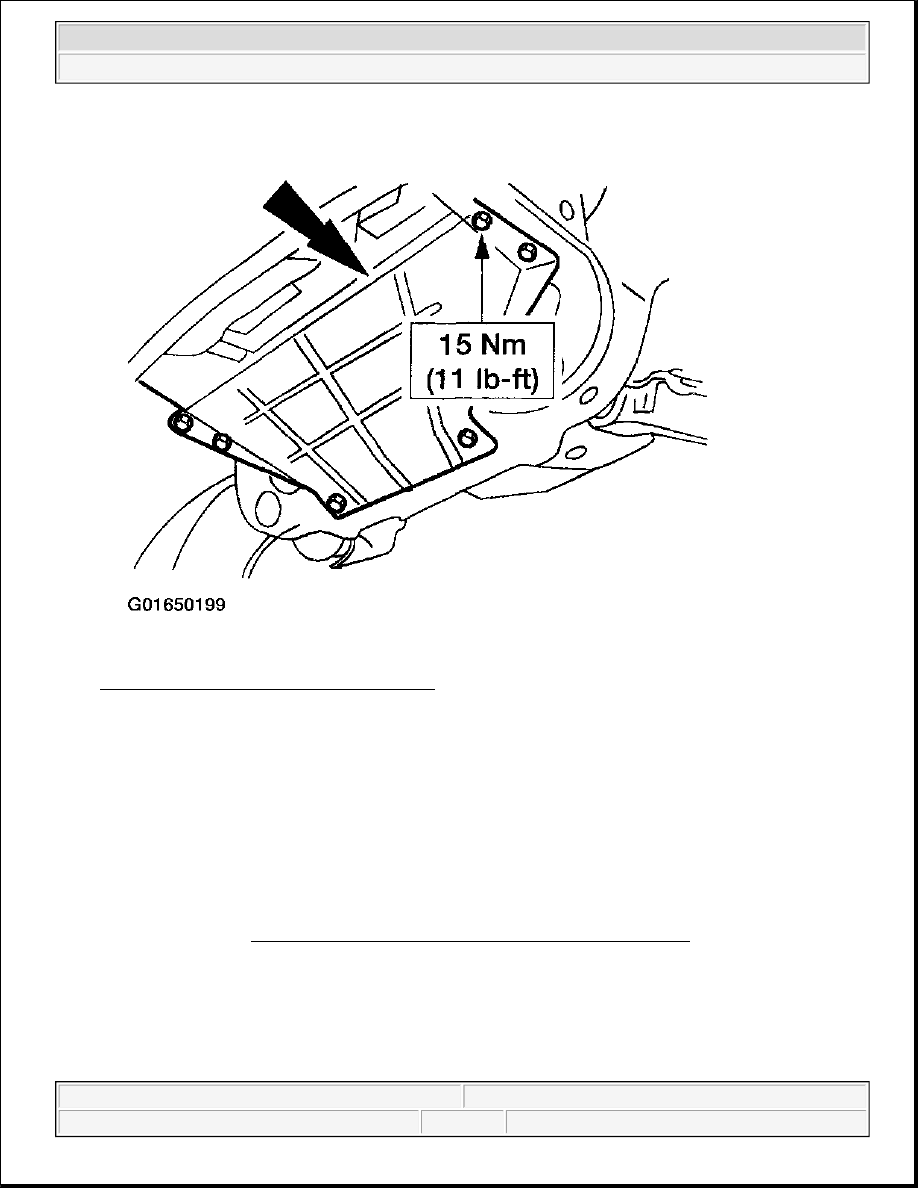

Fig. 39: Installing Air Deflector
Courtesy of FORD MOTOR CO.

7. Position the skid plate and install the bolts (4x4 vehicles).



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup



Fig. 40: Installing Skid Plate (4X4 Vehicles)
Courtesy of FORD MOTOR CO.

8. Lower the vehicle.

Vehicles With 4R100 Transmission

9. Fill the transmission with the specified type and quantity of transmission fluid. For additional

information, refer to AUTOMATIC TRANSMISSION-4R100 - F150 PICKUP .

z

Use Motorcraft MERCON(R) Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent
meeting MERCON(R) specifications.

Vehicles With 4R70W Transmission

10. Fill the transmission with the specified type and quantity of transmission fluid. For additional

CAUTION: Do not use any fluid approved for MERCON(R) V application. Using a

fluid rated for MERCON(R) V may cause internal damage in MERCON
(R) only applications.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transmission Cooling - F150 Pickup
