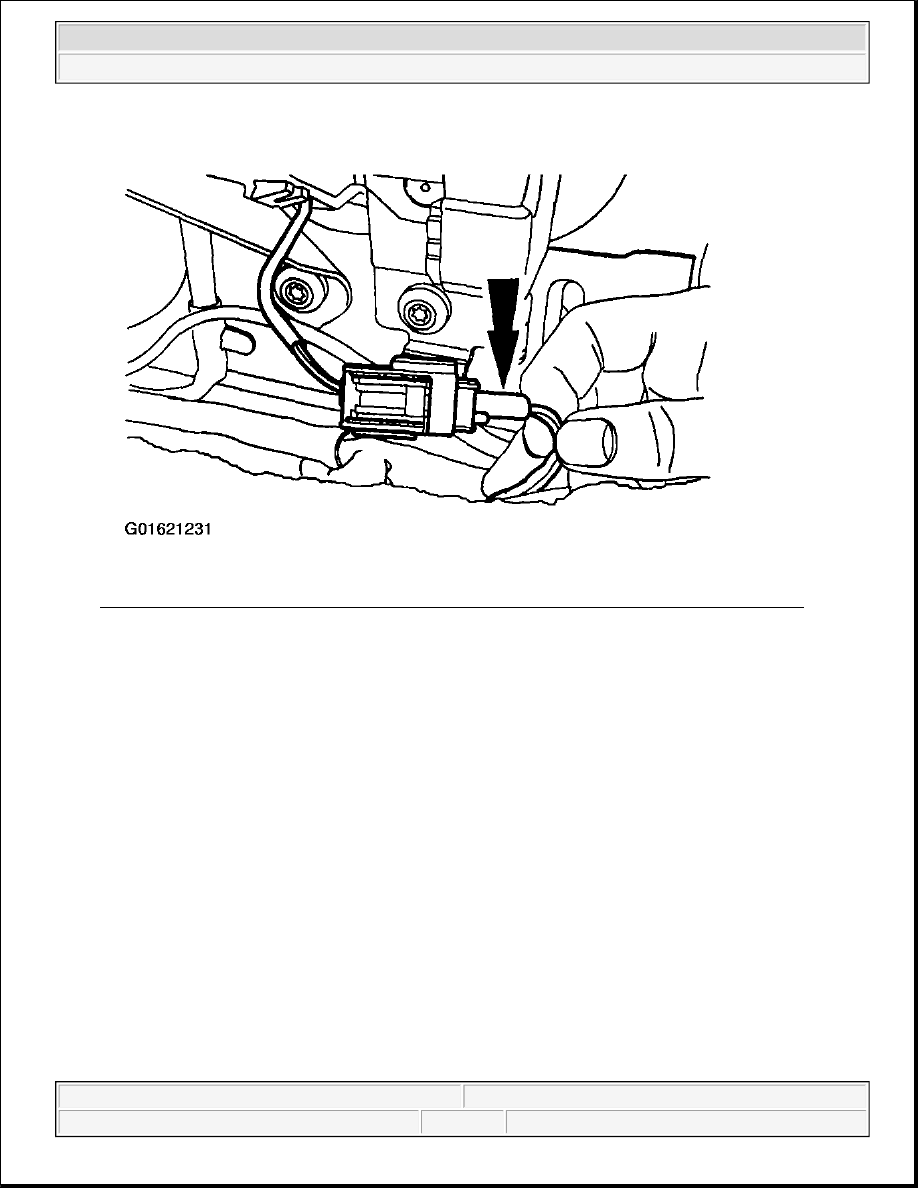

Fig. 55: Connecting Passenger Side Safety Belt Retractor Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

12. Align the passenger side B-pillar trim panel and push in, seating the B-pillar trim panel retaining clips.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

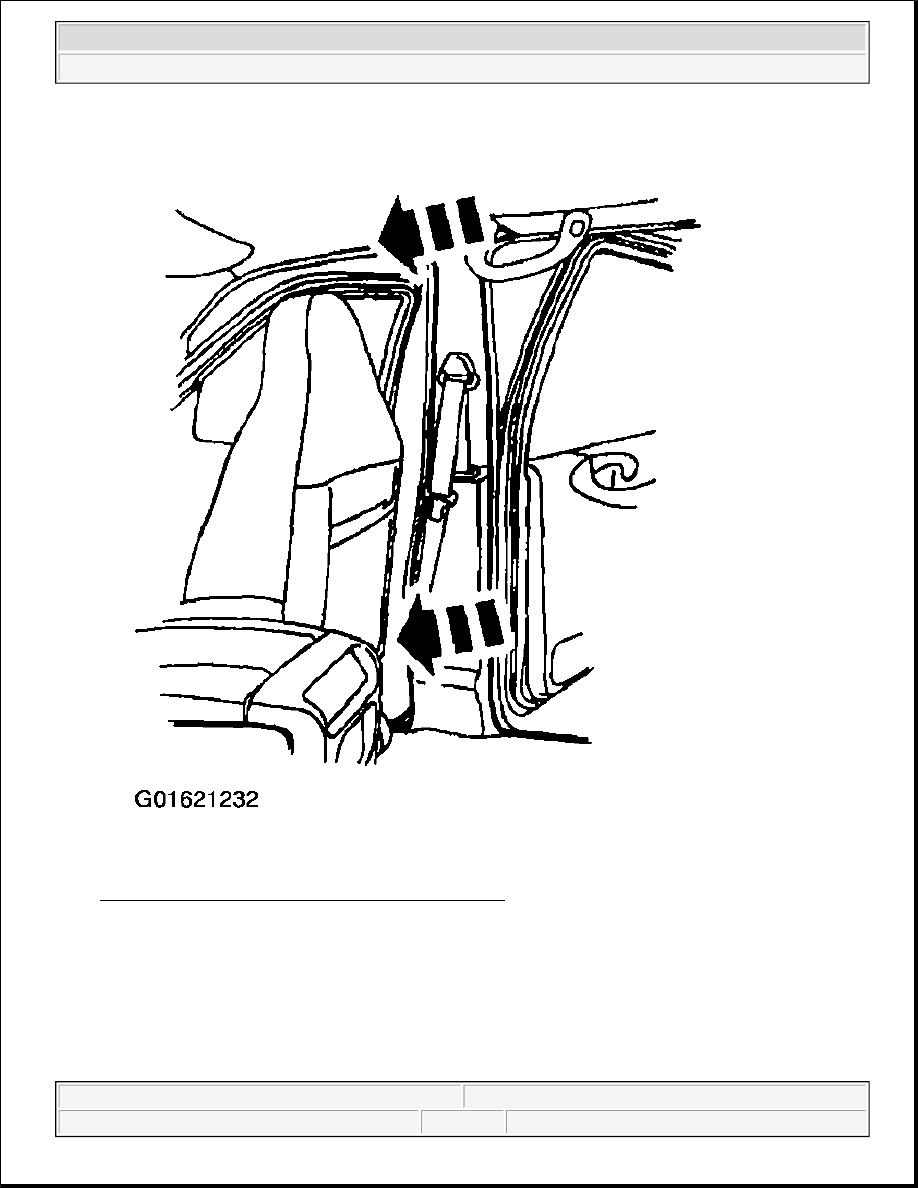

Fig. 56: Aligning Passenger Side B-Pillar Trim Panel
Courtesy of FORD MOTOR CO.

13. Install the passenger side B-pillar assist handle.

1. Position the B-pillar assist handle.

2. Install the screws.

3. Install the caps.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

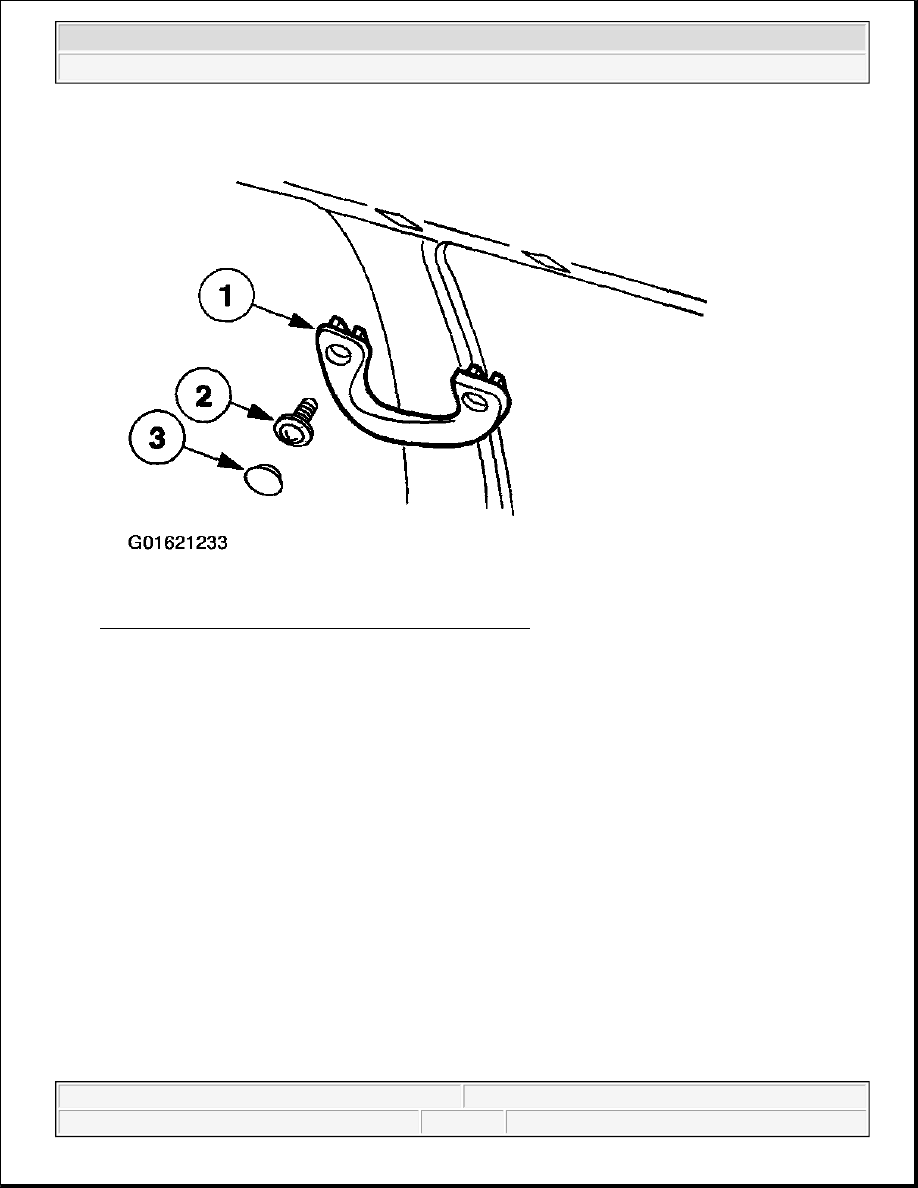

Fig. 57: Installing Passenger Side B-Pillar Assist Handle
Courtesy of FORD MOTOR CO.

14. Install the B-pillar weatherstripping.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

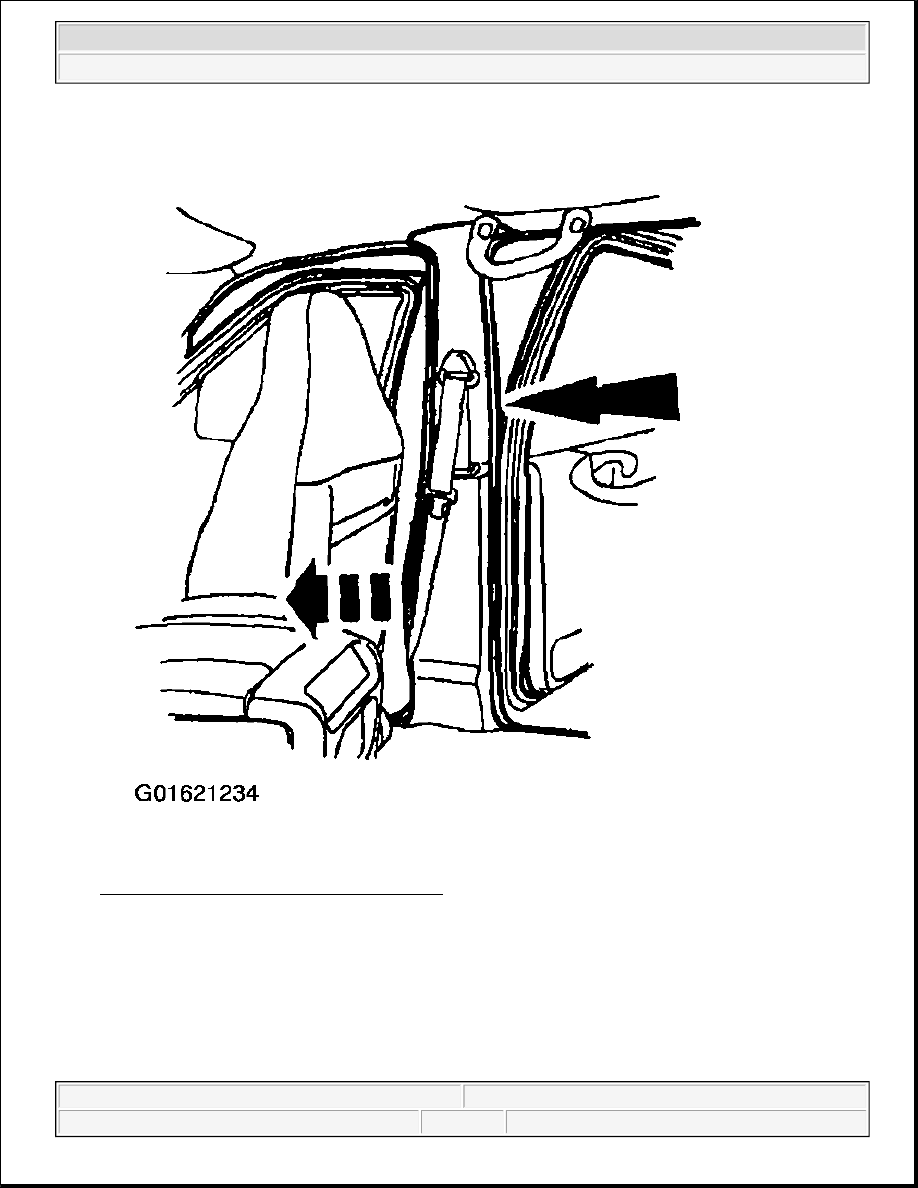

Fig. 58: Installing B-Pillar Weatherstripping
Courtesy of FORD MOTOR CO.

WARNING:

Make sure that the safety belt webbing is not twisted prior to
installation.

CAUTION: Inspect the shoulder safety belt guide cover for damage. If the

shoulder safety belt guide cover is damaged or if it does not remain
closed, install a new shoulder safety belt guide cover.
