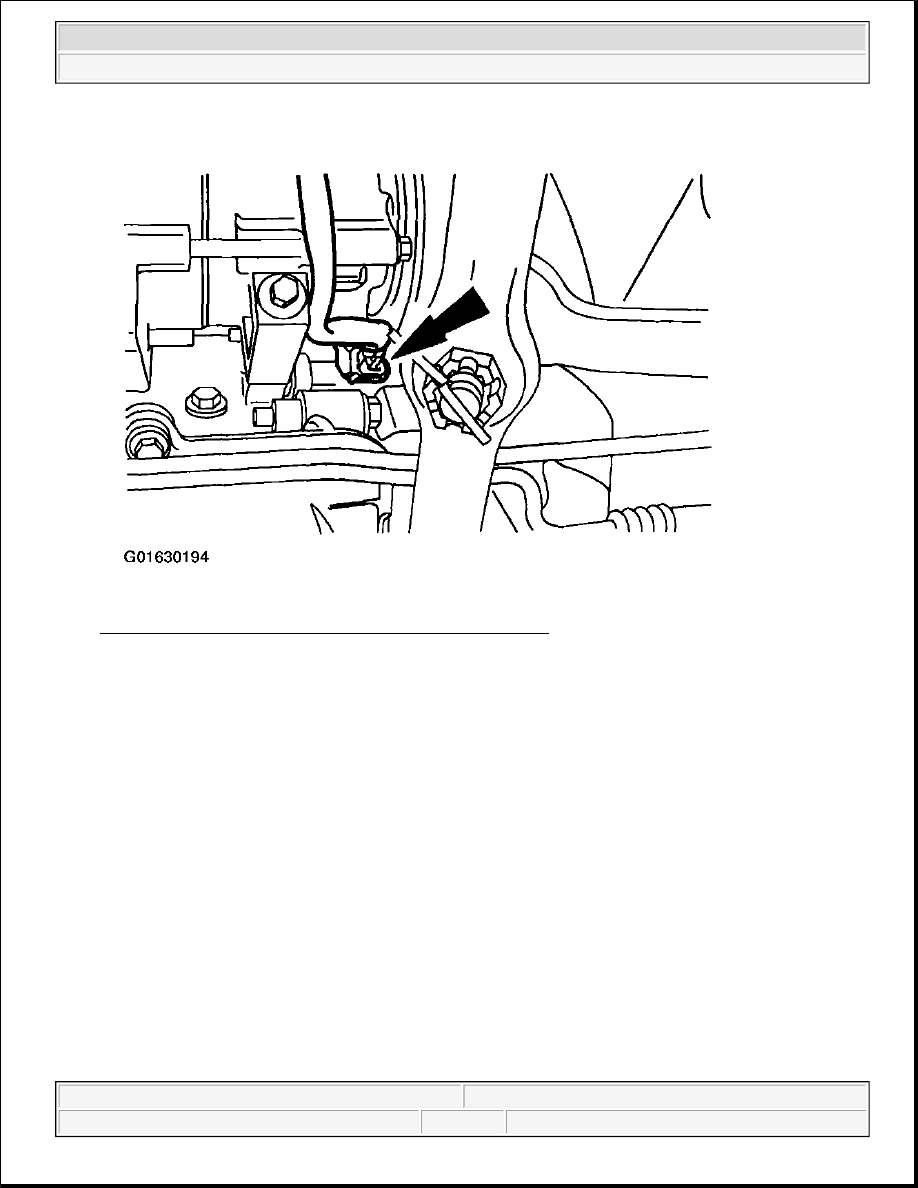

Fig. 20: Identifying Crankshaft Position Sensor Connector
Courtesy of FORD MOTOR CO.

6. Loosen the bolts and position the A/C compressor to gain access to the manifold and tube bolt.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 21: Locating A/C Compressor Bolts
Courtesy of FORD MOTOR CO.

7. Remove the bolt and detach the manifold and tube assembly (19D850).



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 22: Identifying Bolt For Detaching Manifold And Tube Assembly
Courtesy of FORD MOTOR CO.

8. Remove the A/C compressor.

1. Remove the bolts.

2. Remove the A/C compressor.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



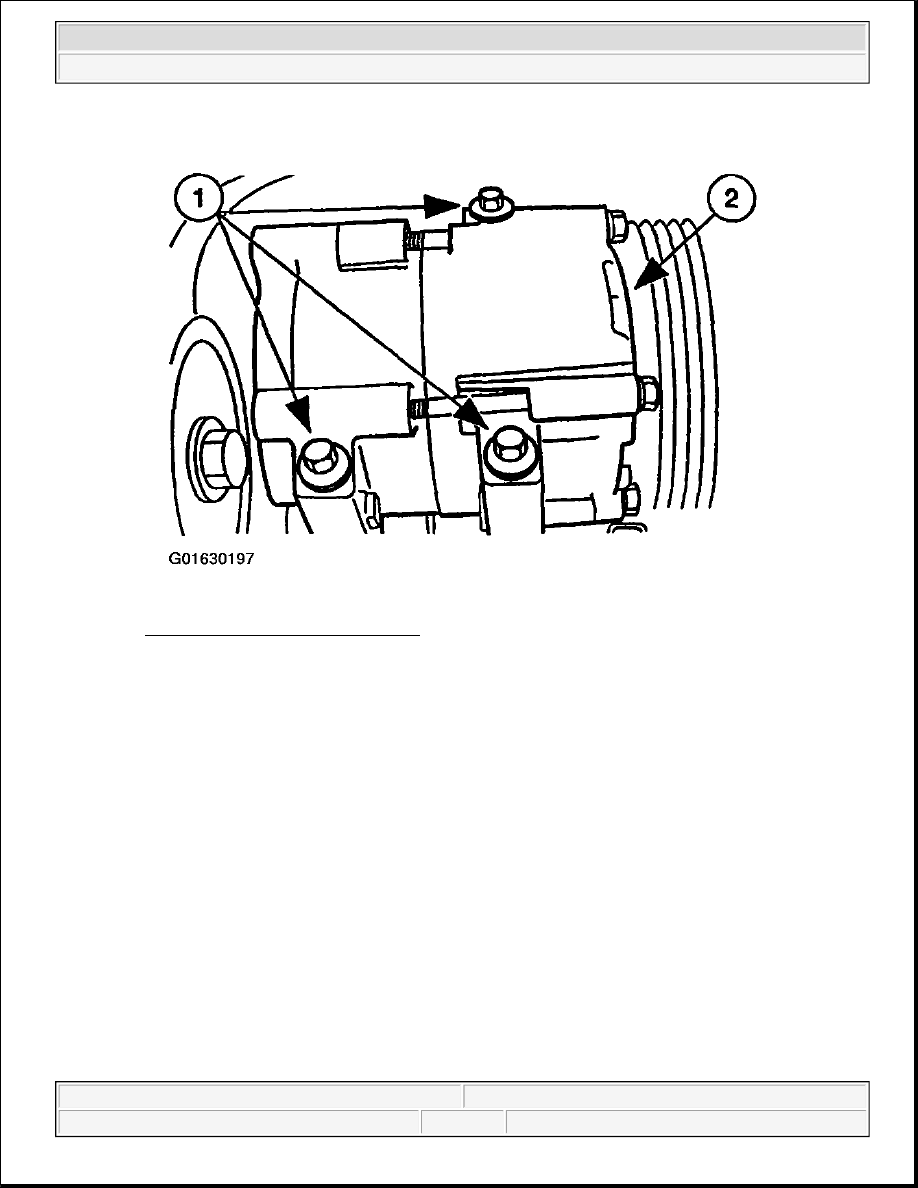

Fig. 23: Removing A/C Compressor
Courtesy of FORD MOTOR CO.

9. To install, reverse the removal procedure.

z

Install new O-rings lubricated in clean PAG oil.

z

If filtering of the air conditioning system is not to be performed, correctly oil match the system with
clean PAG oil. Refer to CLIMATE CONTROL SYSTEM .

10. If filtering of the refrigerant system is not to be performed, evacuate, leak-test, and charge the refrigerant

system. Refer to CLIMATE CONTROL SYSTEM .

CLUTCH AND CLUTCH FIELD COIL

Special Tool(s)



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
