Fig. 1: Identifying Air Conditioning System Components
Courtesy of FORD MOTOR CO.

The A/C refrigerant system is a clutch cycling orifice tube type. The system components are:

z

A/C compressor (19703)

z

A/C condenser core (19712)

z

A/C evaporator core (19860)



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



z

suction accumulator (19C836)

z

connecting refrigerant lines

The refrigeration system operation is controlled by the following:

z

A/C evaporator core orifice (19D990)

z

A/C cycling switch (19E561)

z

A/C pressure cutoff switch (19D594)

The refrigerant system incorporates an A/C compressor controlled by an A/C cycling switch. The A/C cycling
switch senses pressure in the suction accumulator to control operation of the A/C compressor (19703).

An A/C compressor pressure relief valve (19D644) is installed in the A/C manifold and tube (19D734) to
protect the compressor against excessively high refrigerant pressures. An A/C evaporator core orifice is
installed to the condenser to evaporator tube (19835) to meter the liquid refrigerant into the A/C evaporator
core.

Refrigeration System Components



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 2: Identifying Refrigeration System Components
Courtesy of FORD MOTOR CO.

A/C Compressor and Clutch Assembly



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

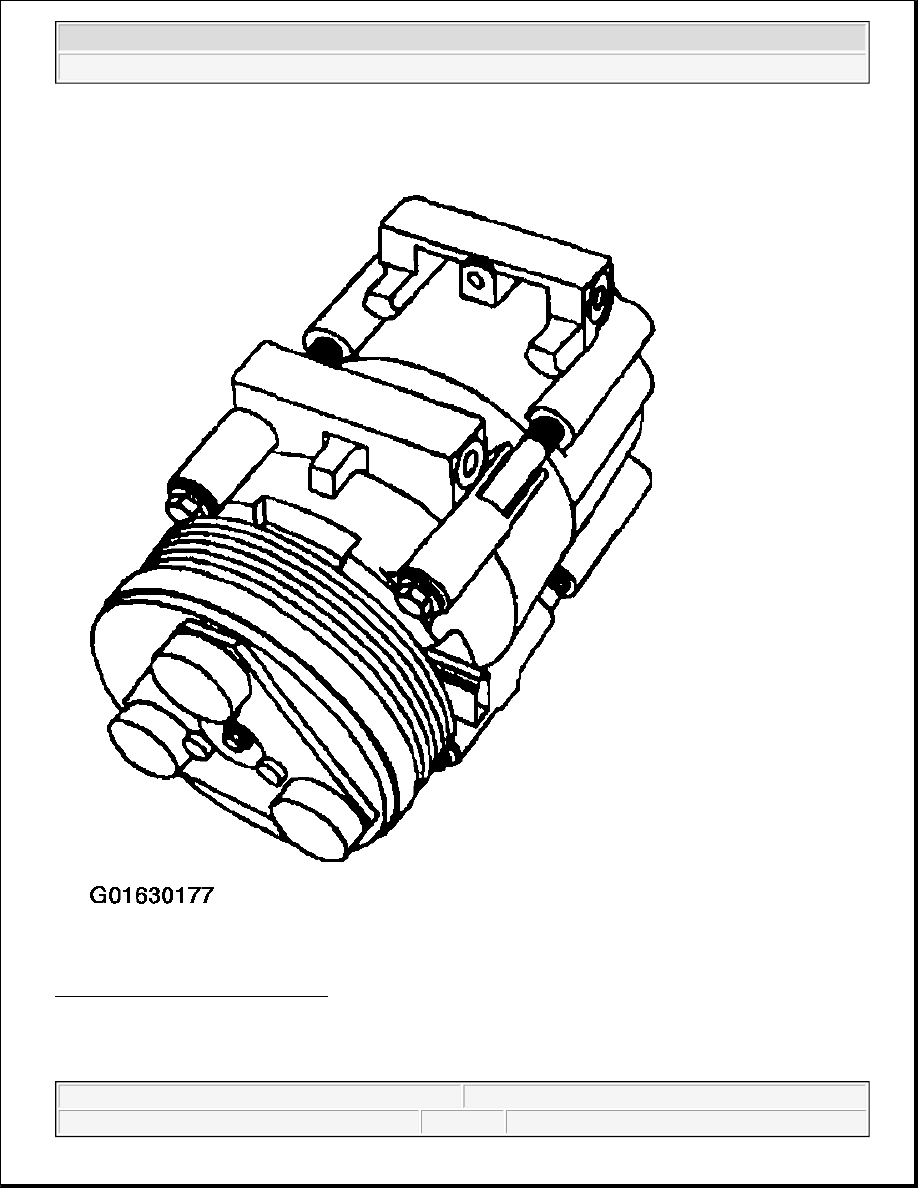

Fig. 3: Identifying A/C Compressor
Courtesy of FORD MOTOR CO.

NOTE:

Internal A/C compressor components are not serviced separately. The FS-10



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
