Ford F150 Pickup. Instruction - part 166

Fig. 13: Pinpoint Test B: Power Seat Is Inoperative (B2)
Courtesy of FORD MOTOR CO.

PINPOINT TEST C: POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY

Fig. 14: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically (C1 & C2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

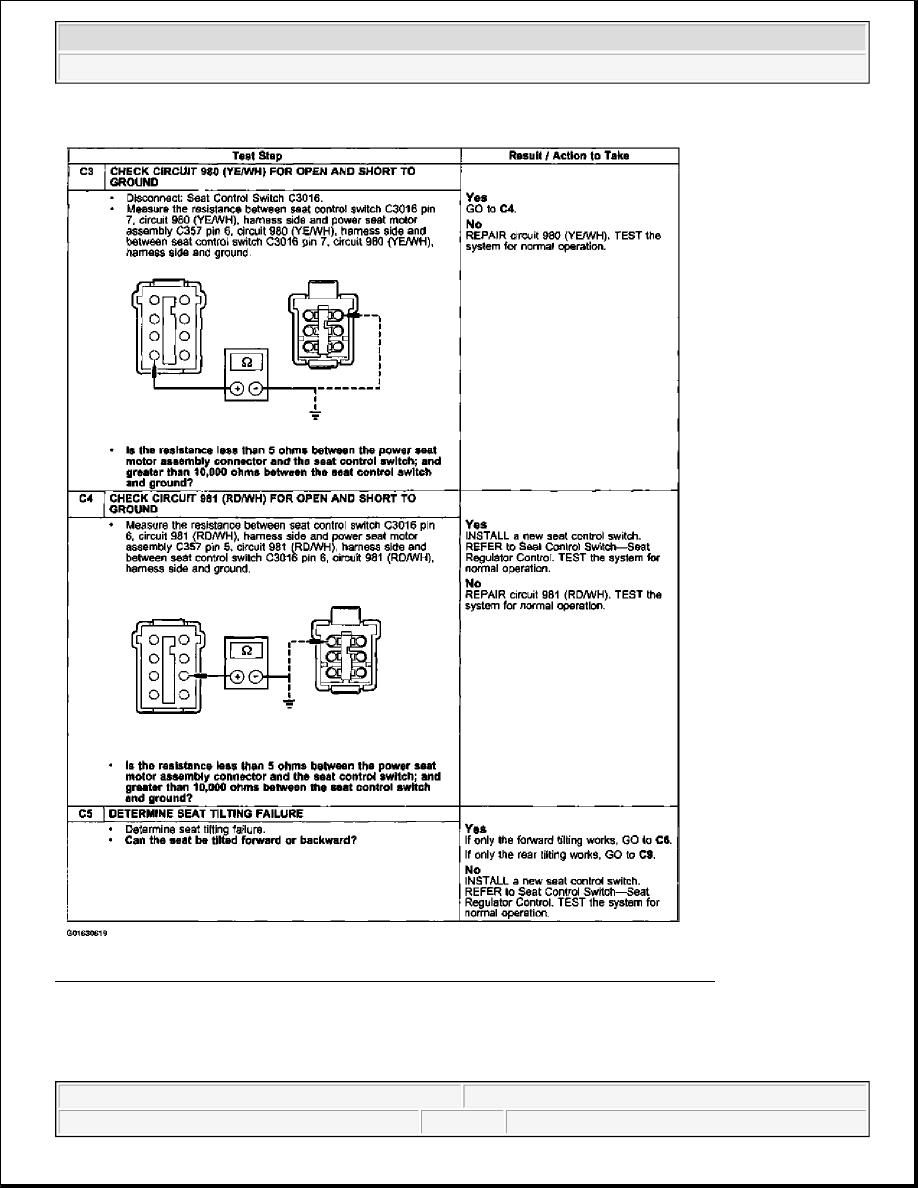

Fig. 15: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically (C3 - C5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 16: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically (C6 & C7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

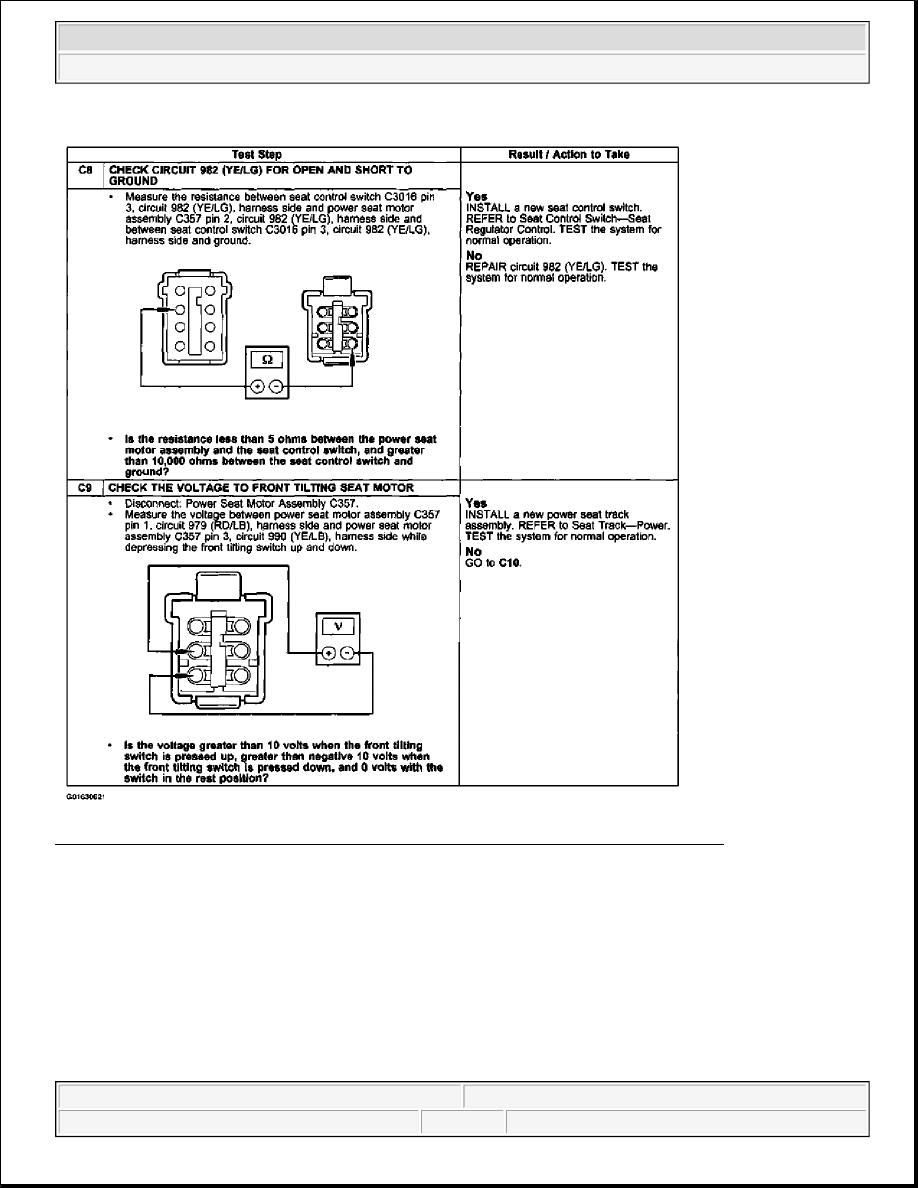

Fig. 17: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically (C8 & C9)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
