Ford F150 Pickup. Instruction - part 1583

z

Wiring Harness Circuits (OSS & SIG RTN)

z

Powertrain Control Module (PCM)

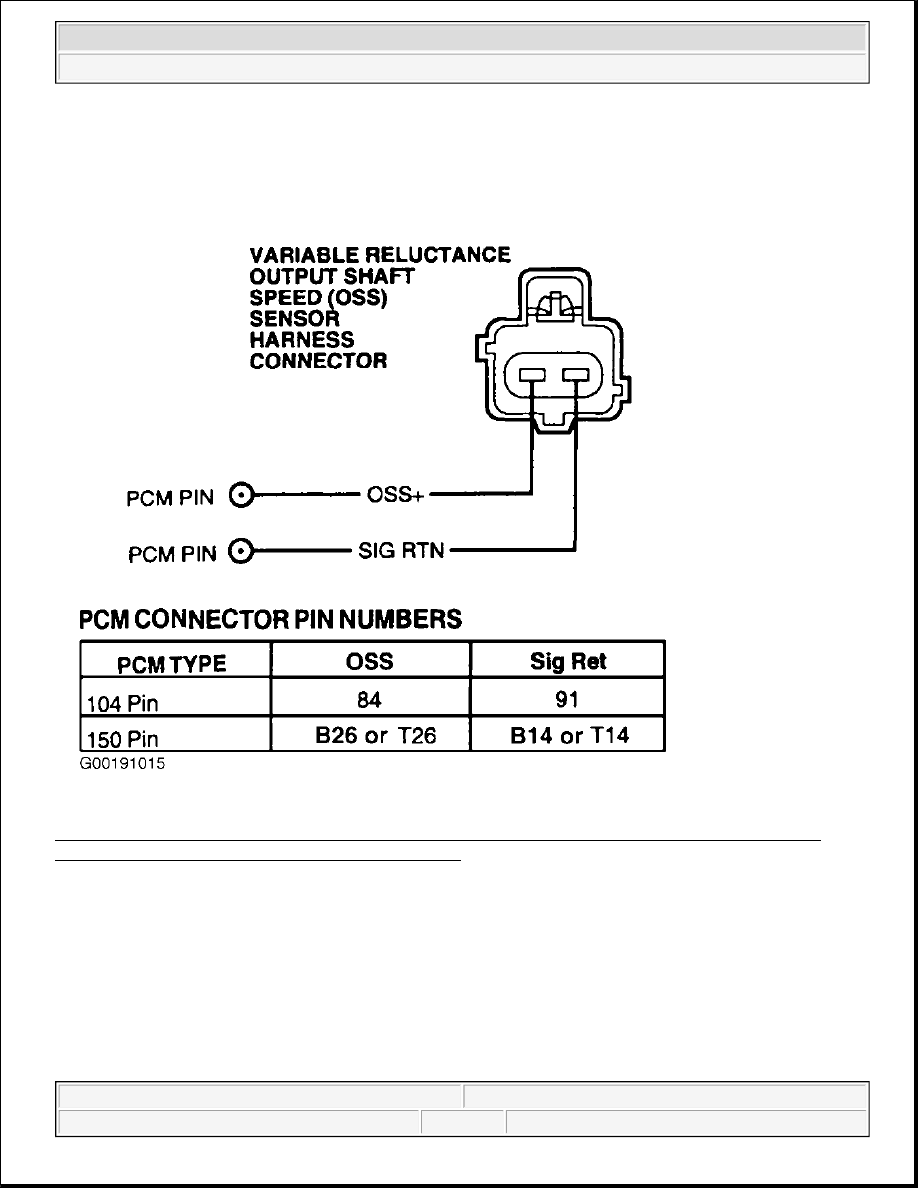

Fig. 366: Identifying Output Shaft Speed Sensor Circuits & Harness Connector Terminals (Aviator,
Explorer, LS, Mountaineer, Ranger & Thunderbird)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

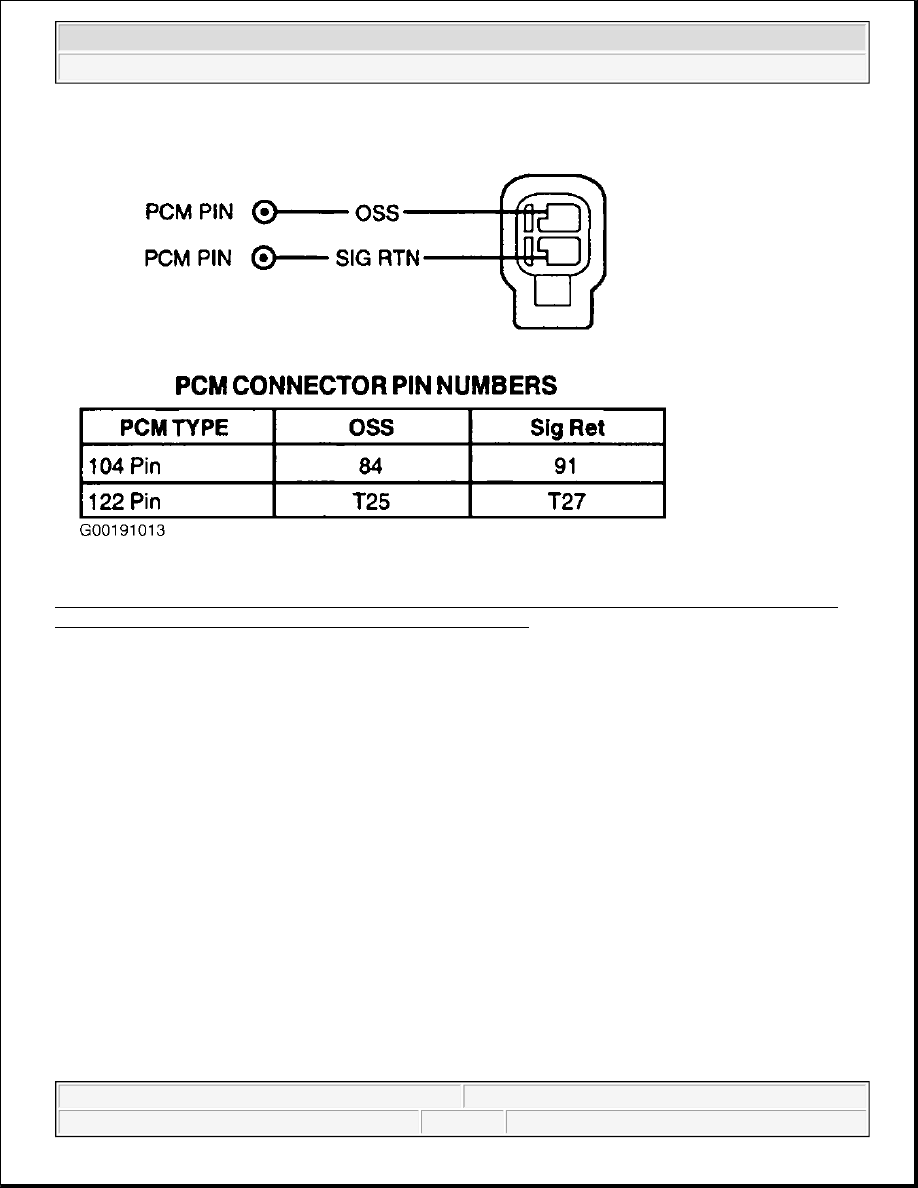

Fig. 367: Identifying Output Shaft Speed Sensor Circuits & Harness Connector Terminals (Econoline,
Expedition, Explorer, Mustang & Pickup - With 4R70W A/T)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



Fig. 368: Identifying Output Shaft Speed Sensor Circuits & Harness Connector Terminals (Escape &
Windstar)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

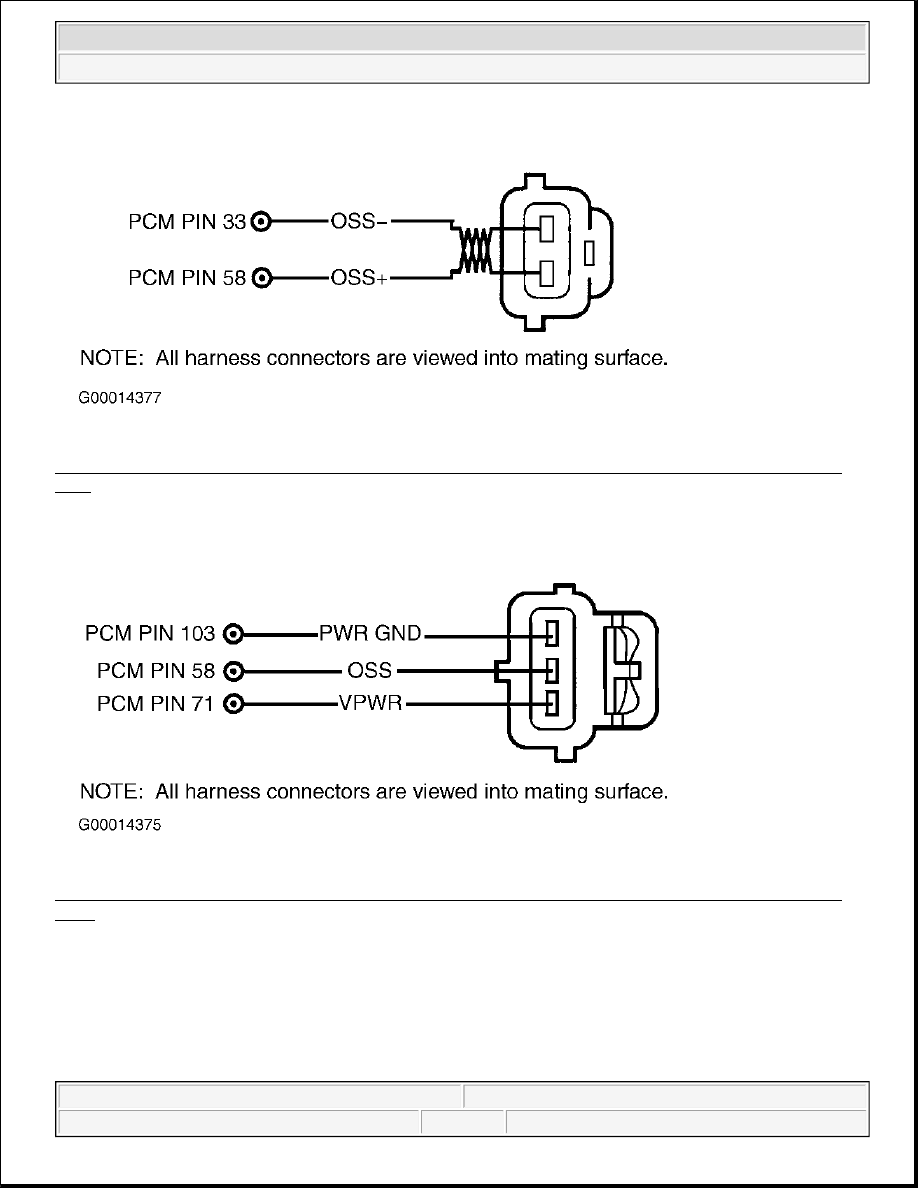

Fig. 369: Identifying Output Shaft Speed Sensor Circuits & Harness Connector Terminals (Focus 2.0L
A/T)
Courtesy of FORD MOTOR CO.

Fig. 370: Identifying Output Shaft Speed Sensor Circuits & Harness Connector Terminals (Focus 2.0L
M/T)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
