Keep Alive Power (KAPWR) Circuit Routing

KAPWR Circuit Condition

Faulty Powertrain Control Module (PCM)

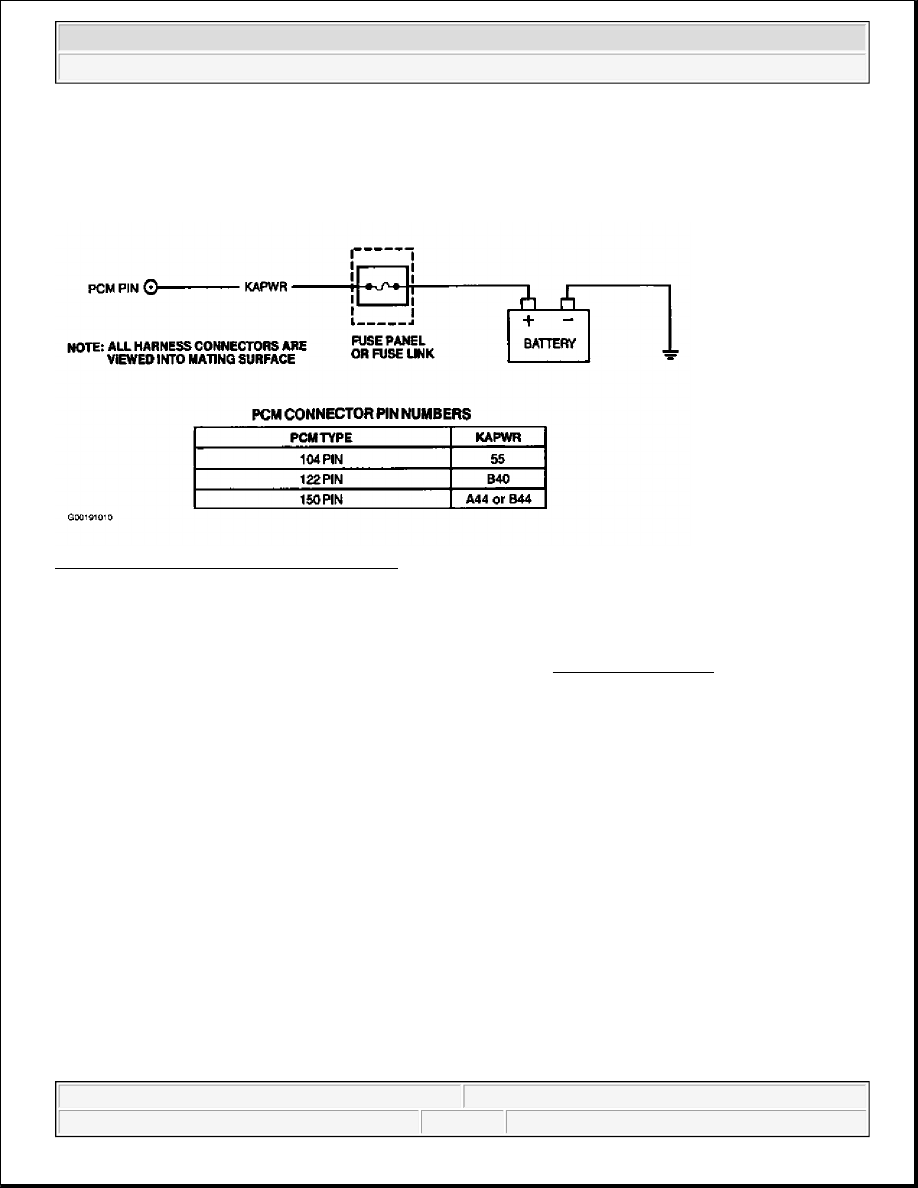

Fig. 357: Identifying KAPWR Feed To PCM
Courtesy of FORD MOTOR CO.

Testing

1) For KOEO Only DTC P0603, & For KOEO, KOER & Continuous Memory DTC P1633: Check
Battery Terminals
Indicates the PCM has experienced an internal memory fault. However there are external items that can
cause this DTC. Possible causes are:

Reprogramming.

Battery terminal corrosion.

KAPWR to PCM interrupt/open.

Loose battery connection.

Damaged PCM.

Inspect battery terminals for corrosion or loose connection. Service as necessary. If battery terminals are
okay, go to next step.

2) Check Engine Compartment For Proper Wire Routing

NOTE:

For additional testing information, see DIAGNOSTIC AIDS.

NOTE:

KAPWR is interrupted when PCM or battery is disconnected. DTC P0603 or
P1633 may be generated during next PCM power-up.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

Inspect wiring harness and connectors for damage or corrosion. Ensure wiring harness is properly routed
and not too close to ignition or exhaust components. Service as necessary. If no concerns are found, go to
next step.

3) Check Keep Alive Power Circuit To PCM

Turn ignition switch to OFF position. Disconnect PCM connector(s). Inspect connector for loose,
damaged or corroded terminals. Repair as necessary. Using a DVOM, measure voltage between chassis
ground and KAPWR circuit at PCM harness connector. See Fig. 357. While observing DVOM, wiggle
and bend small sections of wiring harness between PCM and dash panel. If voltage is continuously 10.5
volts or more, go to next step. If at anytime voltage drops to less than 10.5 volts, isolate open in KAPWR
circuit and repair as necessary.

4) Check For Repeat Of DTC P0603 Or P1633

Reconnect PCM connector(s). Start engine and allow to idle and reach normal operating temperature.
Perform KOEO ON-DEMAND SELF-TEST. Retrieve Continuous Memory DTCs. If DTC P0603 or
P1633 is present, replace PCM. If DTCs are not present, unable to duplicate or identify fault at this time.
Go to TEST Z, step 1).

TEST QC: OBD-II MONITOR TESTING NOT COMPLETE; DTC P1000

Diagnostic Aids

DTC P1000 indicates that not all of the On-Board Diagnostics II (OBD-II) monitors have completed. DTC
P1000 can only be cleared from memory with a completed drive cycle, with all OBD-II monitors being
successfully completed. For drive cycle diagnostic monitor descriptions, see DIAGNOSTIC MONITORS. In
some states, DTC P1000 must be cleared to pass an inspection/maintenance test. Vehicle operator should be
informed that law specifies additional city and highway driving must be done to complete OBD-II system
check. This additional driving must occur before vehicle is tested at inspection/maintenance station. Amount of
driving required varies with individual driving patterns. To complete a drive cycle, see DRIVE CYCLES.
After all diagnostic monitors successfully complete, SYSTEM PASS can be obtained from PCM.

DTC P1000 will set in PCM memory when any of the following conditions occur:

Vehicle is new from factory and has not yet completed an OBD-II drive cycle.

Battery or PCM has been disconnected.

An OBD-II monitor has failed before completion of OBD-II drive cycle.

PCM memory has been cleared with a scan tool.

The PCM has been flashed and the vehicle has not yet completed an OBD Drive Cycle.

NOTE:

After each service or repair procedure has been completed, reconnect all
components. Clear DTCs and repeat QUICK TEST procedures to ensure all EEC-
V systems are working properly and DTCs are no longer present.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

Testing

1) For Continuous Memory Only DTC P1000: Check For Other DTCs
If any other DTCs are present, service DTCs as necessary. See DIAGNOSTIC TROUBLE CODE
DEFINITIONS. If no other DTCs are present and vehicle is equipped with PTO, go to next step. If no
other DTCs are present and vehicle is not equipped with PTO, go to step 3).

2) Check PTO PID

Turn ignition switch to OFF position. Connect scan tool to Data Link Connector (DLC). Start engine and
allow to idle. Using scan tool, access PTO STAT PID from PID/DATA MONITOR & RECORD menu.
Command PTO switch/activator ON and OFF. If PTO STAT PID indicates ON, delays, then OFF, PTO
circuit is okay. Go to next step. If PTO STAT PID does not cycle as specified, go to TEST FB, step 1).

3) Request To Clear DTC P1000

If customer has requested to have DTC P1000 cleared from memory, perform OBD-II drive cycle. See
DRIVE CYCLES. After OBD-II drive cycle is complete, repeat QUICK TEST. If customer has not
requested to have DTC P1000 cleared from memory, inform customer that some state laws require DTC
P1000 to be cleared before an inspection or maintenance test is performed, and that additional driving
may be in order to clear DTC P1000.

TEST QD: DTC P1260

Diagnostic Aids

Perform this test when instructed during QUICK TEST or if directed by other test procedures. P1260 will be
stored any time the PCM disables the vehicle because of the PATS system. When activated, PATS will disable
fuel system. To disarm PATS, use key or remote keyless entry to unlock door. This DTC is an indicator to
check for DTCs in PATS. PATS system is also known as Securi-Lock(R) in North America. PATS uses radio
frequency identification technology to deter a drive away theft. Passive means that it does not require any
activity from operator. PATS uses a specially encoded ignition key. Each encoded ignition key contains a
permanently installed electronic device called a transponder. Each transponder contains a unique electronic
identification code. Each encoded ignition key must be programmed into vehicle before it can be used to start
engine. For additional PATS information, see appropriate ANTI-THEFT SYSTEMS article in ACCESSORIES
& EQUIPMENT.

Testing

NOTE:

DTC P1000 cannot be cleared from PCM if vehicle is equipped with Power Take
Off (PTO) and circuit is shorted to VPWR or B+, or if PTO is on during testing.

NOTE:

Only perform this system test if a Diagnostic Trouble Code (DTC) P1000
was received from Continuous Memory. Ignore any DTC P1000s in KOEO
or KOER.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

1) For Continuous Memory Only DTC P1260: Check For Passive Anti-Theft System DTCs
This DTC indicates that the passive anti-theft system (PATS) has determined a theft condition existed and
the engine is disabled. This DTC is a good indicator to check the PATS for DTCs. Possible causes are:

Previous theft condition.

Anti-Theft System failure.

If any Passive Anti-Theft System (PATS) DTCs are present, service PATS DTCs as necessary before
continuing. See appropriate ANTI-THEFT SYSTEMS article in ACCESSORIES & EQUIPMENT. If no
PATS DTCs are present, go to next step.

2) Check For Other Powertrain DTCs

Repair all other PCM DTCs before diagnosing DTC P1260. See DIAGNOSTIC TROUBLE CODE
DEFINITIONS. If no other PCM DTCs are present, go to next step.

3) Attempt To Start Engine

Perform KEEP ALIVE RANDOM ACCESS MEMORY RESET PROCEDURE under CLEARING
CODES under SELF-DIAGNOSTIC SYSTEM to clear DTCs. Attempt to start engine. If engine does not
start, DTC P1260 is not the cause of no-start. Diagnose NO-START/NORMAL CRANK symptom. See
SYMPTOMS in TROUBLE SHOOTING - NO CODES - CNG, FLEX-FUEL & GASOLINE article. If
engine starts, no concern is indicated at this time. Testing is complete. For intermittent no-start, or starts
and stalls concern, check for intermittent PATS faults. PATS will not cause engine to stall after one
second of operation. For intermittent stalls while driving, verify scan tool-to-PCM communication during
concern. If PCM communication error occurs, possible causes are:

Loss Of PWRs Or GNDs To PCM

Faulty PCM PWR Relay

Faulty EEC PWR Diode

Shorted VREF Signal

Repair as necessary. Return vehicle to customer.

TEST TA: PARK/NEUTRAL POSITION OR CLUTCH PEDAL POSITION SWITCHES

Diagnostic Aids

Perform this test when instructed during QUICK TEST or if directed by other test procedures. This test is used
to diagnose the following:

NOTE:

For additional testing information, see DIAGNOSTIC AIDS.

NOTE:

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
