Spark (EEC-Controlled)

To prevent replacement of good components, be aware the following non-EEC related areas and components
may be cause of concern:

z

Fuel Quality & Quantity

z

Ignition (General Condition)

z

Engine Mechanical Components

z

Starter & Battery Circuits

Testing

1) Check Passive Anti-Theft System (Securi-Lock)

If vehicle does not have an anti-theft system, go to next step. If vehicle has an anti-theft system, it may be
activated causing the no-start condition. Verify by observing anti-theft indicator light being illuminated
on instrument panel, or a DTC P1260 may be present. If anti-theft system is not activated, go to next step.
If anti-theft system is activated, see appropriate ANTI-THEFT SYSTEMS article in ACCESSORIES &
EQUIPMENT for diagnosis and testing.

2) Attempt To Crank Engine

Ensure Inertia Fuel Shutoff (IFS) switch is closed (button pushed in). Attempt to start engine. If engine
does not crank, check vehicle starting and charging systems. See appropriate STARTERS or
GENERATORS & REGULATORS article in STARTING & CHARGING SYSTEMS. Repair as
necessary and retest. If engine cranks, go to next step.

3) Check For Intermittent No Start

Attempt to start engine. If engine now starts, fault is intermittent. Go to TEST Z, step 2). If engine does
not start, go to next step.

4) Check VREF Voltage To TP Sensor

Turn ignition switch to OFF position. Disconnect TP sensor. Turn ignition switch to ON position. Using a
DVOM, measure voltage between circuits VREF and SIG RTN at TP sensor harness connector. See Fig.
163-Fig. 166 . If voltage is 4-6 volts, turn ignition switch to OFF position, reconnect TP sensor connector
and go to next step. If voltage is not 4-6 volts, turn ignition switch to OFF position and go to TEST C,
step 1).



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

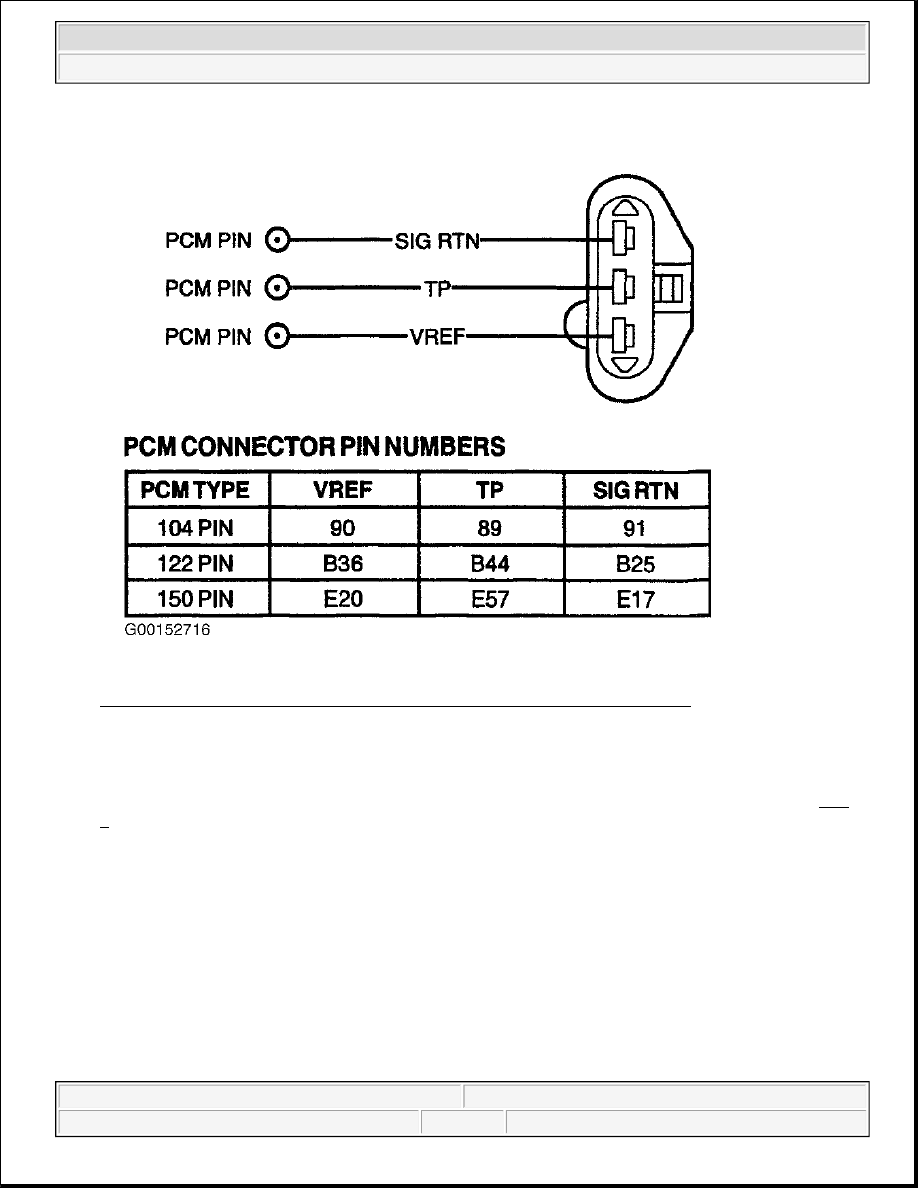

Fig. 163: Identifying TP Sensor Circuits & Connector Terminals - Focus 2.0L (4V) & 2.3L, &
Ranger 2.3L
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

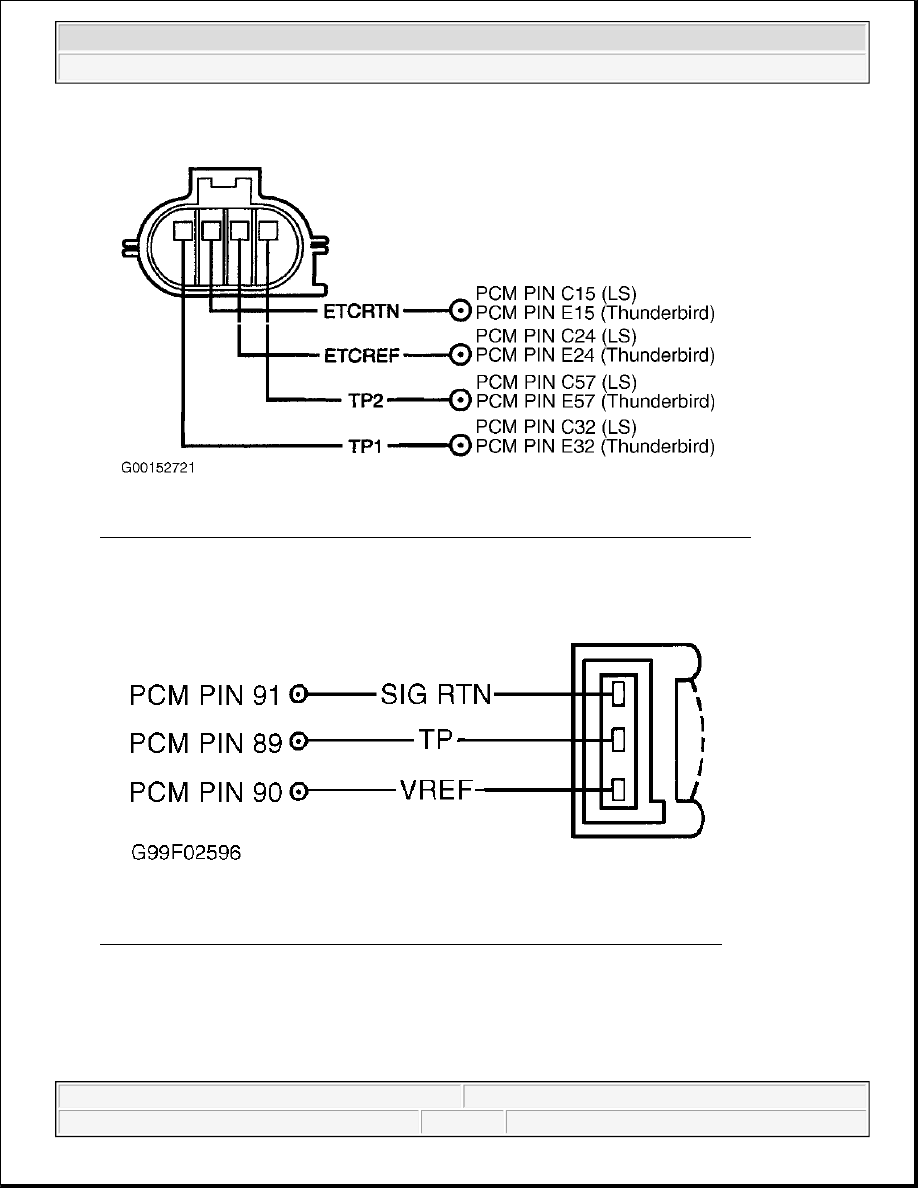

Fig. 164: Identifying TP Sensor Circuit & Connector Terminals - LS & Thunderbird
Courtesy of FORD MOTOR CO.

Fig. 165: Identifying TP Sensor Circuits & Connector Terminals - ZX2 2.0L (4V)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

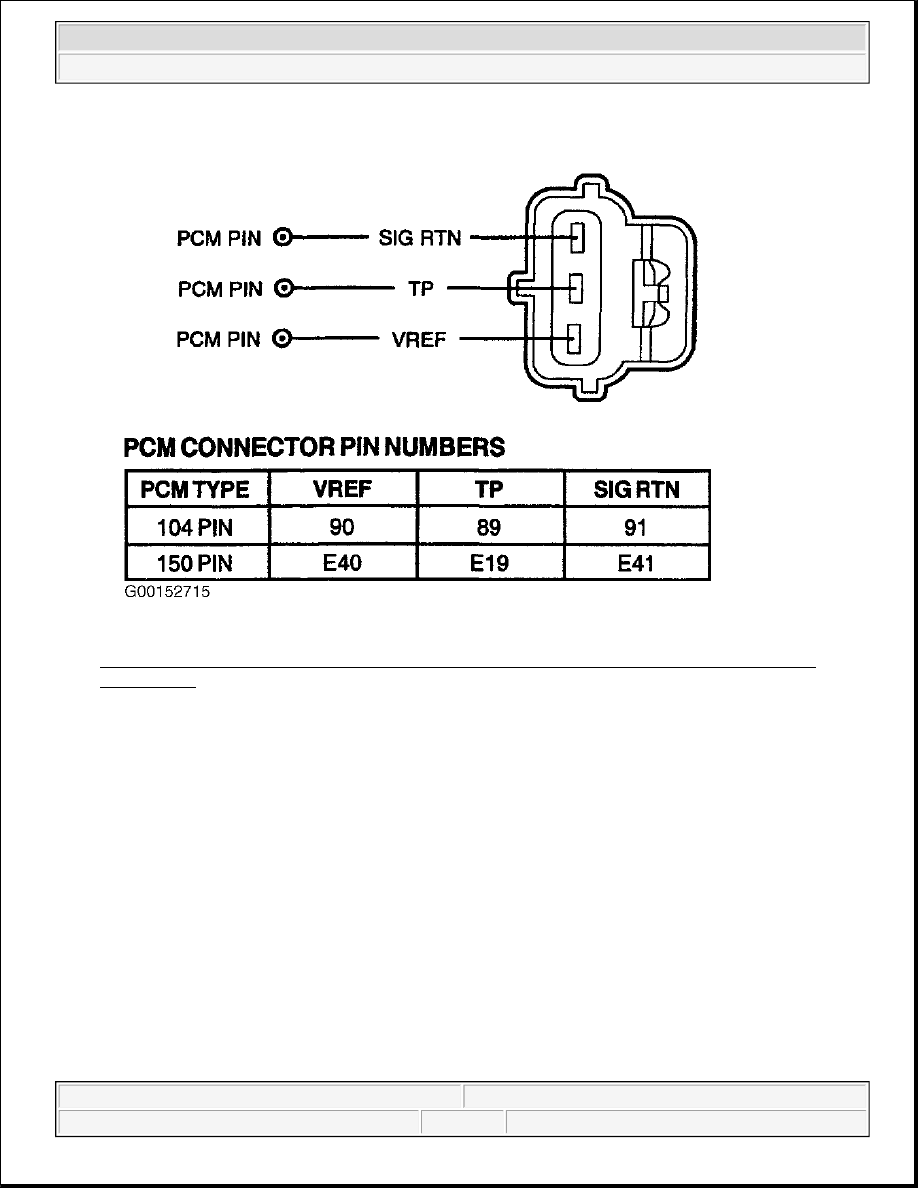

Fig. 166: Identifying TP Sensor Circuits & Connector Terminals - All Others
Courtesy of FORD MOTOR CO.

5) Check Flash EPROM (FEPS) Circuit For Short To Power

Using a DVOM, measure voltage between negative battery terminal and DLC terminal No. 13. See Fig.
1. If voltage is more than 9 volts, repair FEPS circuit for a short to VPWR. If voltage is 9 volts or less on
models with coil-on-plug, go to step 17). If voltage is 9 volts or less on all others, go to next step.

6) Check RPM PID In PCM
Turn ignition switch to OFF position. Using scan tool, access RPM PID from PID/DATA MONITOR &
RECORD menu. Observe RPM PID on scan tool while cranking engine. If RPM PID does not indicate
cranking speed, turn ignition switch to OFF position and go to TEST JD, step 1). If RPM PID value
indicates cranking speed, check secondary ignition components (ignition coils, spark plugs and wires).
See TEST JB, step 1). Repair as necessary. If secondary ignition on natural gas vehicles is okay, go to

NOTE:

Ensure scan tool is connected to a reliable power source with ignition
switch in START position, such as vehicle battery. Ensure vehicle battery
is fully charged.
